Vanquish: H10 Optic RTR
Vanquish: H10 Optic RTR - Yokohama is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Free shipping on orders over $99 within the continental US.
Ships from Livermore, CA. Ships the same day if order before 3PM PST Monday-Friday.
Orders ship once ALL items are available to ship. If you wish to have in-stock items ship sooner, please order them separately from pre-ordered items.

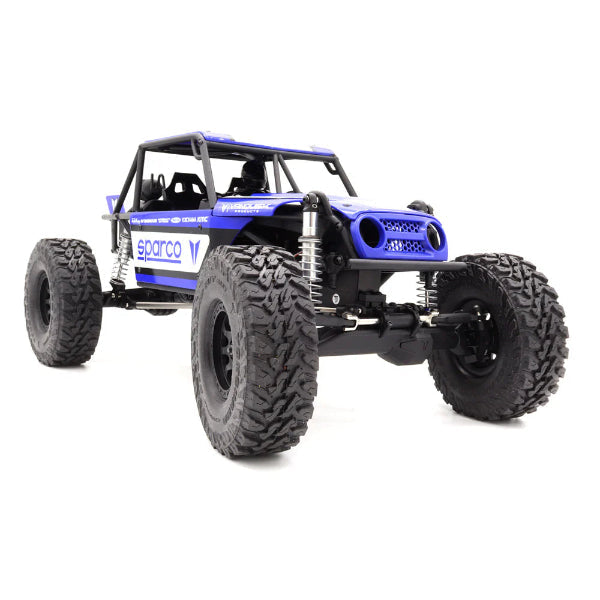

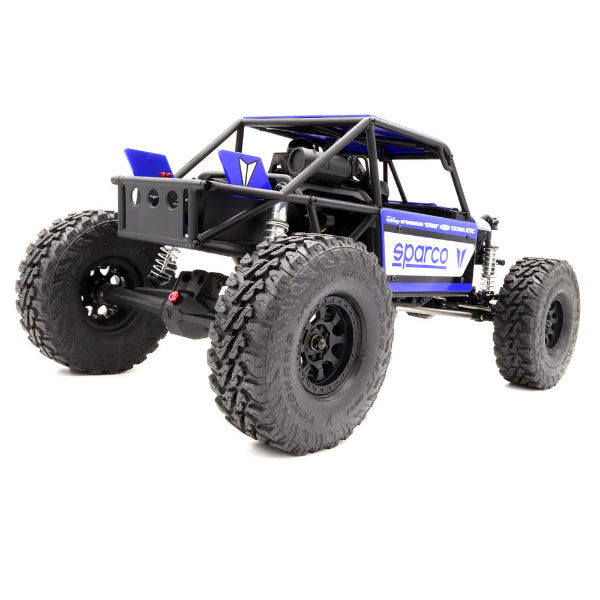

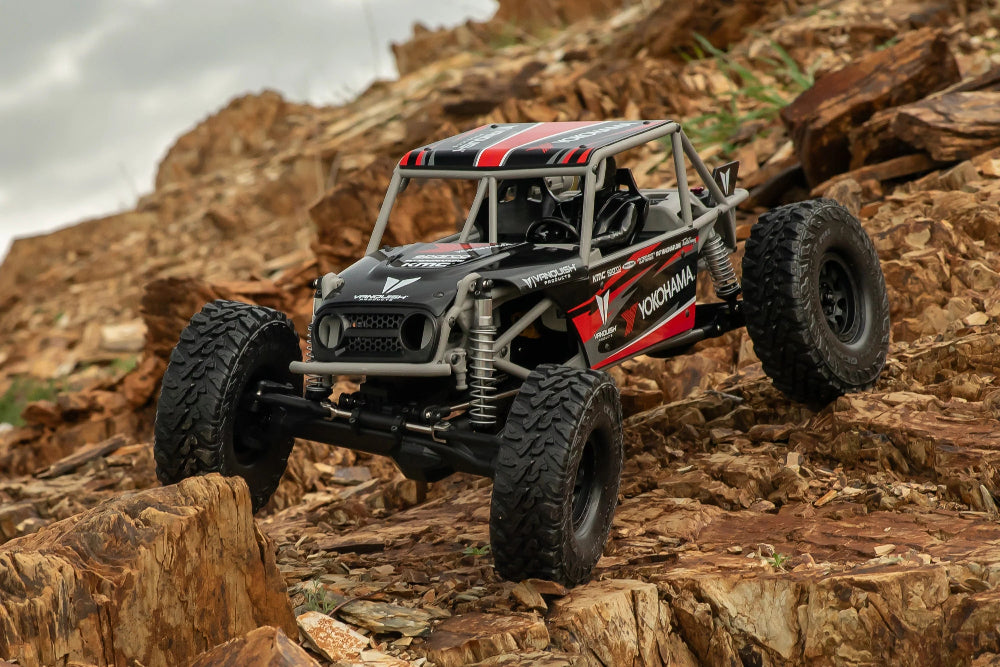

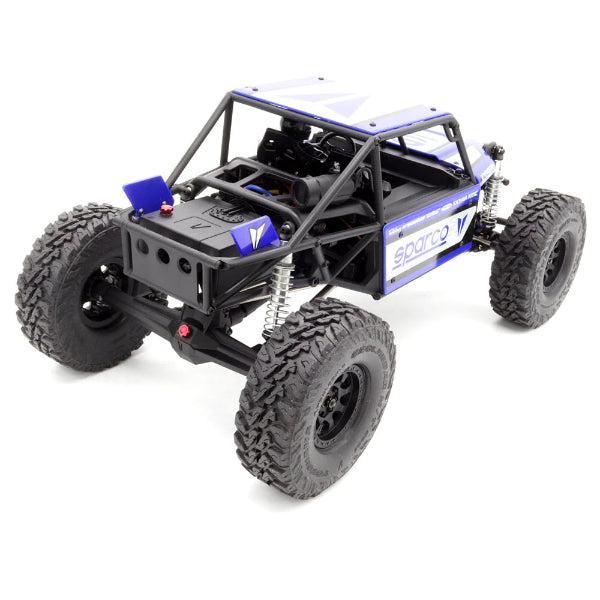

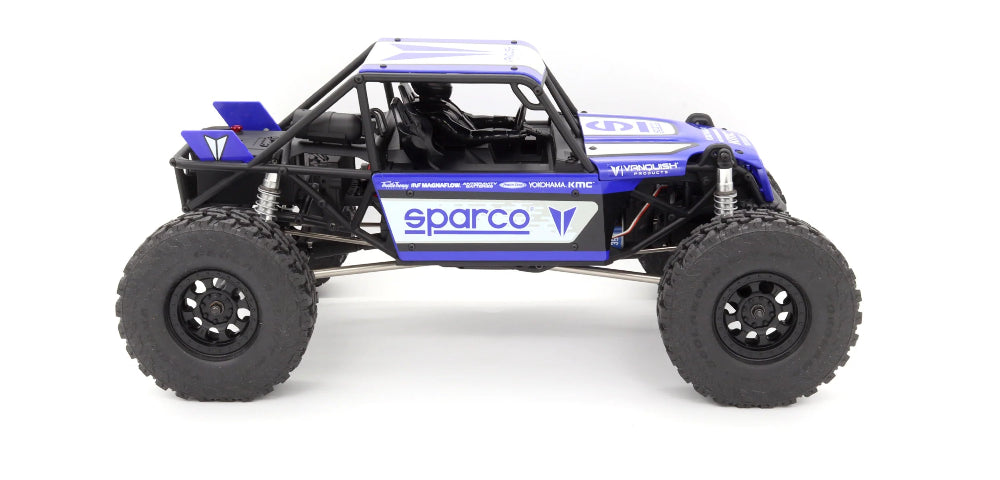

The Vanquish H10 Optic RTR combines scale realism with performance, featuring licensed body, portal axles, and trail-ready electronics.
Required To Run
- 2-3S LiPo Battery (XT60 Plug)
- Compatible battery charger for selected battery (XT60 Plug)
Features
- VT-1 Digital 4 Channel Transmitter with screen, memory, and switches for dig and overdrive control
- VE-1 Hobbywing 1060 ESC
- VM-1 35T Brushed Motor delivers smooth low-end torque and trail-ready speed
- VS-1 Metal Gear Servo offers 200 oz-in of torque with water-resistant durability
Specifications
- 1/10th Scale
- Geolandar M/T Red Compound 4.75” x 1.9” Tires
- Axle Ratio 3.75:1
- Pinion 15T 32P
- Spur 56T 32P
- Overall Width Hex to Hex - 206mm (8.11”)
- Wheelbase - 337mm (13.26”)
- Overall Height - 198mm (7.80”)
- Overall Front Ratio 41.3:1
- Overall Rear Ratio 44.0:1
- Final Overdrive 6%
- RTR Weight (without battery) 5.35lbs (2.43kg)
- Battery Compartment Size: 93mm x 36mm x 42mm
Motor Specifications
- Motor Name: VM-1 35T Brushed Motor
- Turns: 35T
- Motor Type: Brushed
- Motor Shaft Size: 3.175 mm (1/8")
- Designed Use: Trail and crawling – high torque with moderate speed
ESC Specifications
- ESC Name: VE-1 (Hobbywing 1060 ESC)
- ESC Type: Brushed electronic speed control
- Battery Compatibility: 2S–3S LiPo
- Water Resistance: Sealed design suitable for light water exposure
- Connector Type: XT60
What’s In The Box
- H10 Optic Sparco RTR
- VT-1 Digital 4 Channel Transmitter
- Manual
