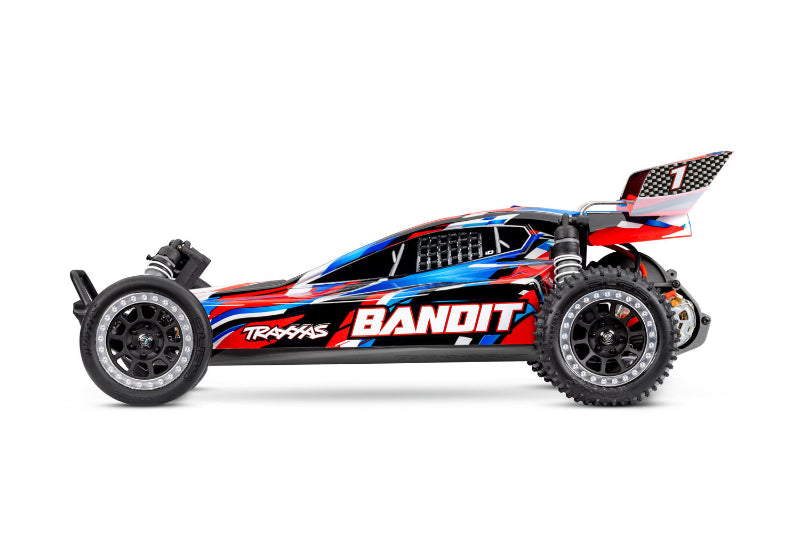

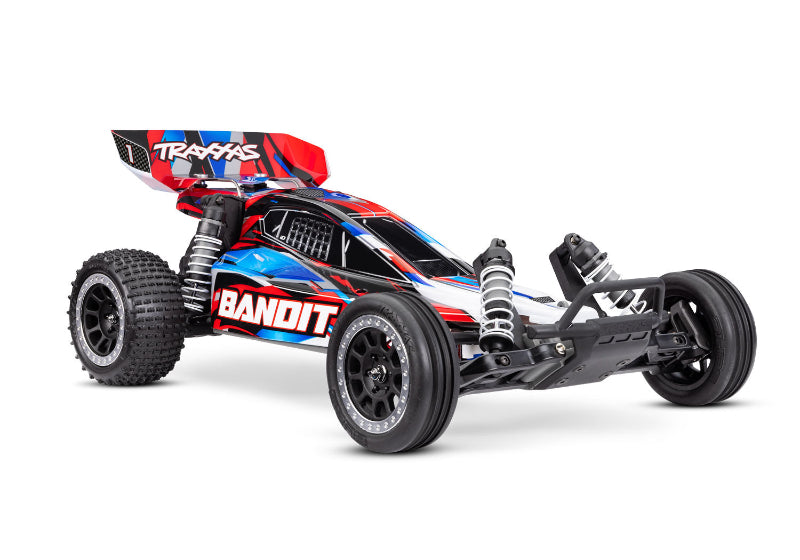

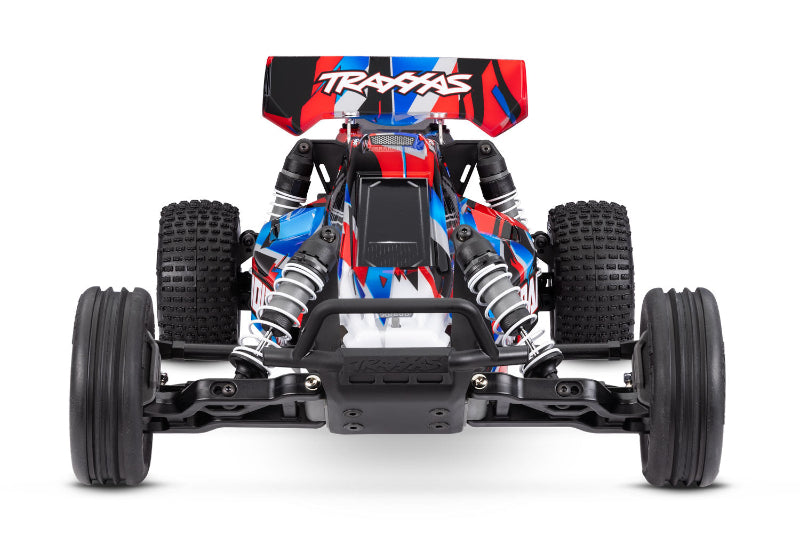

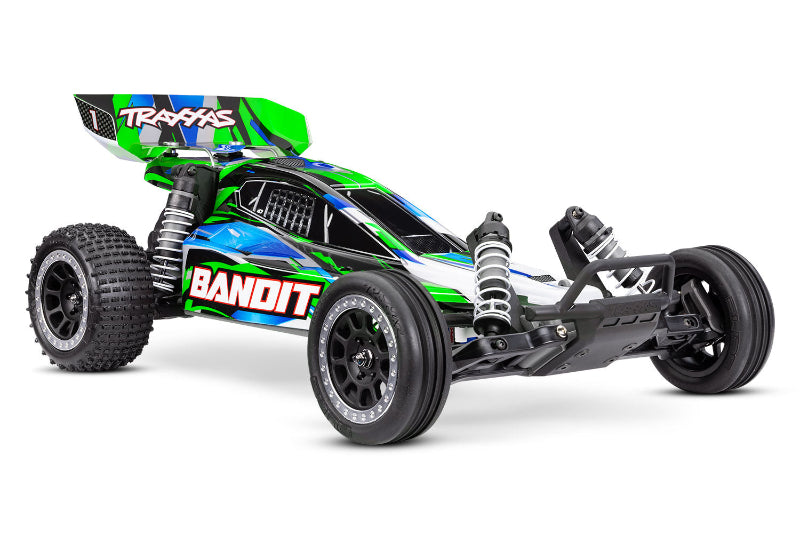

Traxxas: Bandit HD w/USB-C

The Traxxas Bandit is a 1/10 2WD buggy with a Titan 12T motor, XL-5 ESC, and speeds over 35 MPH. Includes battery, USB C charger, and TQ radio system.

Required to Run

• Four AA alkaline batteries for the transmitter.
• USB-C Power Adapter and USB-C Cable


Features

• 70+ mph with Optional Gearing and Two 3s LiPo
• VXL-6s Waterproof ESC and Velineon 2000 kV Brushless Motor
• Traxxas Stability Management
• TQi 2.4 GHz High Output Radio System
• Clipless Body

Specifications

• Model Speed: 35 plus mph with 7 cell battery
• Model Skill Level: 1
• Scale: 1/10
• Weight: 3 pounds (1.36 kg)
• Length: 16.25 inches (413 mm)
• Width: 9.84 inches (250 mm)
• Front Track: 9.84 inches (250 mm)
• Rear Track: 9.84 inches (250 mm)
• Height: 7 inches (178 mm)
• Wheelbase: 11.25 inches (286 mm)
• Drivetrain: 2WD
• Transmission: Magnum 272™
• Differential Type: Planetary steel gear
• Gear Ratio (Internal): 2.72 (final drive 12.34)
• Gear Pitch: 48 pitch
• Servo(s): 2056 high torque waterproof
• Radio System: TQ™ 2.4 GHz 2 channel radio
• Battery Compartment Specs: 164 mm X 46 mm X 26 mm

Motor Specifications

• Motor Name: Titan 12T 550
• Motor Type: High speed brushed motor
• Motor Weight: 8.47 ounces (240 g)
• Motor Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
• Motor Diameter: 1.41 inches (36 mm)
• Motor Shaft Size: 3 mm
• Motor Connector Type: Bullet

ESC Specifications

• ESC Name: Waterproof XL-5 ESC with low voltage detection
• ESC Type: Brushed
• ESC Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm)
• ESC Weight: 2.44 ounces (69 g)
• Motor Connectors: Bullet
• Battery Connectors: Traxxas High Current Connector
• ESC Power Wire: 14 gauge

What's in the box

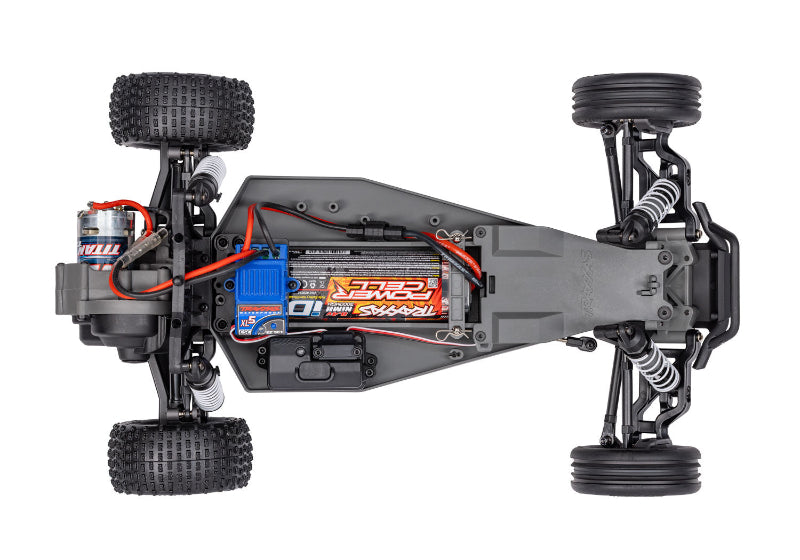

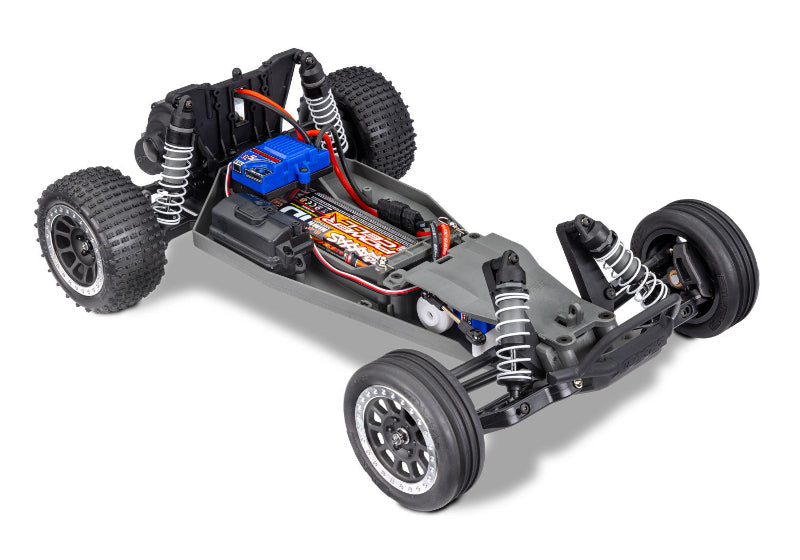

• Traxxas Bandit 1/10 RTR 2WD Buggy
• Titan 12T 550 brushed motor (installed)
• XL-5 waterproof ESC (installed)
• TQ 2.4 GHz radio transmitter
• 8.4V 7-cell 3000 mAh NiMH battery
• 4-amp USB-C fast charger
• User manual
