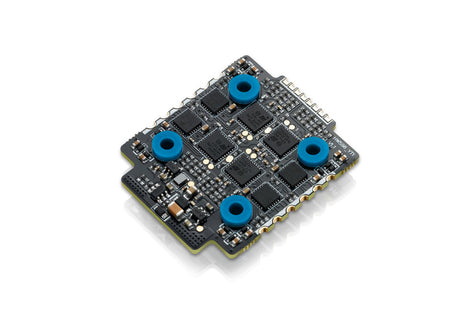

XRotor Micro 40A 4in1 ESC features 32bit MCU and 3rd-generation BLHeli-32 firmware, handles 6S up to 40A per channel. The built-in voltameter module which allows FC to monitor the battery volt & amp in real time. With this 20x20 ESC makes your electronic stack smaller and be able to shave some grams.

Specifications

Cont./Peak Current: 40Ax4/ 60Ax4
Input Voltage: 3-6S Lipo
BEC output: No

Wires and Connectors

Input Wires: Red-14AWG-100mm/ Black-14AWG-100mm
Output Wires: No wires but solder tabs
Input Connectors: XT60 plug enclosed with package.
Output Connectors: No

(Note: All the wire length above is the original length not the length you see from the outside.)

Features

Firmware: Hobbywing_XRotor_BLHeli-32 Version
ESC Programming: BLHeliSuite32
Stick Programming supported
DEO supported
Throttle Range Calibration supported
Oneshot125 Mode supported
Oneshot42 Mode supported
MultiShot Mode supported
DShot150/300/600/1200 supported
Timing supported
Motor Rotation supported

Size & Weight

Size: 40x33x5mm
Weight: 12g

Note: If you have any issues with this product, Hobbywing supports the product directly via there support website https://www.hobbywingdirect.com/pages/rma

Manual: https://www.hobbywing.com/products/enpdf/XRotorMicro40A20x20.pdf
