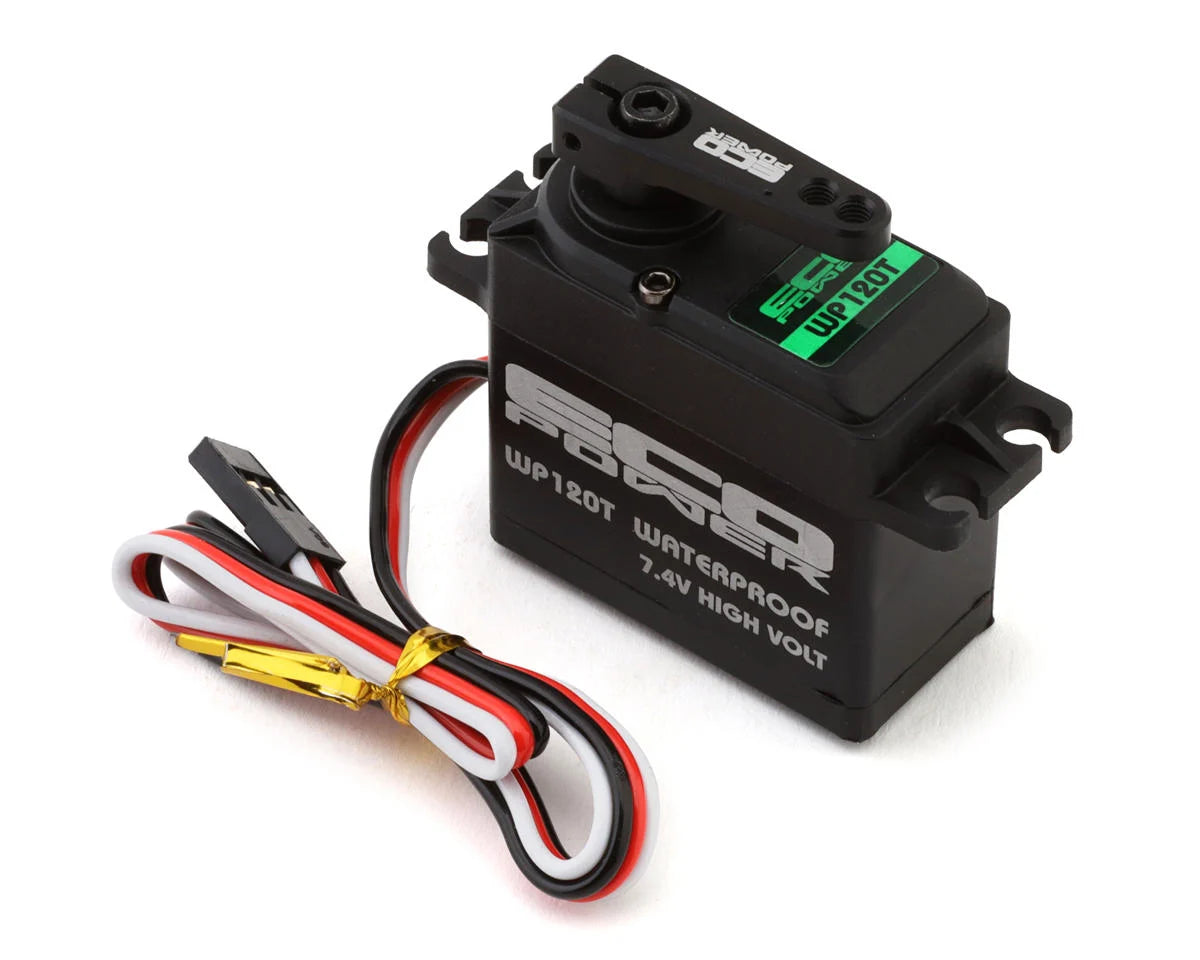

EcoPower: WP120T Waterproof High Torque Metal Gear Servo for 1/10

EcoPower WP120T waterproof coreless servo delivers 400 oz-in torque, metal gears, and high voltage performance for 1/10 RC trucks, buggies, crawlers, and boats.

Features

• One aluminum clamping servo horn included

• Waterproof up to 1 meter
• 337 oz-in torque and 0.11 sec transit speed @ 6.0V
• 400 oz-in torque and 0.09 sec transit speed @ 7.4V
• Digital circuitry, Coreless motor and Full metal gears
• Lightweight plastic upper and lower case with black anodized aluminum center case
• Dual ball bearings and 220mm servo lead

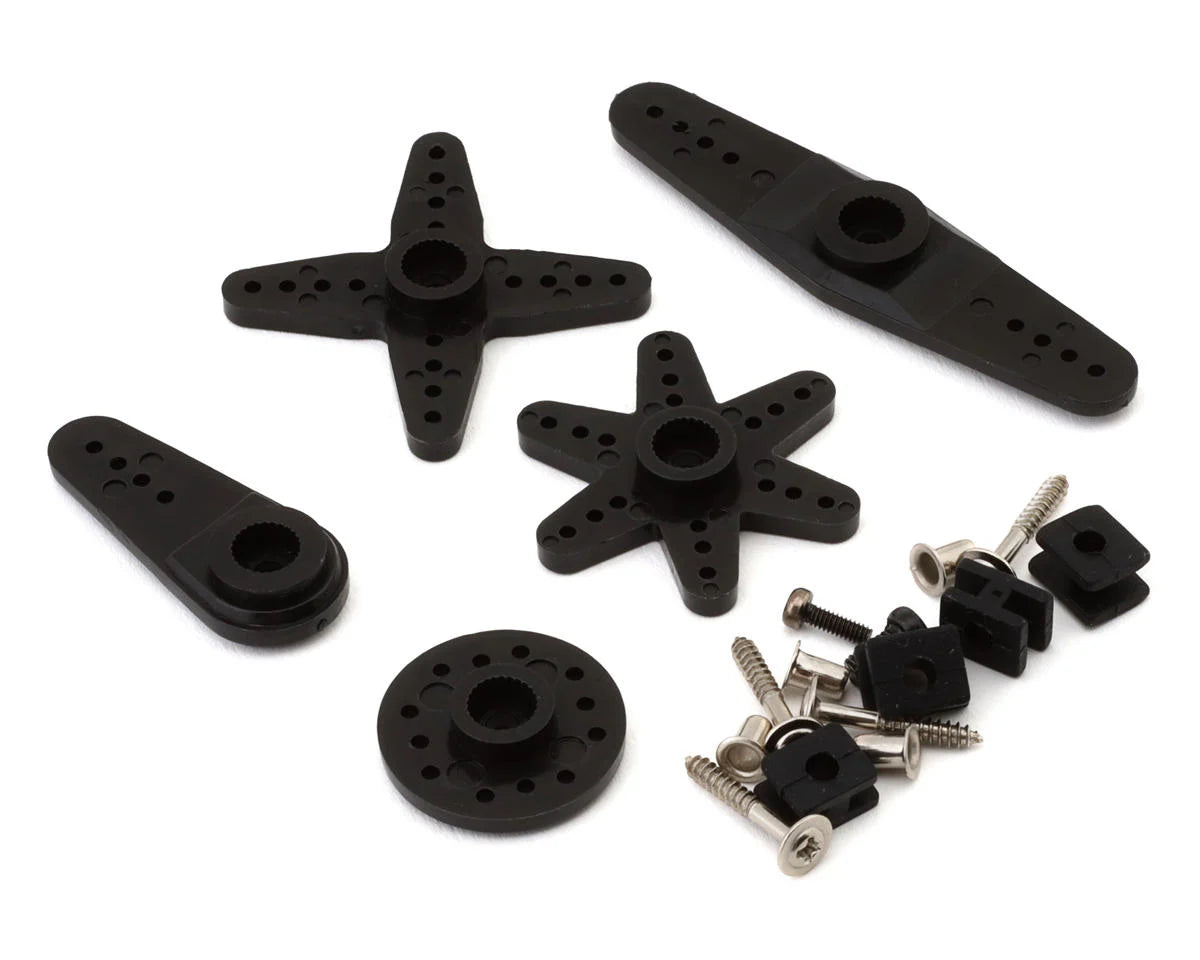

• Includes plastic star, 4-way, dual, single, and round type servo horns with mounting hardware
• 1-year warranty against manufacturer defects *Warranty does not cover stripped gears or damage from abuse

Specifications

• Servo Model: WP120T
• Recommended Application: 1/10 Scale Surface
• Waterproof: Yes
• Operating Voltage: 4.8-7.4V
• Operating Temperature: 14° to 140°F (-10° to +60°C)
• Operating Speed @ 6.0V: 0.11 sec/60°
• Operating Speed @ 7.4V: 0.09 sec/60°
• Dynamic Torque @ 6.0V: 337 oz-in (24.4 kg-cm)
• Dynamic Torque @ 7.4V: 400 oz-in (28.8 kg-cm)
• Motor Type: Coreless
• Output Shaft: 25 Tooth
• Gears: Full Metal
• Weight: 53g
• Pulse/Frequency: 1520µs / 333Hz
