Vanquish: VS4-10 Builders Kit with Portal Axles
Vanquish: VS4-10 Builders Kit with Portal Axles is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Free shipping on orders over $99 within the continental US.
Ships from Livermore, CA. Ships the same day if order before 3PM PST Monday-Friday.
Orders ship once ALL items are available to ship. If you wish to have in-stock items ship sooner, please order them separately from pre-ordered items.

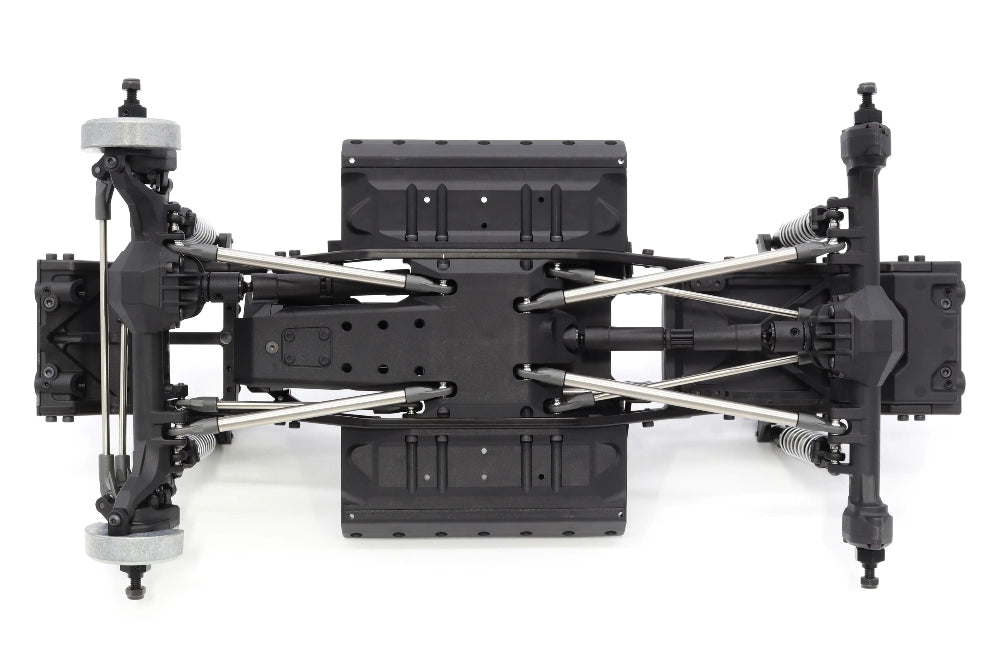

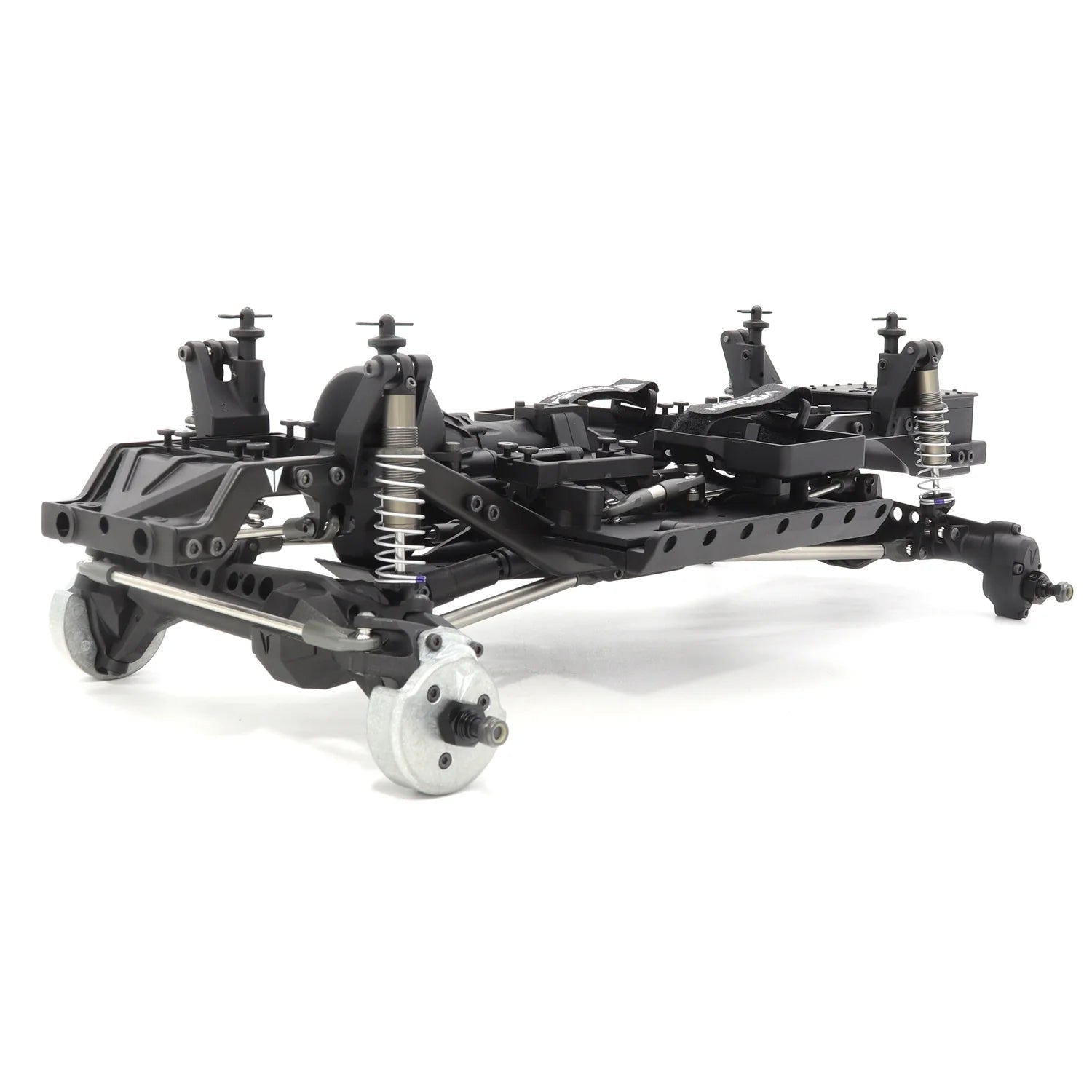

The VS4-10 Builders Kit with portal axles offers premium performance and scale detail, featuring a VFD transmission, F10 axles, and steel C-channel chassis.
Required To Run
- Assembly of kit
- 540 Sized Motor, ESC, Servo
- Transmitter and compatible receiver
- Battery and charger
- Body and Paint
- 1.9 Tires and Wheels
- Tools
Features
- F10 portal axles offer high clearance, 49° steering, and brass inserts for strength
- VFD Twin transmission with selectable 6.5% or 46% overdrive and 3-position dig
- Incision S8E 80mm shocks with aluminum bodies and dual X-ring seals
- Steel C-channel chassis with molded crossmembers and integrated mounts
- ISD10 driveshafts with CV-style joints for smooth articulation
- Brass axle tube inserts and knuckle weights improve traction and balance
- Includes shock oil, grease, threadlock, and build tools for easy assembly
Specifications
- 5.25:1 Axle Gear Ratio
- 15T Pinion
- 52T Spur Gear
- Overall Width Hex to Hex - 200mm (7.87”)
- Wheelbase: 313mm (12.3")
- Overall Front Ratio (Standard 6.5% OD): 53.7:1
- Overall Front Ratio (High 46% OD): 35.8:1
- Overall Rear Ratio: 57.2:1
What’s In The Box
- VS4-10 Builders Kit with Portal Axles
- Manual
