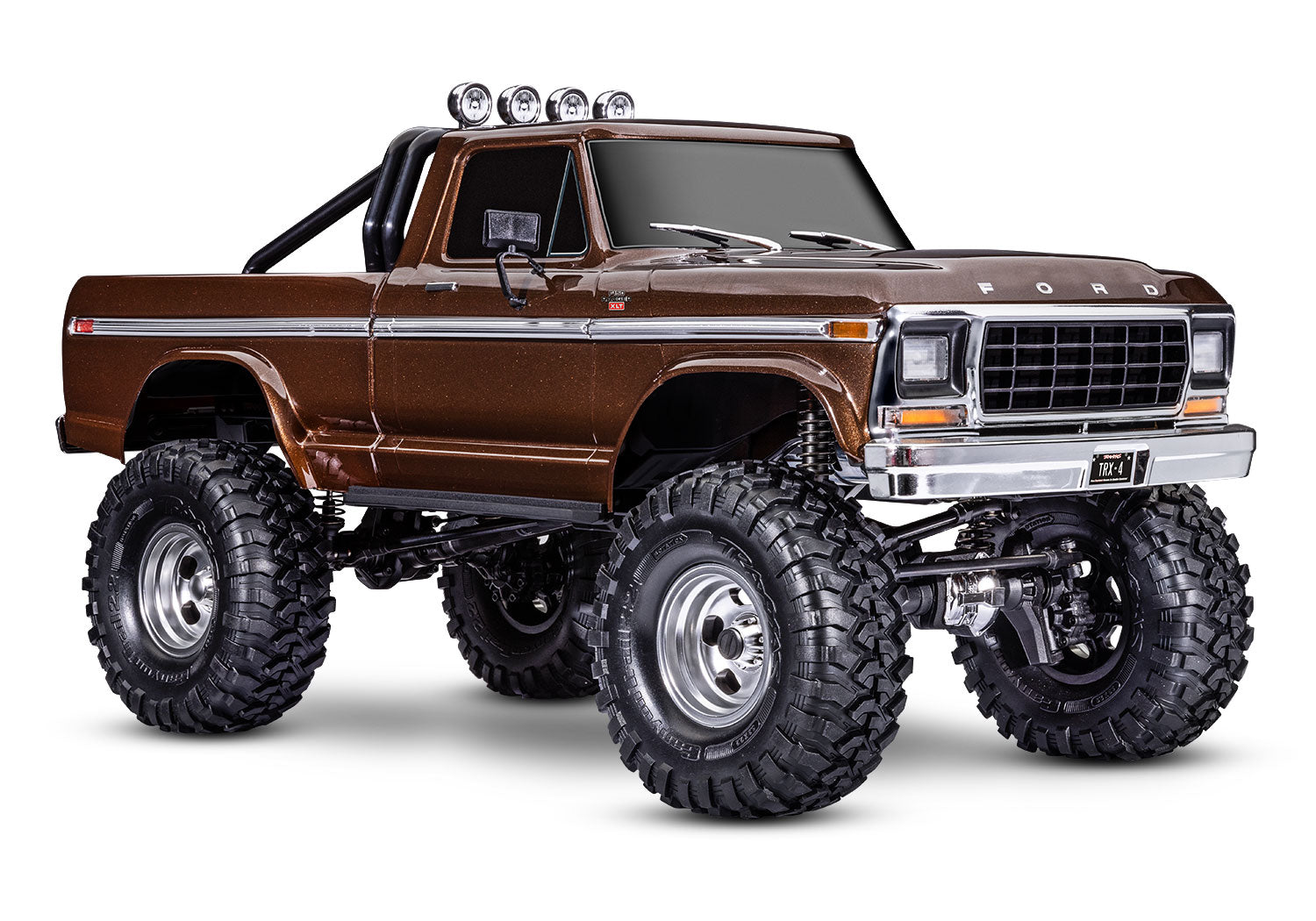

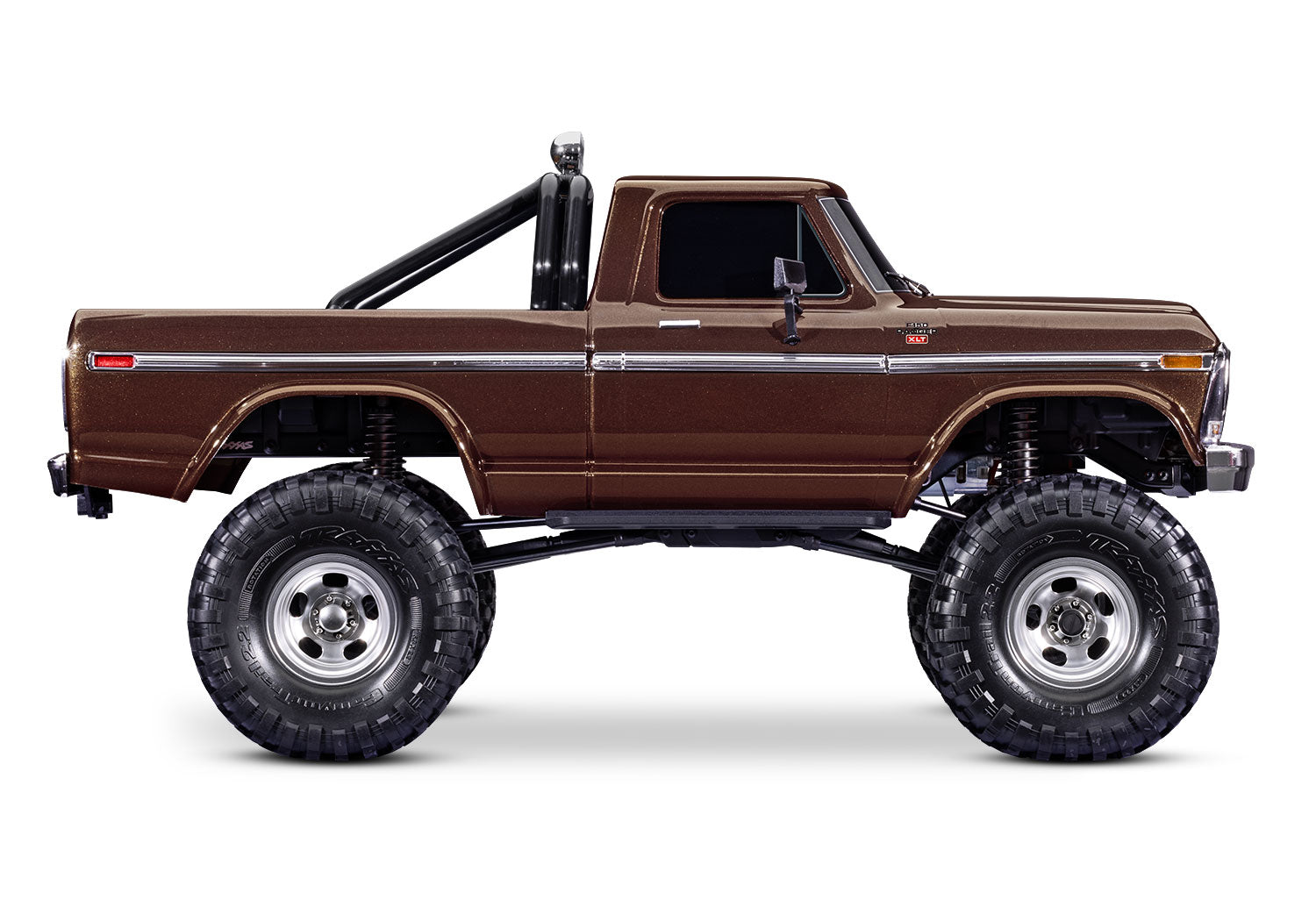

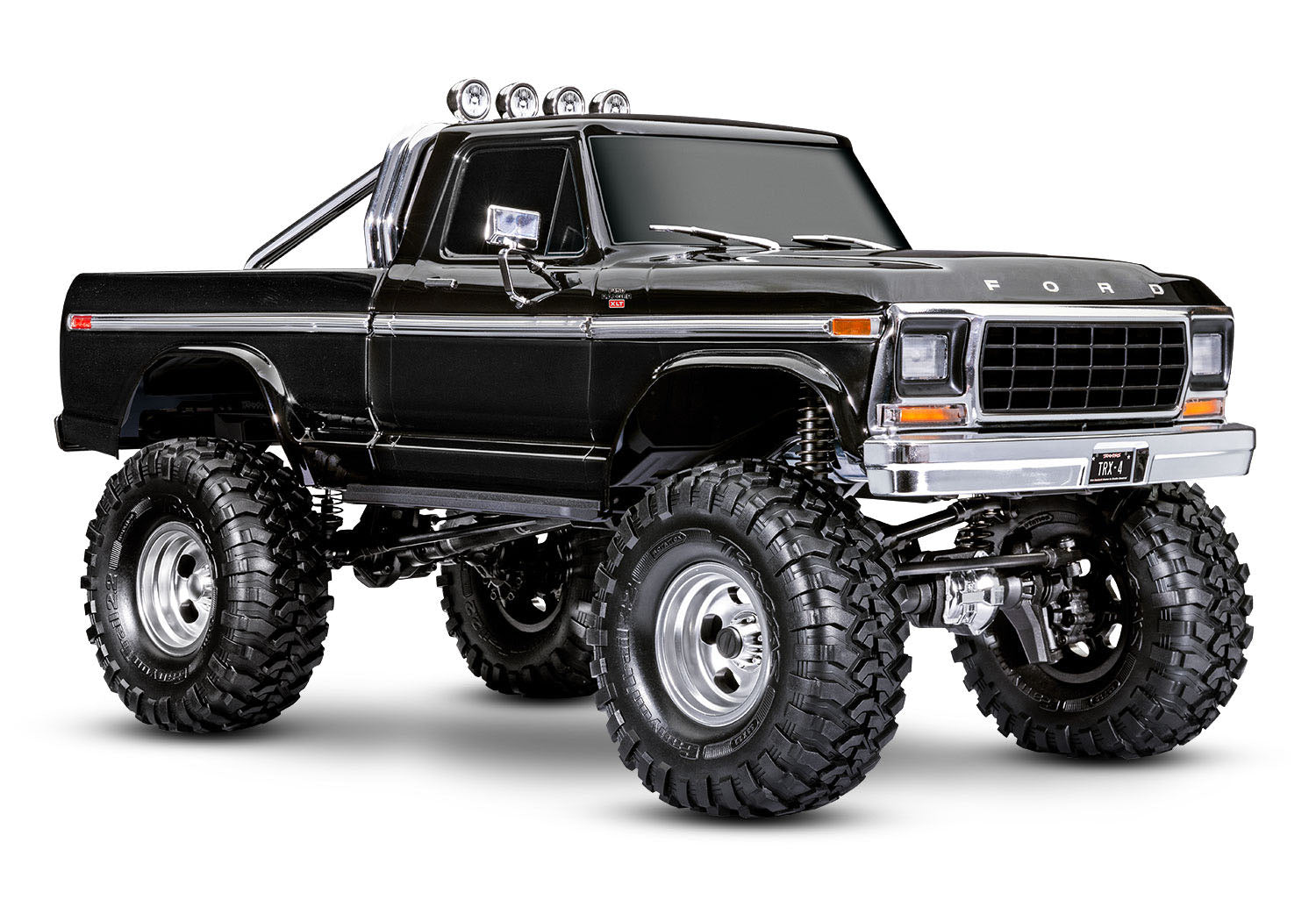

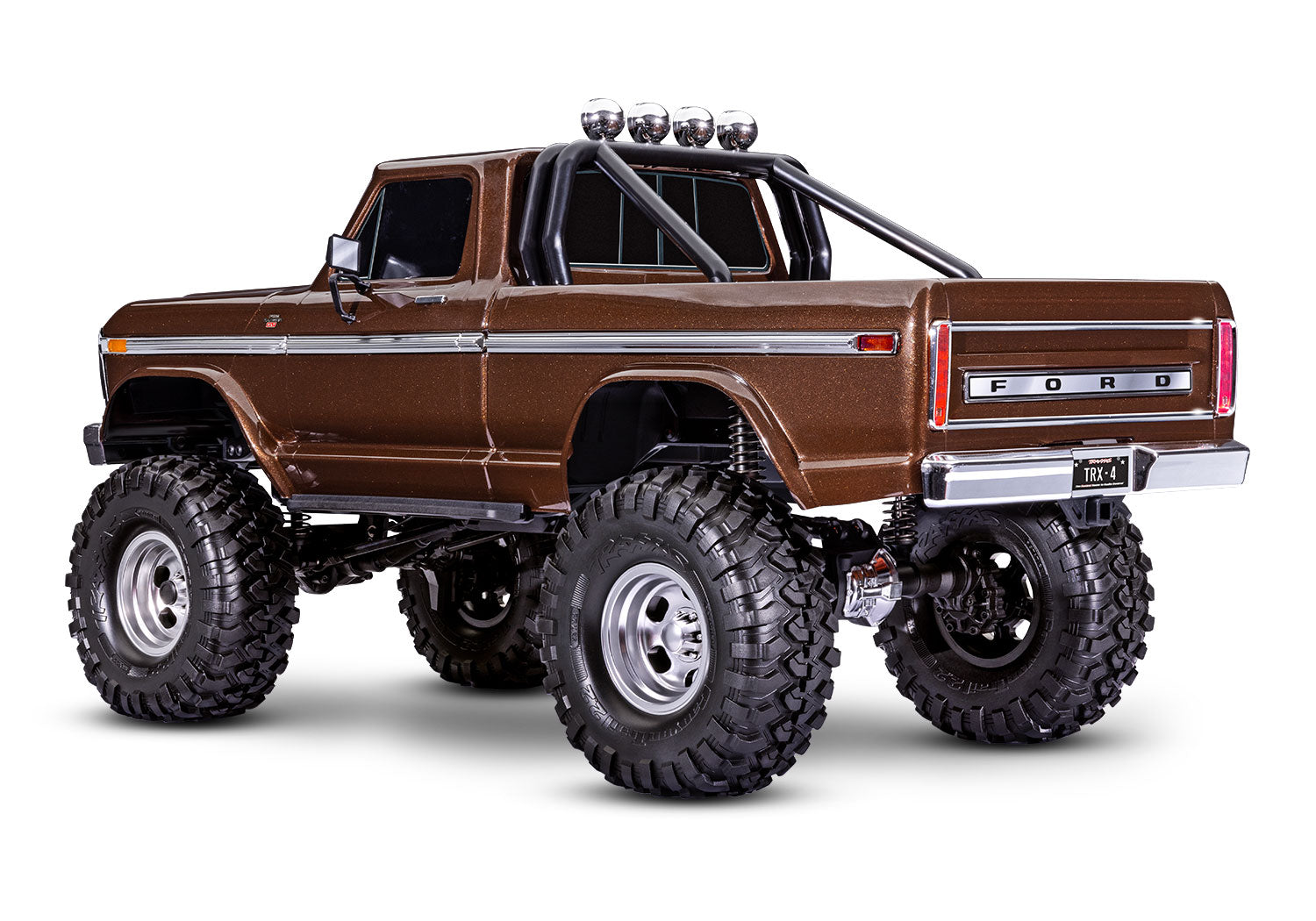

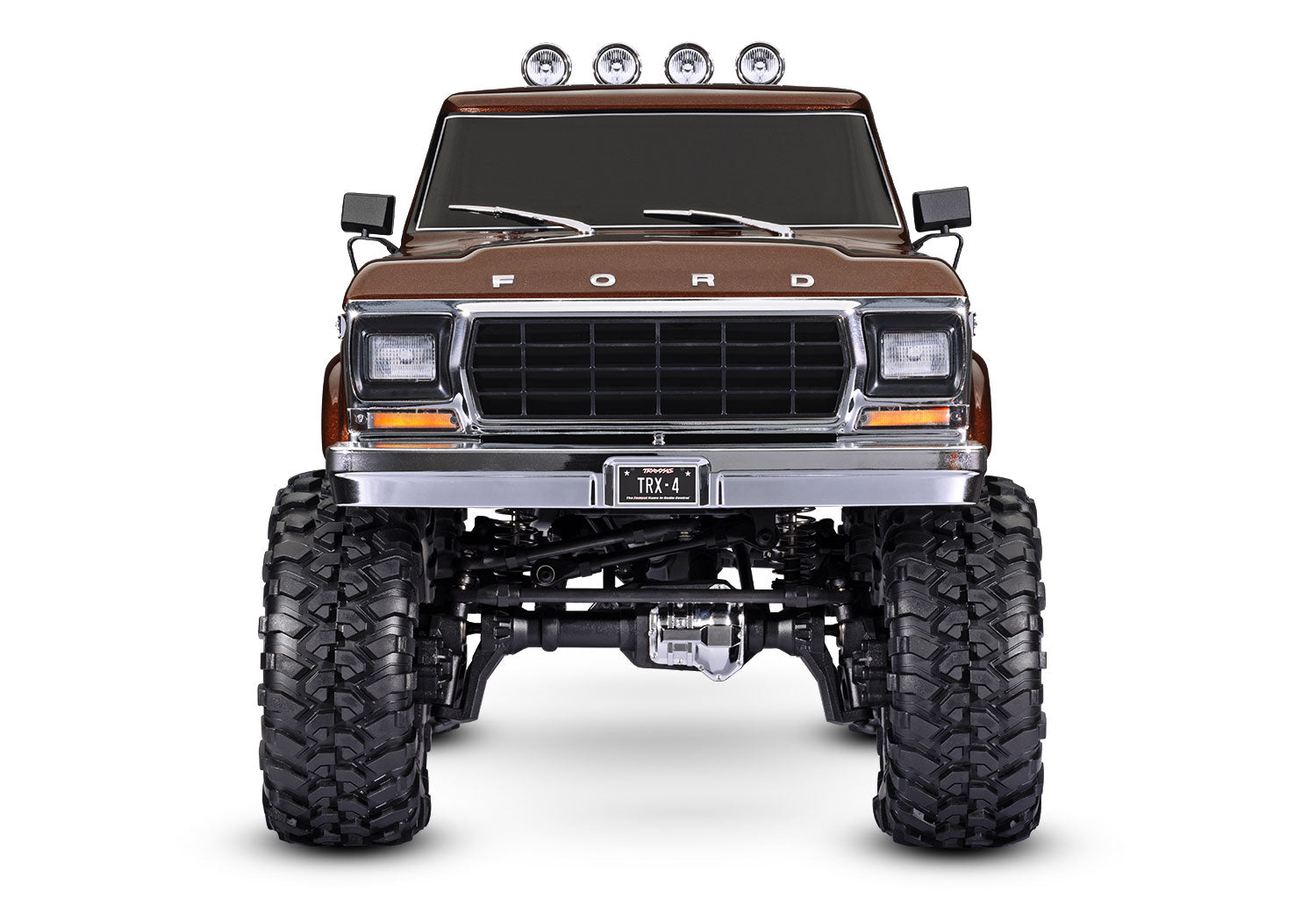

Traxxas: TRX-4 Ford F-150 High Trail Edition

Lifted and trail-ready, this High Trail Edition delivers big performance in a compact 1/18 scale with bold styling, extended ground clearance, and extreme off-road capability.

Required to Run

• 2-3s LiPo or 6-7 cell NiMH with compatible charger.
• Four AA alkaline batteries for the transmitter.

Features

• Officially Licensed 1979 Ford® F-150® Ranger XLT Body
• Clipless Body mounting
• Factory-Installed Long Arm Lift Kit
• Portal Axles
• Extended Wheelbase

Specifications

• Type: Trail/Crawler
• Skill Level: 1

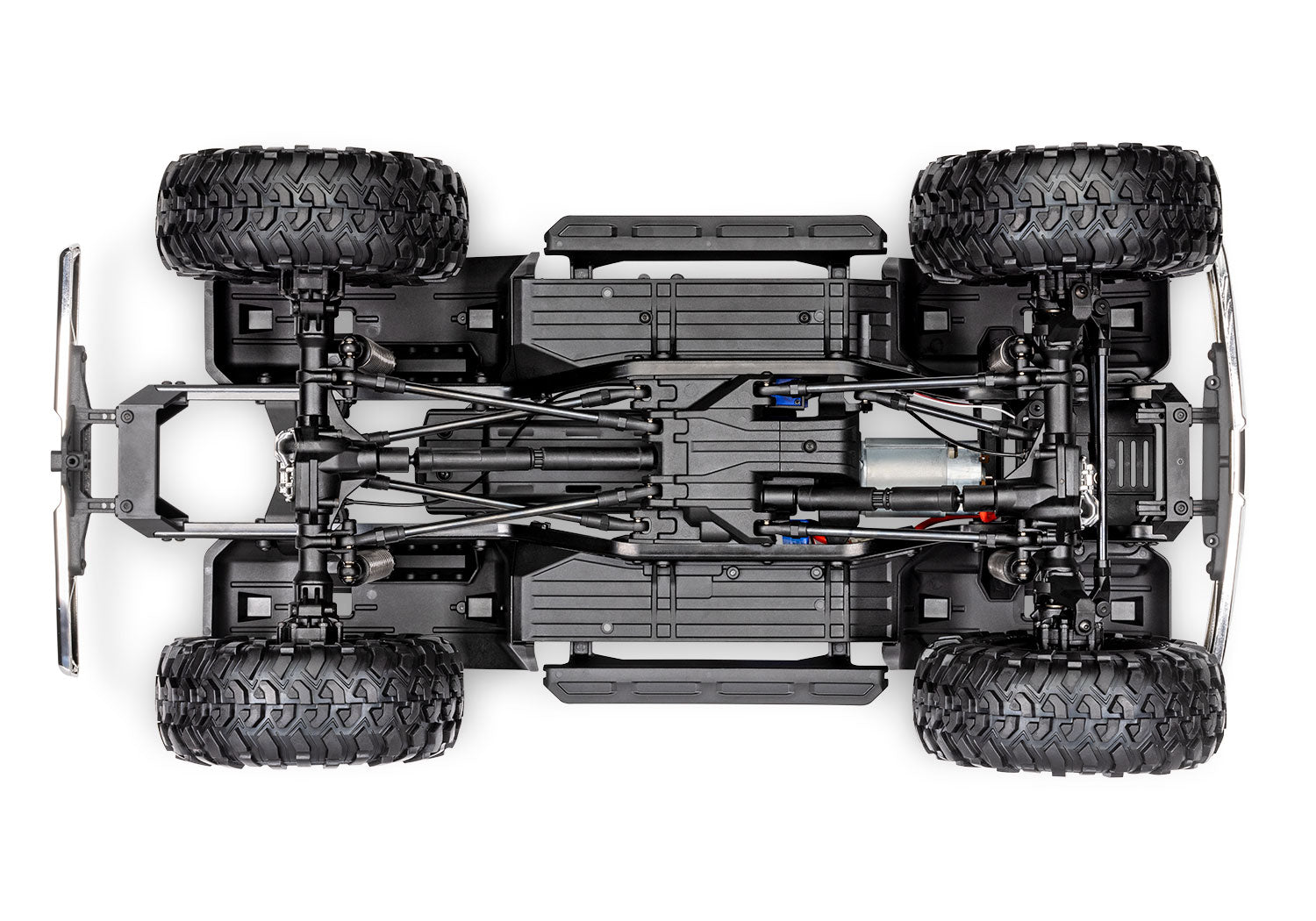

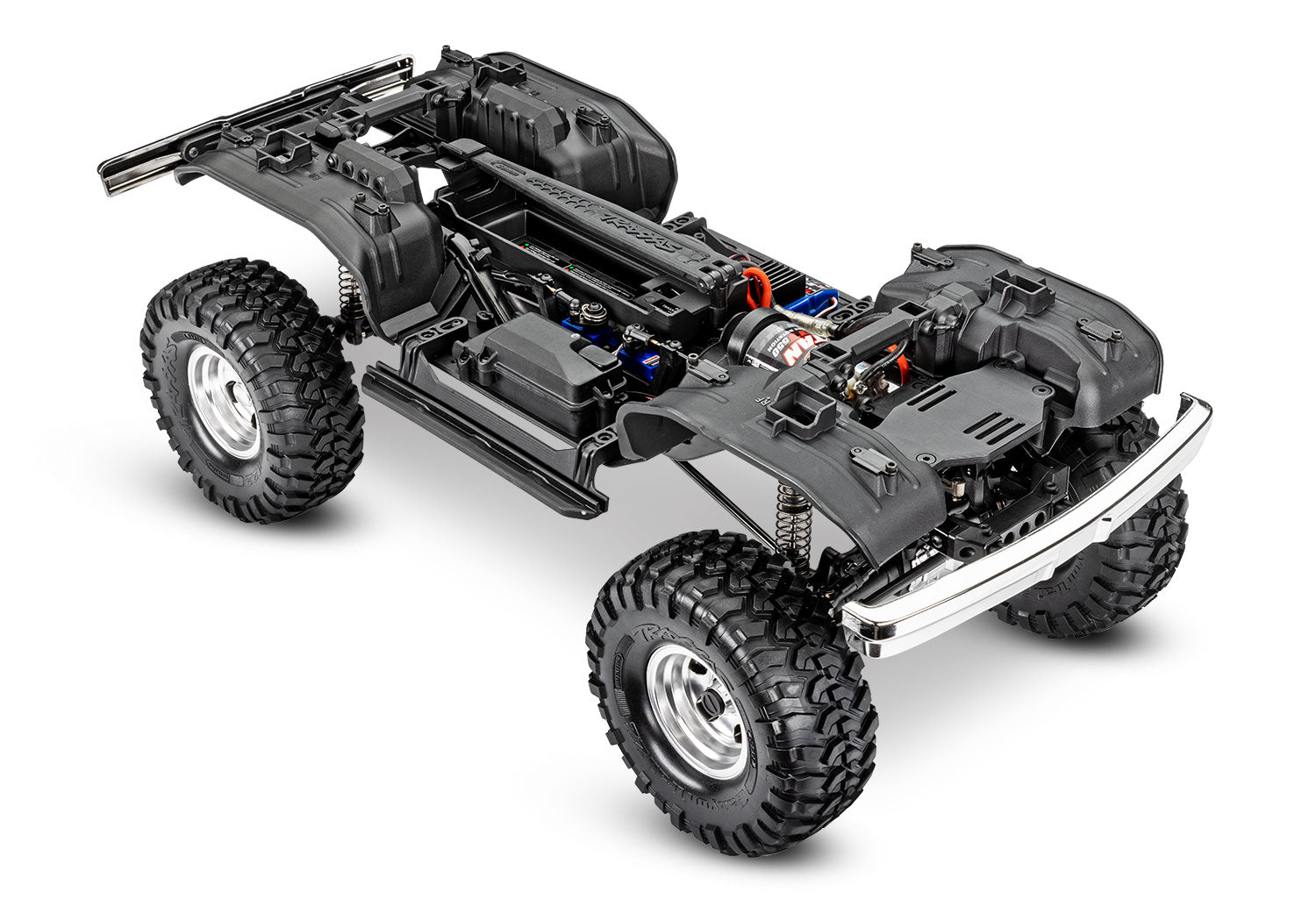

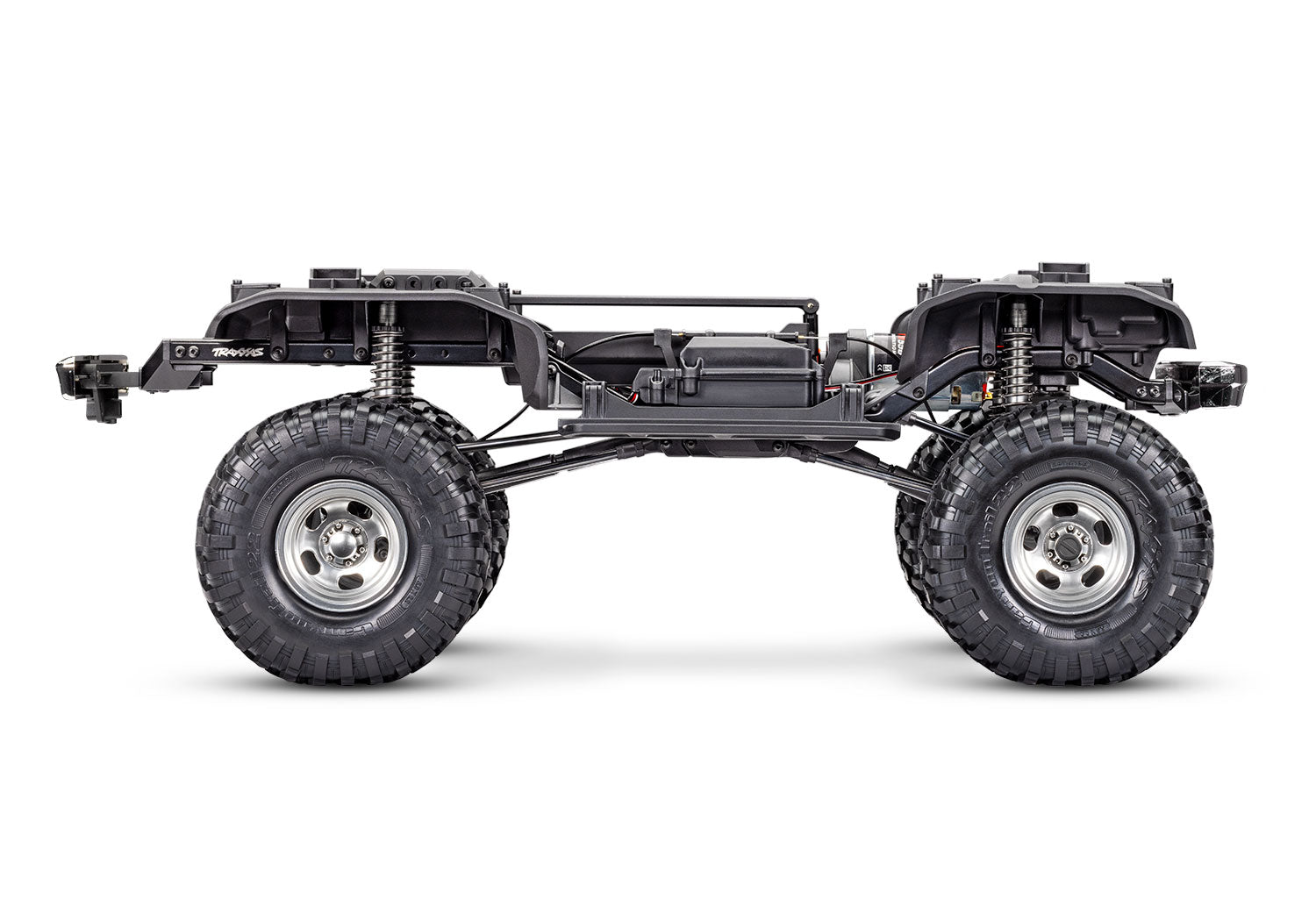

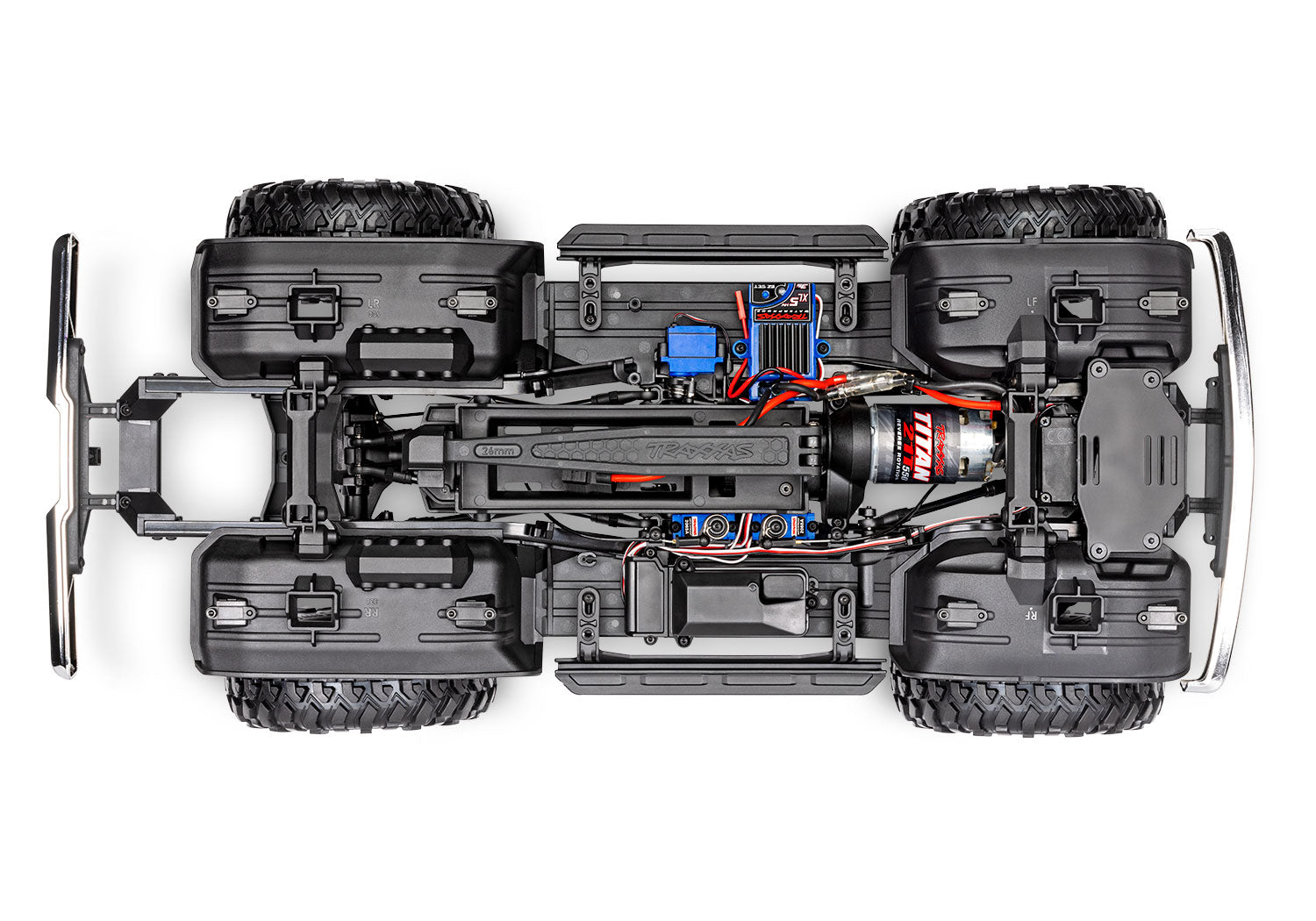

• Chassis: Extended steel ladder frame
• Scale: 1/10
• Weight: 7.34 lb (3.33 kg)
• Dimensions: 22.30x10.60x10.82 inches (566x270x275 mm)
• Wheelbase: 13.23 inches (336 mm)
• Track Width (Front & Rear): 10.60 inches (270 mm)
• Ground Clearance: 4 inches (99 mm)
• Driveline: Shaft-driven 4WD
• Transmission: 2-speed high/low with remote shifting
• Differentials: 4-gear, remote locking
• Gear Pitch: 32 pitch
• Steering Servo: 2075X metal gear, digital, high-torque, waterproof
• Radio System: TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver
• Battery Compartment: 159x47x23 mm, max height 26 mm

Motor Specifications

• Name: Titan® 550 21T reverse rotation
• Motor Type: High-torque brushed motor
• Weight: 390 g (13.76 oz)
• Motor Dimensions: 3.071 inch overall, 2.25 inch can (78 mm overall, 57 mm can)
• Diameter: 1.532 inch (39 mm)
• Shaft Size: 3 mm
• Connector Type: Bullet

ESC Specifications

• Name: XL-5 HV
• ESC Type: Brushed
• Case Size: 1.23x2.18x1.04 inches (31x55x26 mm)
• Weight: 2.6 ounces (74 g)
• Motor Connectors: Bullet
• Battery Connectors: Traxxas High-Current Connector
• Power Wire: 14 gauge

What's in the box

• TRX-4 Ready-to-Explore trail truck
• XL-5 HV waterproof electronic speed control
• Titan 21T reverse rotation motor
• TQi 2.4 GHz radio system with cruise control
• High-quality maintenance tools
