Traxxas: TRX-4 Crawler Kit Clipless

Build your own adventure with the Traxxas TRX-4 Crawler Kit Clipless. Customize performance and tackle tough trails with ease—clipless body for quick, secure access.Req

Required to Run

• Battery and compatible charger
• Four AA alkaline batteries for the transmitter.

Features

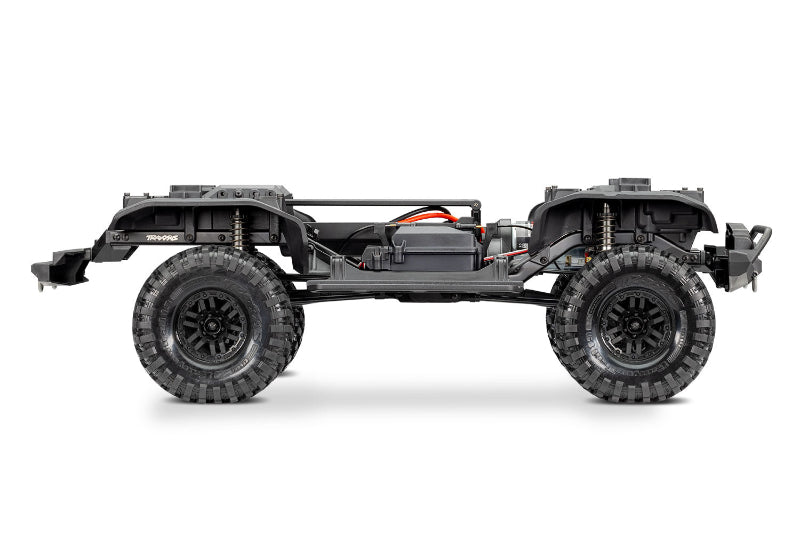

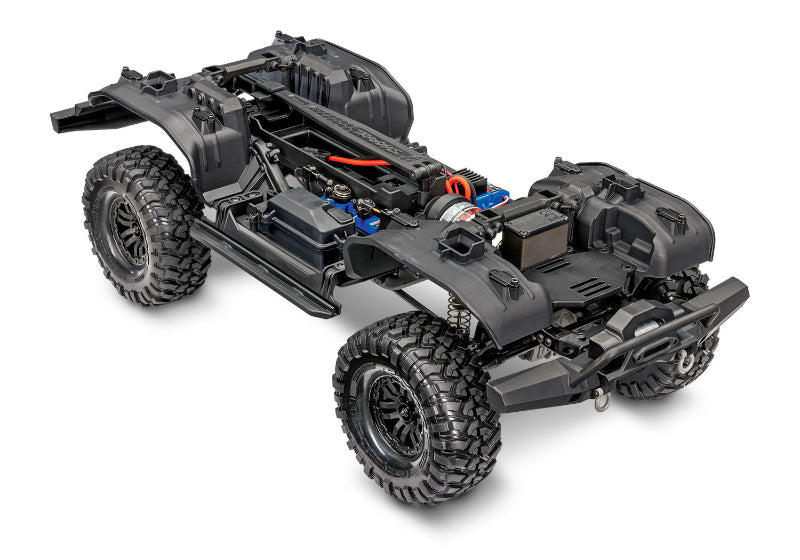

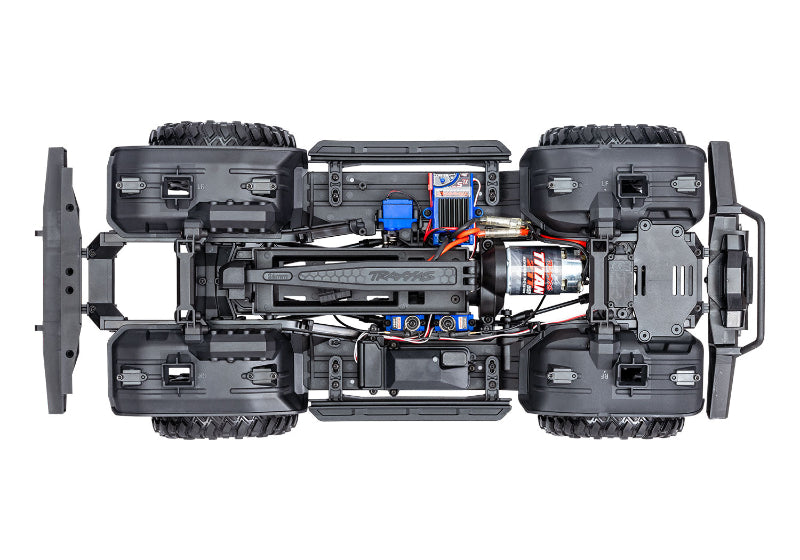

• Unassembled TRX-4 Chassis Kit with Full-Color Assembly Manual

• Waterproof XL-5™ HV ESC with High Torque Titan® 550 Motor

• TQi™ 2.4 GHz 4-Channel Radio System with 4 Servos

• Remote-Locking Front and Rear Differentials with Portal Axles

• Remote-Shifting High/Low 2-Speed Transmission

Specifications

• Length: 20.57 inches (523 mm)

• Front Track: 9.78 inches (249 mm)

• Rear Track: 9.78 inches (249 mm)

• Ground Clearance: 3.14 inches (80 mm)

• Weight: 102.72 ounces (2.91 kg)

• Height: 10.47 inches (266 mm)

• Wheelbase: 12.28 inches (312 mm)

• Shock Length (front): 3.54 inches (90 mm)

• Shock Length (rear): 3.54 inches (90 mm)

• Approach Angle: 63.82°

• Departure Angle: 43.22°

• Breakover Angle: 59°

• Front Wheels: 1.9 x 1.02 inches (49 x 26 mm)

• Rear Wheels: 1.9 x 1.02 inches (49 x 26 mm)

• Front Tires: 4.64 x 1.89 inches (118 x 48 mm)

• Rear Tires: 4.64 x 1.89 inches (118 x 48 mm)

• Wheel Hex: 12 mm

• Speed Control: XL-5™ HV ESC

• Motor (electric): Titan® 21T reverse rotation

• Differential Type: 4 gear, remote locking

• Transmission: 2-speed High/Low, remote shifting

• Gear Pitch: 32

• Chassis Structure/Material: Steel ladder frame with Nylon composite cross members

• Brake Type: Electronic “Hill Hold”

• Drive System: Shaft-driven 4WD

• Steering: Chassis mounted 2075X metal gear servo

• Radio System: TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver

• Skill Level: 2

• Battery Tray (L/W/H): 159 mm (6.26″) x 47 mm (1.85″) x 23/26 mm (0.91″/1.02″)

Motor Specifications

• Type: High-torque brushed motor

• Size: 550

• Weight: 13.76 ounces (390 g)

• Length: 3.071″ (78 mm) overall length, 2.25″ (57 mm) can length, 1.532″ (39 mm diameter)

• Turns: 21T reverse rotation

• Voltage: 16.8 volts

ESC Specifications

• Input Voltage: 6–7 Cells NiMH, 2–3s LiPo

• Case Size: 1.23″ W x 2.18″ D x 1.04″ H

• Weight: 2.6 ounces (74 g)

• Motor Limit: 21-turns (550 size)

• On Resistance Forward: 0.004 ohms

• On Resistance Reverse: 0.004 ohms

• Peak Current - Forward: 100 amps

• Peak Current - Reverse: 100 amps

• Braking Current: 60 amps

• Continuous Current: 18 amps

• BEC Voltage: 6.0 volts

• BEC Current: 1 amp

• Power Wire: 14 gauge / 5″

• Input Harness Wire: 26 gauge / 14.5″

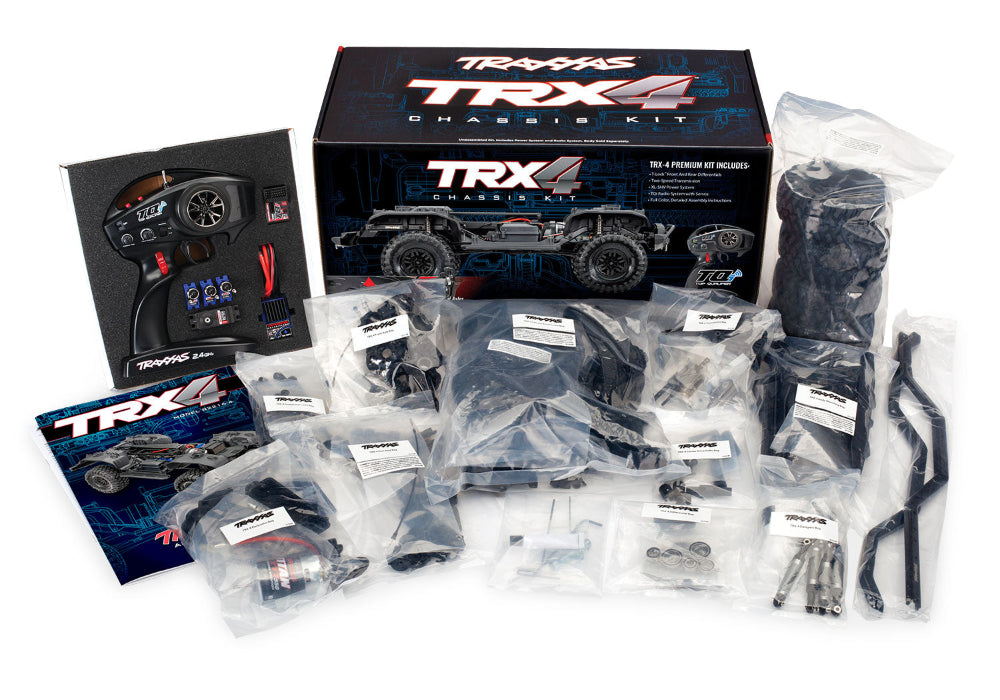

What's in the box

• Unassembled TRX-4 Chassis Kit,
• TQi 2.4 GHz 4-Channel radio system with Servos
• XL-5 HV electronic speed control, and Titan 21T 550 motor.
• Full Color, Detailed Assembly Instructions
