Traxxas: TRX-4 Chevrolet K10

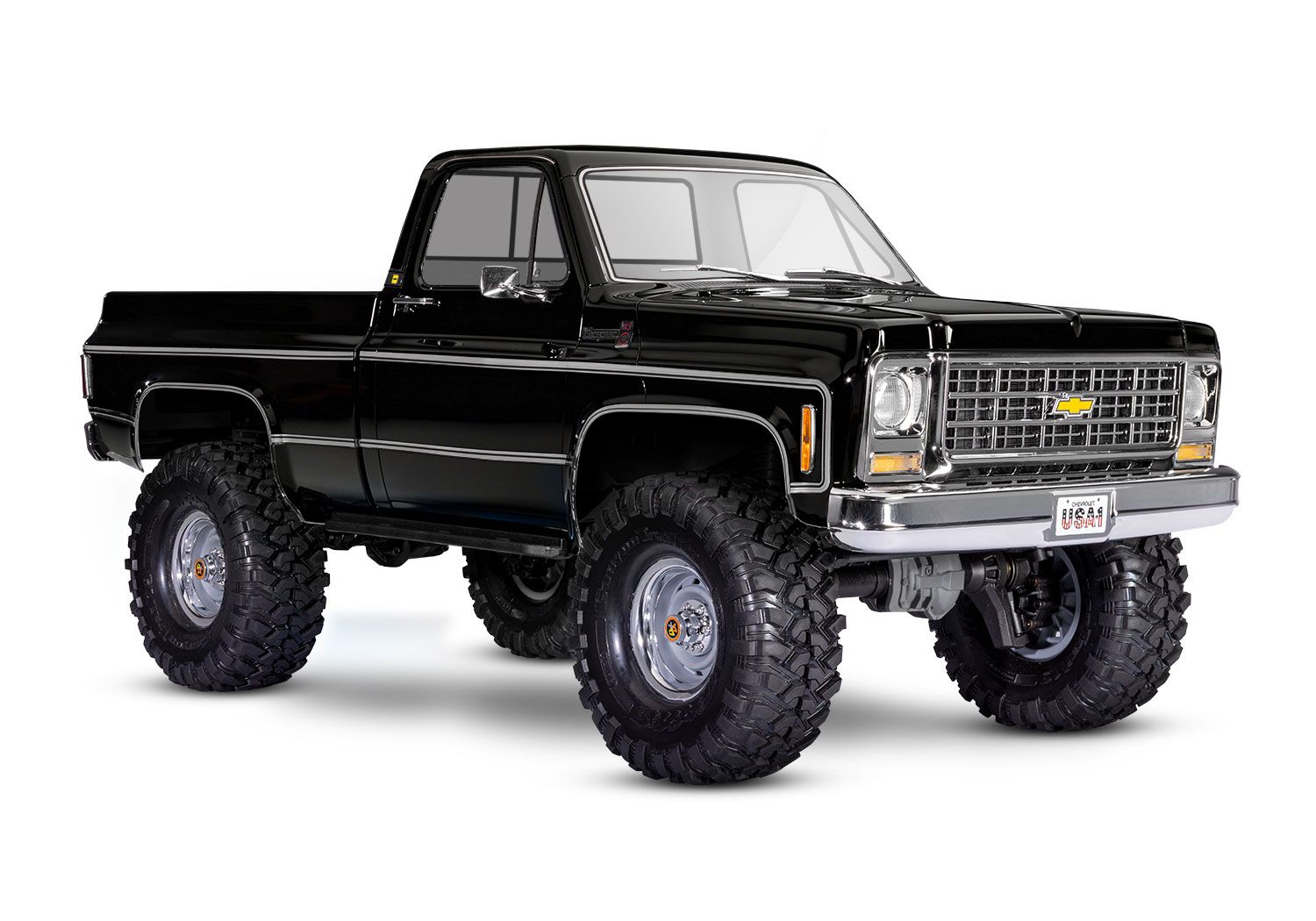

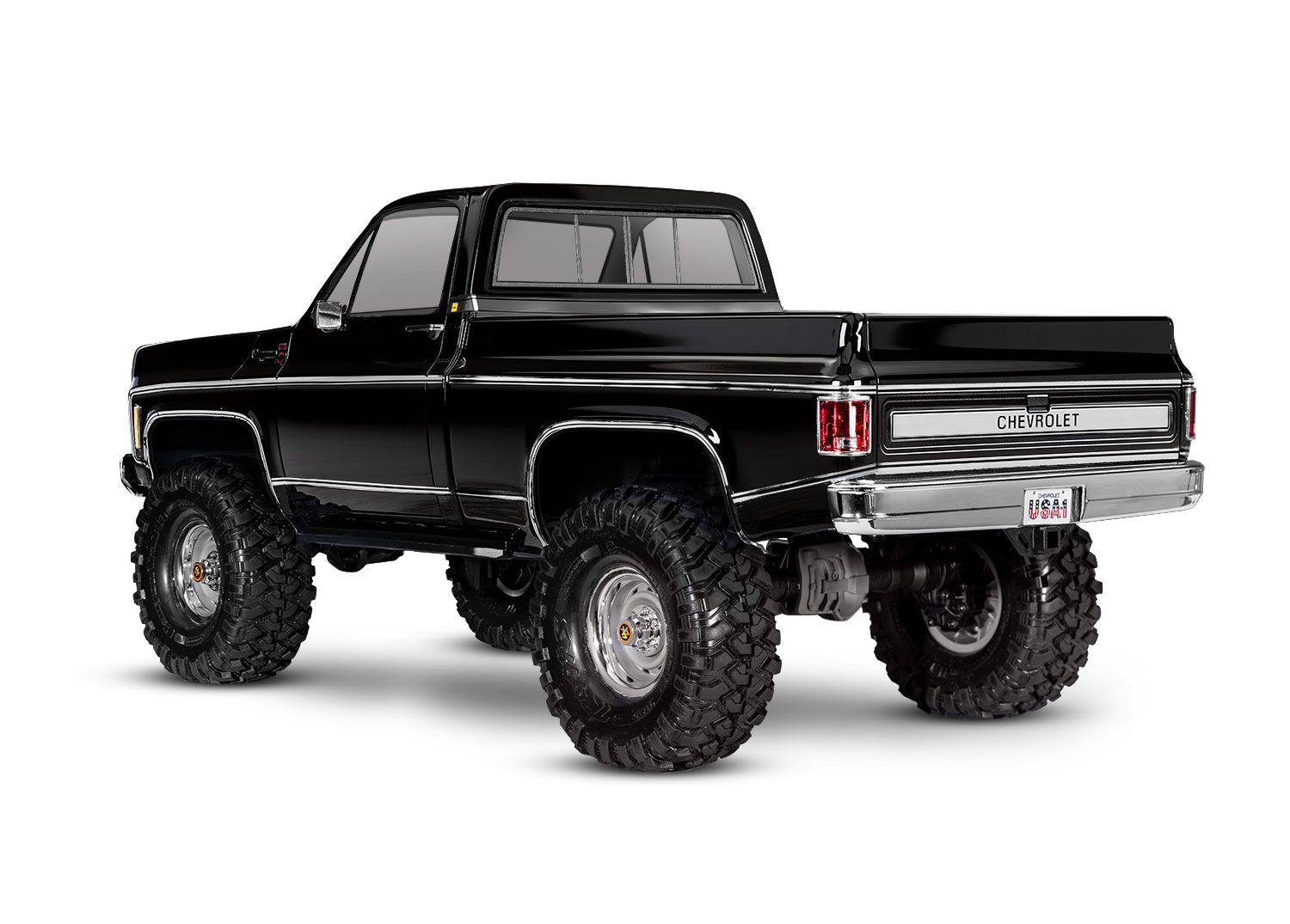

Traxxas: TRX-4 Chevrolet K10 - Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Store Policies
Store Policies
Please review our Store Policies before placing your order.
By placing an order, you agree to our published Store Policies.
Delivery and Shipping
Delivery and Shipping
Free shipping on orders over $99 within the continental United States.
Ships from Livermore, California. Orders placed before 12 PM PST Monday–Friday typically ship the same day.
Orders containing pre-order items will ship once all items are available. If you would like in-stock items shipped immediately, please place a separate order.

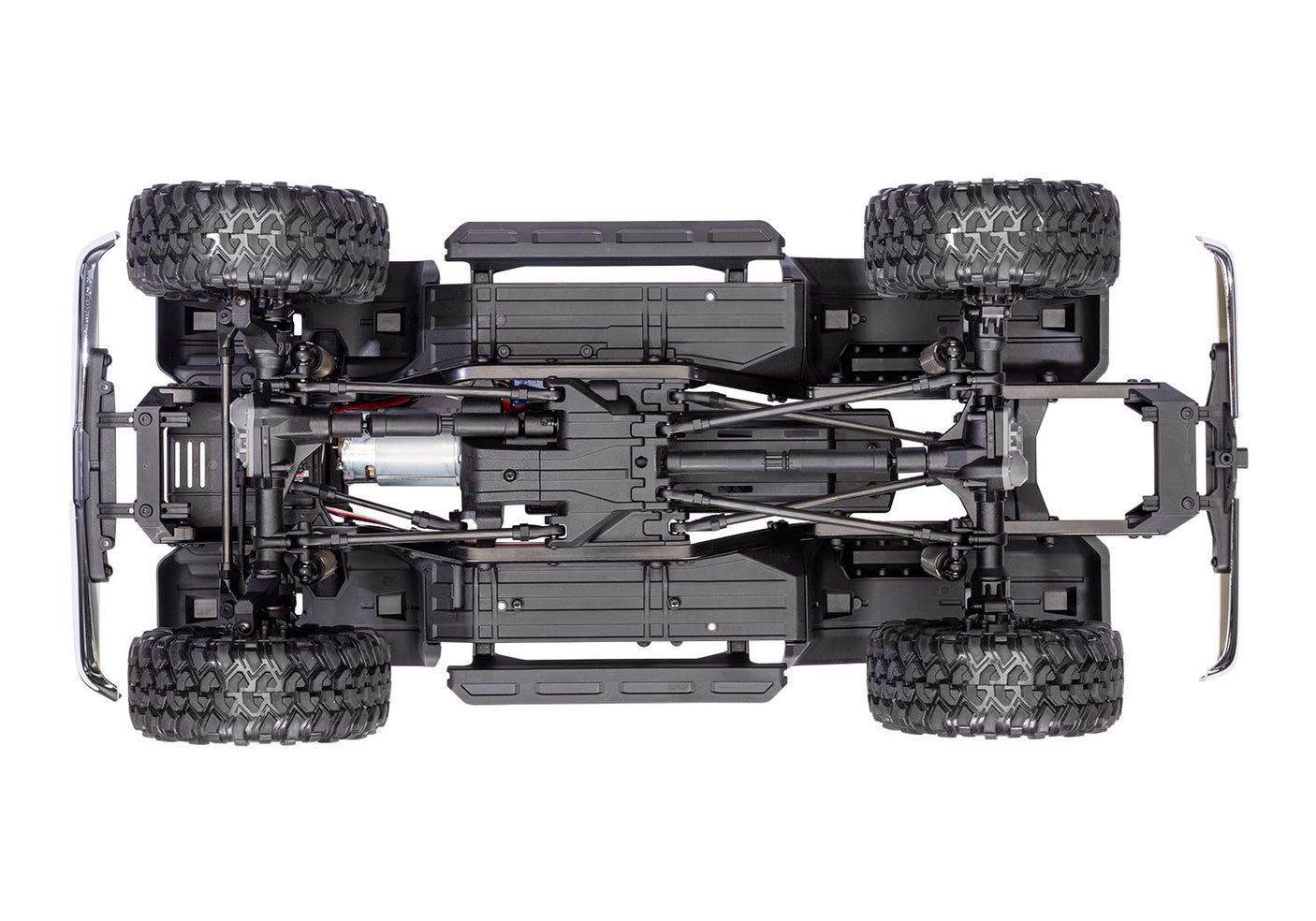

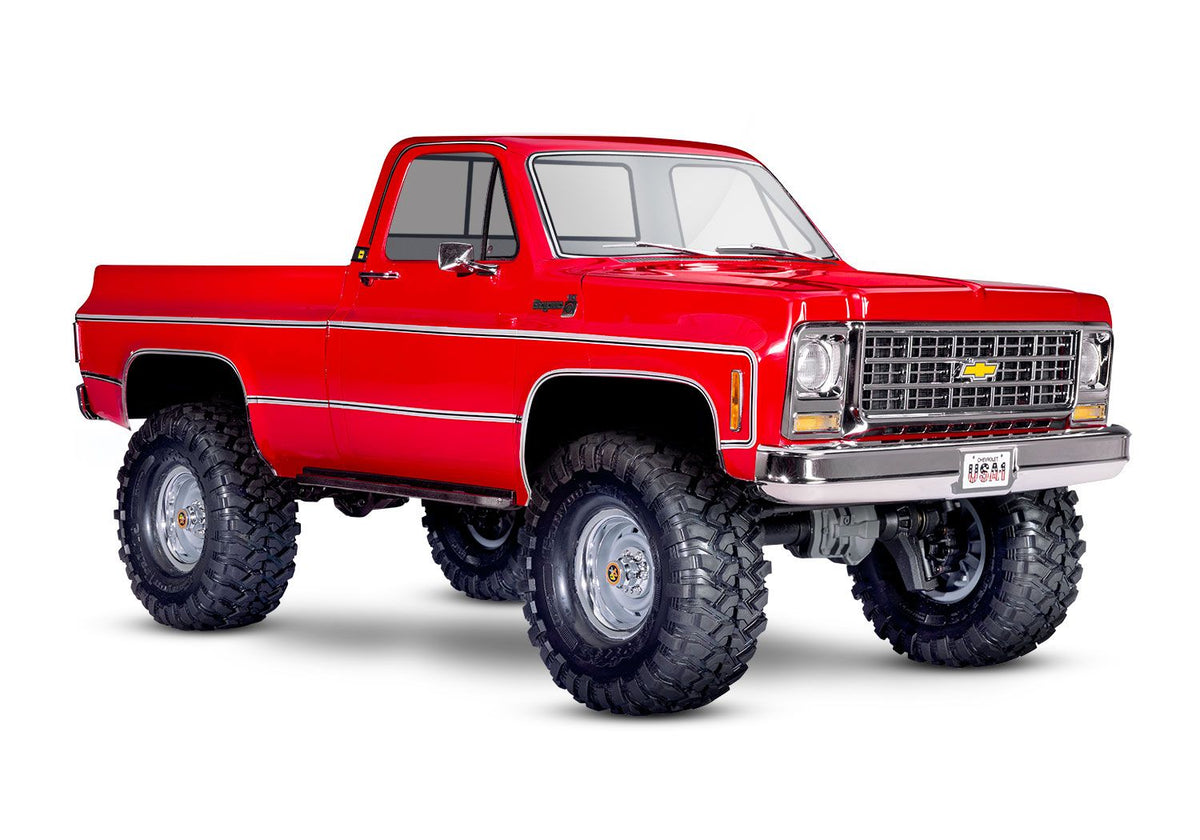

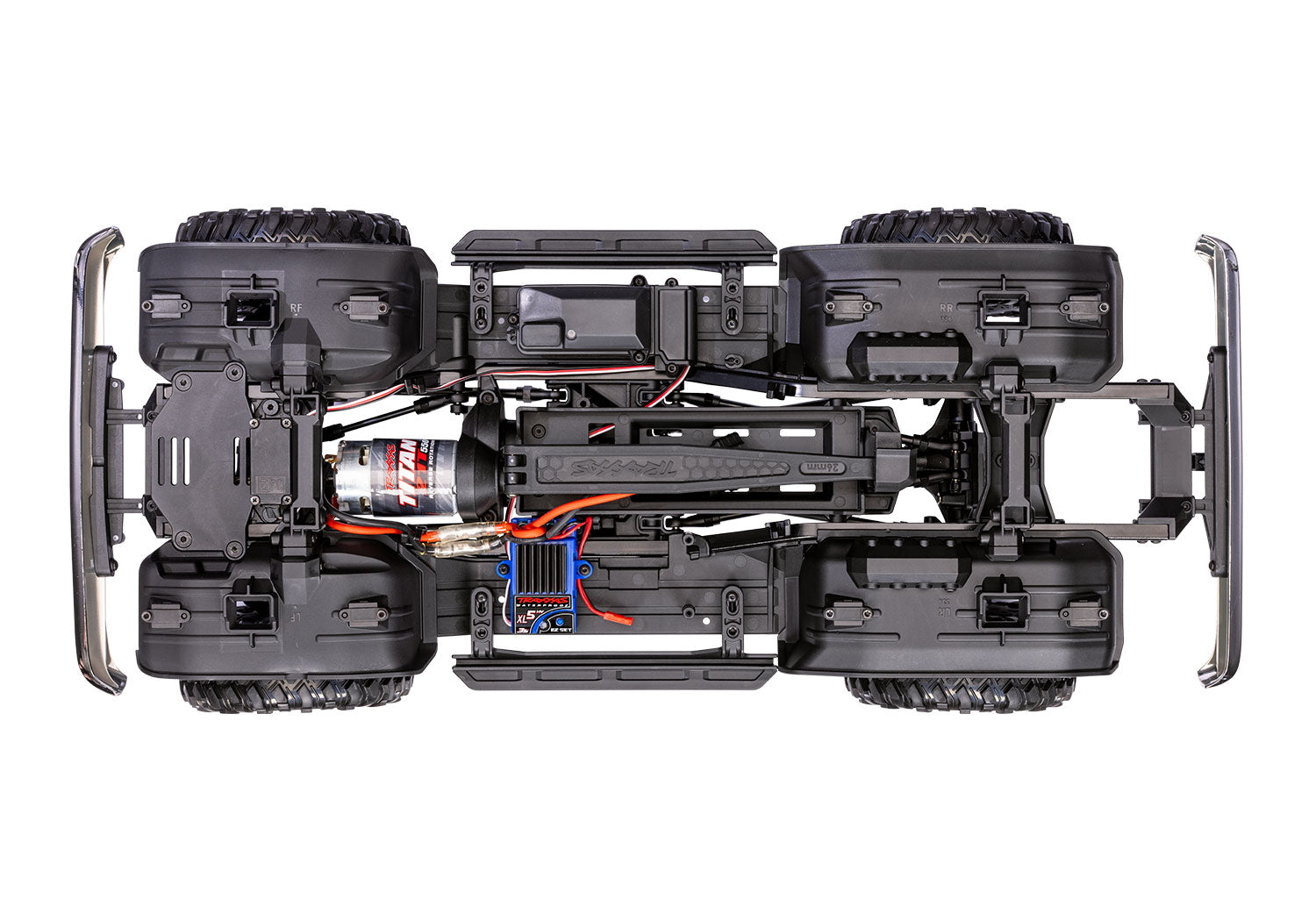

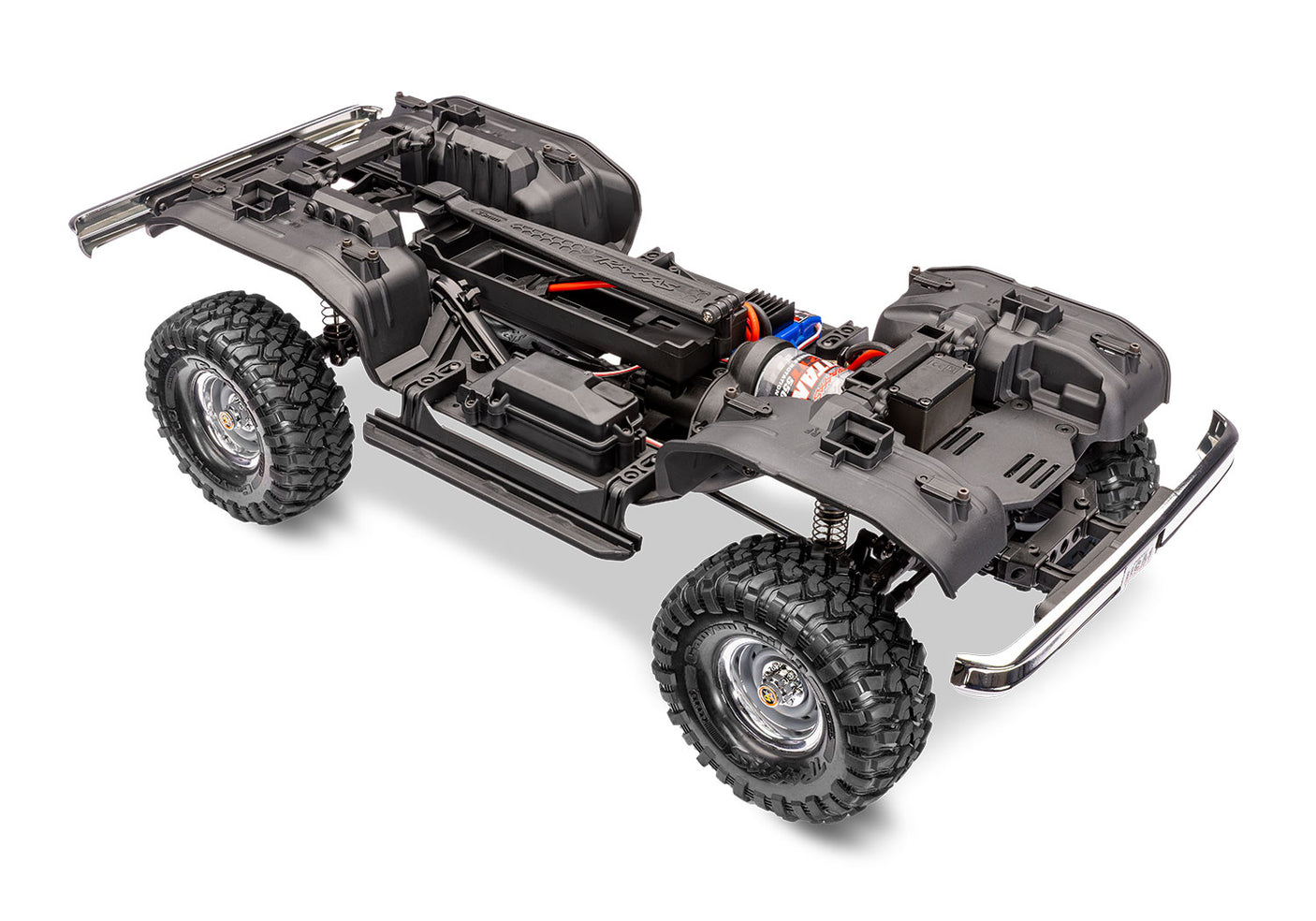

Classic Chevrolet K10 styling meets TRX-4 trail capability with a clipless body, portal axles, waterproof electronics, aluminum GTS shocks, and a rugged steel chassis.
Required to Run
- 6–7 Cell NiMH or 2S–3S LiPo Battery
- Compatible Traxxas Battery Charger
- Four AA Alkaline Batteries
Features
- Officially Licensed Chevrolet K10 Clipless Body
- Portal Axles for Increased Ground Clearance
- Extended 336 mm Steel Ladder Frame Chassis
- Waterproof XL-5 HV ESC with Trail and Crawl Modes
- TQ 2.4 GHz 2-Channel Radio
- Aluminum GTS Oil-Filled Shocks
Specifications
- Model Name: TRX-4 Chevrolet K10
- Model Type: Trail Truck / Crawler
- Model Skill Level: 1
- Scale: 1/10
- Weight: 5.79 pounds (2.63 kg)
- Length: 22.30 inches (566 mm)
- Width: 9.78 inches (249 mm)
- Track: 9.78 inches (249 mm)
- Height: 9.47 inches (241 mm)
- Wheelbase: 13.23 inches (336 mm)
- Center Ground Clearance: 3.14 inches (80 mm)
- Drivetrain: Shaft-driven 4WD
- Transmission: Single speed
- Differential Type: Spool
- Gear Pitch: 32 pitch
- Servo: 2075X metal gear, digital high-torque waterproof
- Radio System: TQ 2.4 GHz 2-channel transmitter
- Battery Compartment Specs: 159 mm X 47 mm X 23 mm, 26 mm
Motor Specifications
- Motor Name: Titan 21T Reverse Rotation
- Motor Type: High-torque brushed motor
- Motor Weight: 8.47 ounces (240 g)
- Motor Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
- Motor Diameter: 1.53 inches (39 mm)
- Motor Shaft Size: 3 mm
- Motor Connector Type: Bullet
ESC Specifications
- ESC Name: XL-5 HV
- ESC Type: Brushed
- ESC Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
- ESC Weight: 2.60 ounces (74 g)
- Motor Connectors: Bullet
- Battery Connectors: Traxxas High-Current Connector
- ESC Power Wire: 14 gauge
What's in the box
- TRX-4 Trail Truck
- XL-5 HV Waterproof Electronic Speed Control
- Titan 21T Reverse Rotation Motor
- TQ 2.4 GHz Radio System
- High-Quality Maintenance Tools
