Traxxas: Spartan SR 36" Boat

The Traxxas Spartan SR 36" boat combines speed, power, and stability with a sleek design, brushless motor, and 50+mph performance for ultimate RC boating action.

What You’ll Need

• 2-4s Lipo and compatible charger
• Four AA alkaline batteries for the transmitter

Features

• Up to 50 MPH with Dual 3s LiPo Batteries
• 36″ Reinforced Deep-V Hull
• Rigid Injection-Molded Clipless Hatch
• TQi 2.4 GHz High Output Radio System
• VXL-6s Marine ESC and Velineon 540XL Brushless Motor
• Traxxas Stability Management (TSM)

Specifications

• Speed: 50+ mph with two 3-cell LiPo batteries
• Skill Level: 2
• Scale: 1/10
• Weight: 5.29 pounds (2.39 kg)
• Length: 40.8 inches (1037 mm)
• Width: 9.5 inches (243 mm)
• Height: 7.2 inches (183 mm)
• Hull Length: 36.5 inches (927 mm)
• Hull Type: Composite Deep-V
• Dead Rise Angle: 26 degrees
• Drive System: Direct drive, 4.7 mm flex cable
• Outdrive: Adjustable aluminum
• Servo: 2056 high-torque waterproof
• Radio System: TQi 2.4 GHz 2-channel transmitter with TSM® receiver

Motor Specifications

• Motor Name:    Velineon® 540XL Marine

• Motor Type:    Sensorless brushless

• Motor Weight:    13.62 ounces (386 g)

• Motor Length:    4.07 inches (103 mm) overall length, 3.25 inches (82 mm) can
• length

• Motor Diameter:    1.42 inches (36 mm)

• Motor Shaft Size:    5 mm

• Motor Connector Type:    Traxxas 5.5 mm bullet connectors

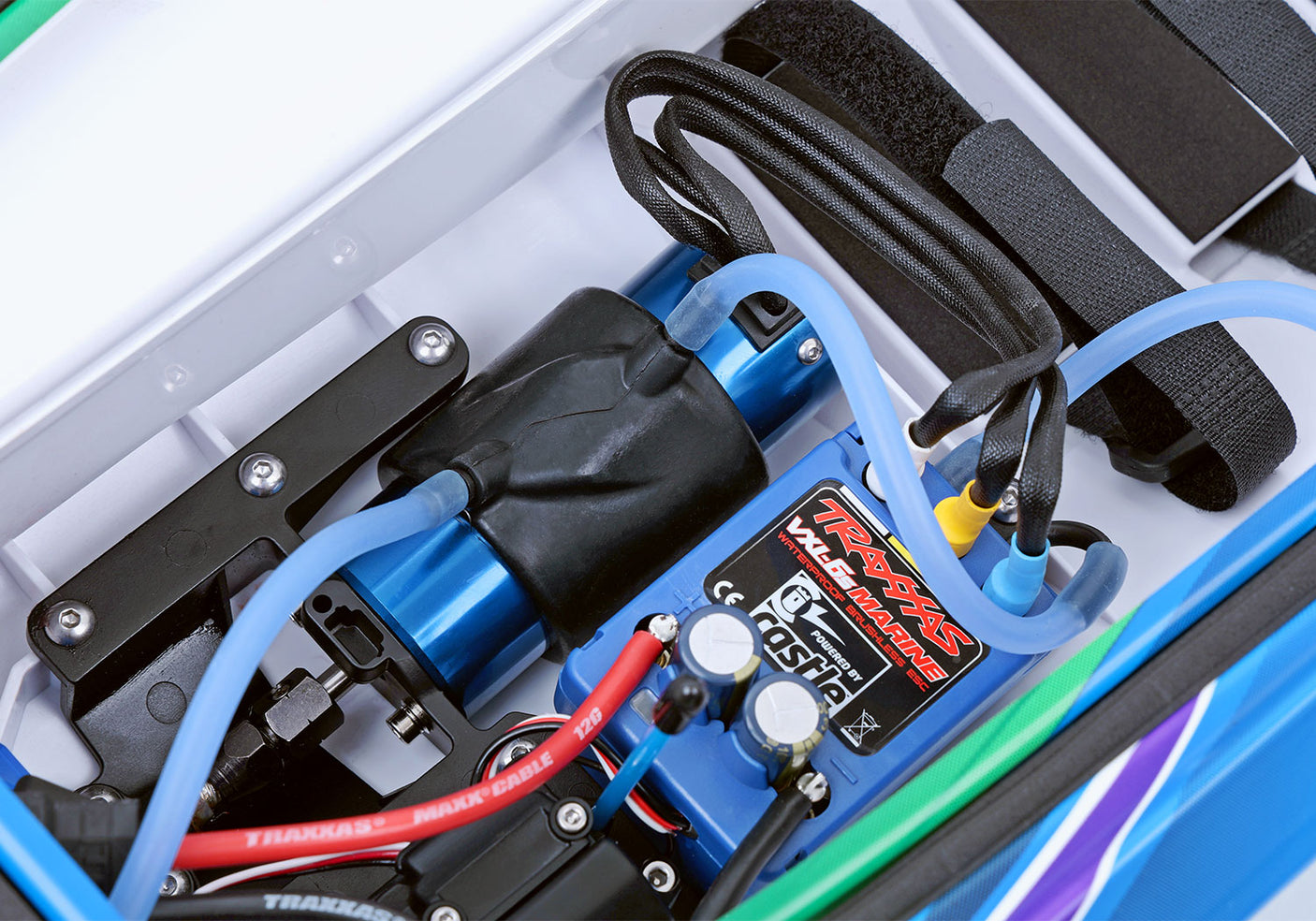

ESC Specifications

• ESC Name:    Velineon® VXL-6s Marine

• ESC Type:    Brushless

• ESC Case Size:    2.28 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)

• ESC Weight:    7.30 ounces (207 g)

• Motor Connectors:    Traxxas 5.5 mm bullet connectors

• Battery Connectors:    Traxxas High Current Connector

What’s In The Box

• Spartan SR with VXL-6s Marine ESC and 1850 kV motor

• Quick Start Guide

• TQi 2.4 GHz radio system

• Boat stand

• Hatch nut tool

• Optional wingnuts
