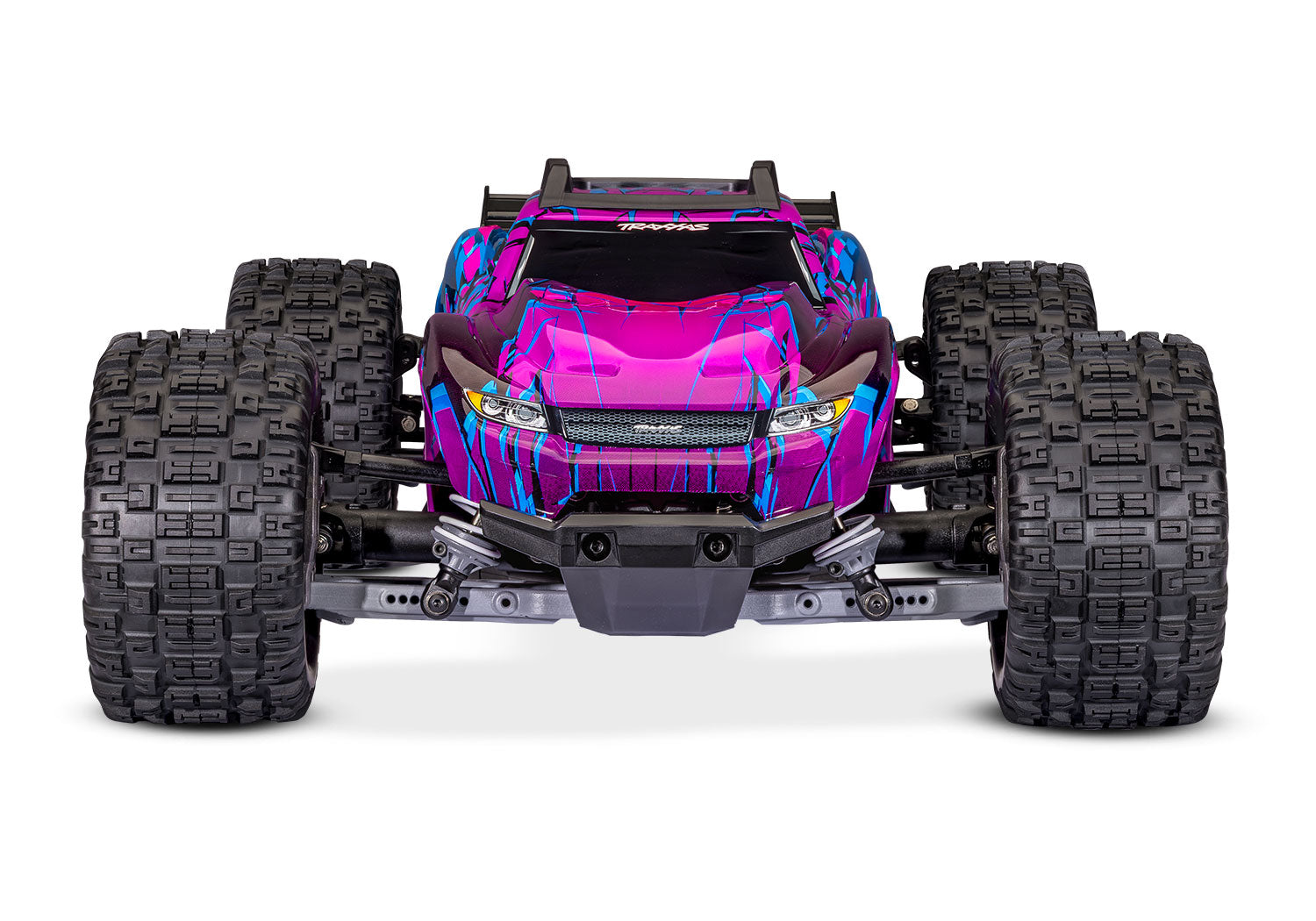

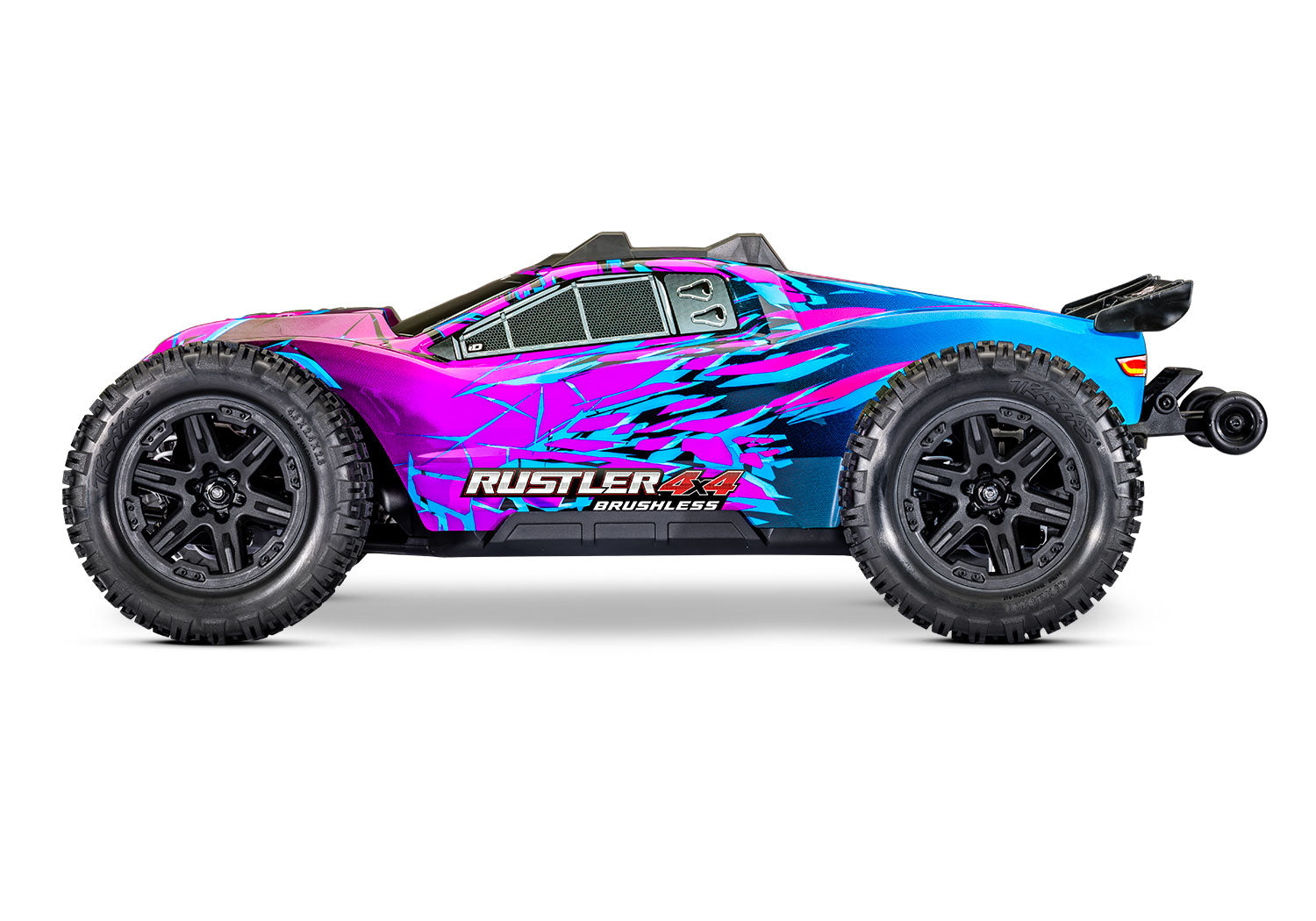

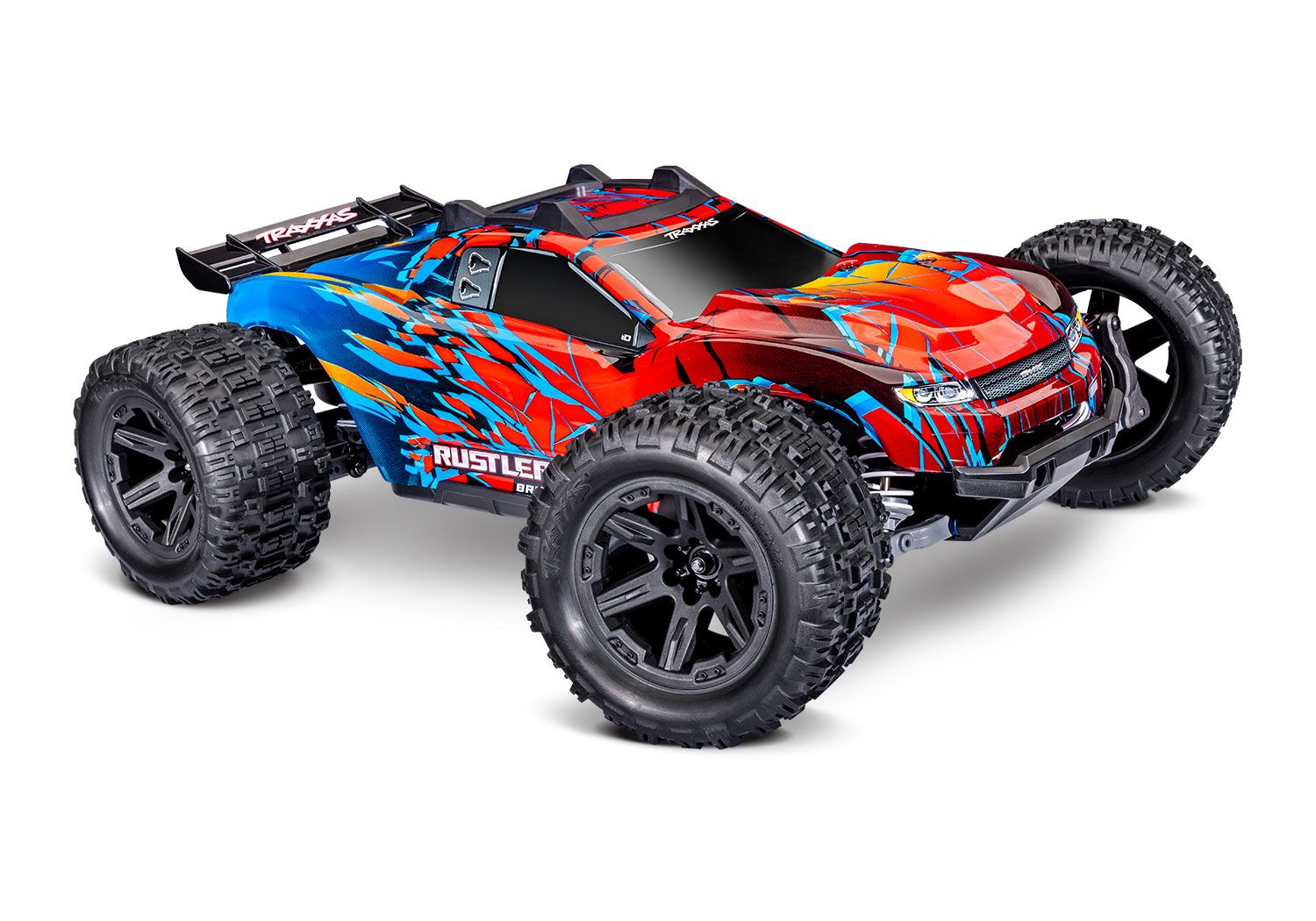

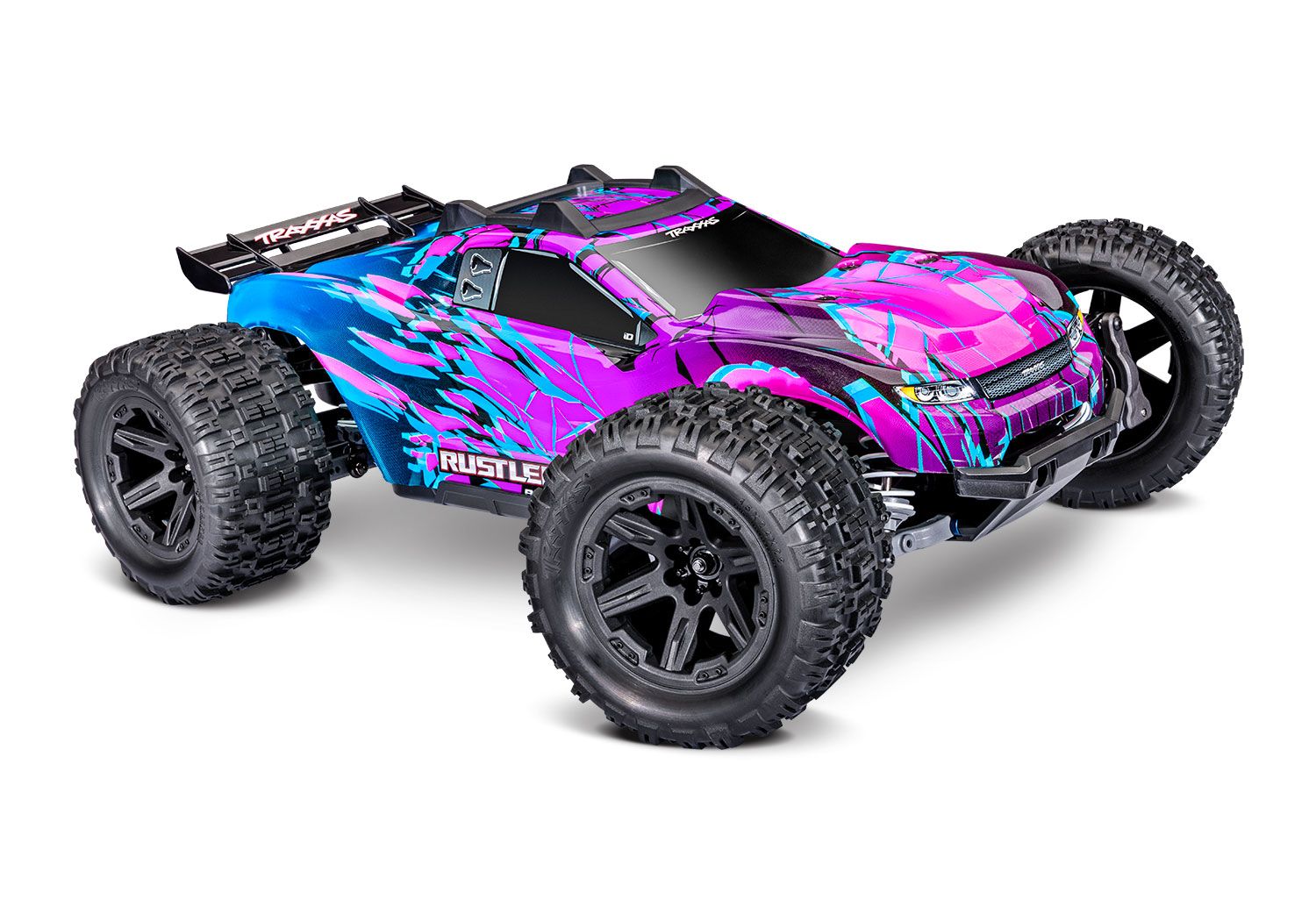

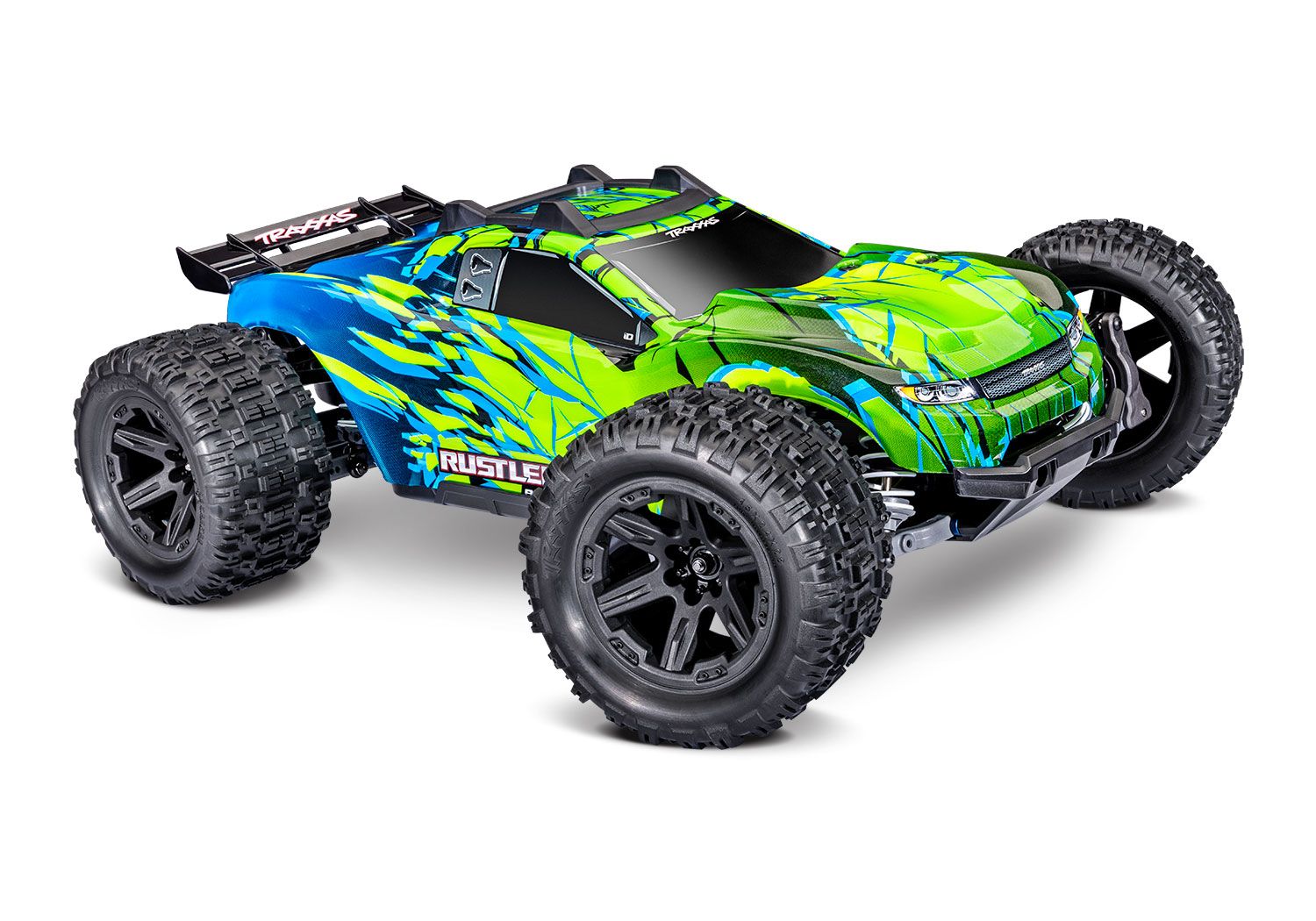

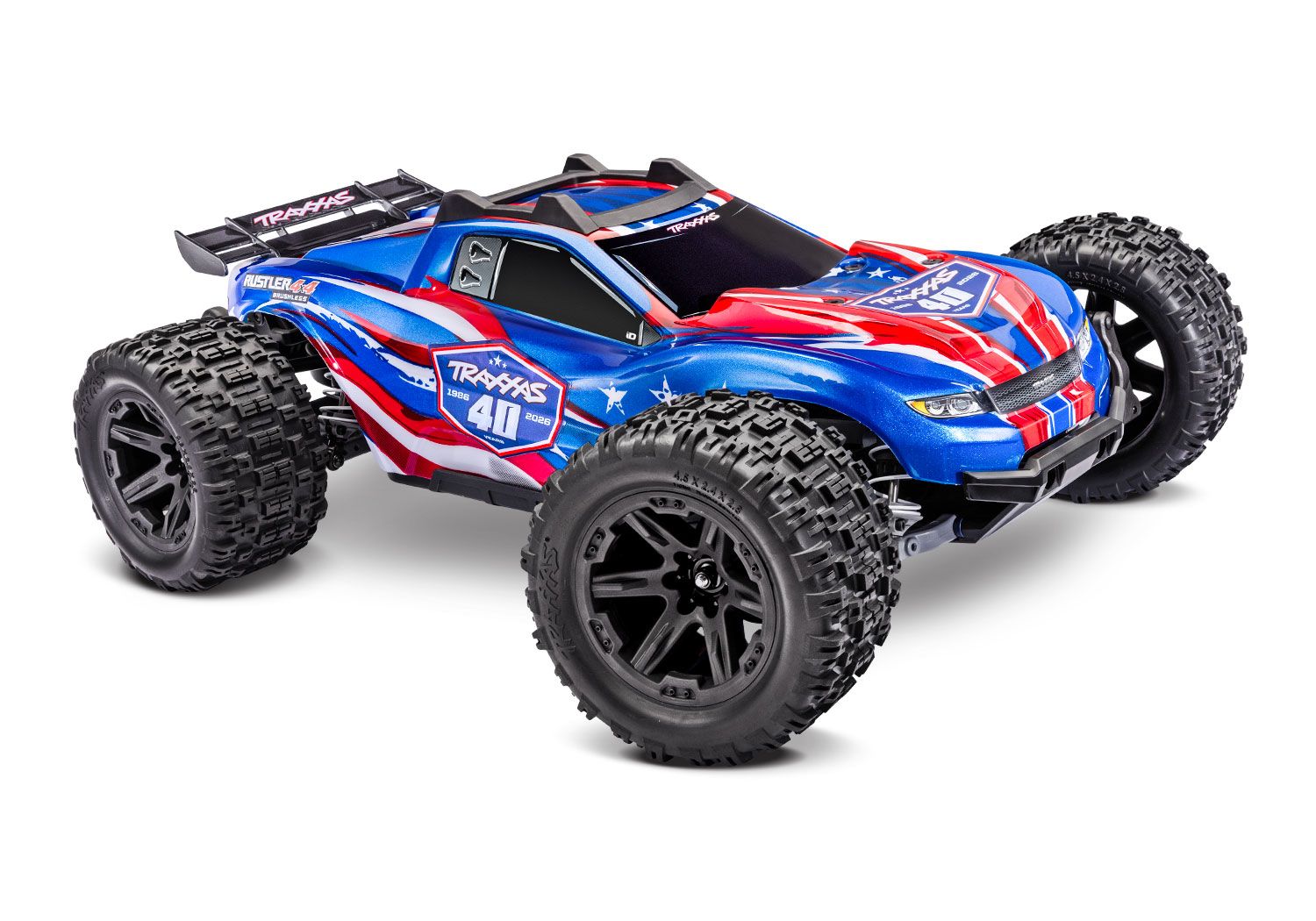

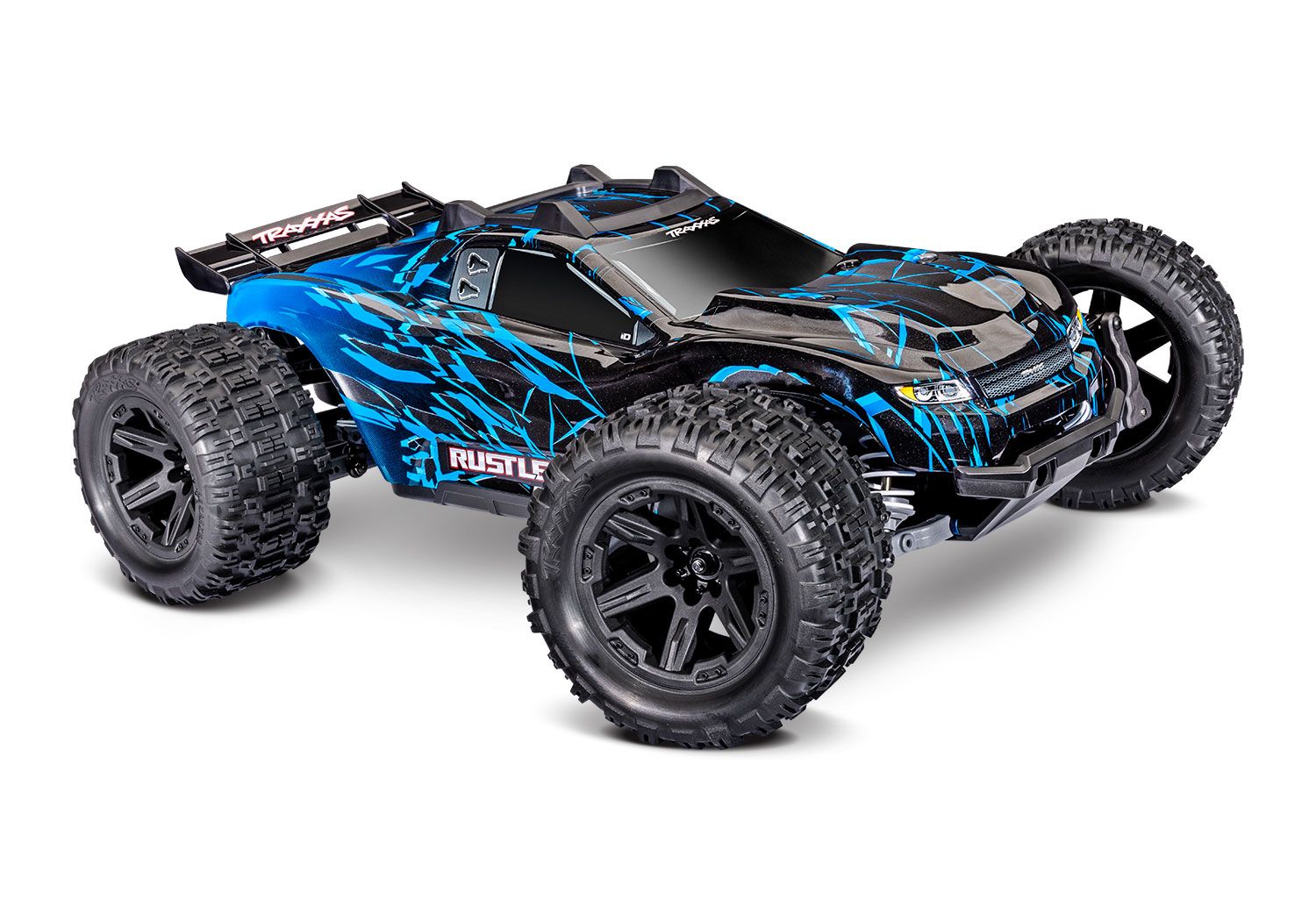

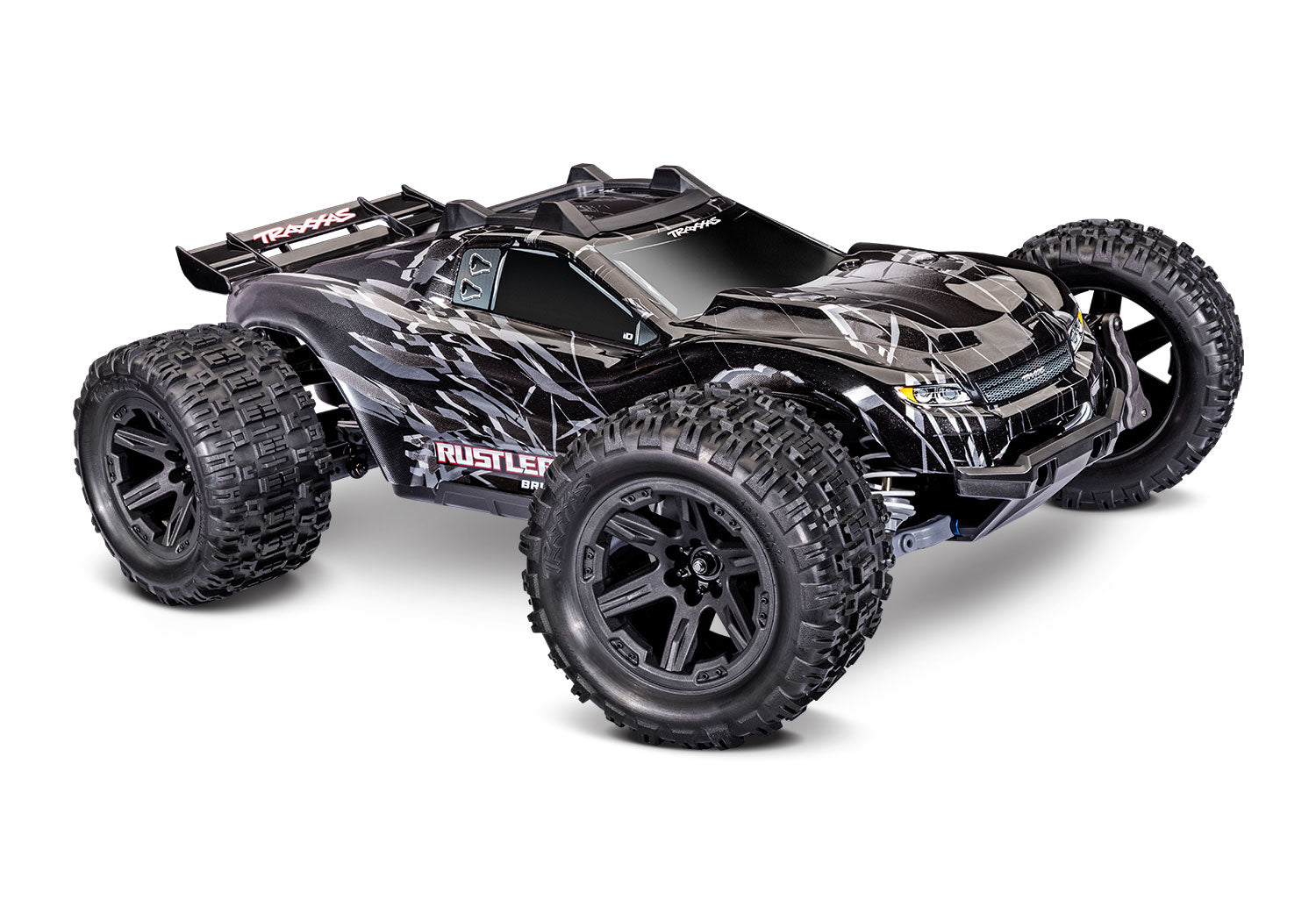

Traxxas: Rustler 4X4 Velineon VX3 Brushless (IN-STORE ONLY)

IN-STORE ONLY

Built for speed, power, and rugged off-road action with 4X4 traction, Velineon VX3 brushless performance, and legendary Traxxas durability.

Required to Run

• 2s Lipo or 3s Lipo with compatible charger
• 4x AA batteries

Features

• 35+ mph with 2s LiPo. 50+ mph with 3s LiPo (no gearing change required)
• New Velineon VX3 waterproof electronic speed control and Velineon V3200 brushless motor
• New Clipless Painted Body
• New TQi™ Sport 2.4GHz 2-channel radio system with TSM®
• New clipless battery compartment
• New 2057 waterproof metal-gear servo with full metal gear train for improved durability
• New composite GTR shocks with threaded shock collars for precise ride height adjustment, large oil capacity for consistent damping, screw-secured spring retainers, white powder-coated springs, and 3.5 mm shock shafts

Specifications

• Type: Stadium Truck
• Scale: 1/10
• Skill Level: 1
• Speed: 35+ mph with 2S LiPo battery; 50+ mph with 3S LiPo battery
• Length: 18.78 inches (477 mm)
• Width: 12.94 inches (329 mm)
• Height: 6.35 inches (161 mm)
• Weight: 5.12 pounds (2.32 kg)
• Wheelbase: 11.62 inches (295 mm)
• Front Track: 12.94 inches (329 mm)
• Rear Track: 12.94 inches (329 mm)
• Center Ground Clearance: 1.1 inches (27 mm)

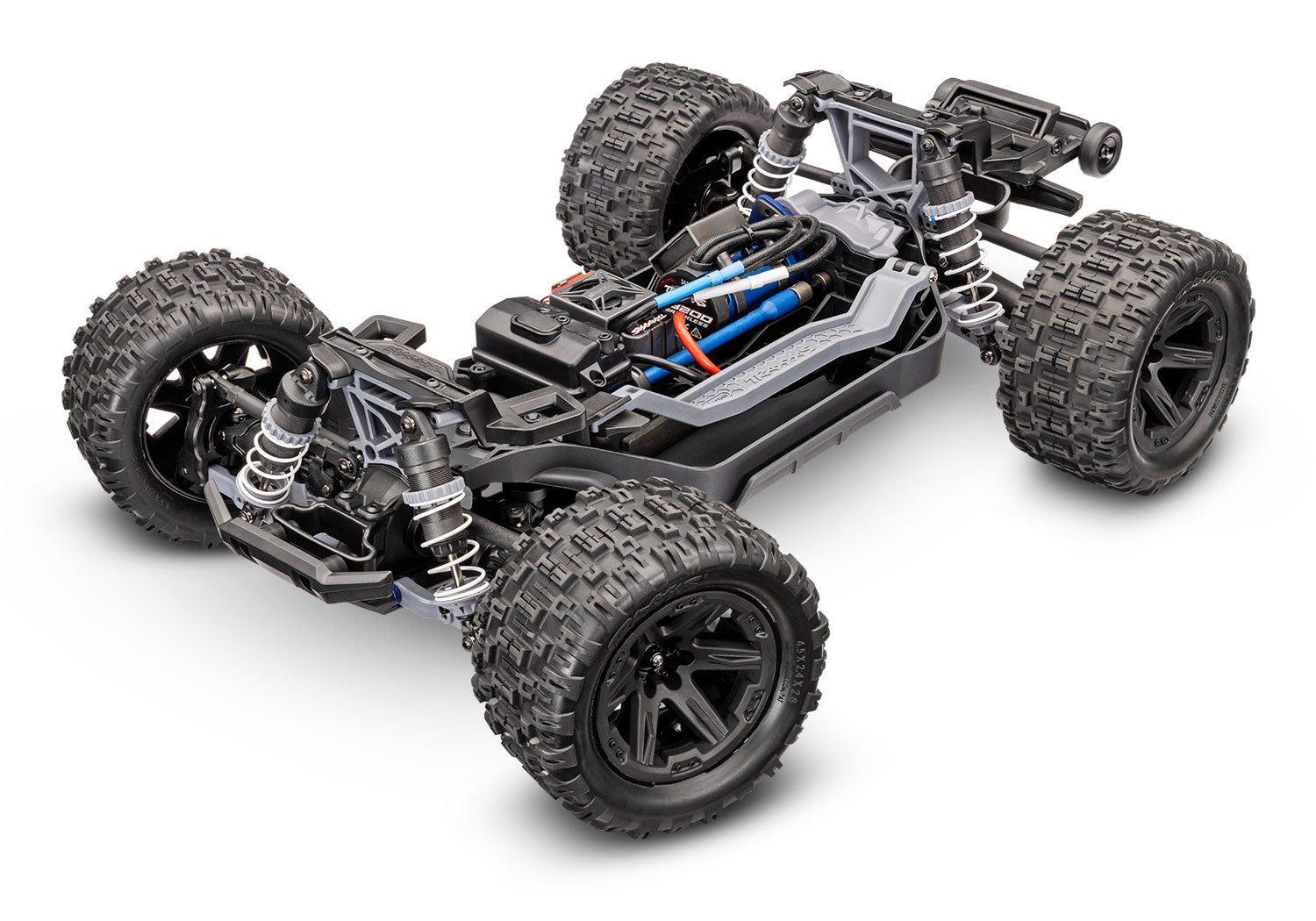

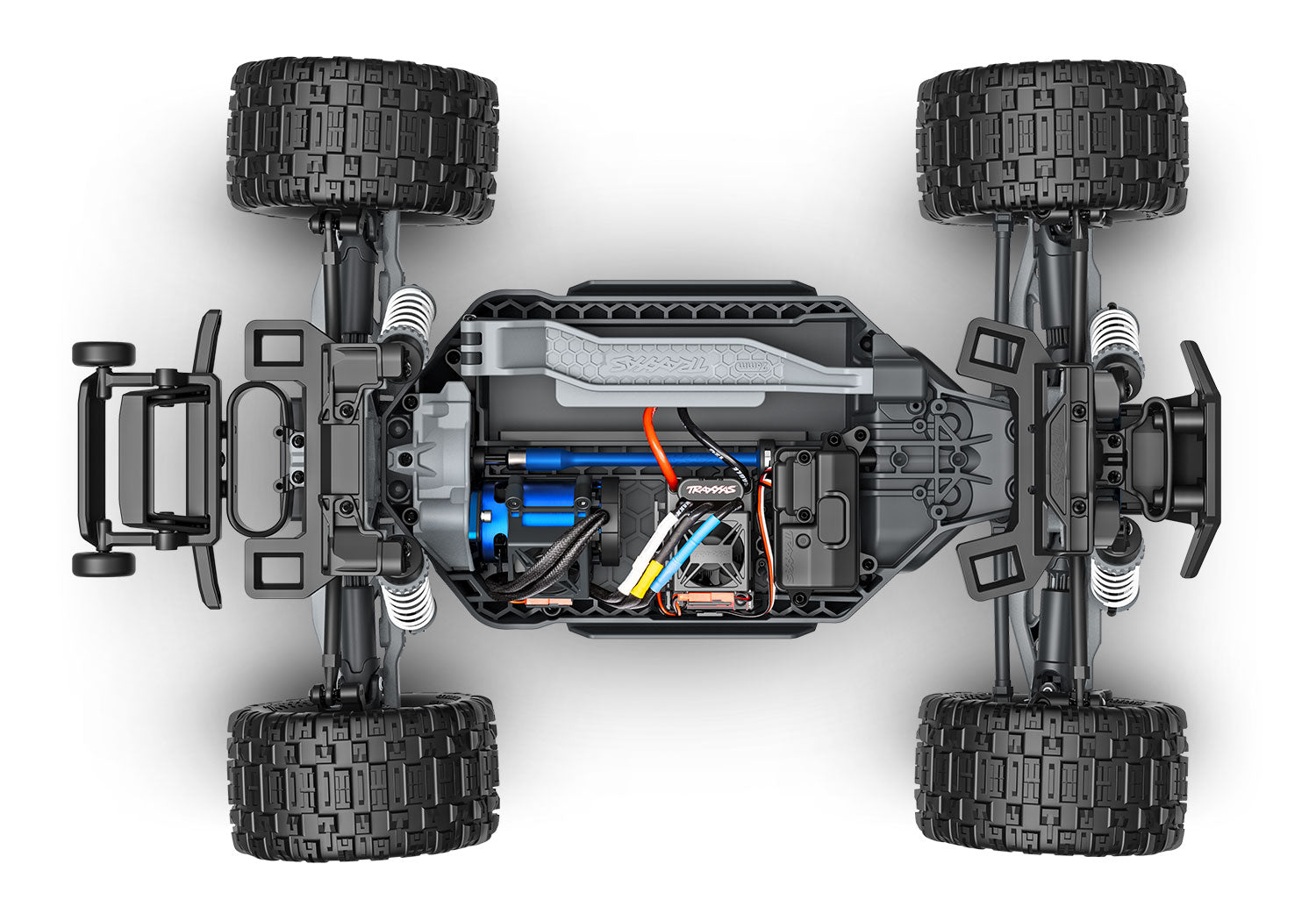

• Driveline: Shaft-driven 4WD
• Transmission: Single-speed
• Differential Type: Sealed, limited-slip hardened steel bevel gears
• Internal Gear Ratio: 13.97:1
• Gear Pitch: 32-pitch
• Steering Servo: 2057 waterproof metal-gear servo
• Radio System: TQi Sport 2.4 GHz 2-channel radio system with TSM
• Battery Compartment: 162 x 50 x 23-25 mm

Motor Specifications

• Name: Velineon V3200 (Patent Pending)
• Motor Type: Sensorless brushless
• Weight: 9.24 oz (262 g)
• Length: 3.35 in (85 mm)
• Diameter: 1.41 in (36 mm)
• Shaft Size: 5 mm
• Connector Type: Bullet

ESC Specifications

• Name: VX3 Electronic Speed Control
• ESC Type: Brushless
• Voltage Range: 2-cell or 3-cell LiPo (NiMH not supported)
• Case Size: 2.40 in (61 mm) x 2.09 in (53 mm) x 1.69 in (43 mm)
• Weight: 4.20 oz (119 g)
• Motor Connectors: Bullet
• Battery Connectors: Traxxas High-Current Connector

What’s In The Box

• Rustler 4X4 VXL with VX3 ESC and V3200 motor

• TQi Sport 2.4 GHz radio system

• High-quality maintenance tools
