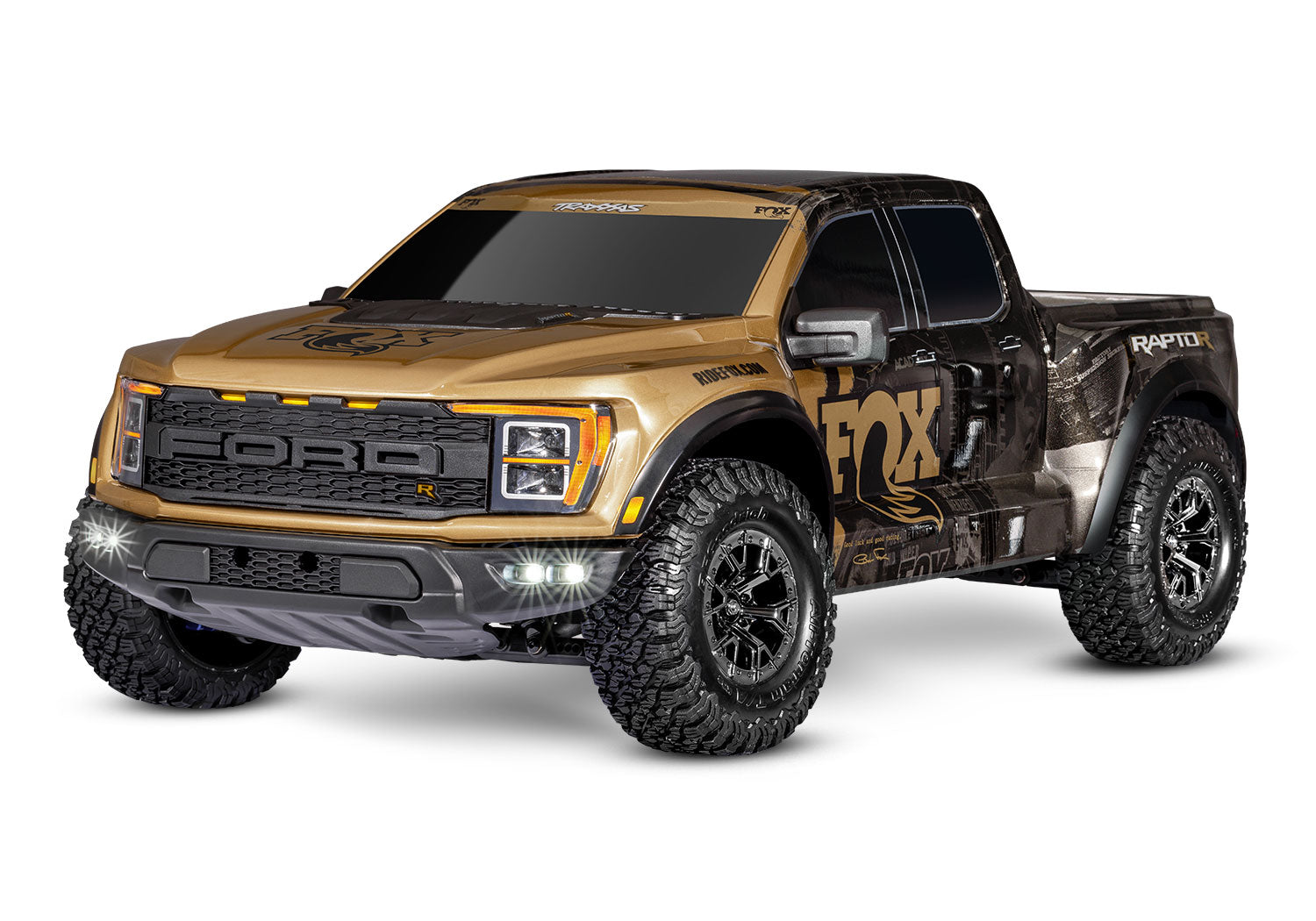

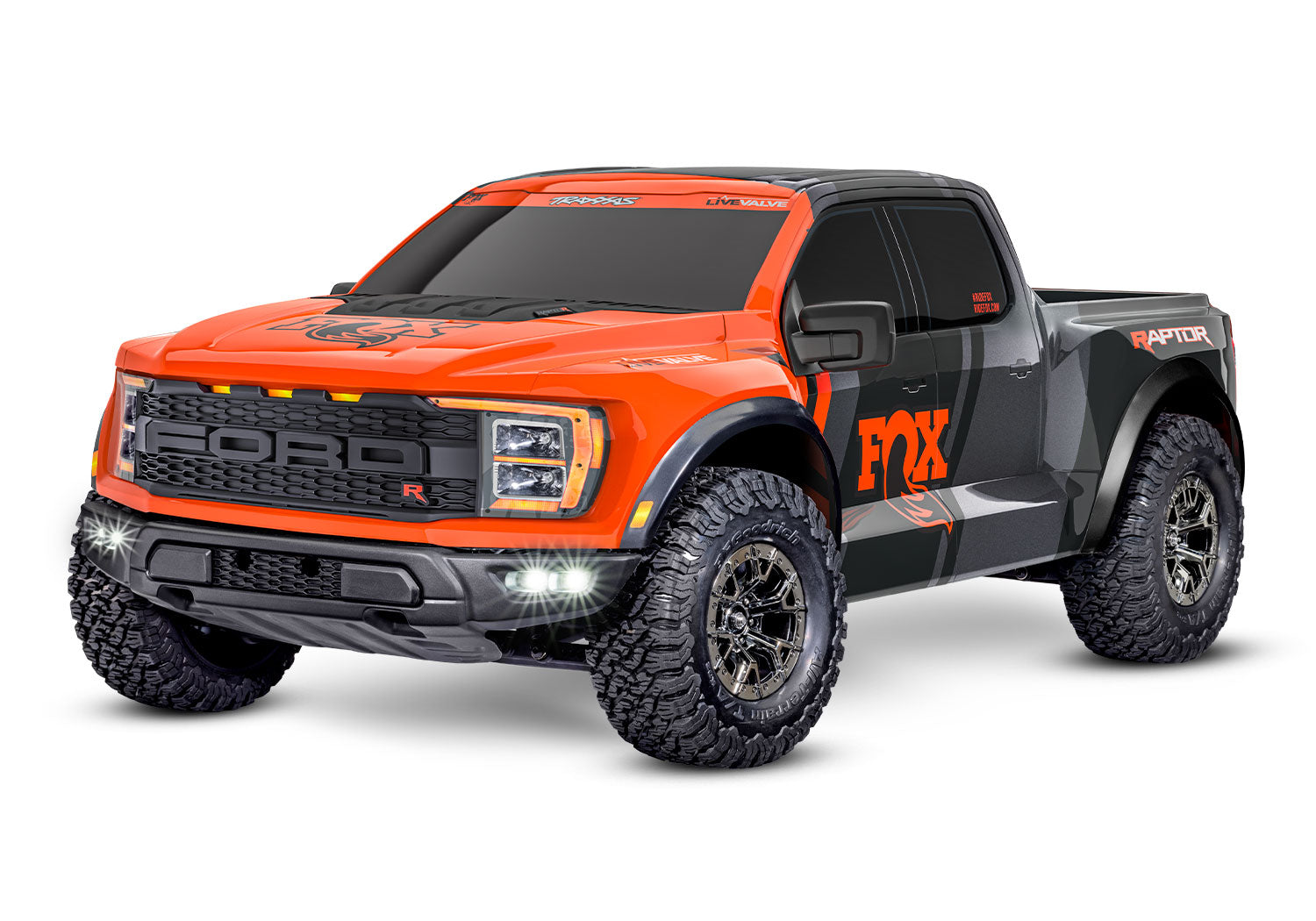

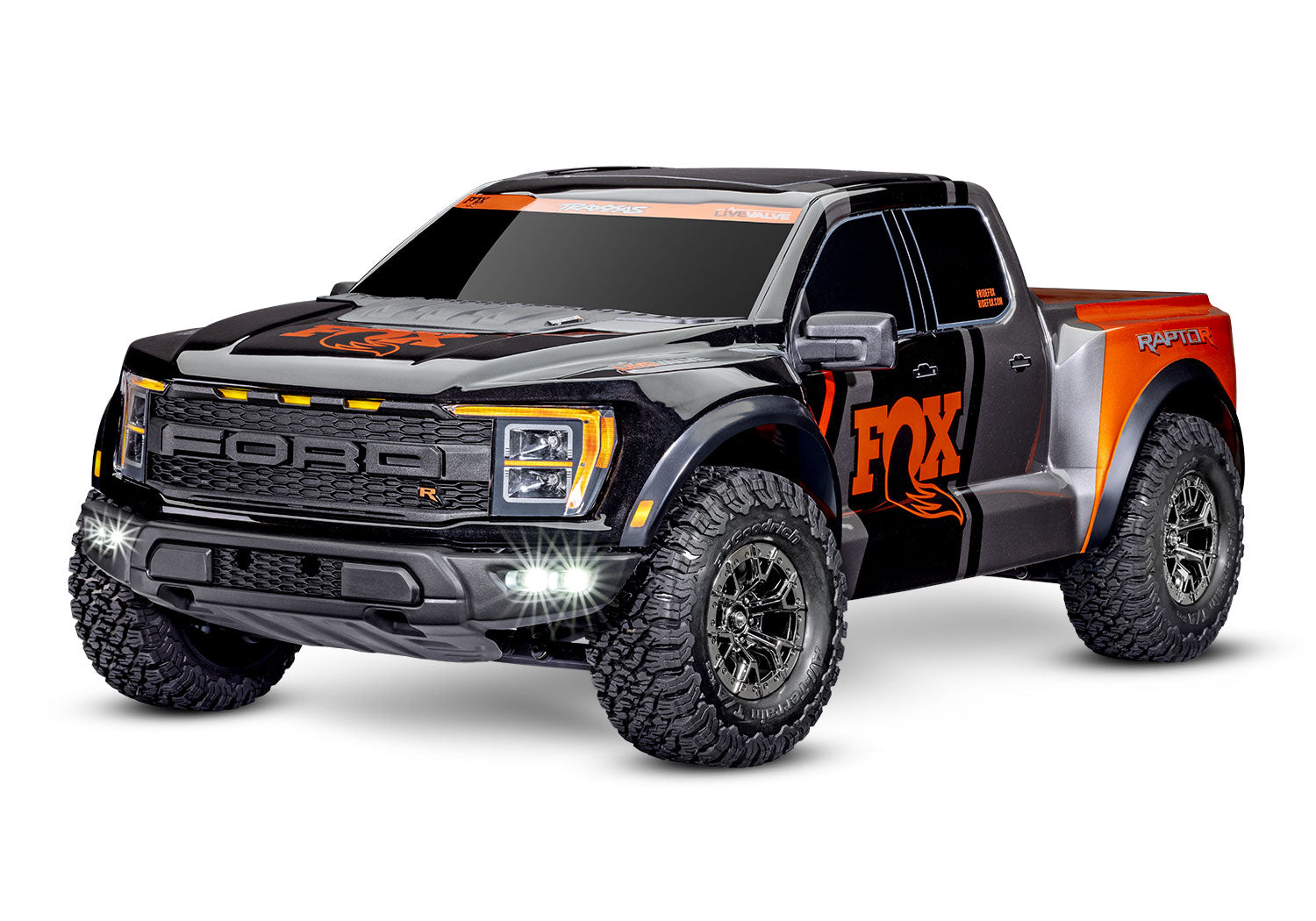

The Traxxas Ford Raptor R 4X4 Ultimate delivers extreme performance with aluminum upgrades, oil-filled shocks, clipless body, and rugged 4WD handling right out of the box.
Required To Run
- 2-4s battery and charger
- Four AA alkaline batteries for the transmitter.
Features
- 60+ mph with 4s LiPo
- Officially Licensed Ford F-150 Raptor R Clipless Pro Scale Body
- VXL-4s Waterproof ESC and Velineon 540XL Brushless Motor
- TQi 2.4 GHz Radio System with Wireless Module
- 2275 waterproof metal-gear servo, 347 oz-in torque @ 6.0 volts
Specifications
- Model Name: Ford Raptor R 4X4 Ultimate
- Model Type: Short Course Truck
- Model Speed: 60+ mph with 4S LiPo (sold separately)
- Model Skill Level: 2
- Scale: 1/10
- Weight: 3.00 kg
- Length: 637 mm
- Width: 289 mm
- Front Track: 289 mm
- Height: 226 mm
- Rear Track: 289 mm
- Wheelbase: 384 mm
- Center Ground Clearance: 52 mm

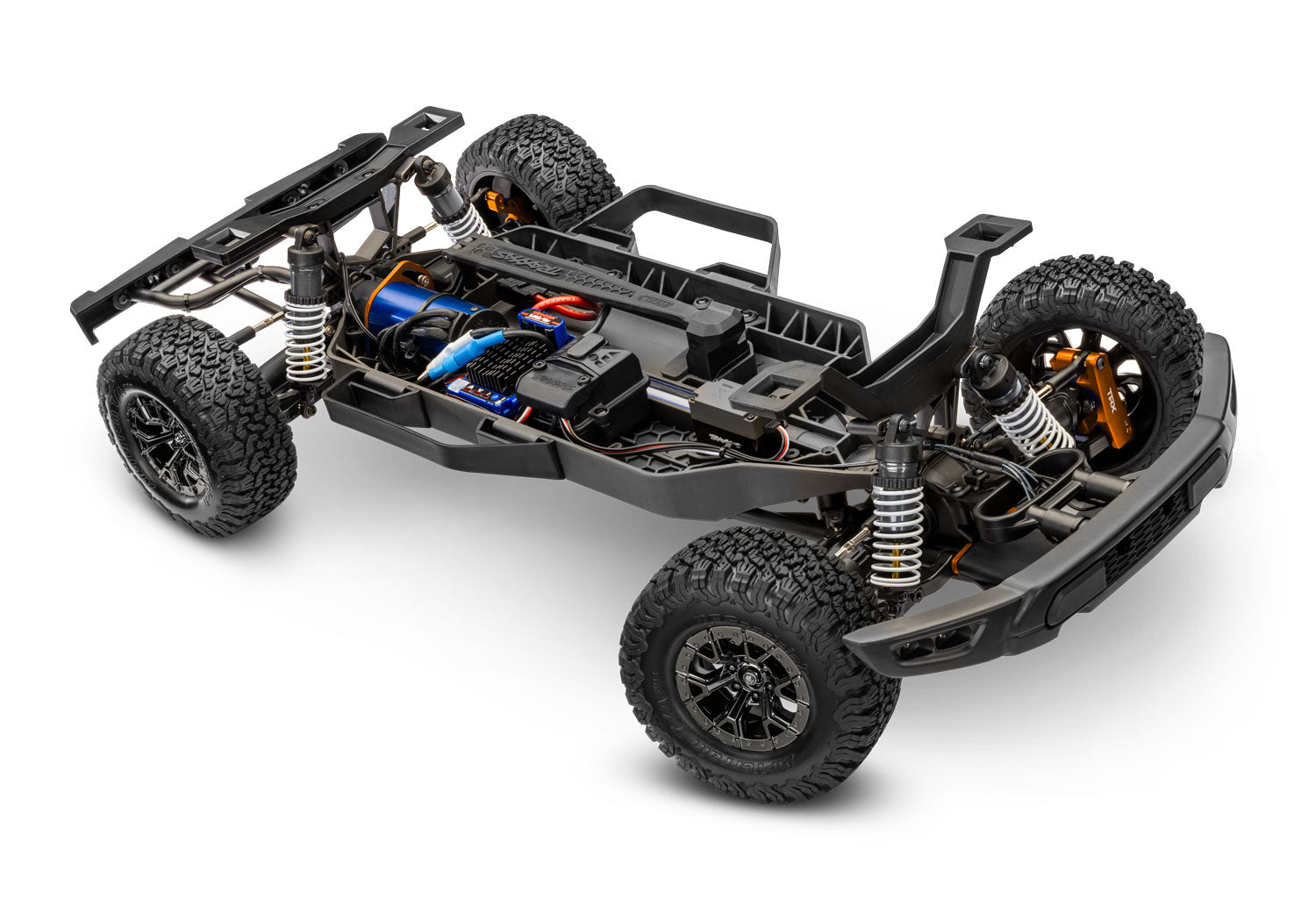

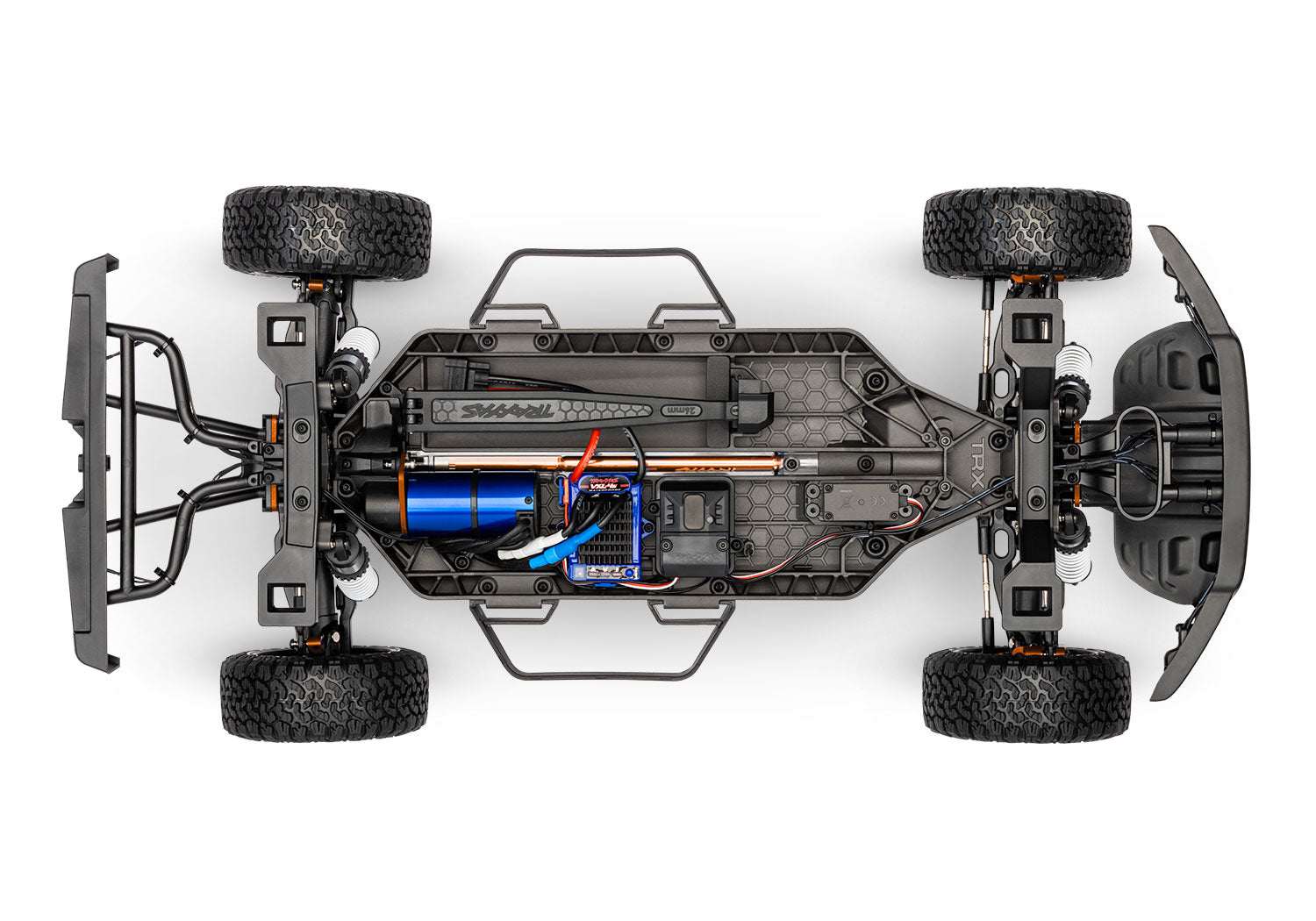

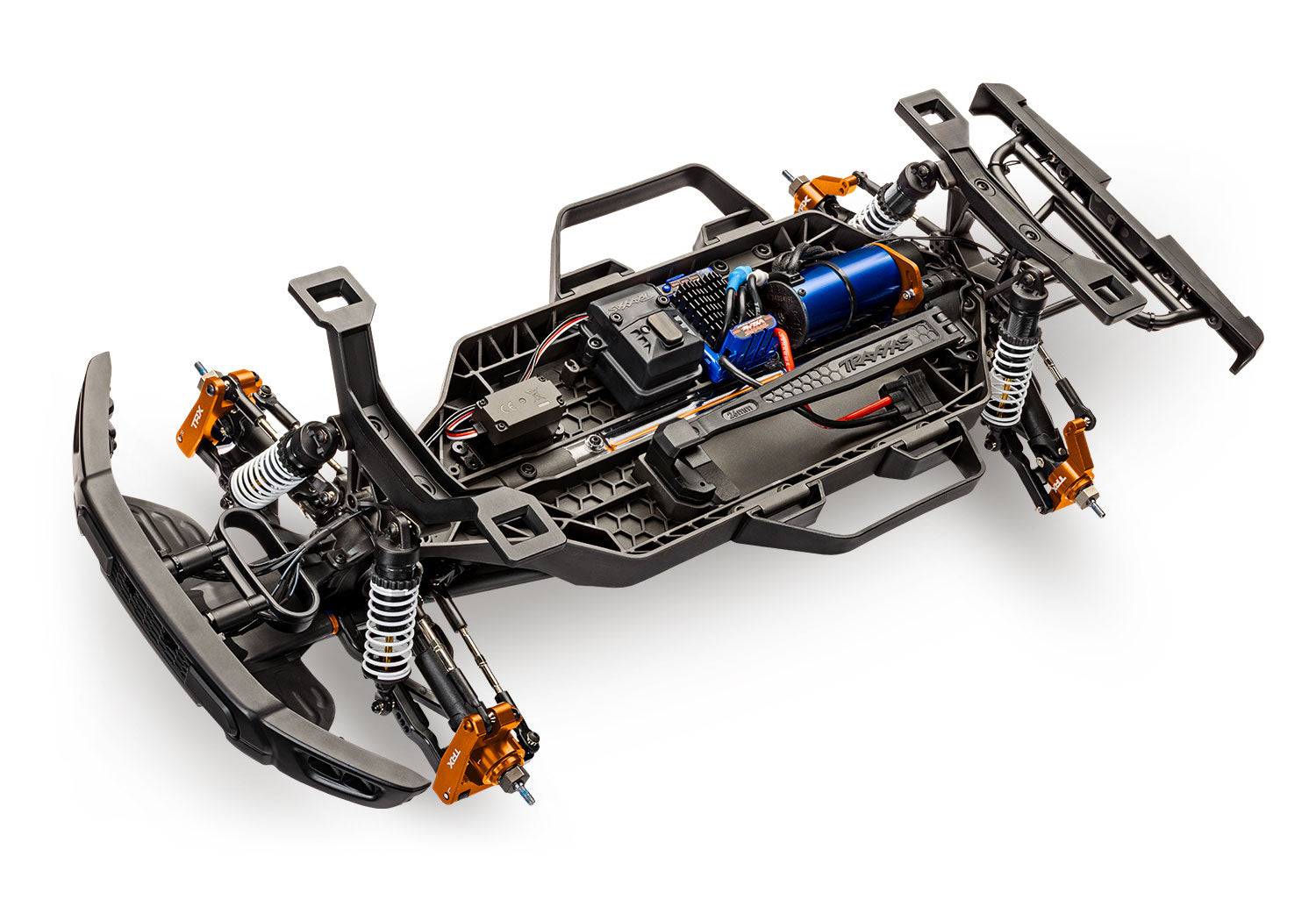

- Drive System: Shaft-driven 4WD with Torque-Biasing Center Drive
- Differentials: Hardened steel bevel, sealed, limited slip
- Gear Pitch: 32 pitch
- Servo: 2275 high-torque waterproof
- Radio System: TQi 2.4 GHz 2-channel with wireless module
- Battery Compartment Specs: 165 mm x 50 mm x 23/26 mm
Motor Specifications
- Motor Type: 540XL 2400 Kv sensorless brushless
- Motor Weight: 317 g
- Motor Length: 91 mm
- Motor Diameter: 36 mm
- Shaft Size: 5 mm
- Connector Type: Traxxas 6.5 mm bullet connectors
ESC Specifications
- Input Voltage: 2S to 4S LiPo (7.4 V to 16.8 V)
- Case Size: 61 mm x 53 mm x 36 mm
- Weight: 119 g
- BEC Voltage: Selectable 6.0 or 7.4 volts
- Motor Connectors: Traxxas 6.5 mm bullet connectors
- Battery Connectors: Traxxas High-Current Connectors
- Thermal Protection: Two-stage thermal shutdown
- Ports: RX input, auxiliary fan connector
What’s In The Box
- Raptor R with Velineon VXL-4s ESC and 2400 Kv motor
Quick Start Guide
TQi 2.4 GHz radio system w/ wireless module
High quality maintenance tools
