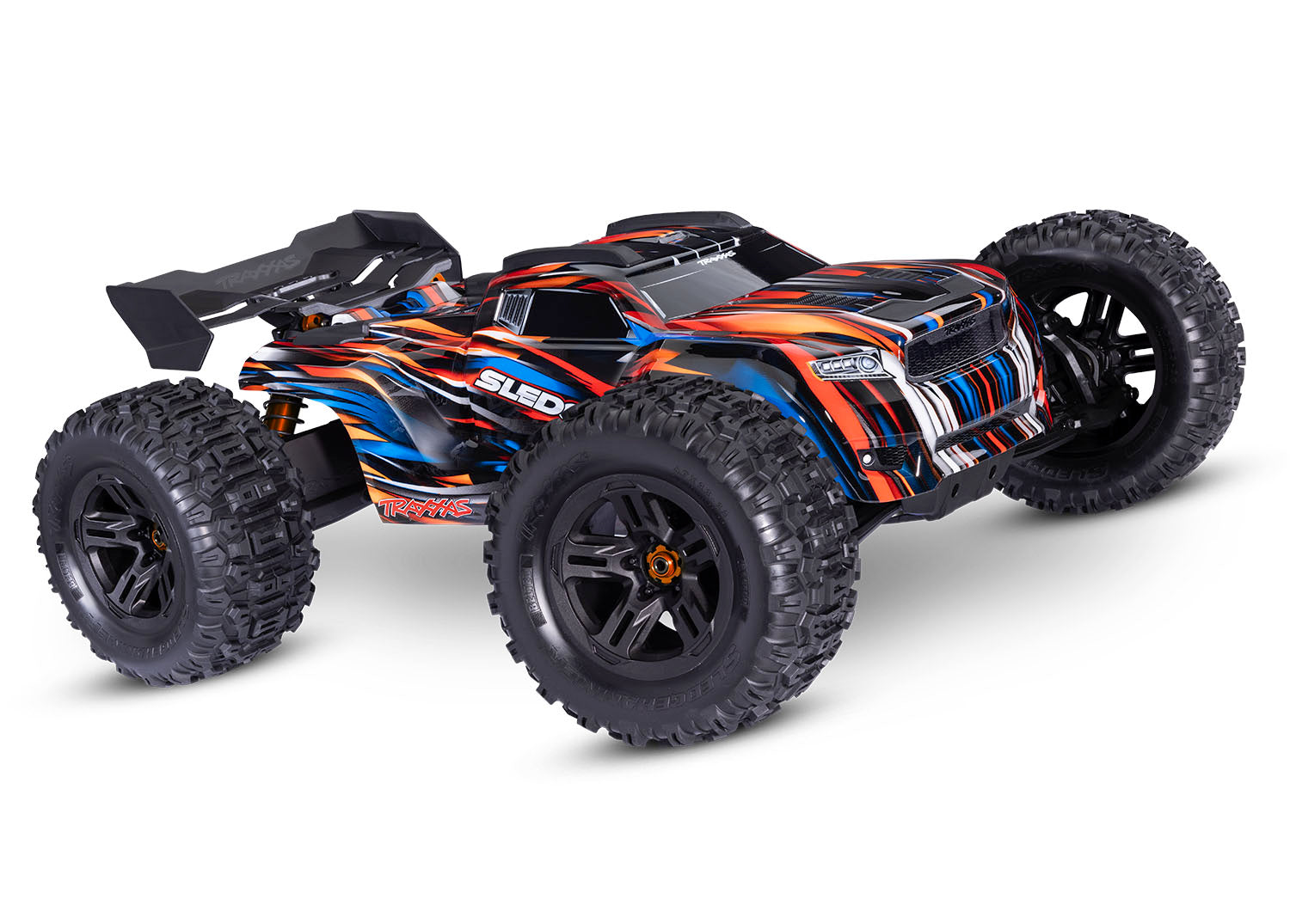

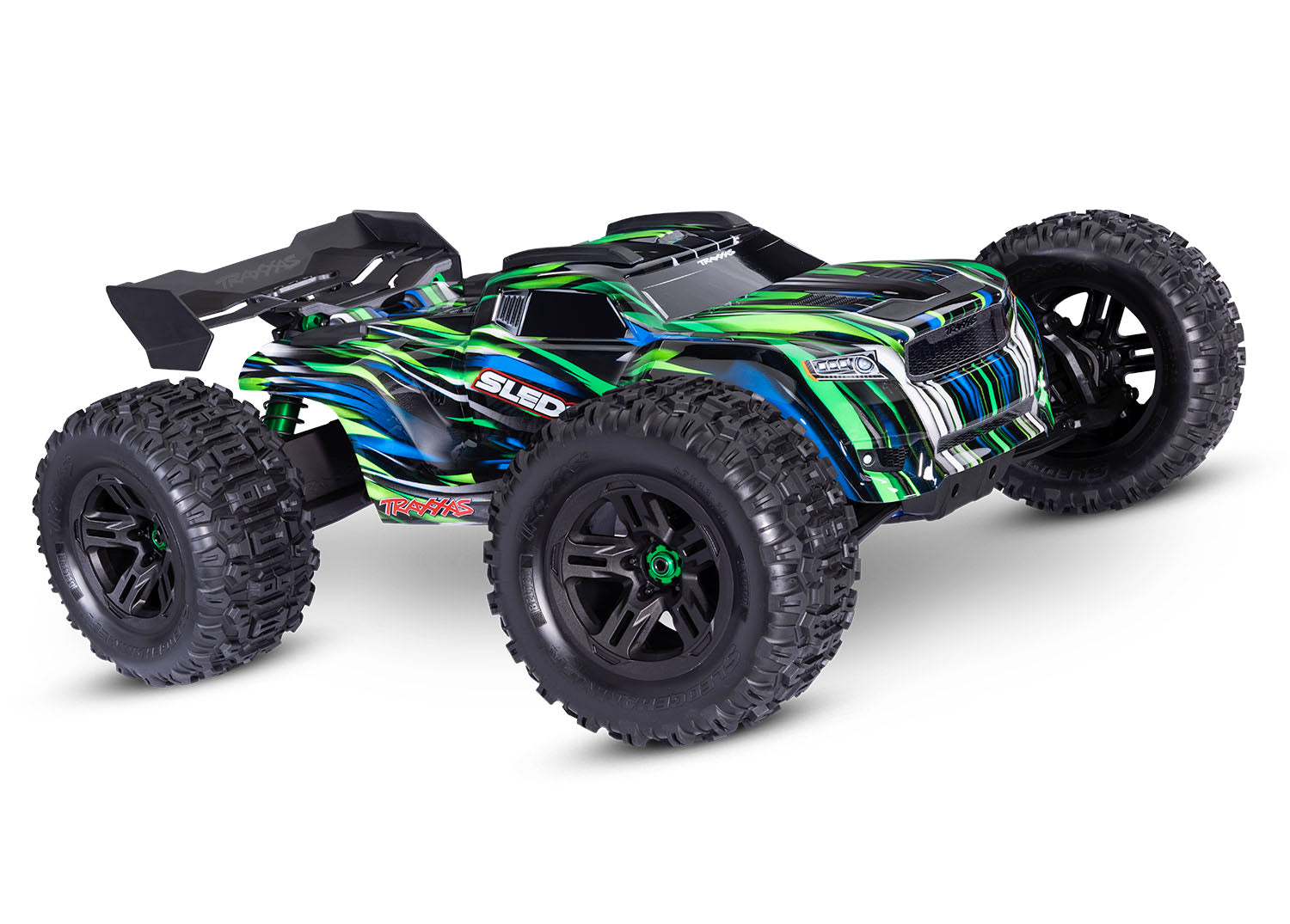

Traxxas: 1/8 Sledge Belted

70+ mph 1/8 Sledge Belted monster truck with 6S power, durable drivetrain, and extreme stability for high-speed bashing and big air performance.

Required to Run

• LiPo Batteries & Charger: Traxxas recommends dual 5000mAh 3-cell 11.1 V Power Cell LiPo batteries for maximum performance. Dual 7600mAh 7.4 V LiPo batteries or a single 6700mAh 14.8 V LiPo battery will operate the vehicle with reduced performance.
• Four AA alkaline batteries for the transmitter.

Features

• Up to 70+ mph with Two 3s LiPo Batteries (sold separately)

• VXL-6s™ Waterproof Electronic Speed Control
• Velineon 2000 kV Brushless Motor
• TQi™ 2.4 GHz High Output Radio System
• Clipless ProGraphix Body

Specifications

• Model name: Sledge Belted
• Model type: Monster truck
• Model speed: 70+ mph with 6S LiPo and optional gearing
• Skill level: 4
• Scale: 1/8
• Weight: 12.74lbs (5.77kg)
• Dimensions: 604x459x214mm (23.78x18.10x8.43 inches)
• Wheelbase: 384mm (15.10 inches)
• Ground clearance: 50mm (1.95 inches)
• Drivetrain: Shaft-driven 4WD
• Transmission: Single speed
• Differential type: Sealed hardened steel bevel limited slip
• Gear pitch: 1.0 metric
• Servo: 2275 digital metal-gear waterproof (347oz-in)
• Radio system: TQi 2.4GHz 2-channel with TSM receiver
• Battery compartment: 181x54x45mm

Motor Specifications

• Motor: 4-pole 2000Kv sensorless brushless
• Motor weight: 14.32oz (406g)
• Motor dimensions: 76x42mm (2.97x1.65 inches)
• Shaft size: 5mm
• Connector type: Traxxas 6.5mm bullet

ESC Specifications

• ESC: VXL-6s brushless
• Case size: 58x72x46mm (2.28x2.83x1.81 inches)
• Weight: 7.30oz (207g)
• Motor connectors: 6.5mm bullet
• Battery connectors: Traxxas High-Current Connector

What’s In The Box

• Sledge, Ready-To-Race® monster truck with Traxxas 2000 kV brushless motor
• VXL-6s waterproof electronic speed control with integrated telemetry

• Quick Start Guide

• TQi 2.4 GHz radio system

• High quality maintenance tools

• Jumper plug (for 4s battery use)
