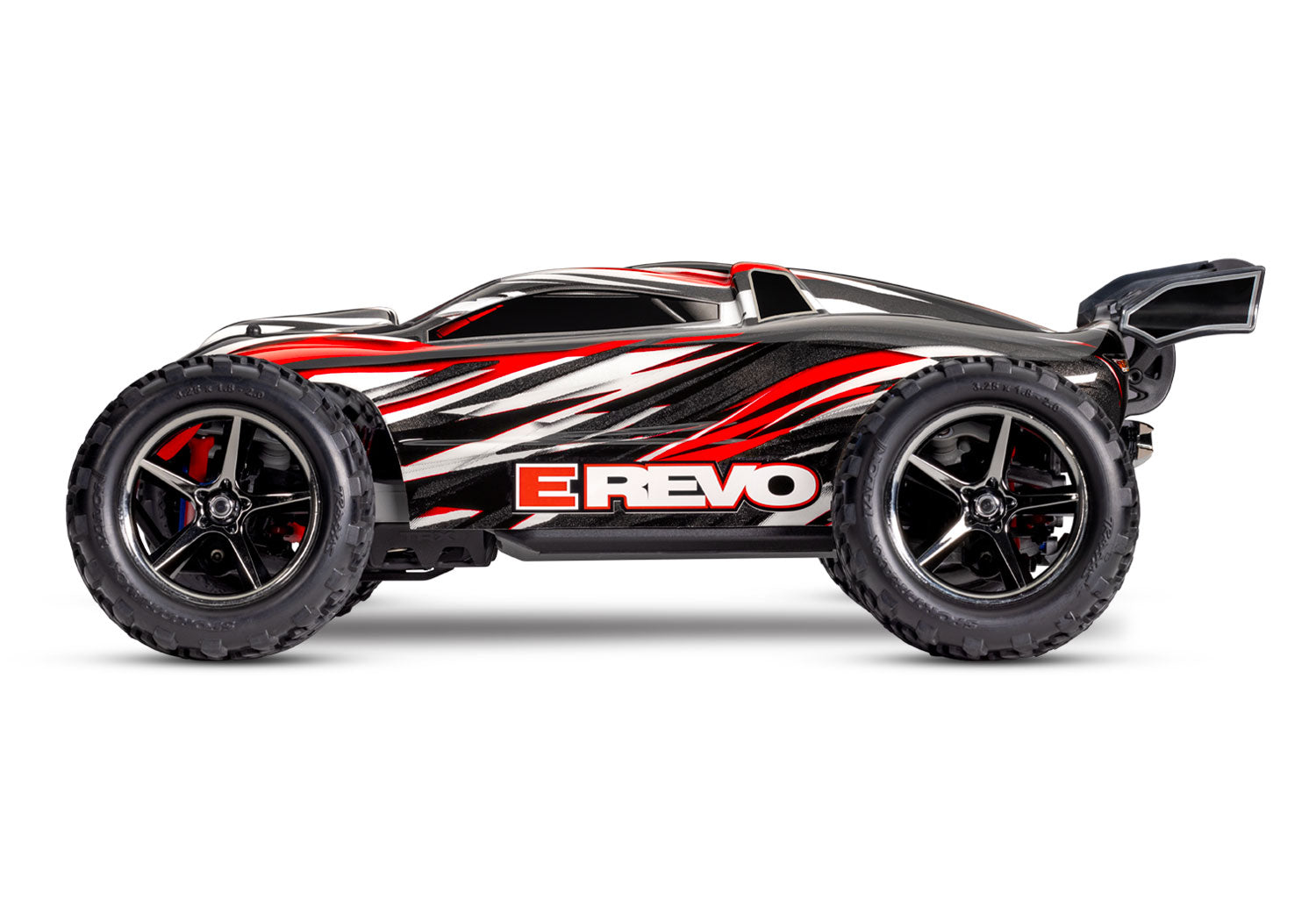

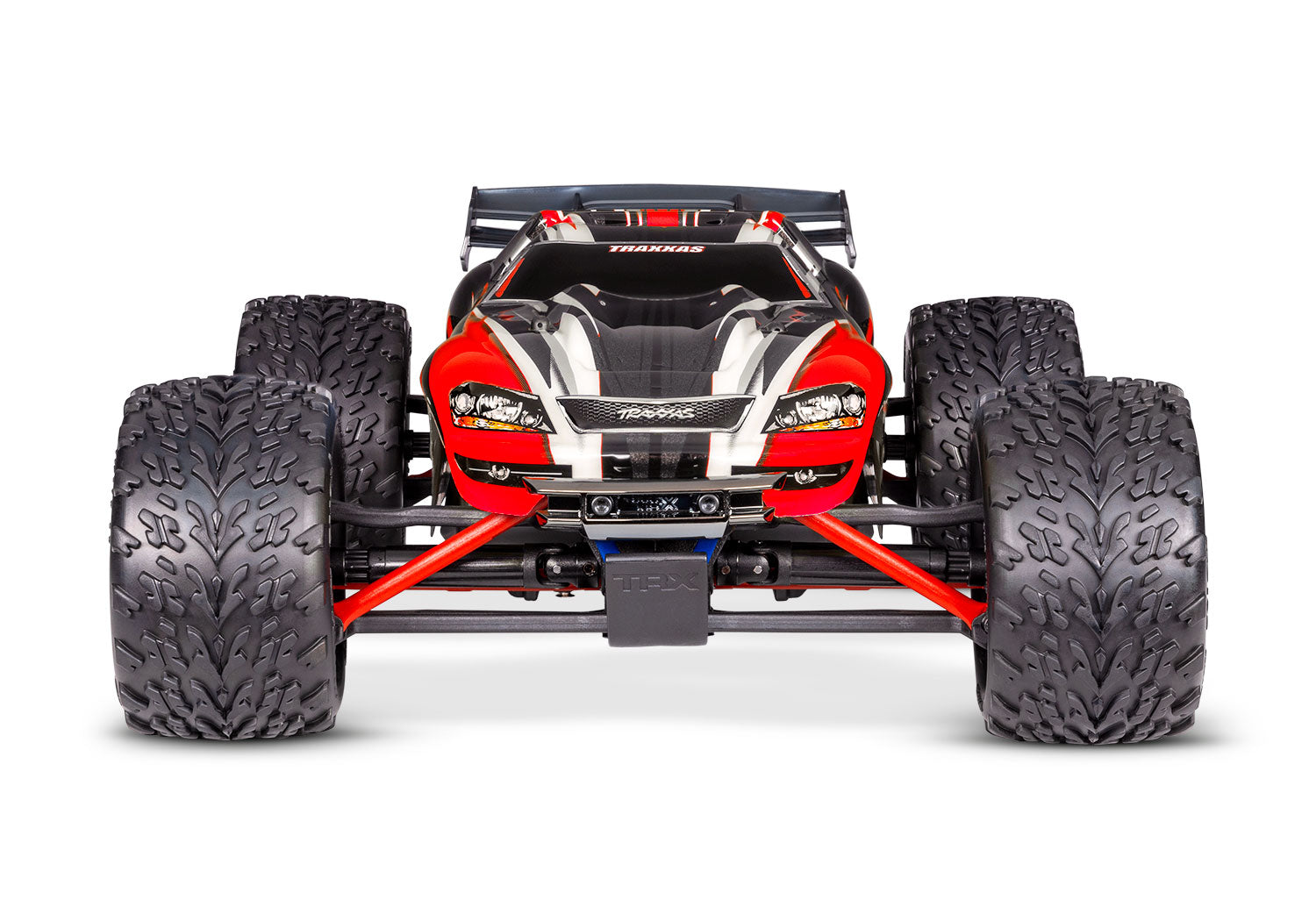

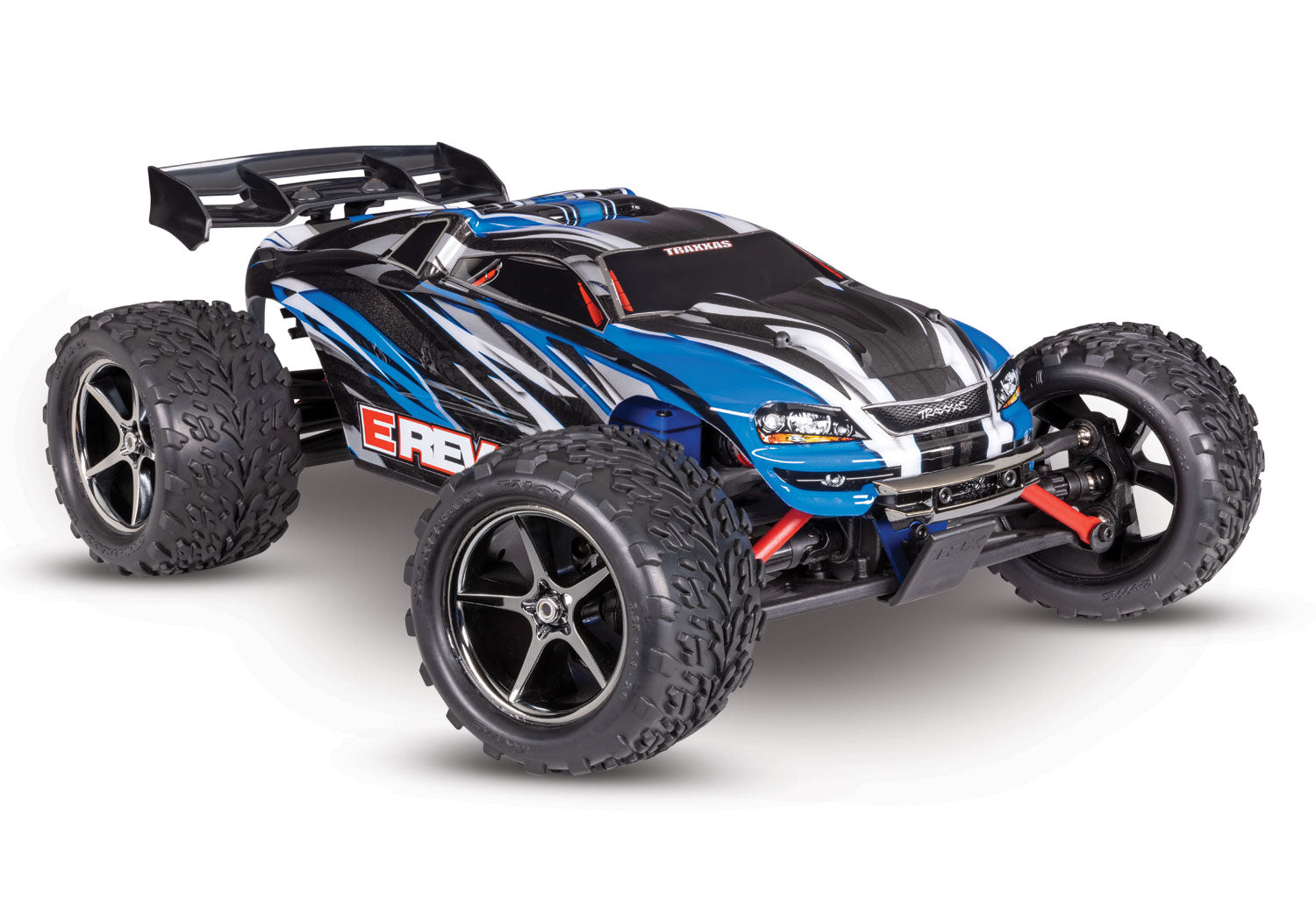

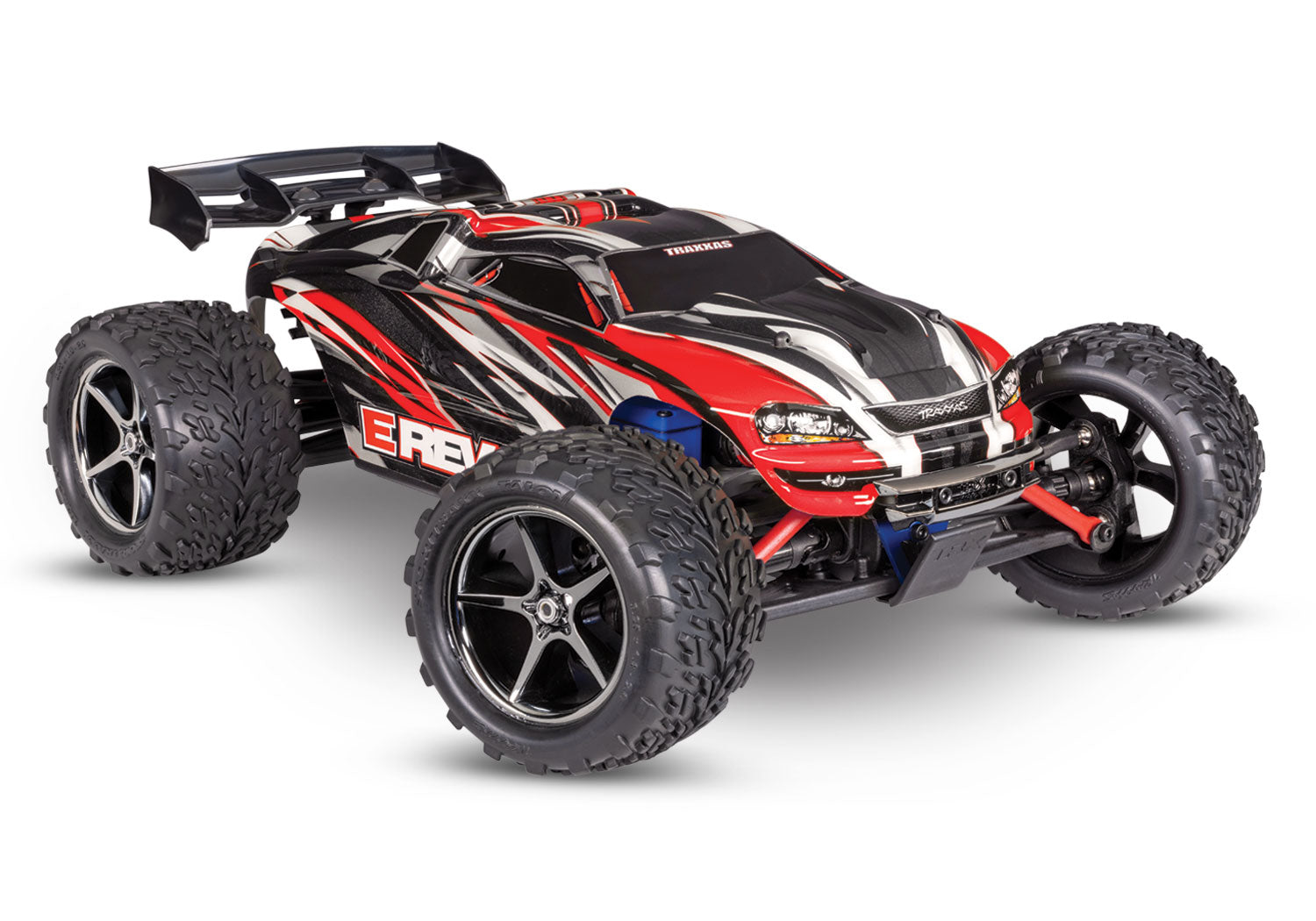

Traxxas: 1/16 E-Revo 4X4 w/USB-C

The Traxxas 1/16 E Revo 4X4 delivers big performance in a small package with a Titan 12T motor, waterproof electronics, USB C charging, and 4WD handling.

Required to Run

• Four AA alkaline batteries for the transmitter.
• USB-C Power Adapter and USB-C Cable


Features

• 70+ mph with Optional Gearing and Two 3s LiPo
• VXL-6s Waterproof ESC and Velineon 2000 kV Brushless Motor
• Traxxas Stability Management
• TQi 2.4 GHz High Output Radio System
• Clipless Body

Specifications

• Model Skill Level: 1
• Scale: 1/16
• Weight: 2.73 pounds (1.24 kg)
• Length: 12.6 inches (320 mm)
• Width: 9.4 inches (239 mm)
• Front Track: 9.4 inches (239 mm)
• Rear Track: 9.4 inches (239 mm)
• Height: 4.6 inches (117 mm)
• Wheelbase: 7.9 inches (202 mm)

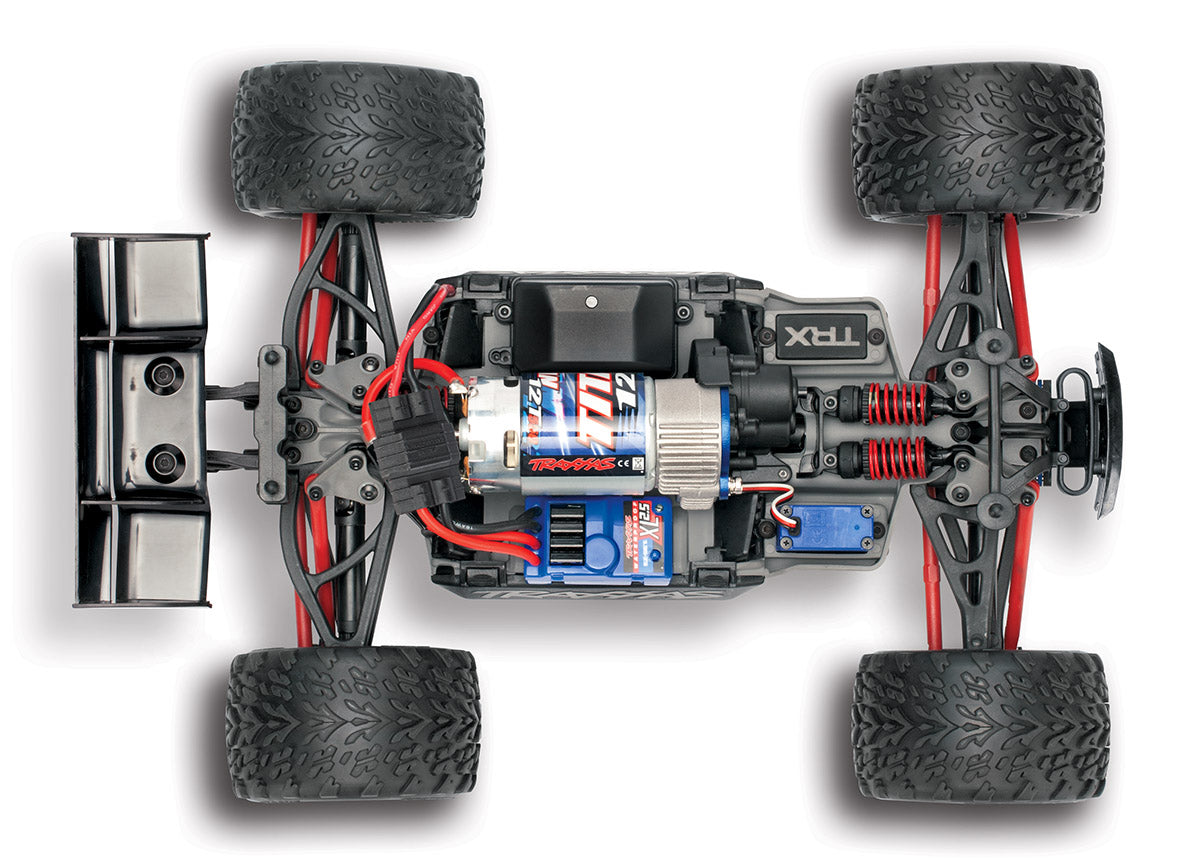

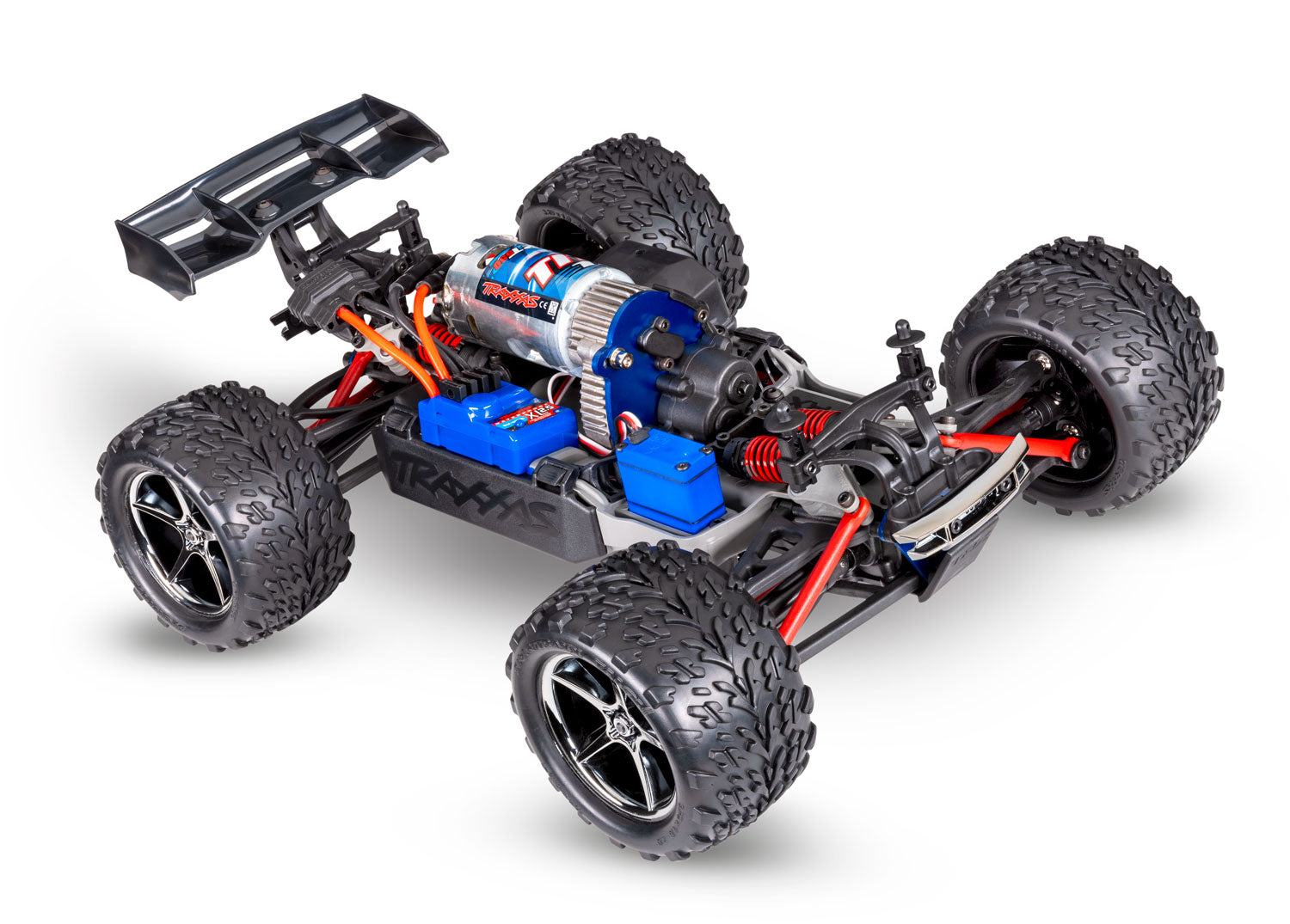

• Drivetrain: Shaft driven 4WD
• Transmission: Heavy duty single speed
• Differential Type: Hardened steel bevel, sealed
• Gear Ratio (Internal): 5.04:1
• Gear Pitch: 48 pitch
• Servo(s): 2080 digital waterproof
• Radio System: TQ 2.4 GHz 2 channel radio
• Battery Compartment Specs: 89 mm X 35.5 mm X 20 mm

Motor Specifications

• Motor Name: Titan 12T 550
• Motor Type: High speed brushed motor
• Motor Weight: 8.47 ounces (240 g)
• Motor Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
• Motor Diameter: 1.41 inches (36 mm)
• Motor Shaft Size: 3 mm
• Motor Connector Type: Bullet

ESC Specifications

• ESC Name: Waterproof XL 2.5 ESC with low voltage detection
• ESC Type: Brushed
• ESC Case Size: 46.5 mm / 26.5 mm / 22 mm
• ESC Weight: 1.16 ounces (33 g)
• Motor Connectors: Bullet
• Battery Connectors: Traxxas High Current Connector
• ESC Power Wire: 16 gauge

What's in the box

• 1/16 E-Revo 4X4 Monster Truck with pre-painted ProGraphix body and high-downforce wing
• TQ 2.4 GHz 2-channel radio transmitter

• 7.2V 1200 mAh NiMH Power Cell battery with iD connector
• 2-amp USB-C fast charger
• User manual
