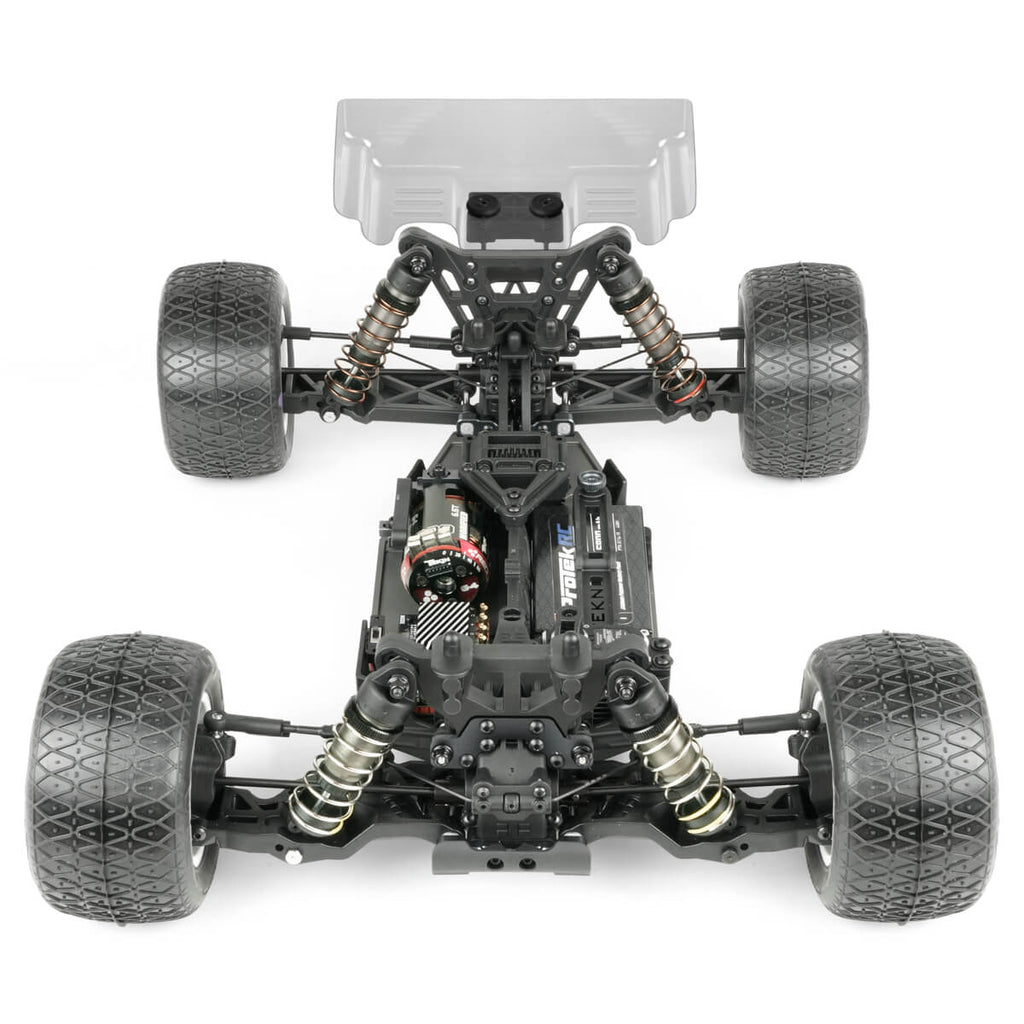

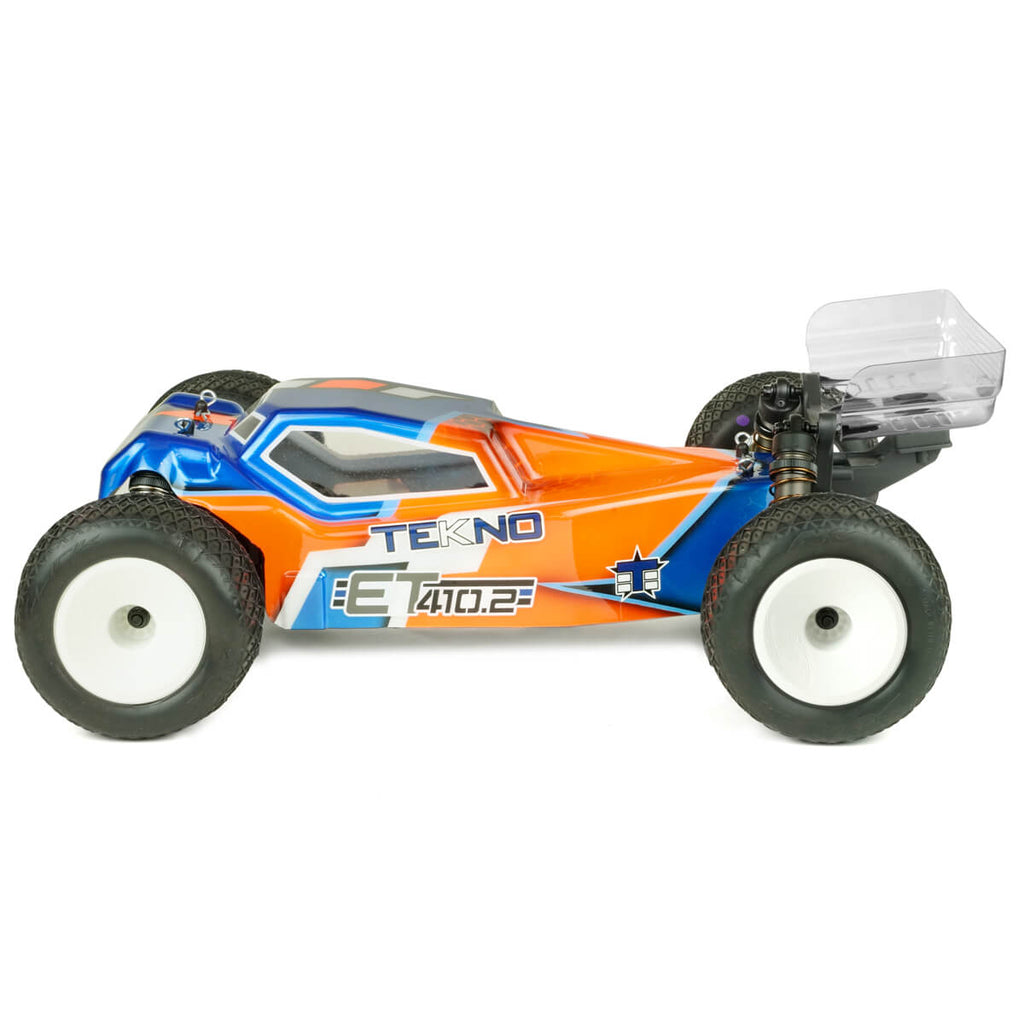

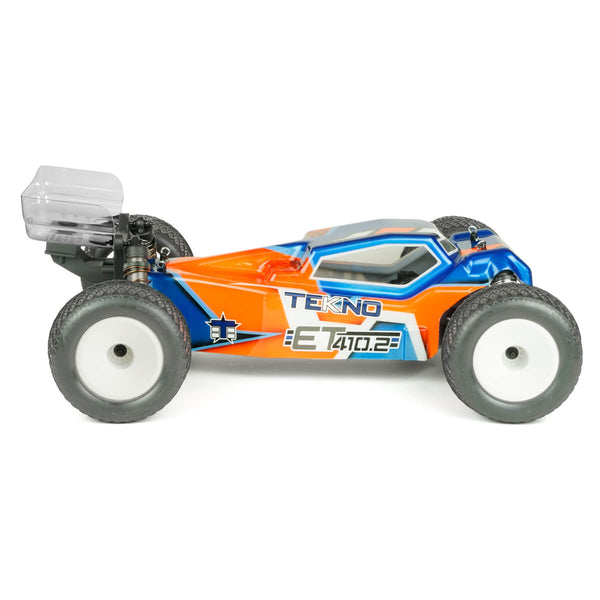

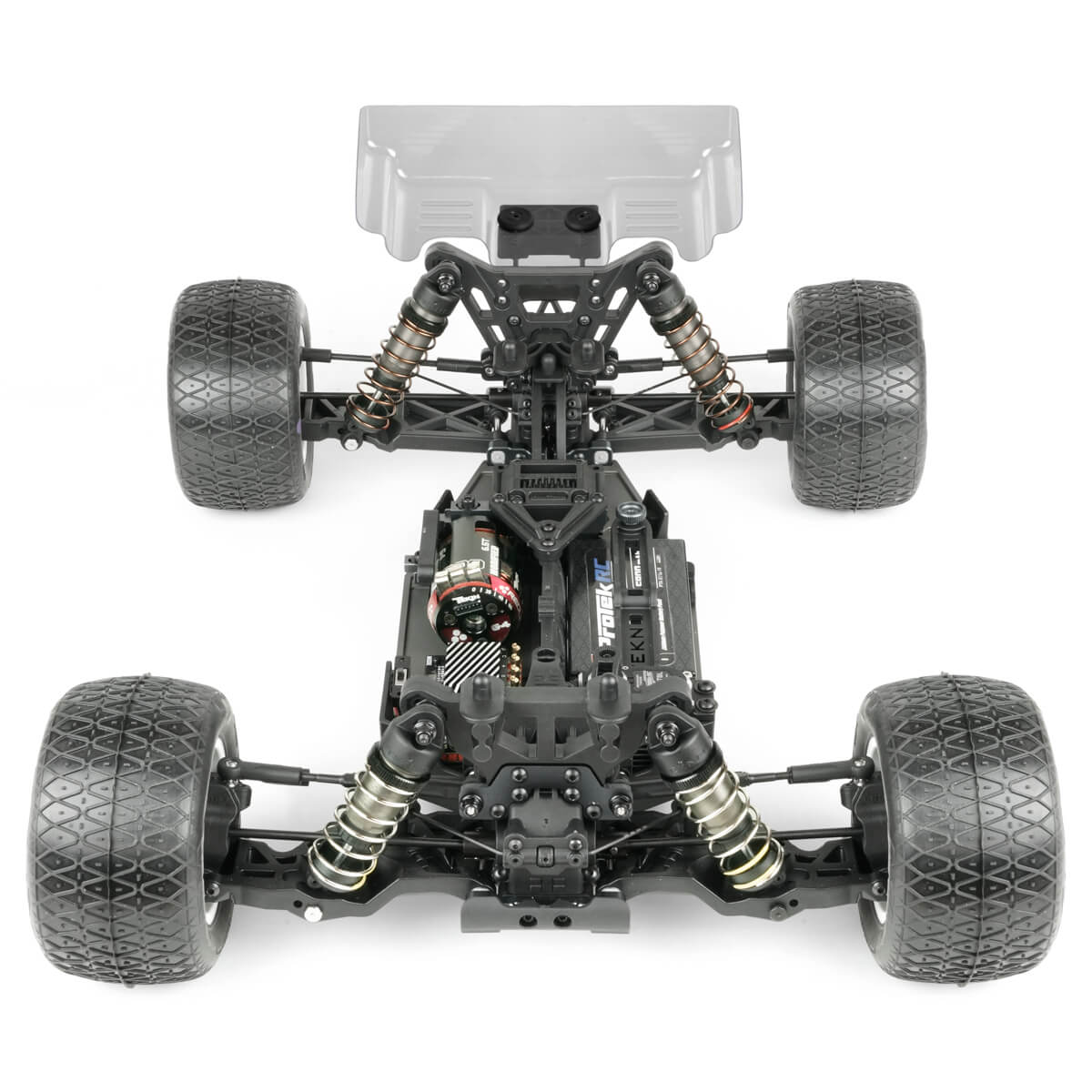

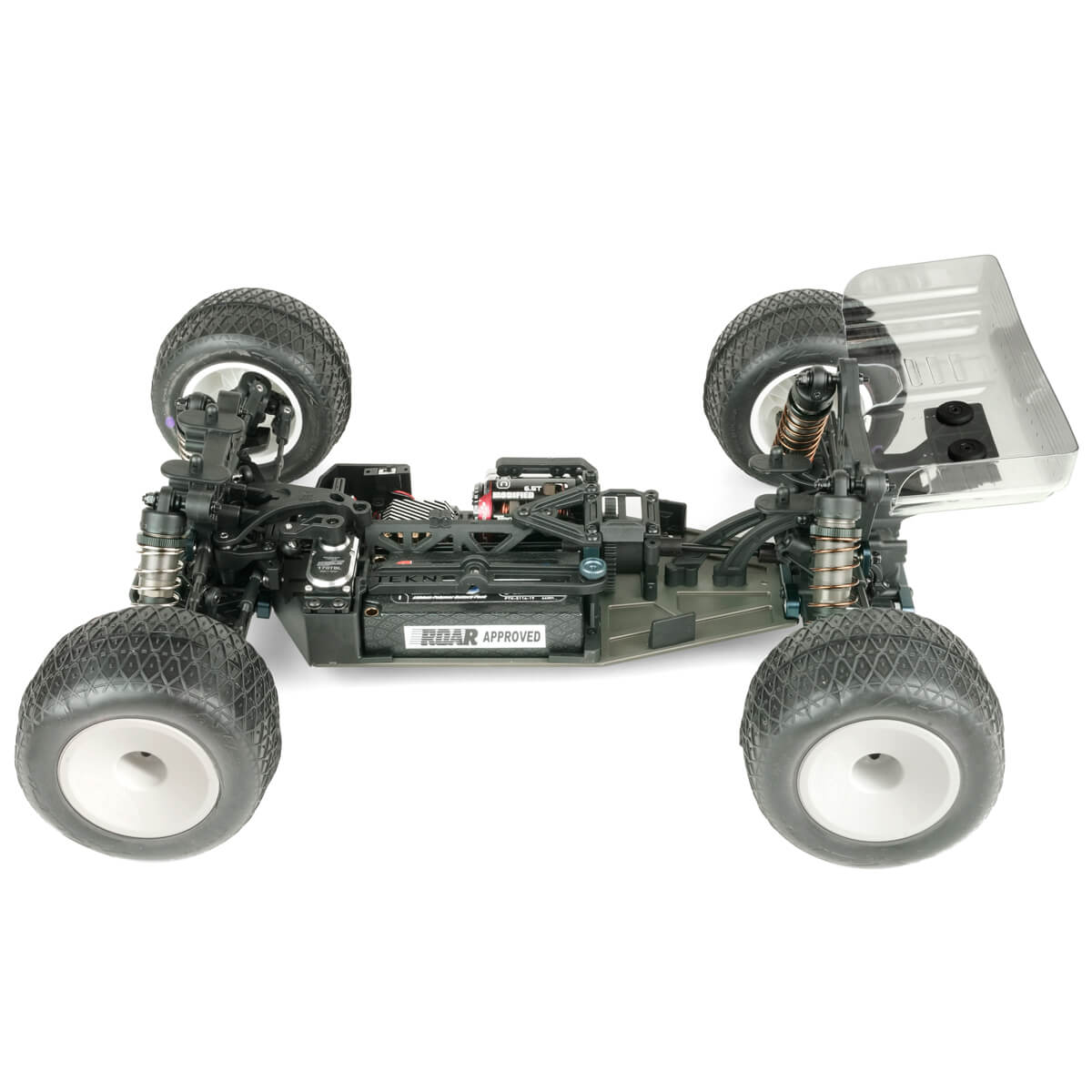

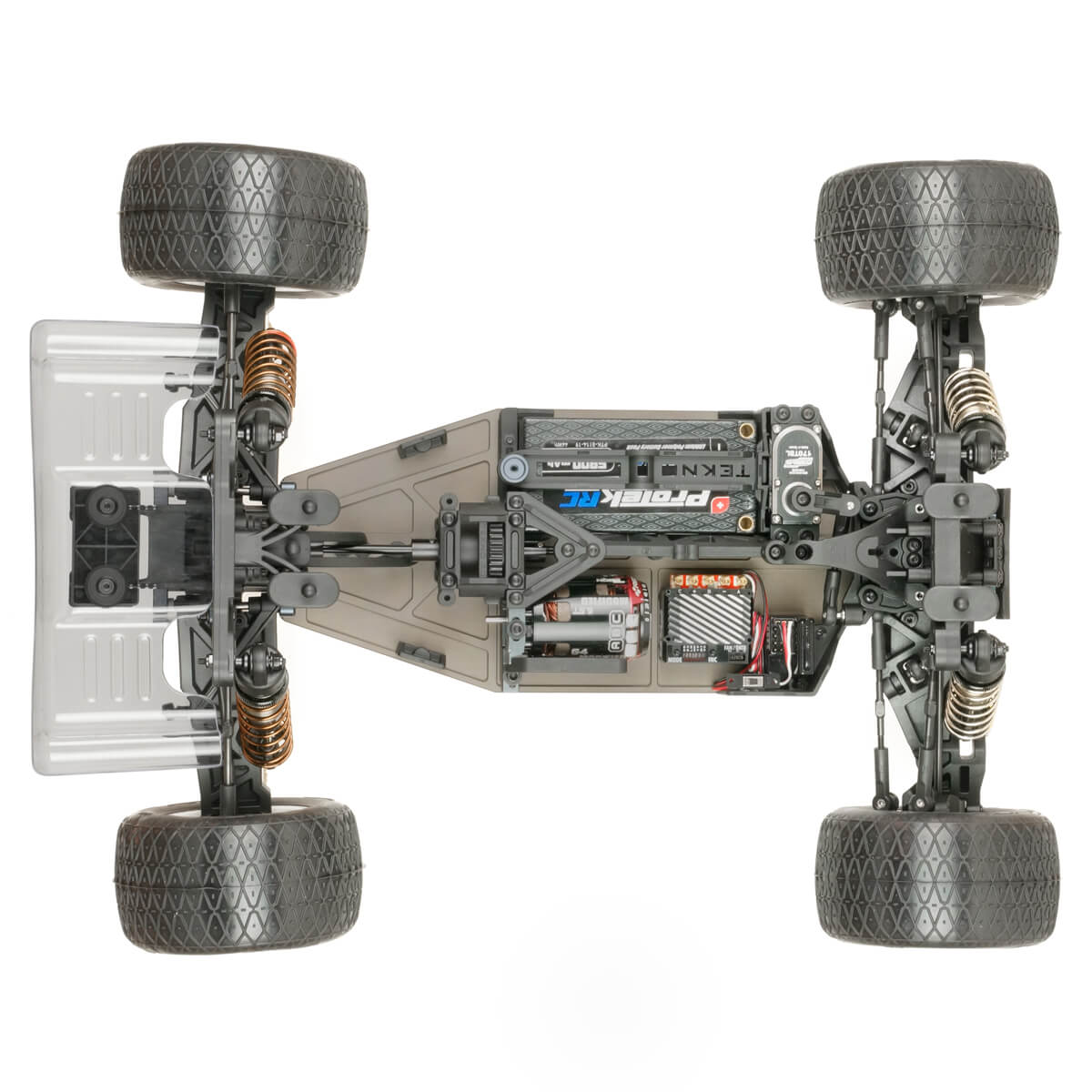

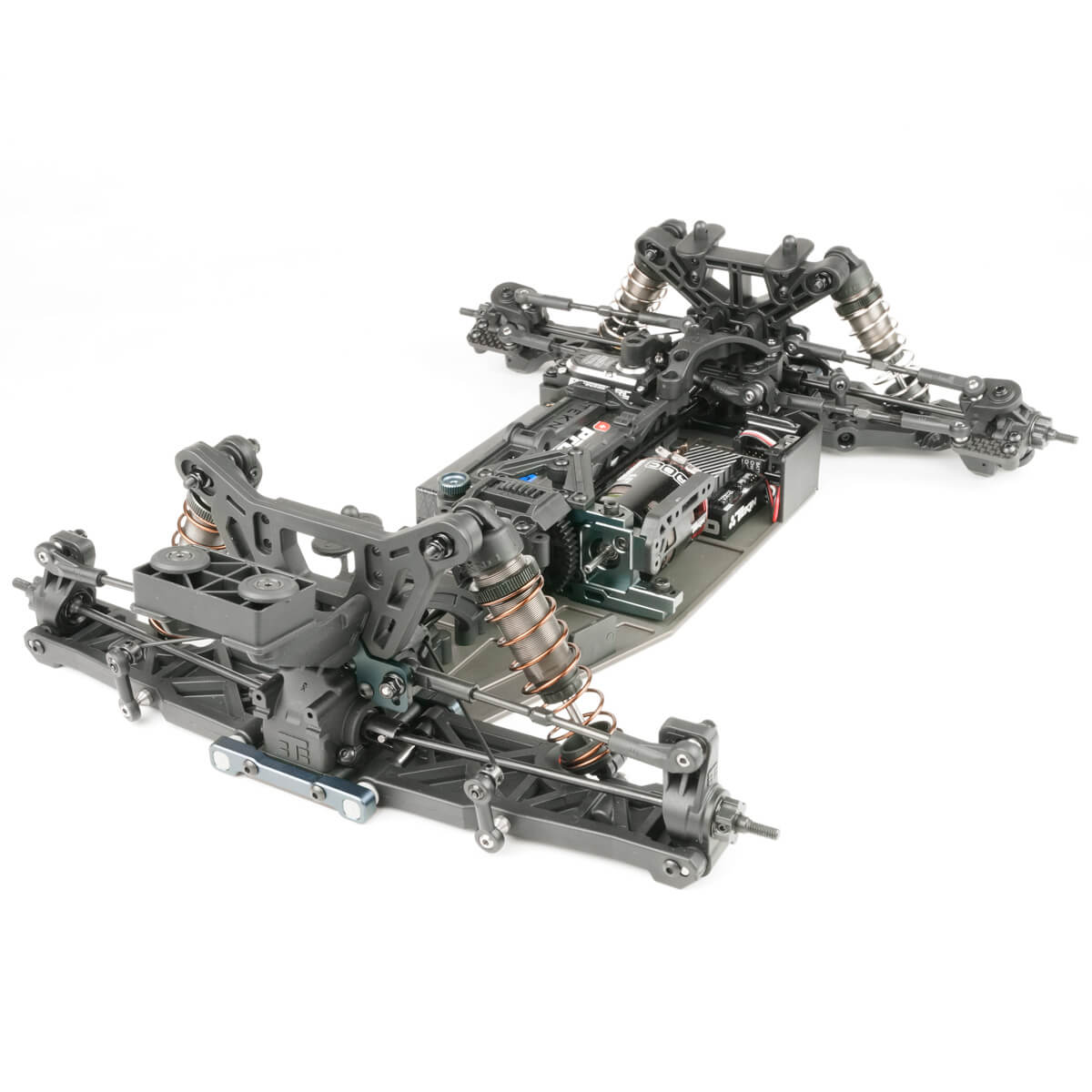

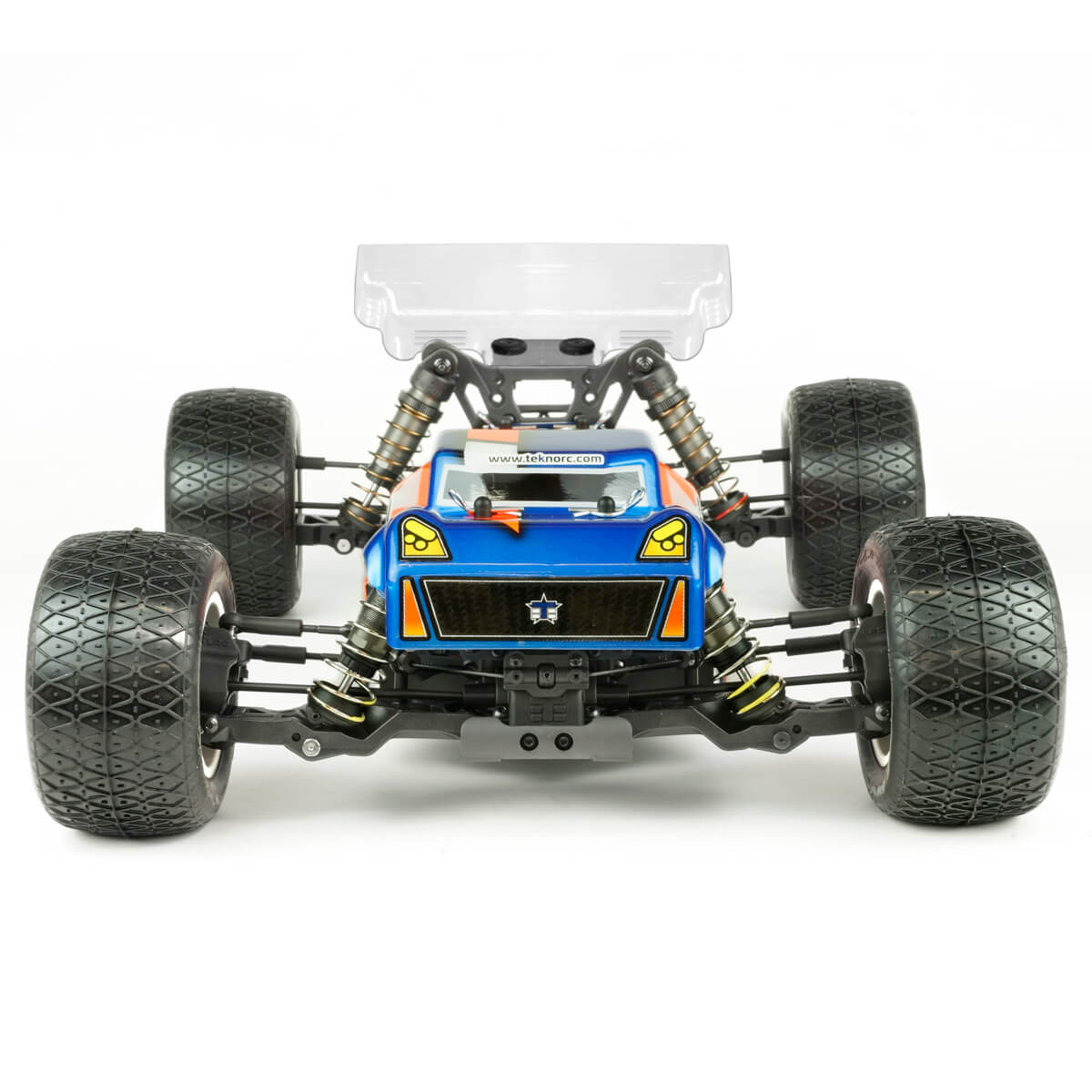

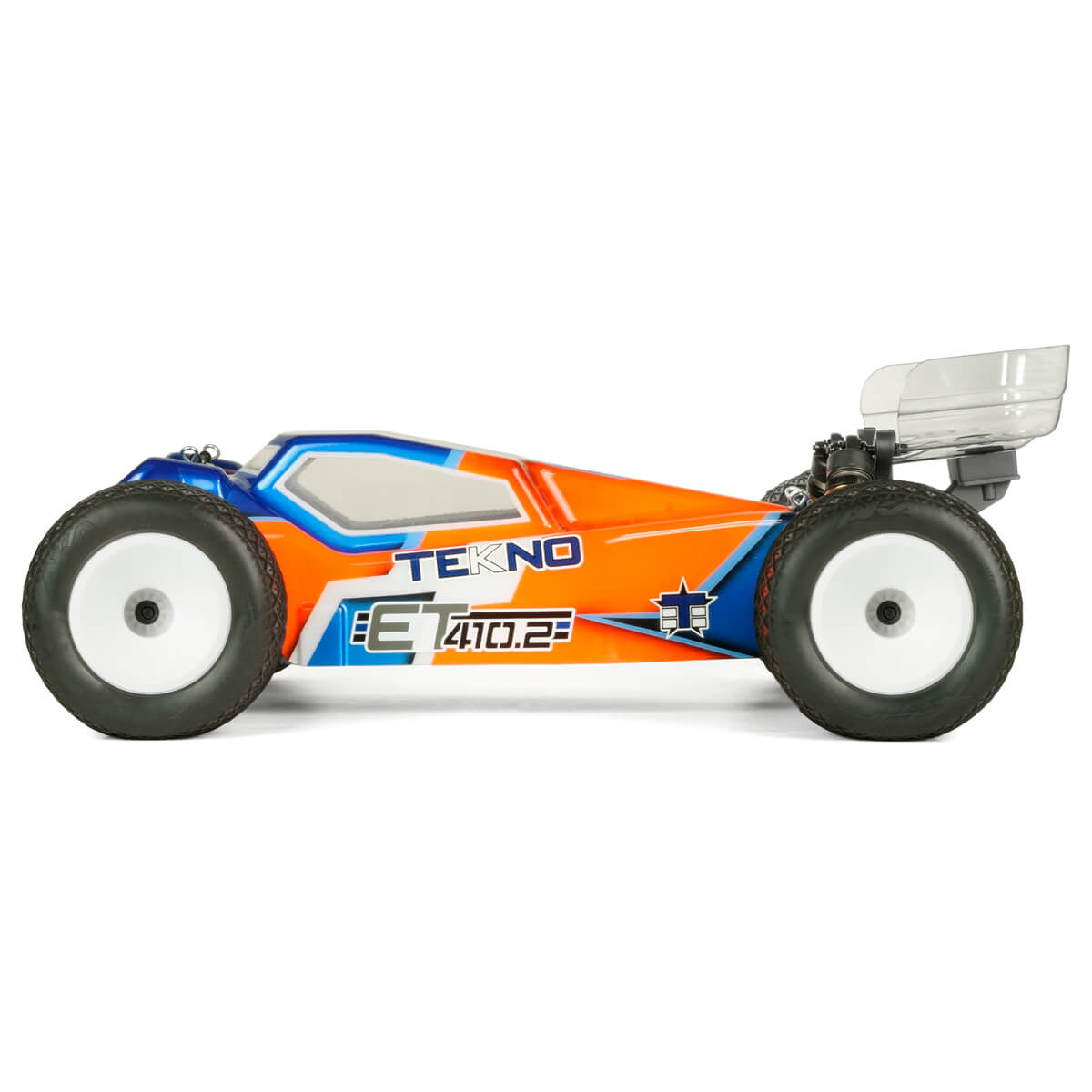

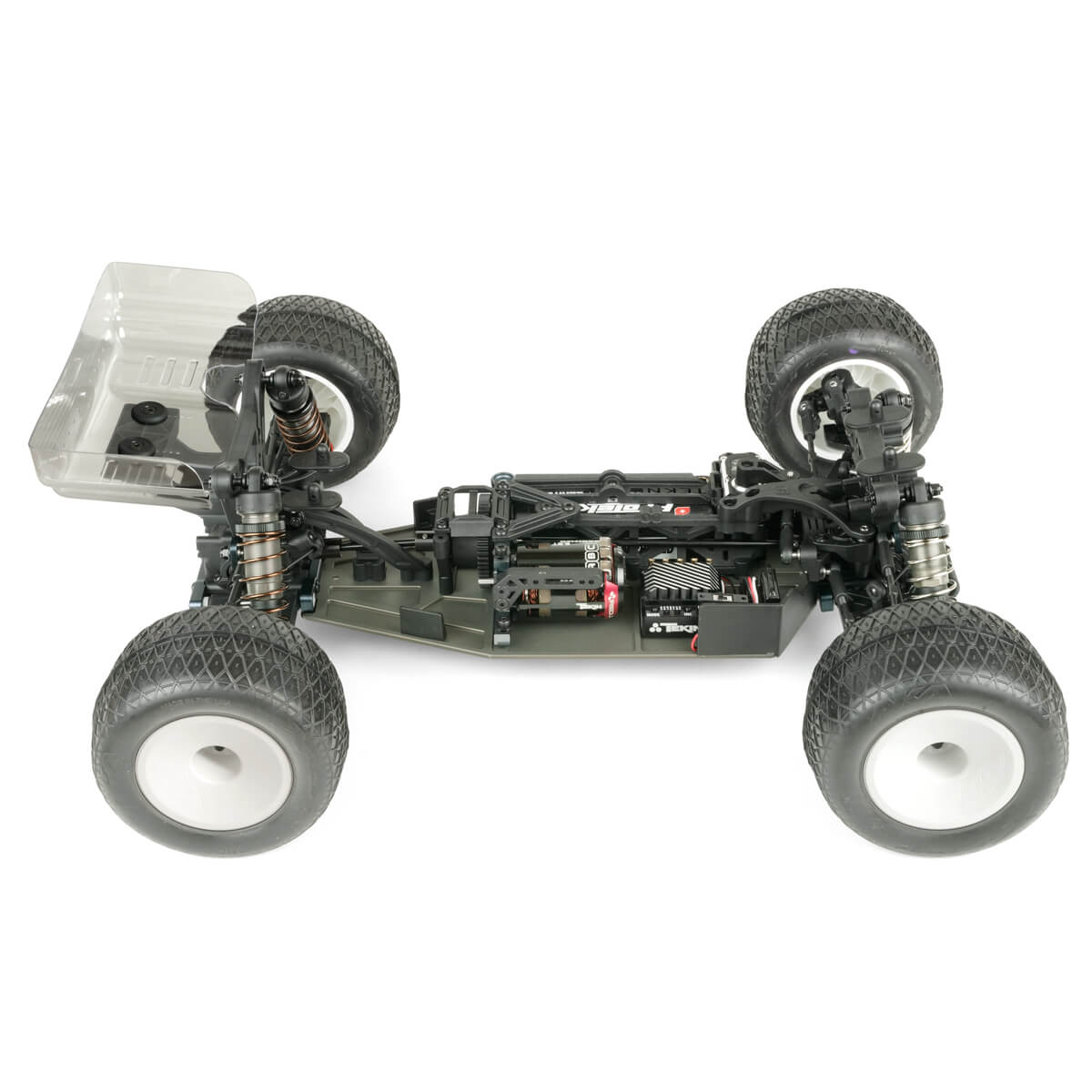

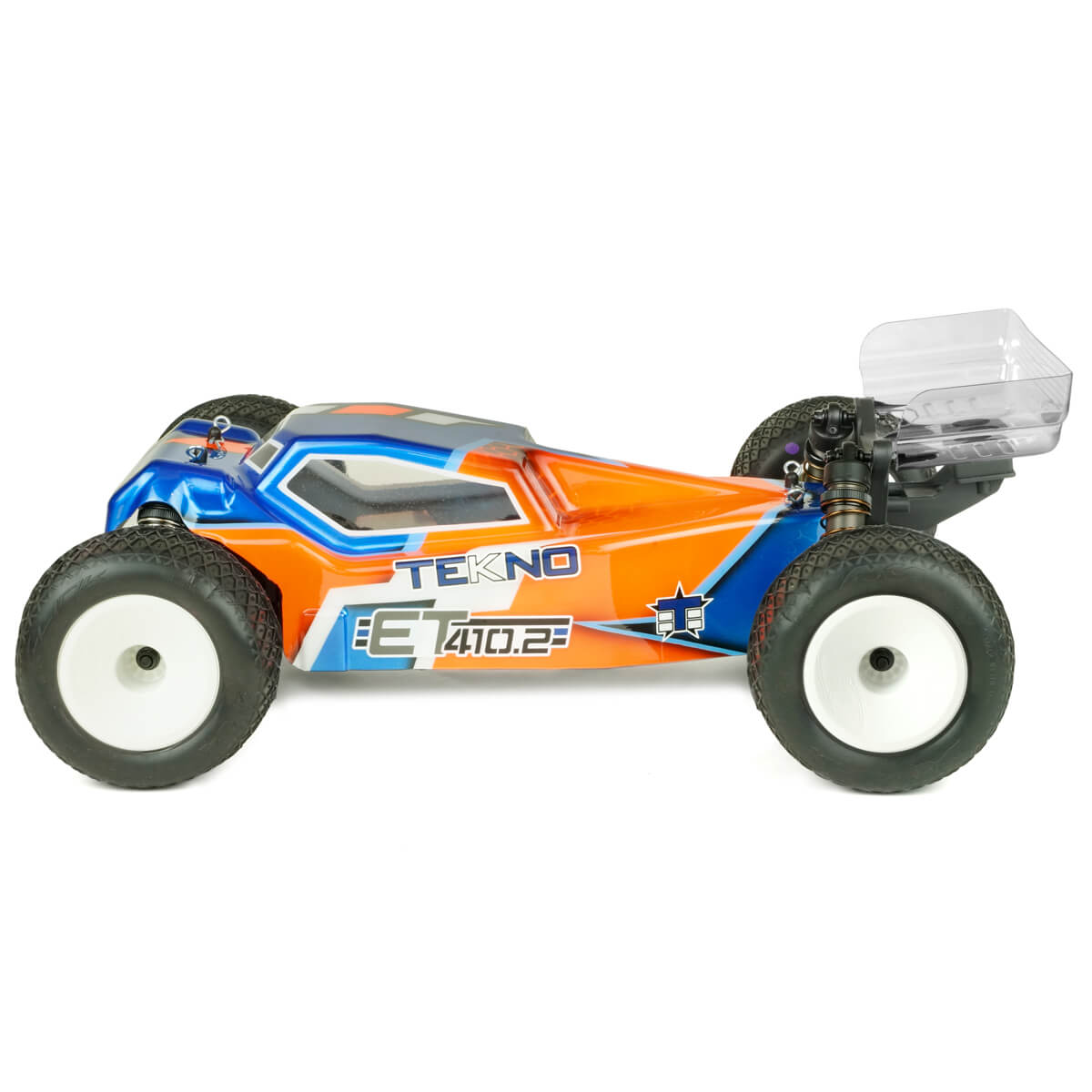

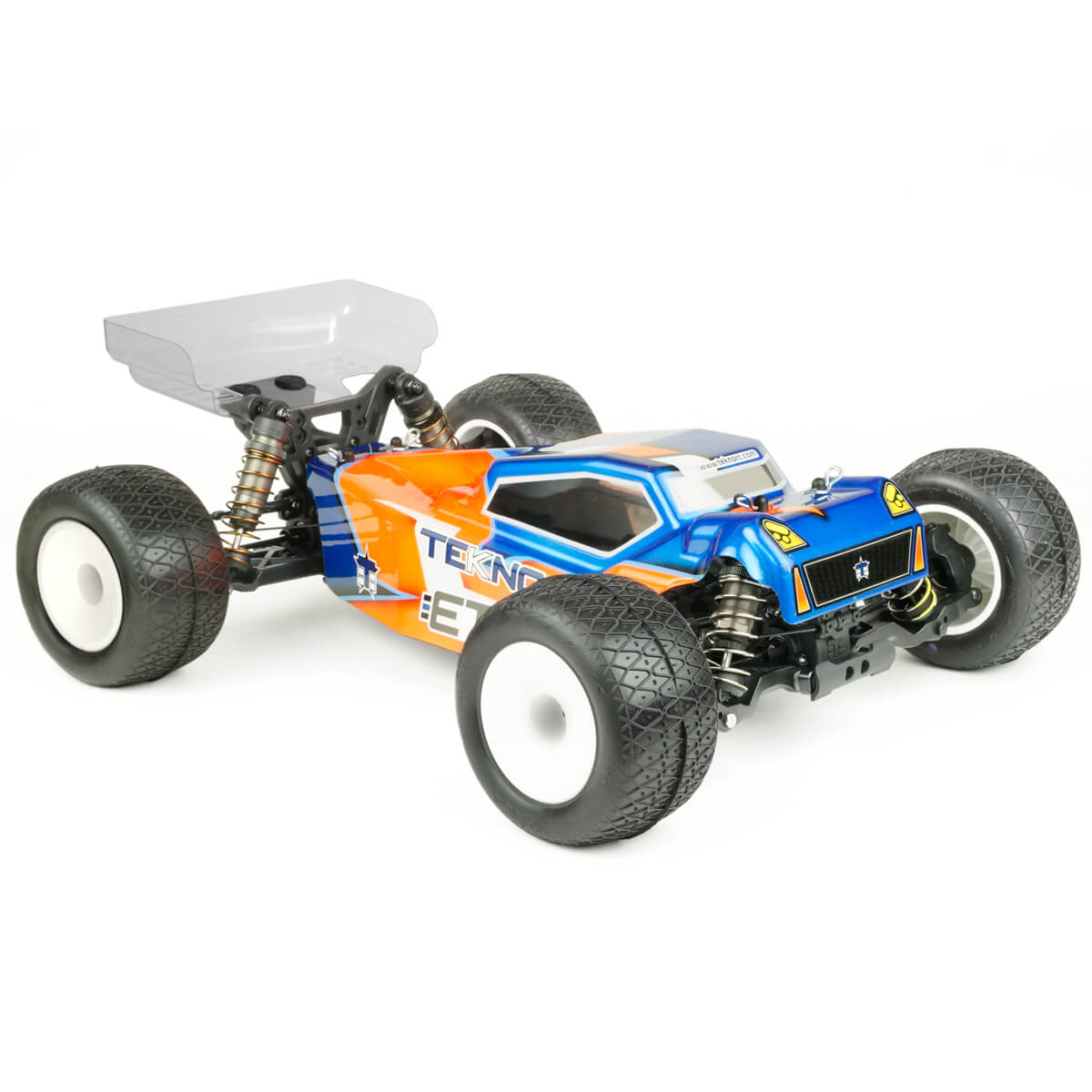

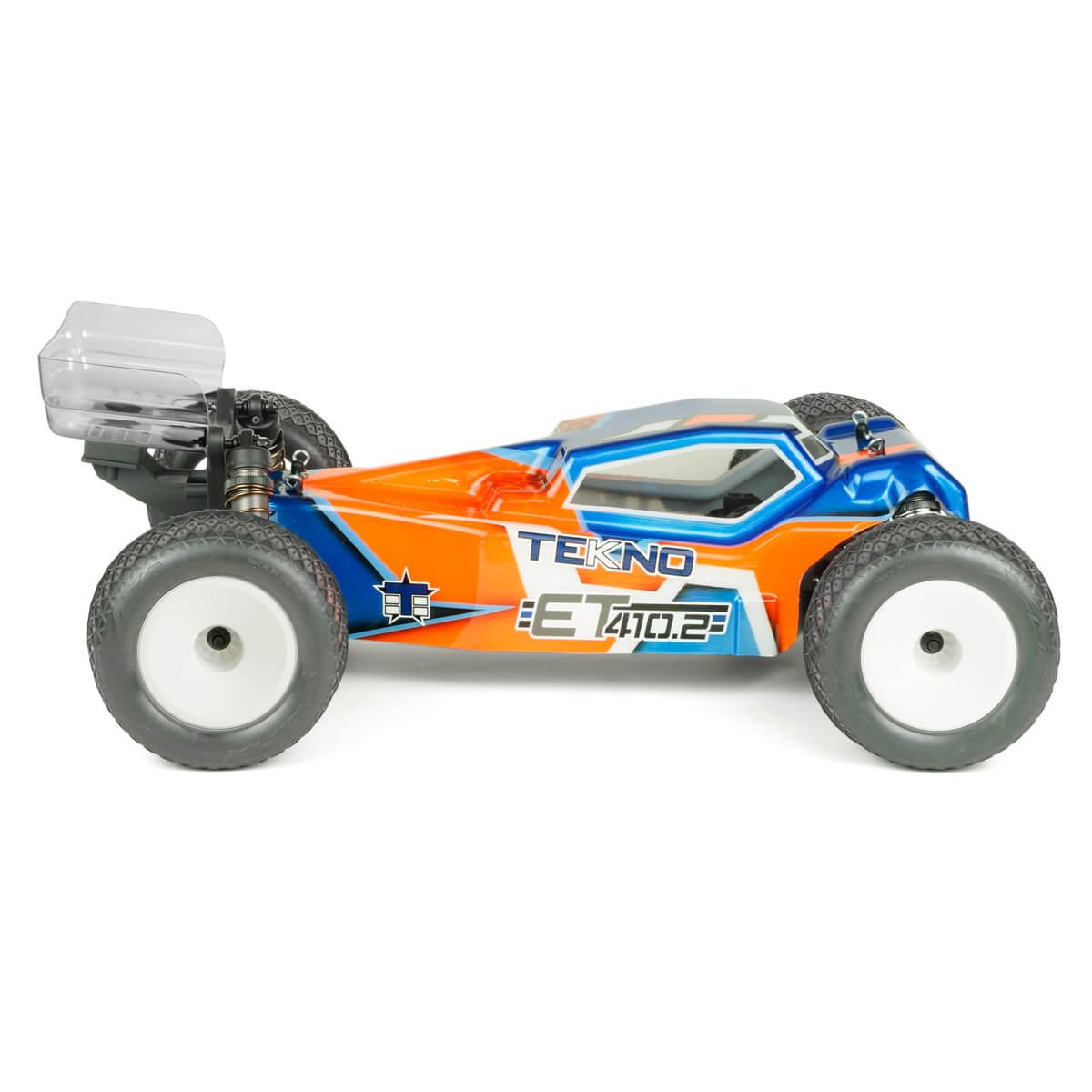

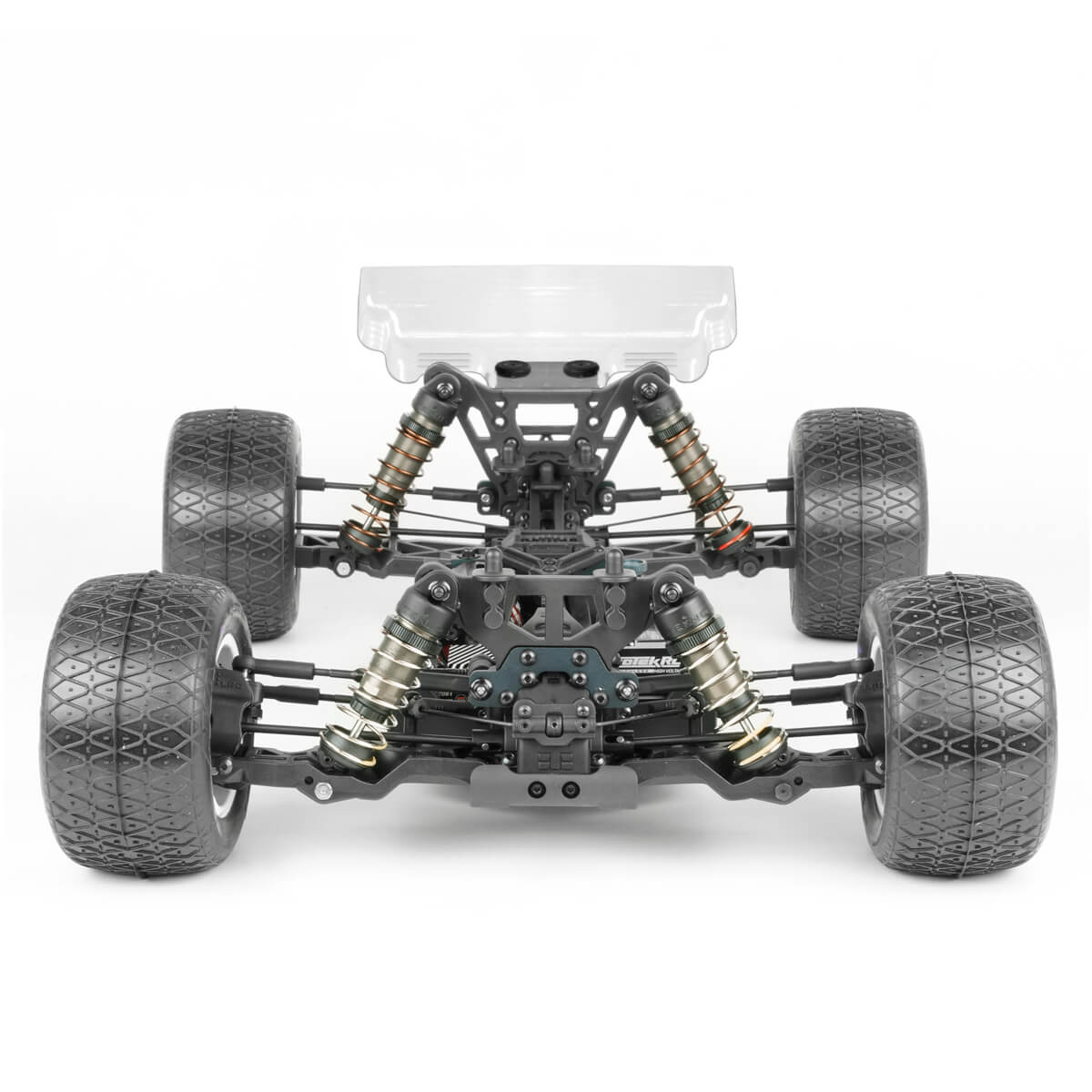

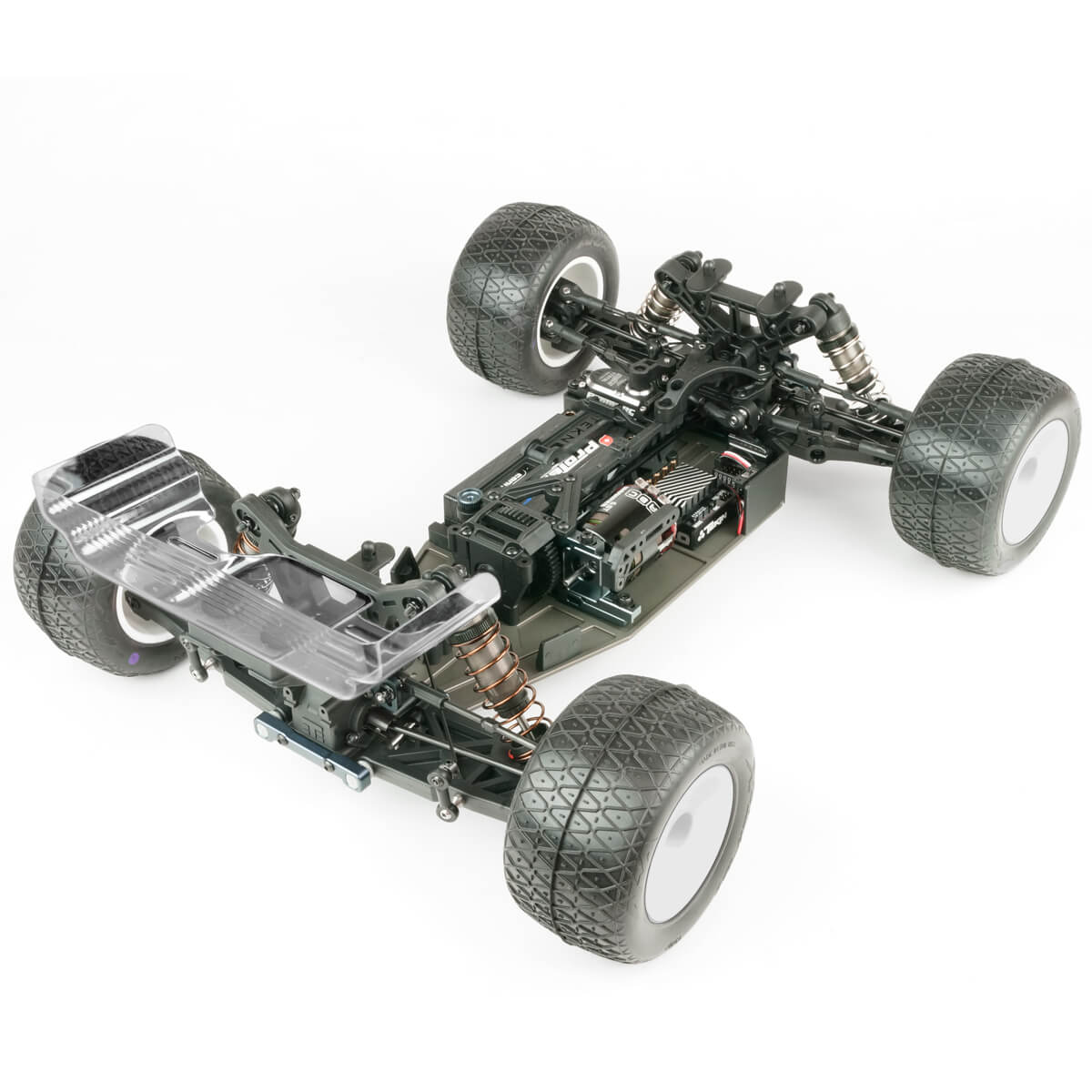

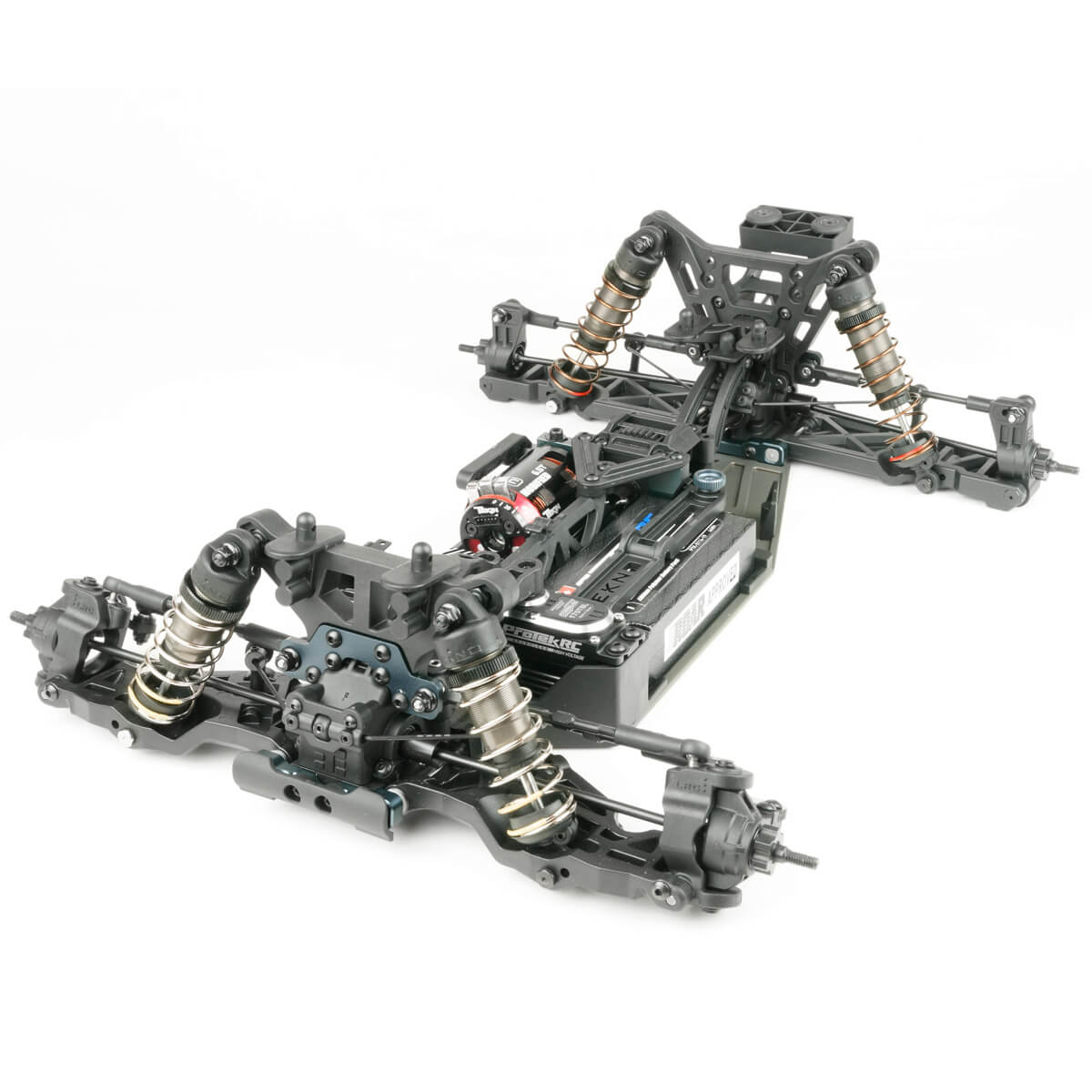

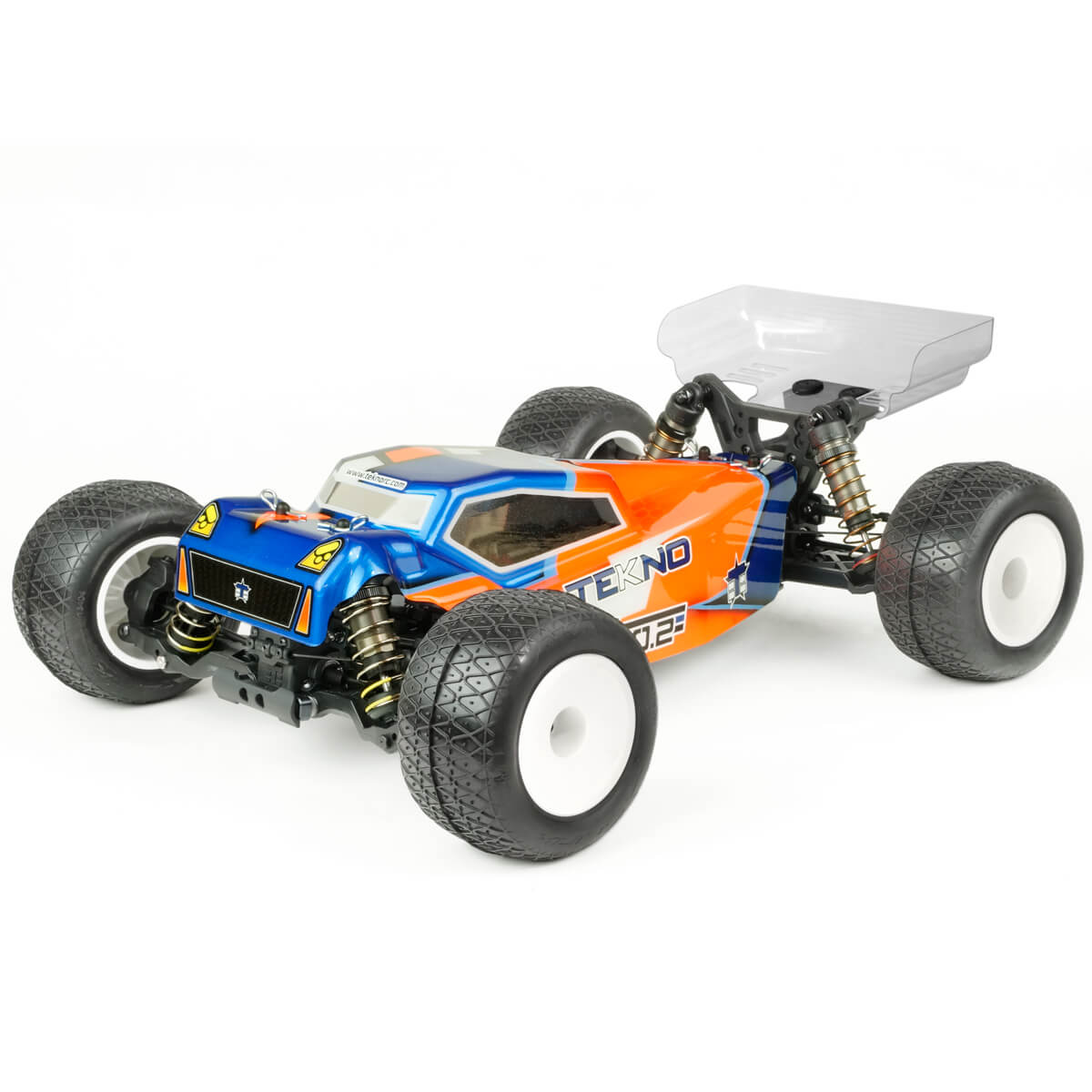

Tekno - TKR7202 - ET410.2 1/10th 4WD Competition Electric Truggy Kit
Regular price
$449.99
Sale price
$749.99
Shipping calculated at checkout.
Features
- CNC 7075 Long Wear Chassis
- New Larger 3.5mm HD Hinge Pins and Revised Hinge Pin Inserts
- New HD Hinge Pin Braces w/ Revised Suspension Geometry
- New Taller, Stronger One Piece Wing Mount w/ Height Adjustments
- New 18 Degree LRC Spindle Carriers
- New Spindles w/ Adjustable Ackermann Plates
- New Adjustable Roll Center Rear Hubs
- New Rear Arms w/ Front Mounted Shocks
- Stronger HD Outdrives and Diff Couplers
- New Aluminum Front and Rear Camber Plates w/ Bulkhead Brace

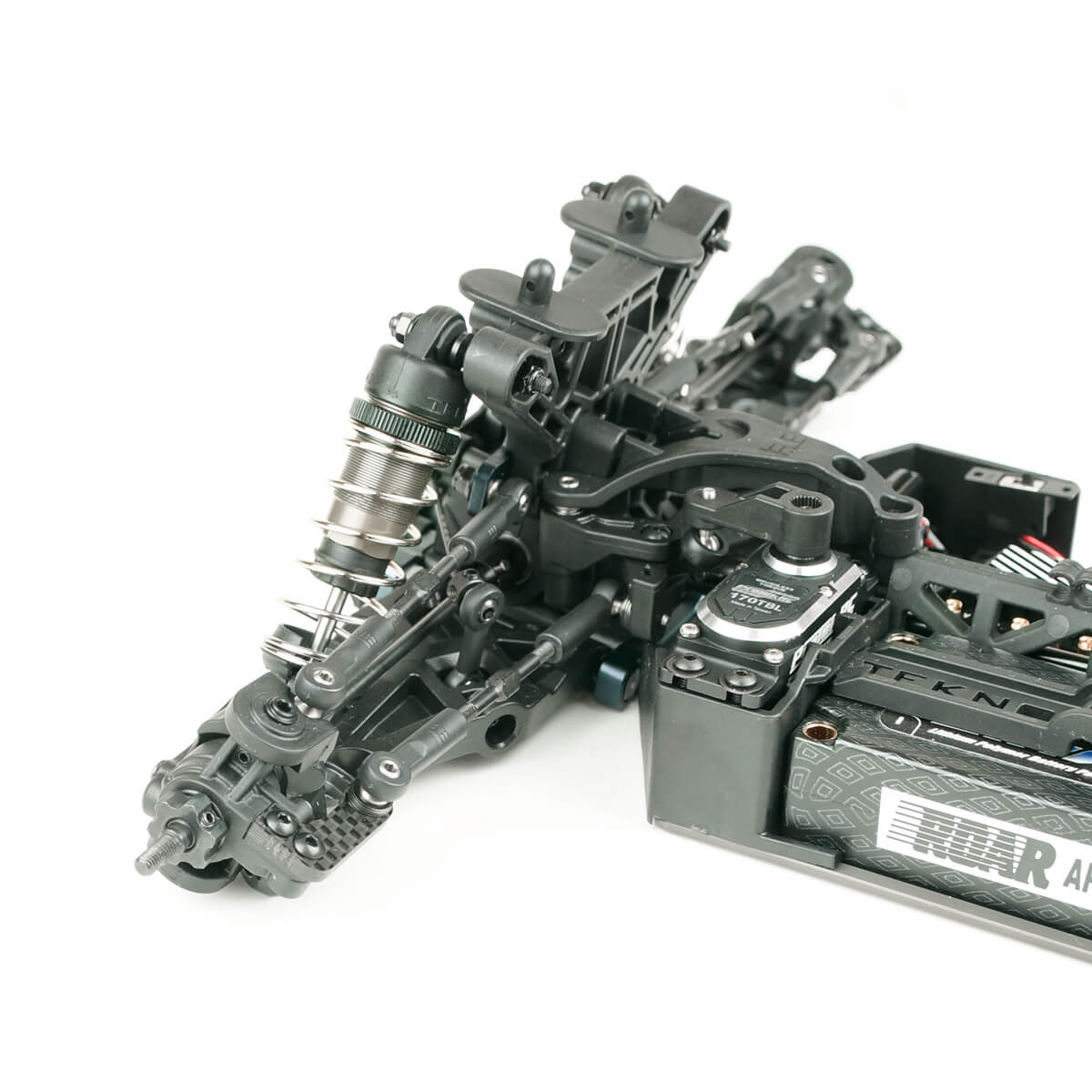

- Optimized Reverse Bellcrank Steering System
- 13mm Big Bore Shocks w/ Revised Standoffs and Cap Bushing

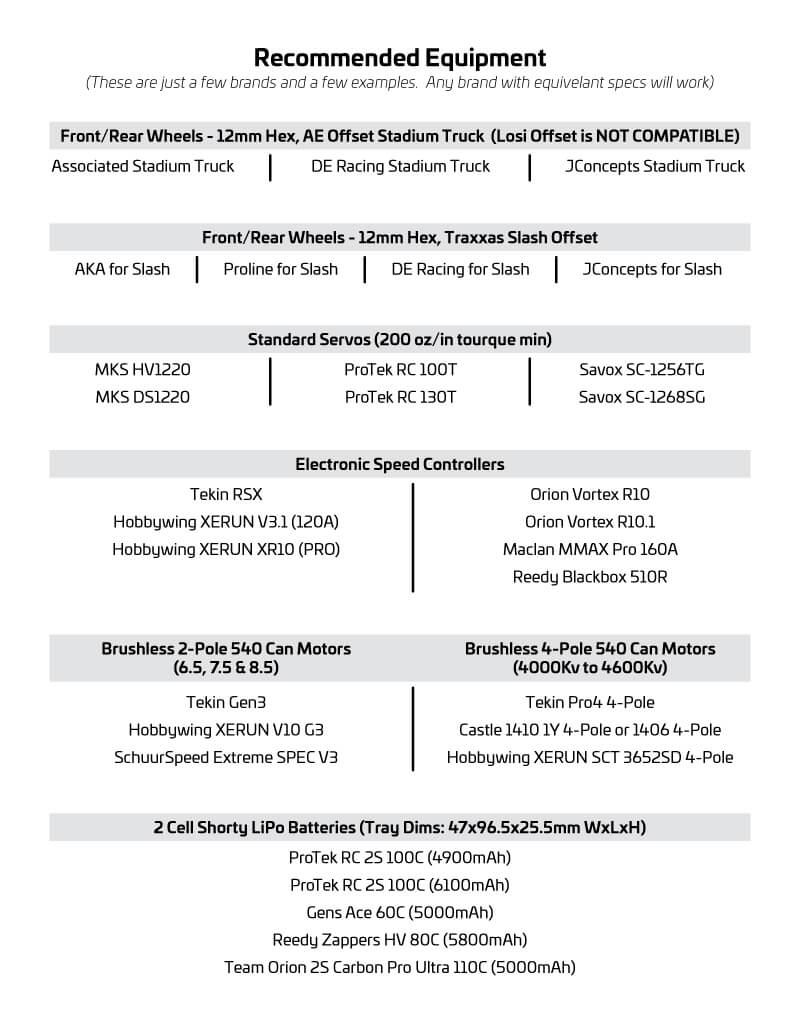

Needed to Complete
- 2 Channel radio and receiver
- 1/10th scale ESC
- Motors: 540 size 6.5-8.5 turn OR 540 size 4-pole 4000-4600kv (550 size motors not recommended)
- Standard size high torque steering servo (at least 200 oz/in)
- Running less than the recommended rating will increase the chance of premature servo failure.
- 2S (2 cell, 7.4v) shorty LiPo battery, 5000 mAh or higher recommended
- Paint for body and CA Glue for wheels/tires
- 1/10th scale Associated ofset (Losi ofset is NOT COMPATIBLE) stadium truck wheels & tires OR Traxxas Slash SC ofset (front or rear) wheels & tires.

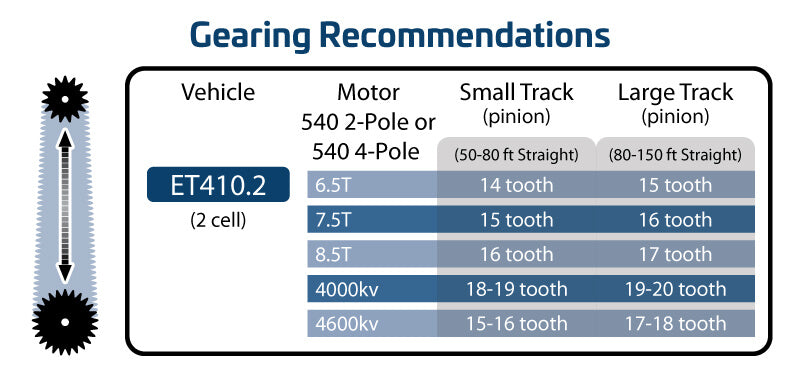

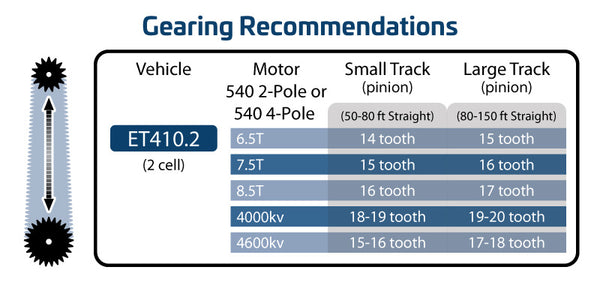

- 32 pitch pinion, 12-25 tooth
Tools needed
- Hex drivers 1.5mm, 2.0mm, 2.5mm
- Nut drivers 5.5mm (TKR1108), 7.0mm (TKR1109)
- Hobby knife
- Needle-nose pliers
- Shock tool (TKR1115) OR adjustable (Crescent) wrench (for shock assembly)
- 4mm turnbuckle wrench (TKR1103) AND 5.5/7.0 two sided wrench (TKR1119)
- Body reamer
Manual: https://www.teknorc.com/wp-content/uploads/2020/06/ET410_2_instructions.pdf
Setup Sheet: https://www.teknorc.com/wp-content/uploads/2020/09/ET410_2instructions_SetUpSheet_Blank_Fillable_Reader_Saveable.pdf
