Tekno  |  SKU: TKR6502  |  Barcode: 810020550764

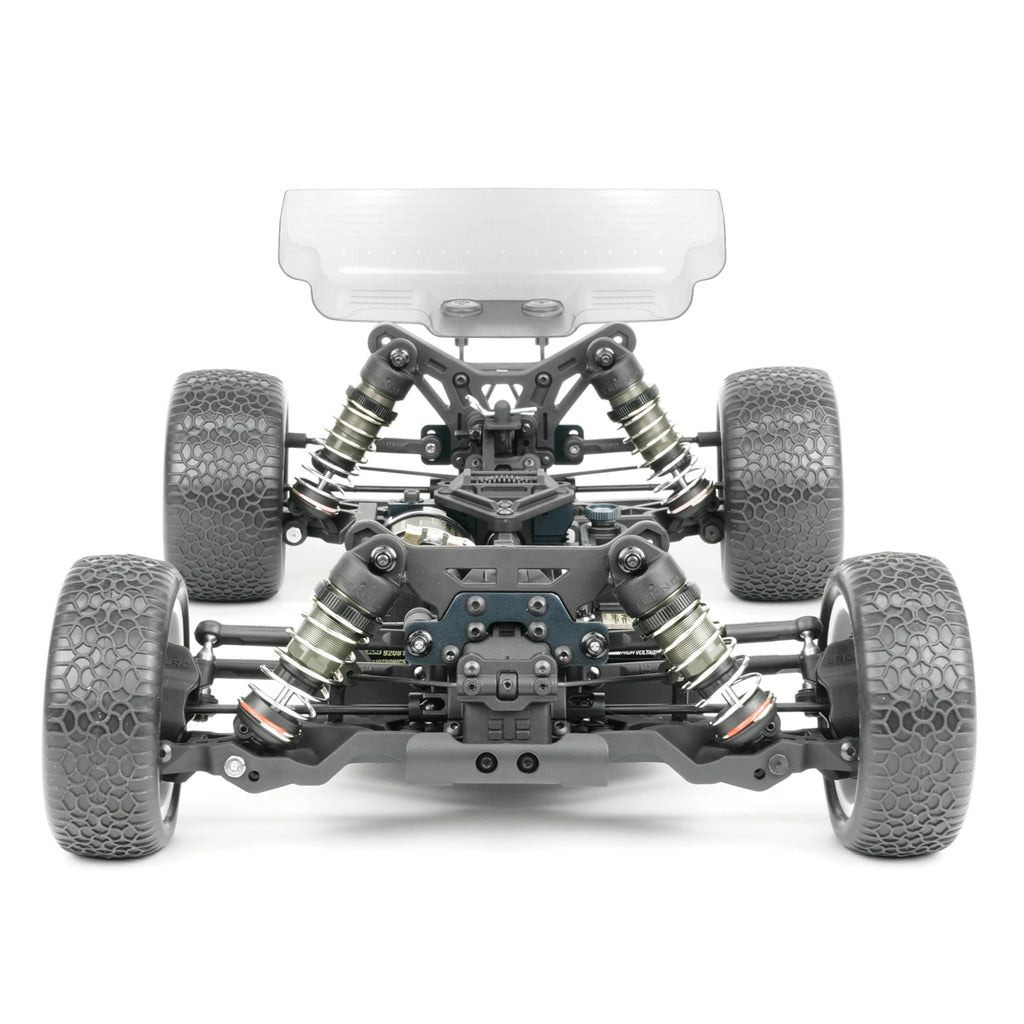

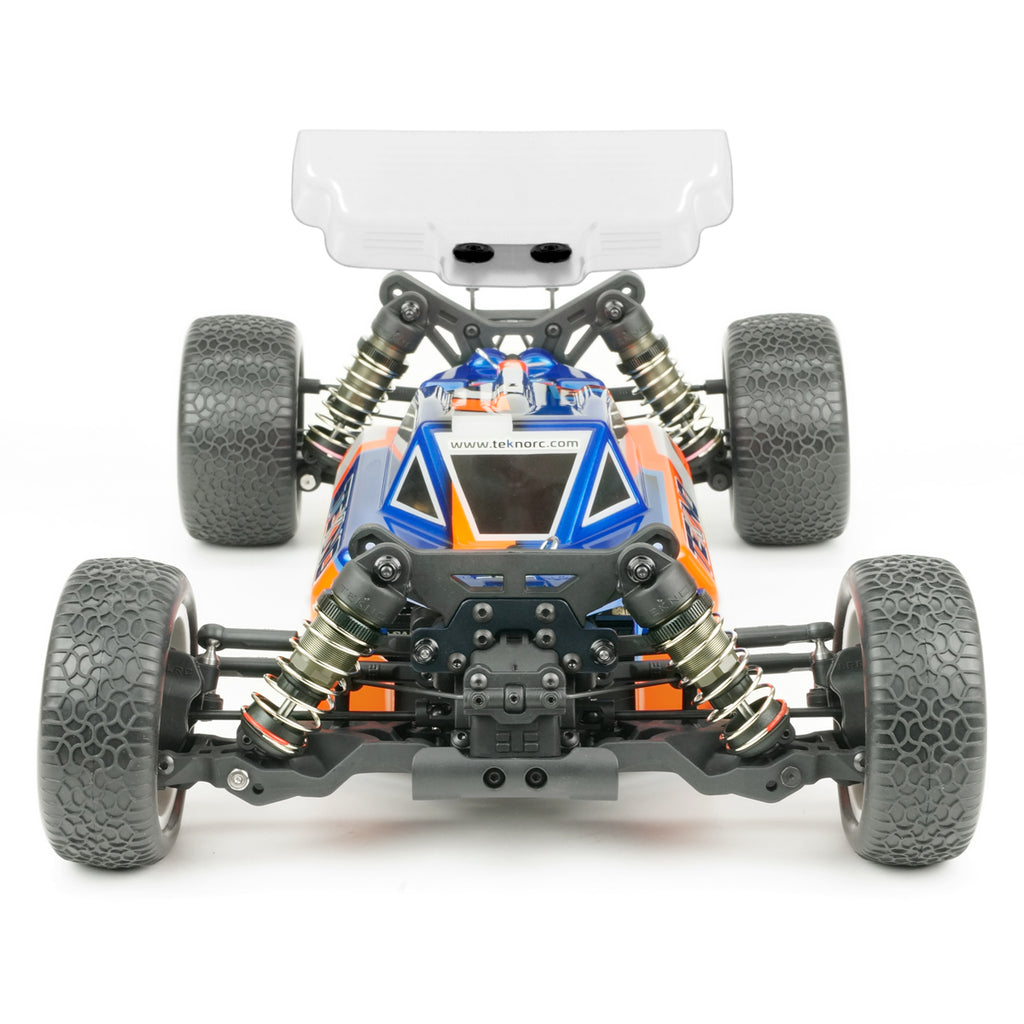

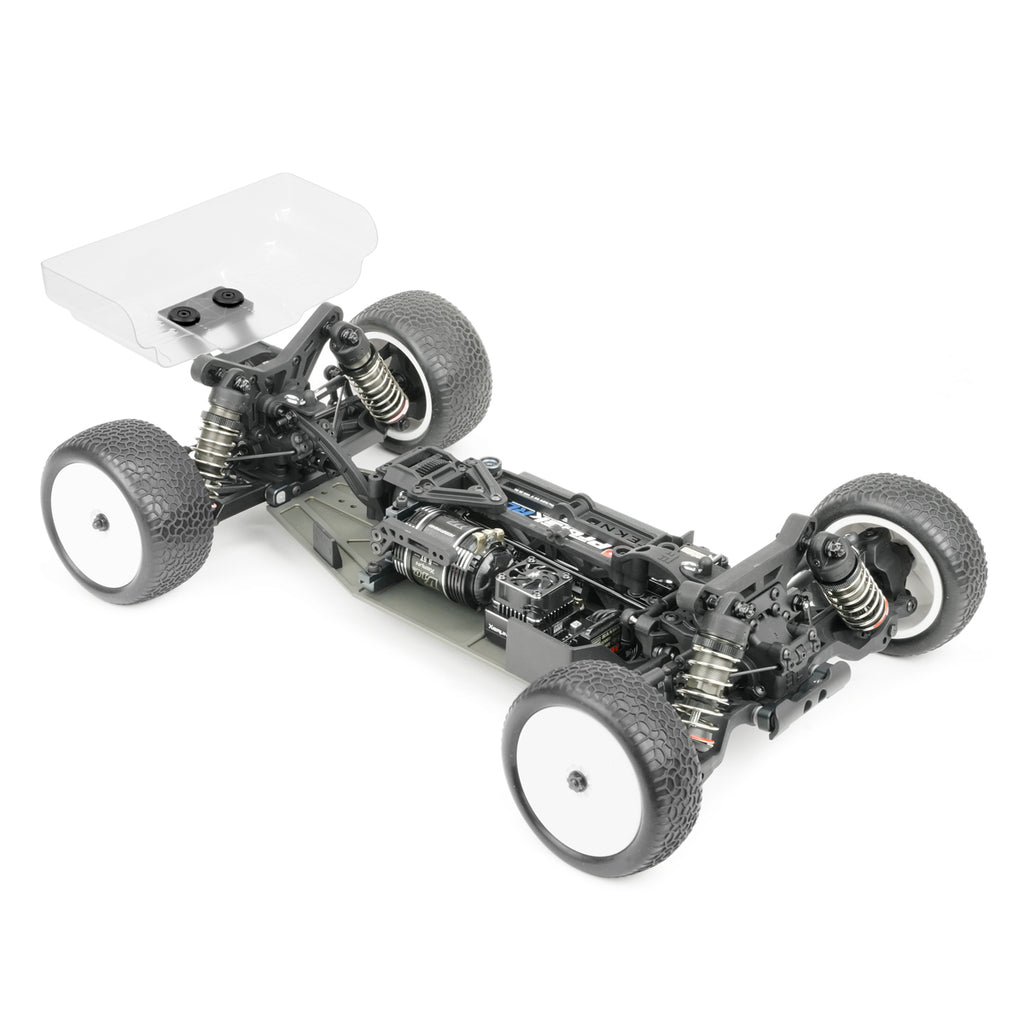

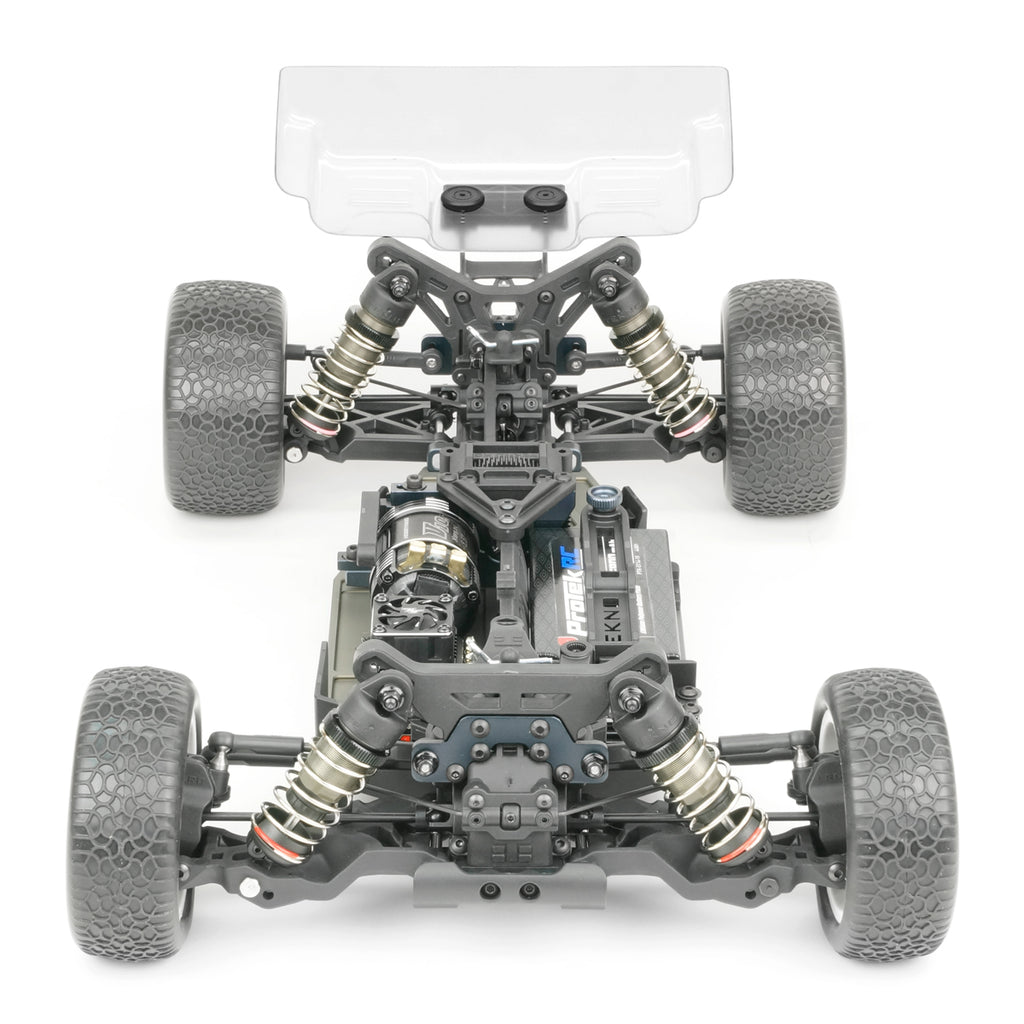

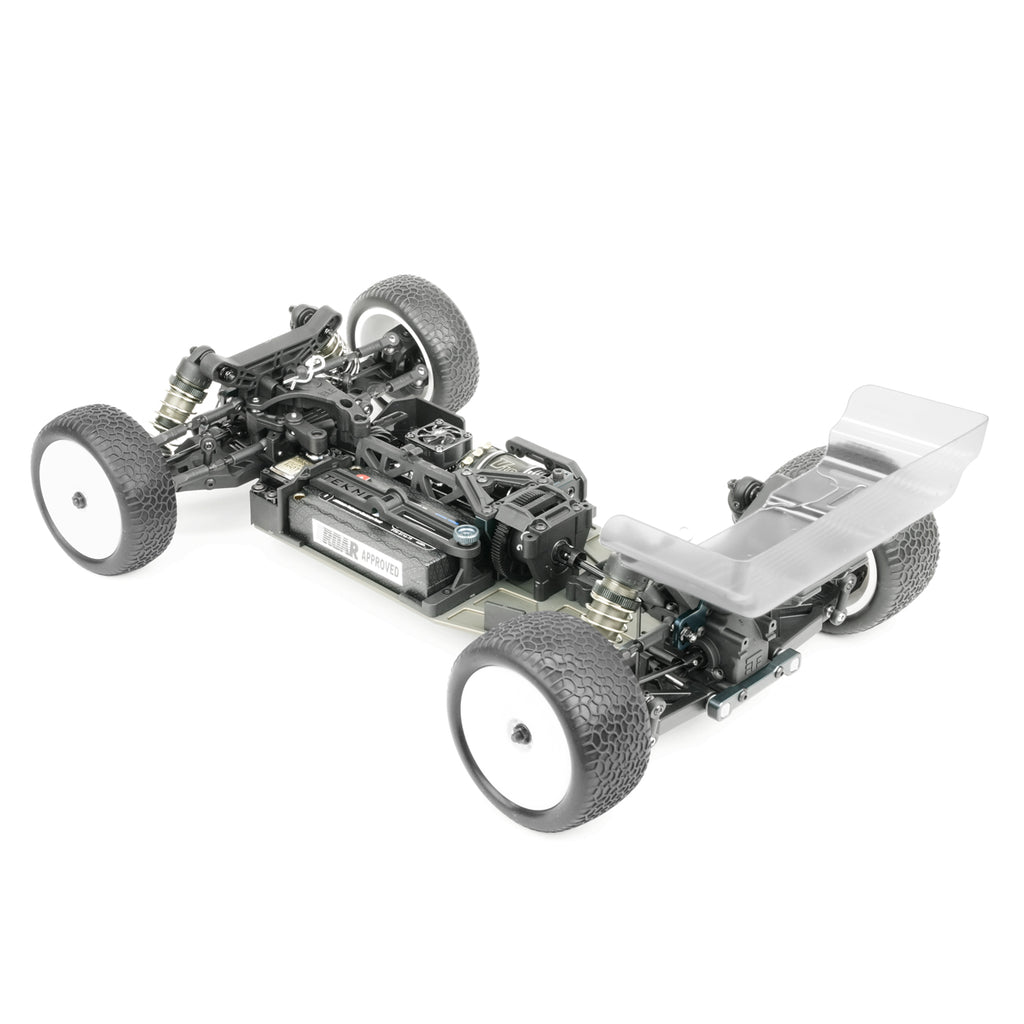

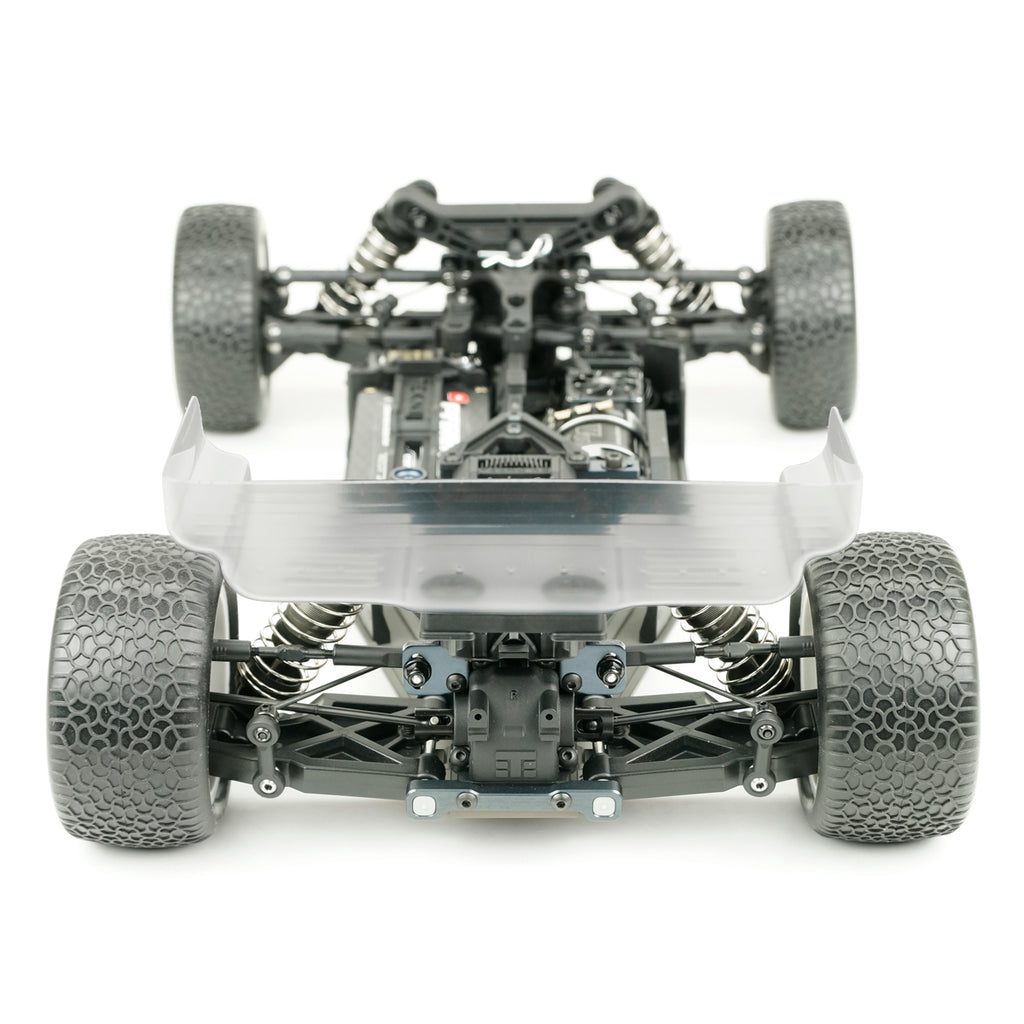

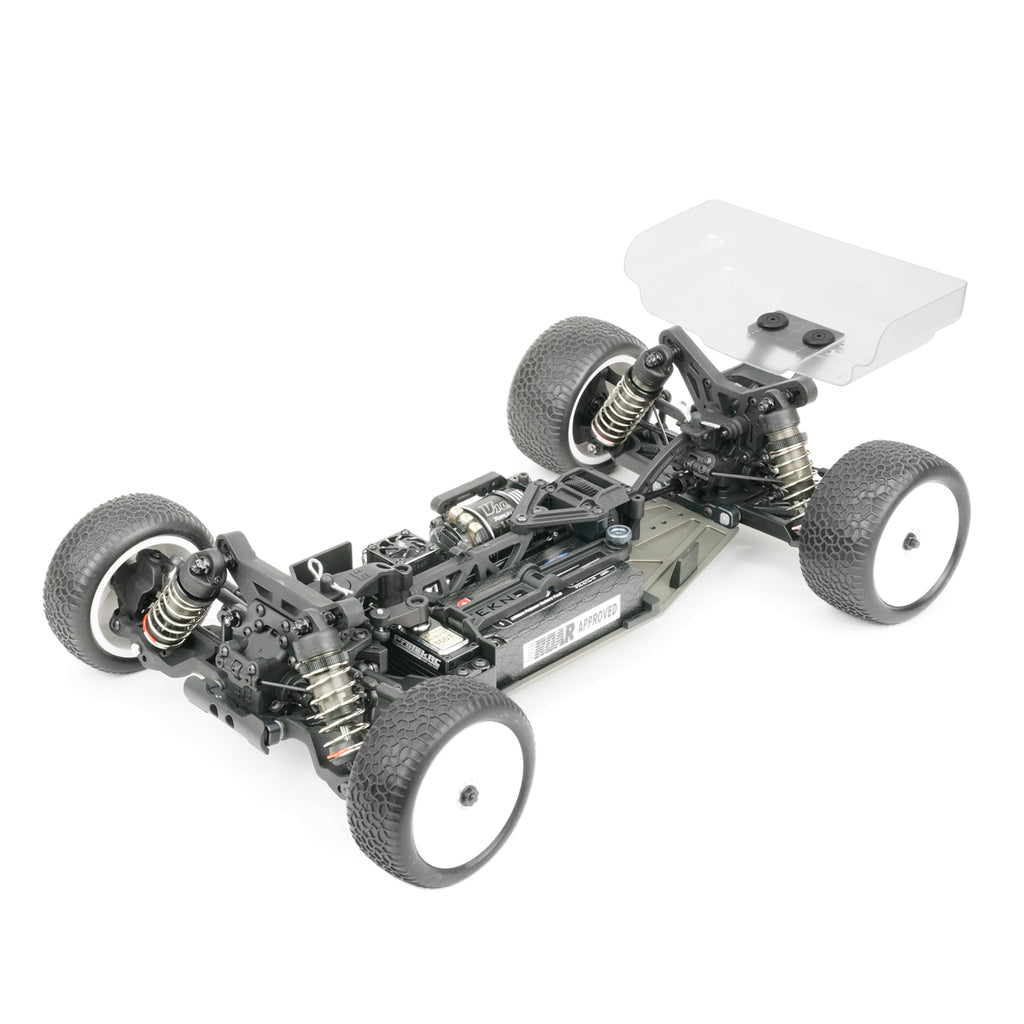

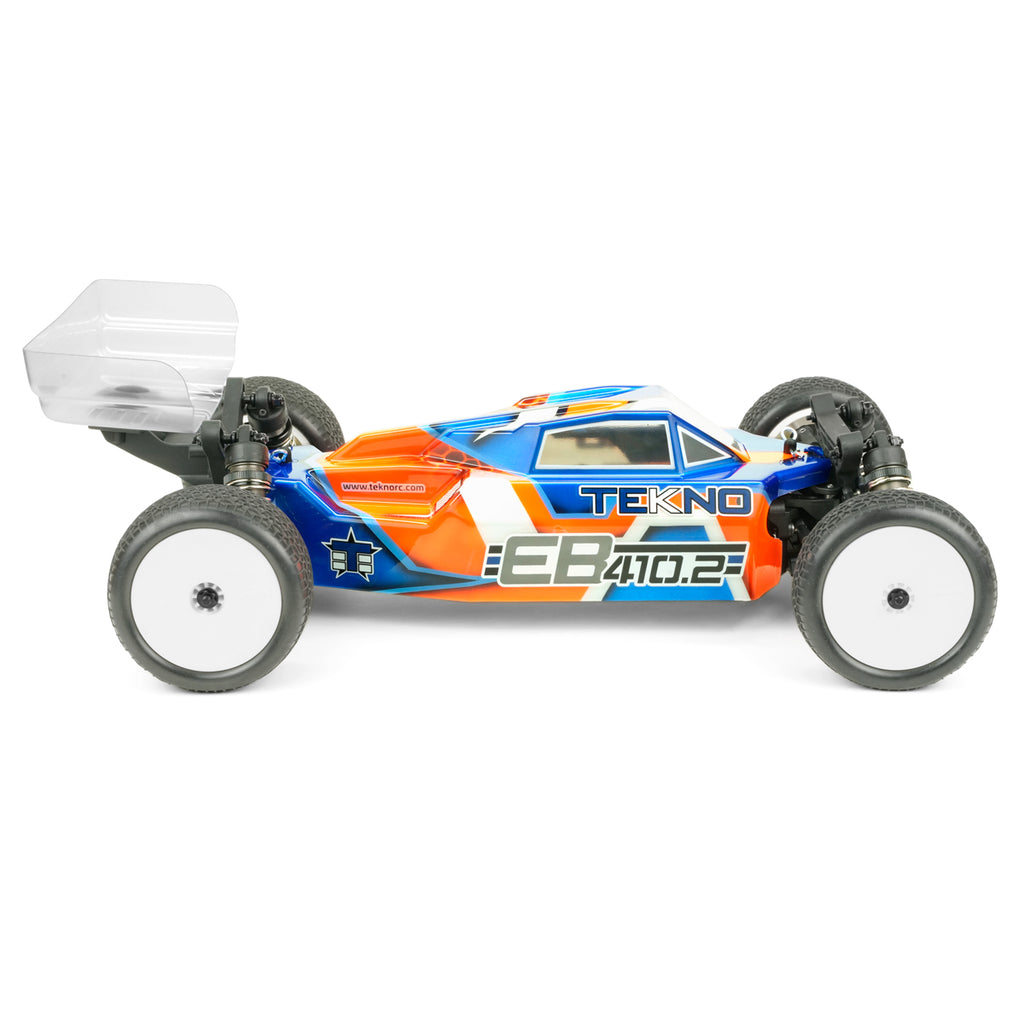

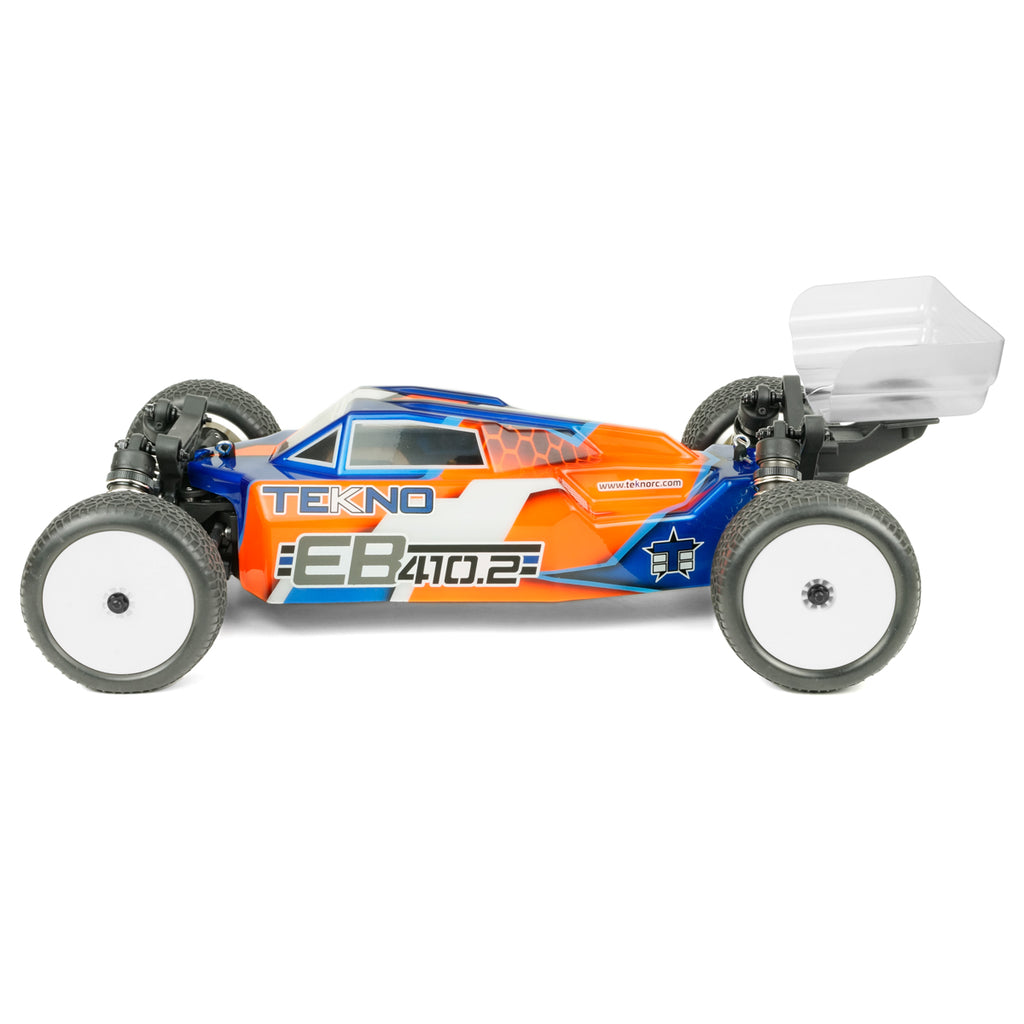

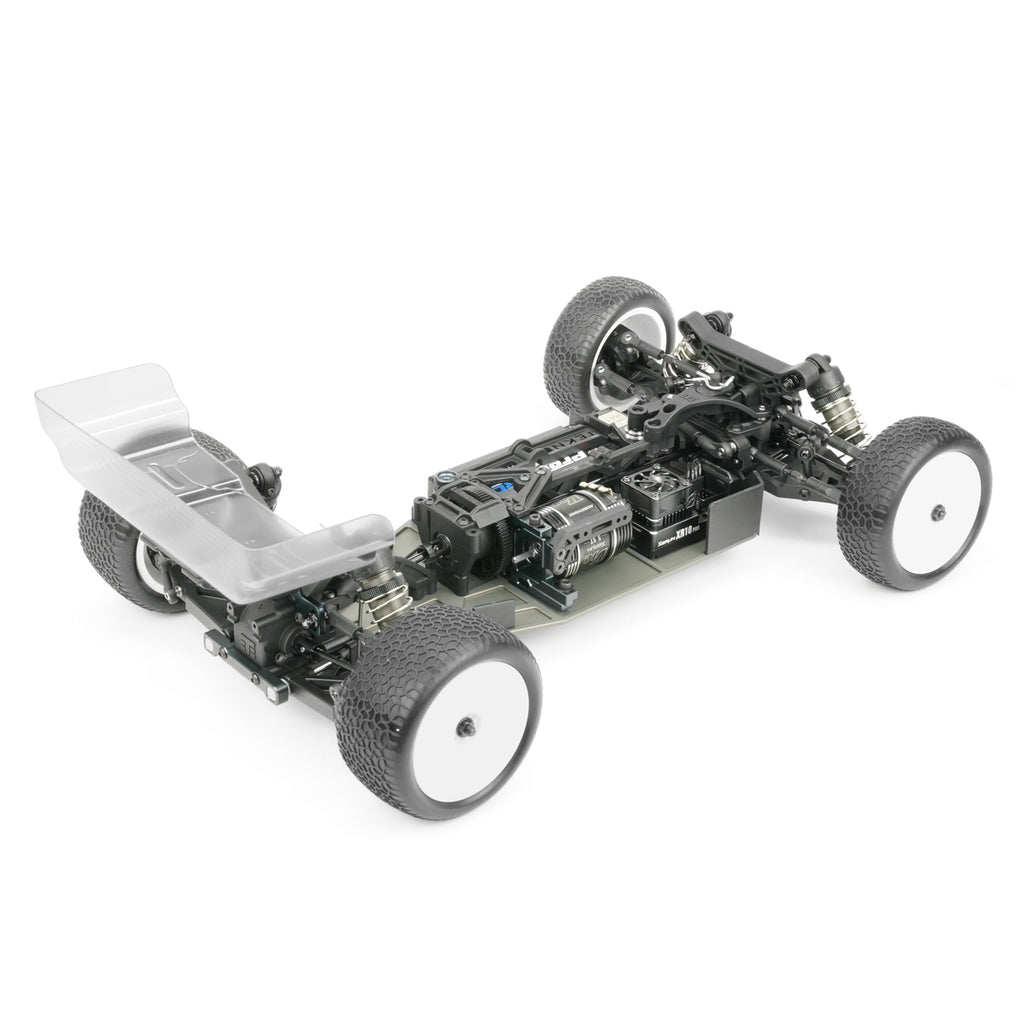

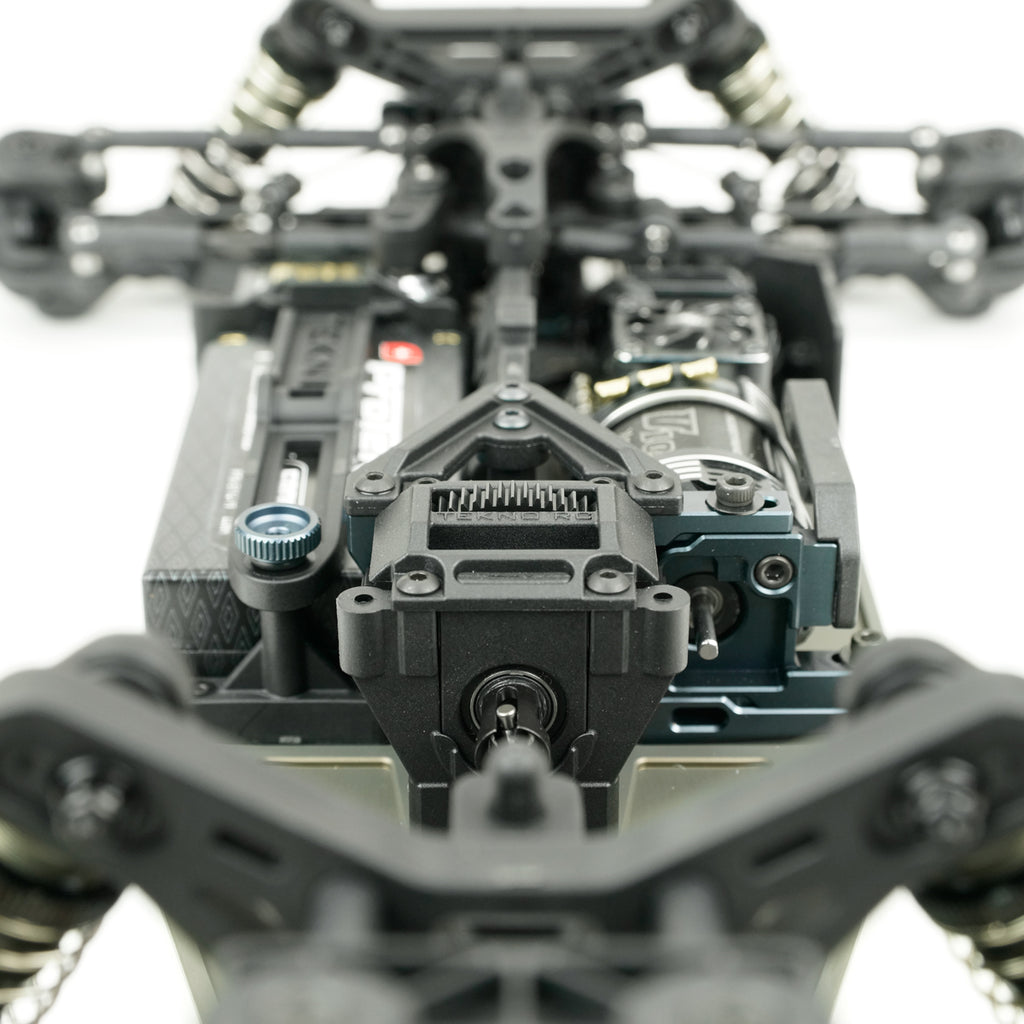

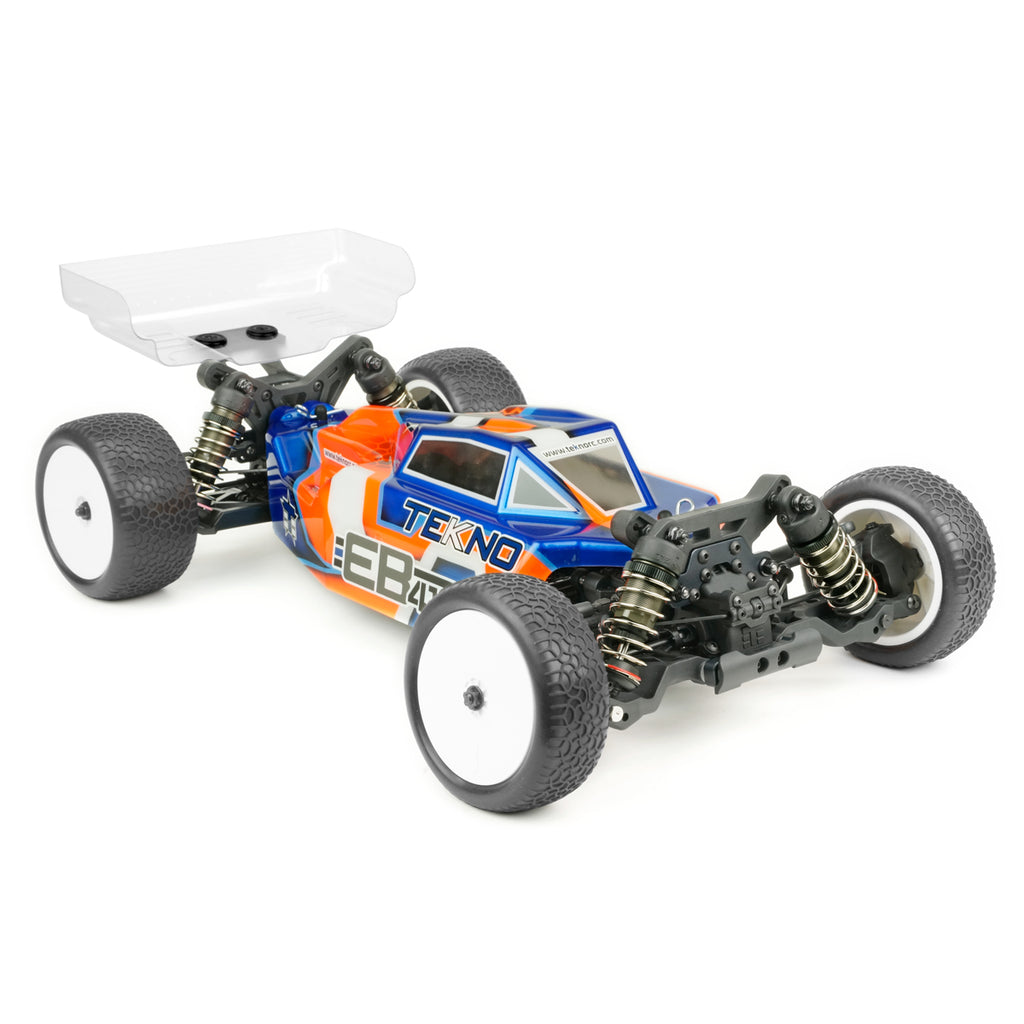

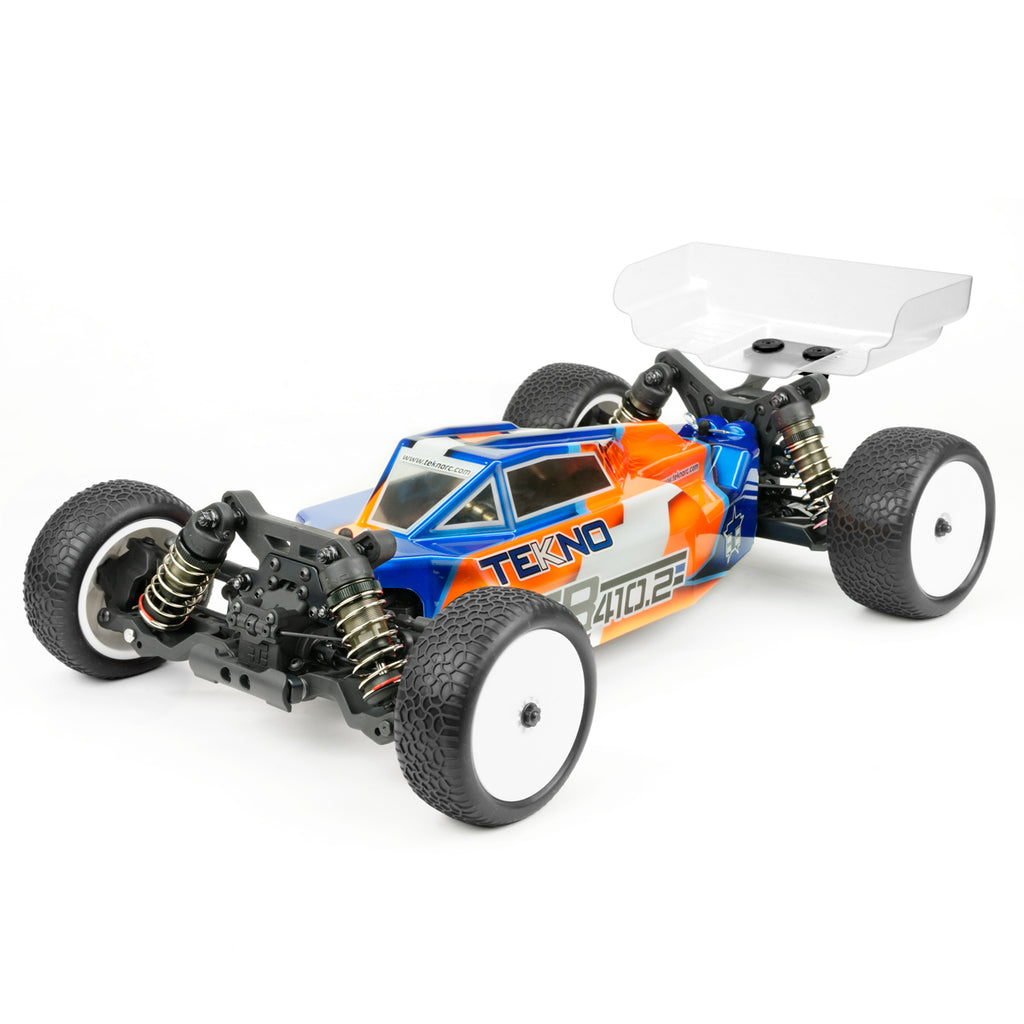

Tekno - TKR6502 - EB410.2 1/10th 4WD Competition Electric Buggy Kit

$429.99 $699.99
Shipping calculated at checkout.

Delivery and Shipping

Free shipping on orders over $99 within the continental US.

Ships from Livermore, CA. Ships the same day if order before 3PM PST Monday-Friday.

Orders ship once ALL items are available to ship. If you wish to have in-stock items ship sooner, please order them separately from pre-ordered items.

EB410.2 Key Features:

  • Revised CNC 7075 Long Wear Chassis
  • New Larger 3.5mm HD Hinge Pins and Revised Hinge Pin Inserts
  • New ABCD Hinge Pin Braces w/ Revised Suspension Geometry

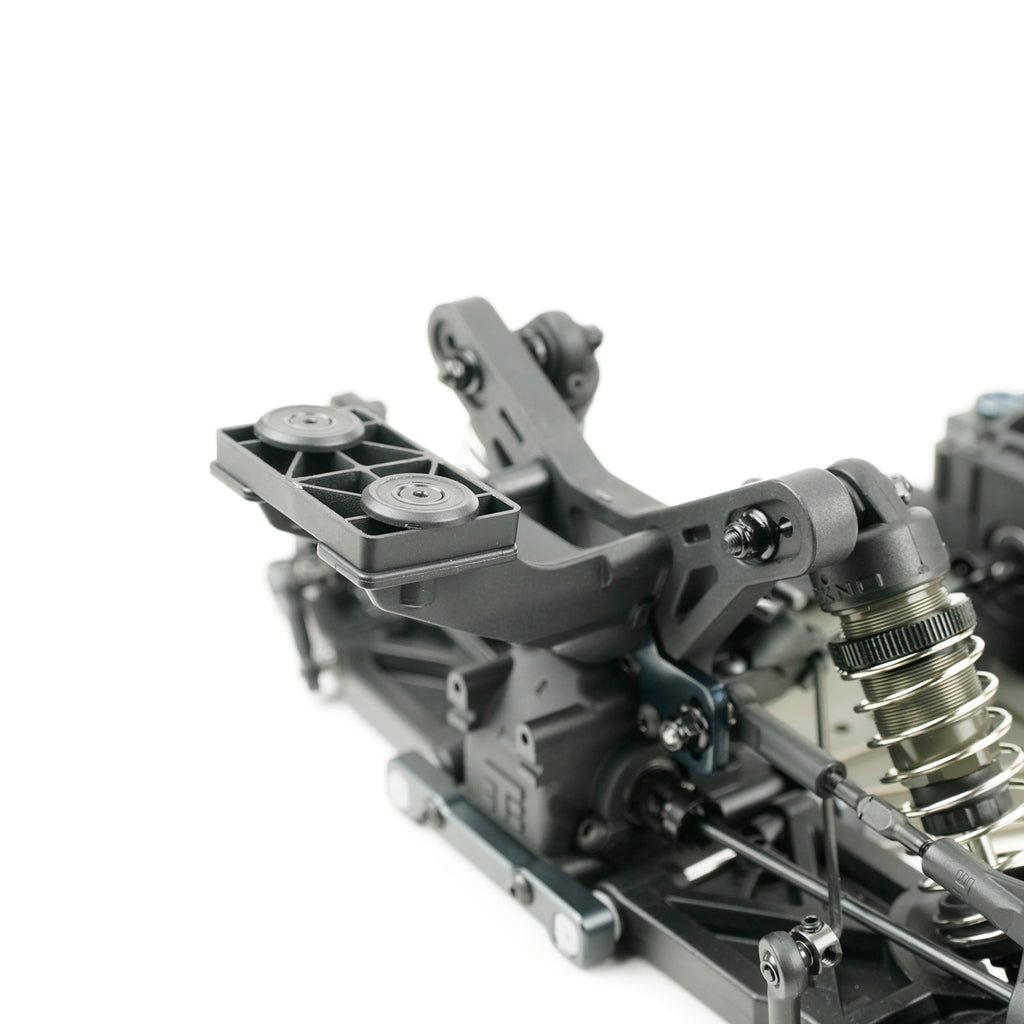

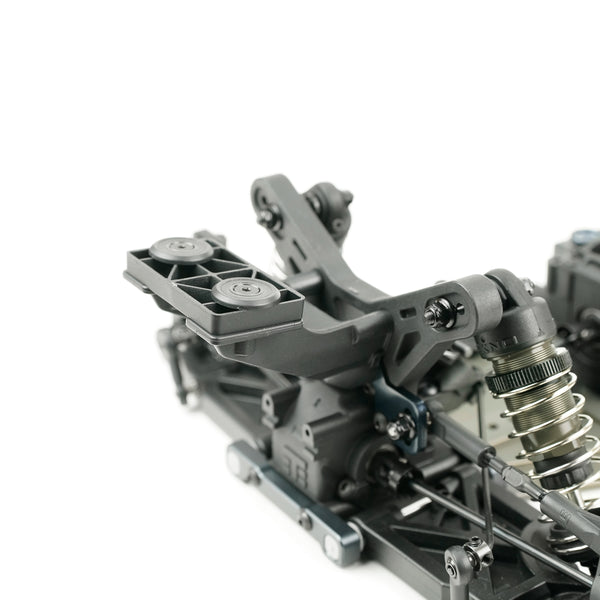

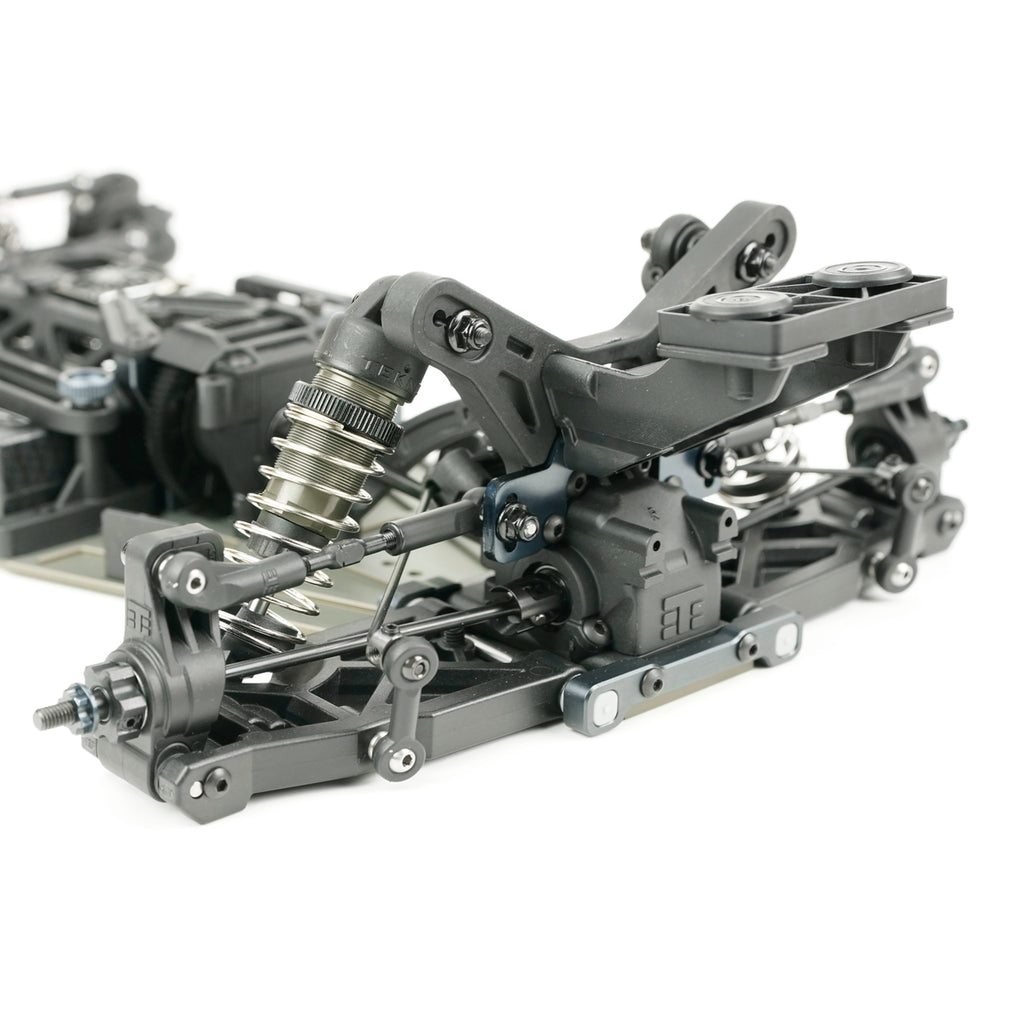

  • New Taller, Stronger One Piece Wing Mount w/ Height Adjustments

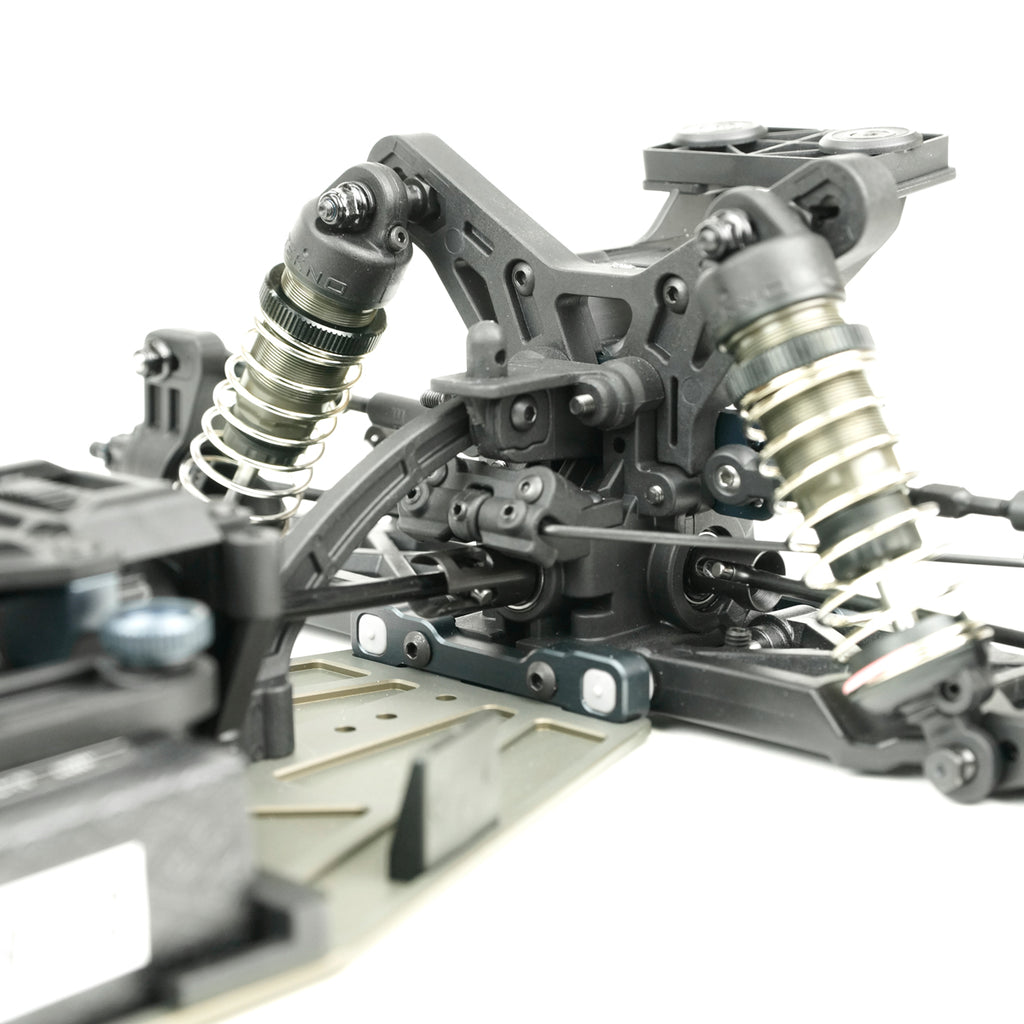

  • 13mm Big Bore Shocks w/ Revised Cartridge and Cap Bushing
  • Ultra Secure Locking Spring Perch Design
  • New Rear Arms w/ Front Mounted Shocks
  • New Adjustable Roll Center Rear Hubs

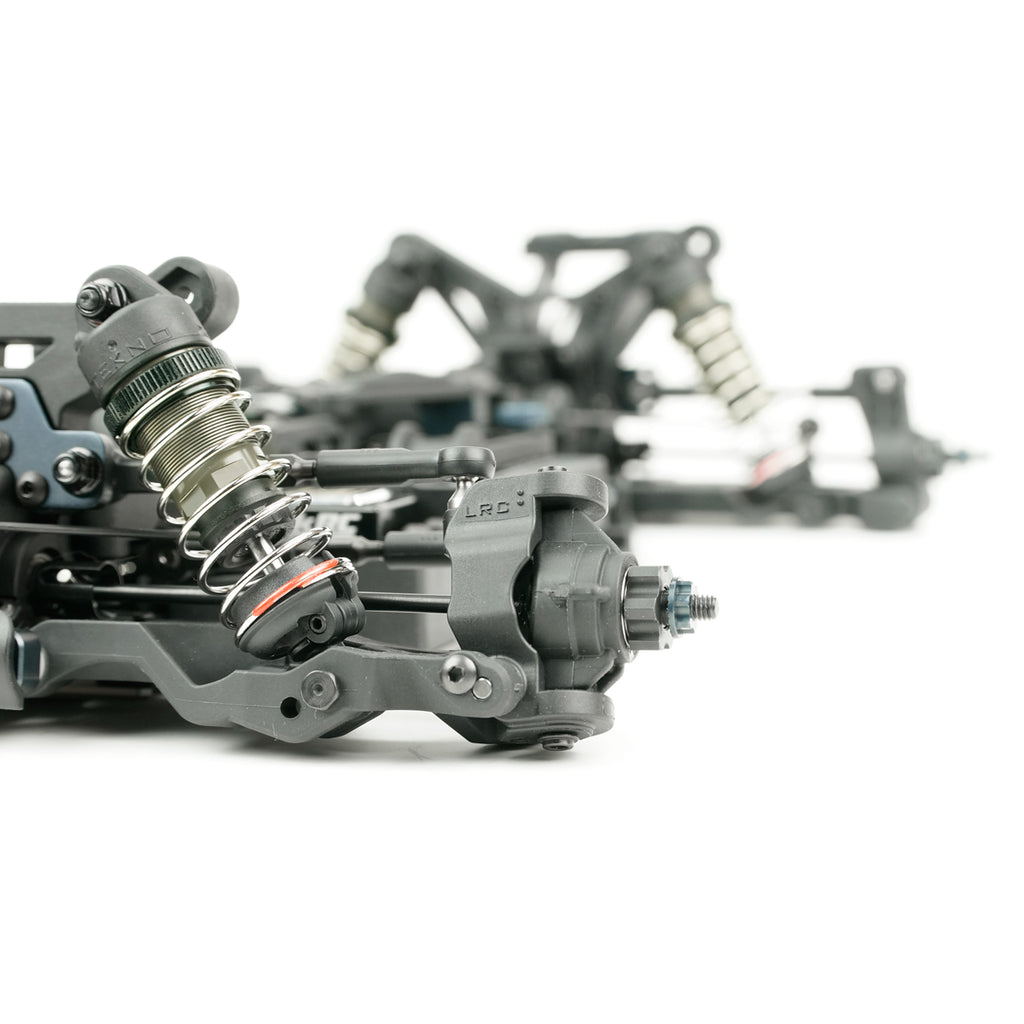

  • New 15 Degree LRC Spindle Carriers

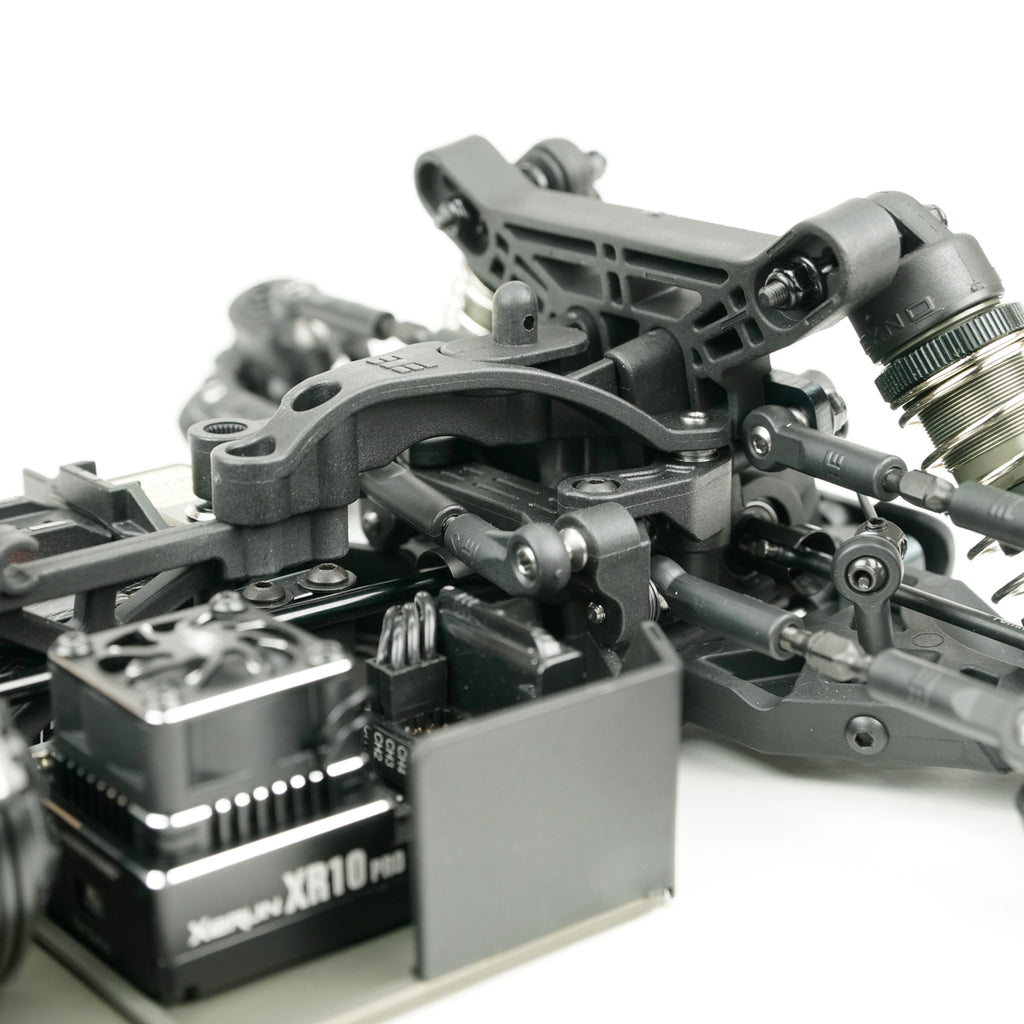

  • New Aluminum Front Camber Plate w/ Bulkhead Brace
  • Revised Material 81T Spur Gear
  • Front and Rear Sway Bars Now Included
  • Large Wheel Bearings and 6mm HD Stub Axles
  • Newly Optimized Reverse Bellcrank Steering System

Wheel Compatibility

TLR 22x-4 wheels PN: 43021 (yellow) and 43022 (white) as well as Proline wheels PN: 2767-02 (white) and 2767-04 (yellow) are compatible. If you are using TKR6553X – Adjustable Ackermann Spindles, spindle arm TKR6669D is recommended.

Specifications

  • Length: 393mm (without wing) up to 424mm (with wing)
  • Wheelbase: 283-294mm
  • Width: 246-250*mm (*optional hubs required)
  • Weight: 1630 (or less) to 1780g depending upon equipment used
  • Diff Ratio: F/R – 16/40t, Center – 81t
  • Battery tray dimensions: 96x47x26mm
  • Kit/RTR: Kit

Needed to Complete

  • 2/3 channel radio/transmitter
  • 1/10 scale ESC and motor system
  • High torque steering servo (at least 200oz/in)
  • 48 pitch 17 to 34 tooth pinion
  • 2s shorty LiPo battery (at least 4000mAh)
  • 1/10th scale 4wd buggy tires, wheels & CA glue
  • Paint for body

Recommended Tools

  • Nut drivers 5.5mm (TKR1108) and 7.0mm (TKR1109)
  • Hex drivers 1.5mm, 2.0mm, and 2.5mm
  • Hobby knife
  • Needle-nose pliers
  • Shock tool (TKR1115) OR adjustable (Crescent) wrench (for shock assembly)
  • 4mm turnbuckle wrench (TKR1103) – 5.5/7.0 two-sided wrench (TKR1119)

Manual: https://www.teknorc.com/shop/tkr6502-eb410-2-1-10th-4wd-competition-electric-buggy-kit/

Setup Sheet: https://www.teknorc.com/wp-content/uploads/2019/10/EB410_2instructions_SetUpSheet_Blank_ReaderSaveable.pdf
