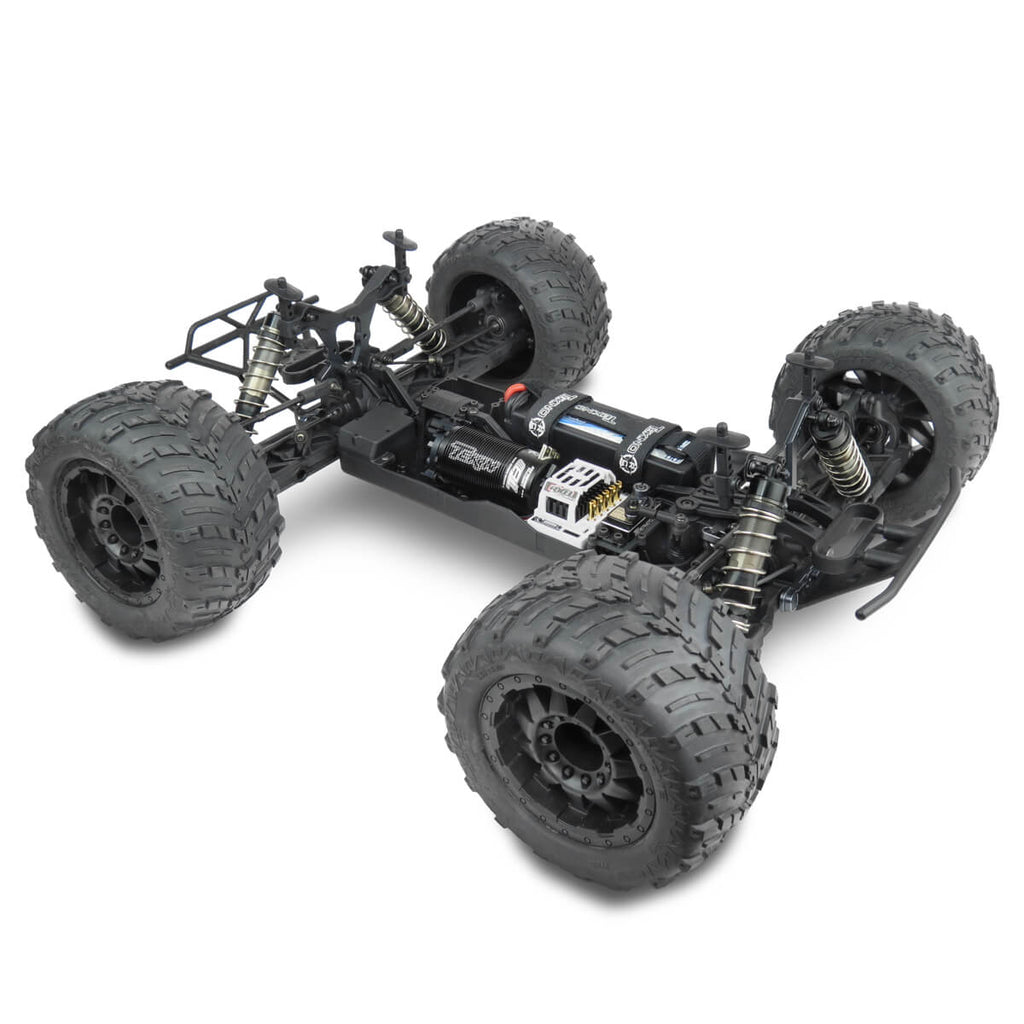

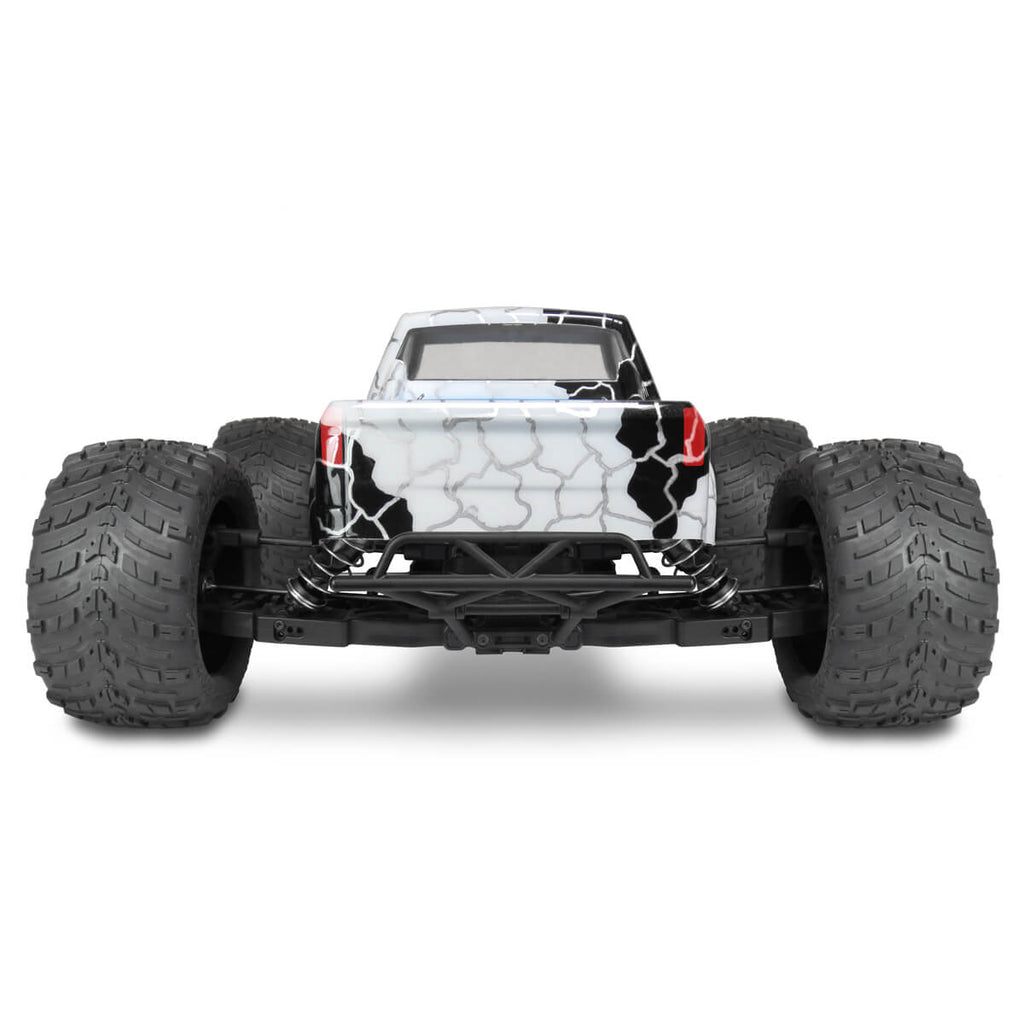

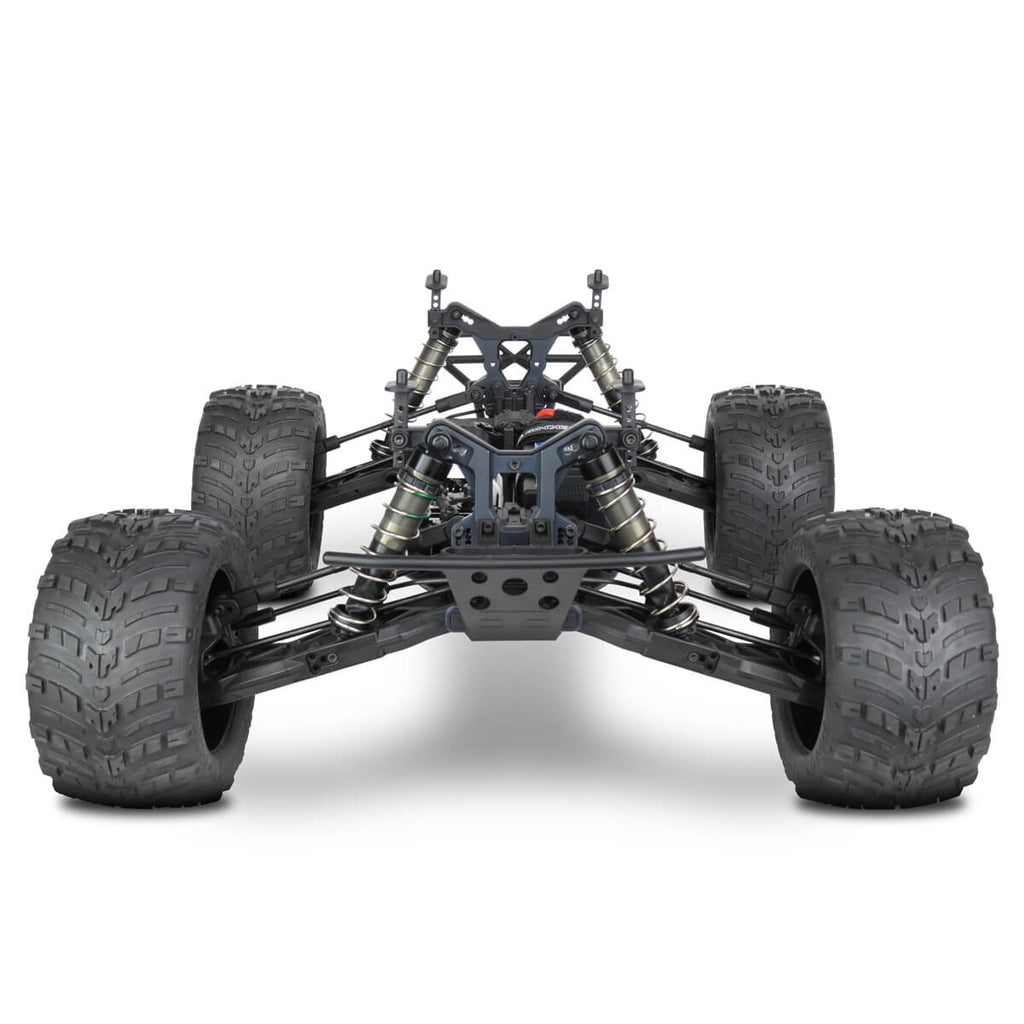

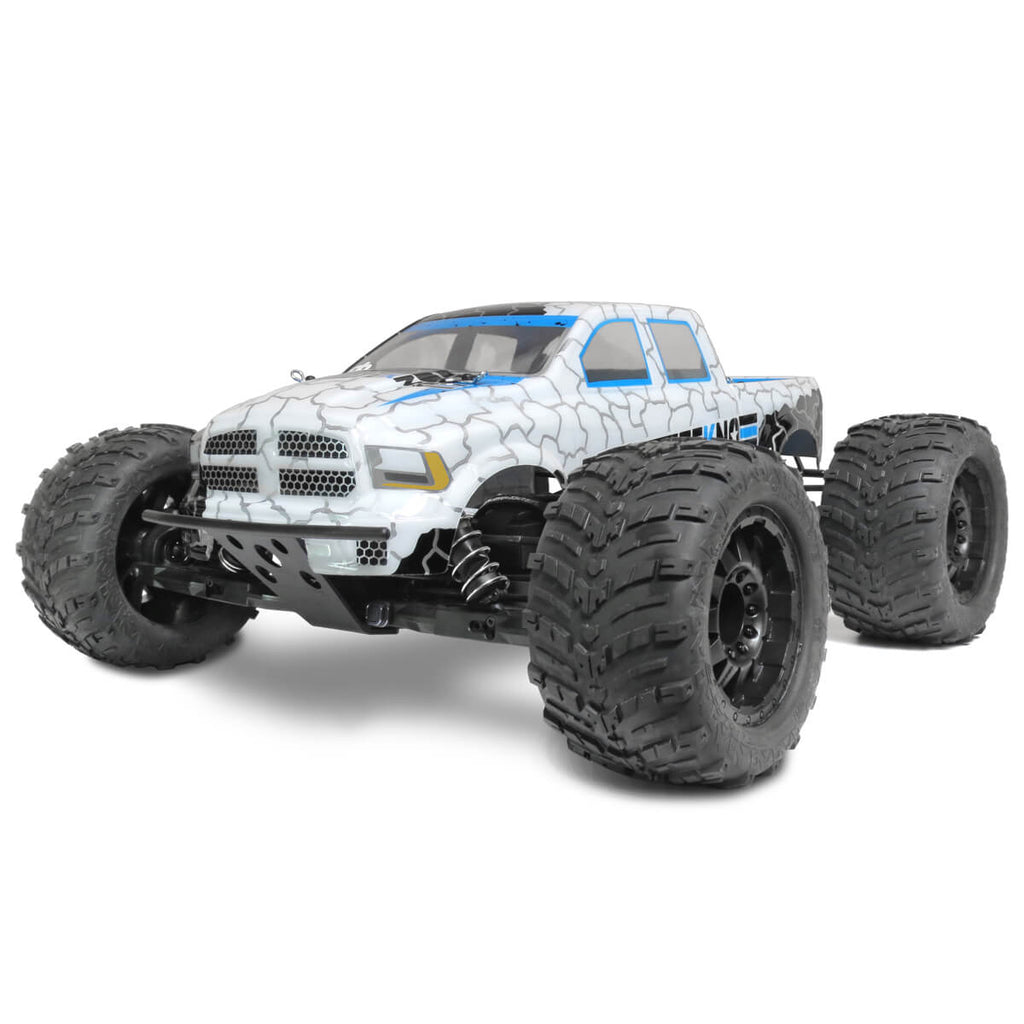

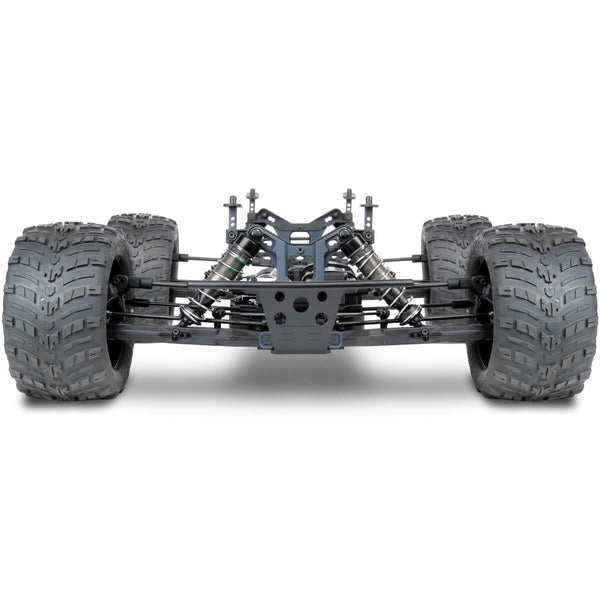

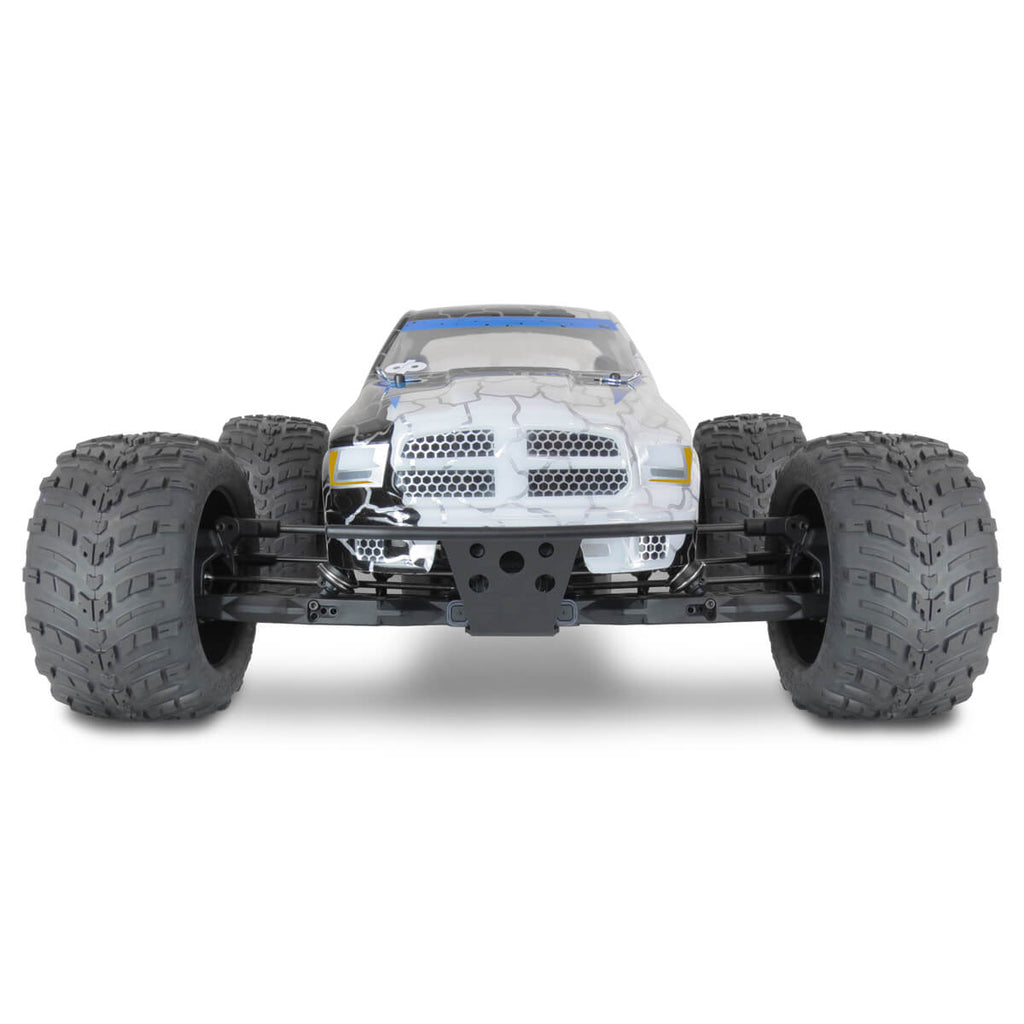

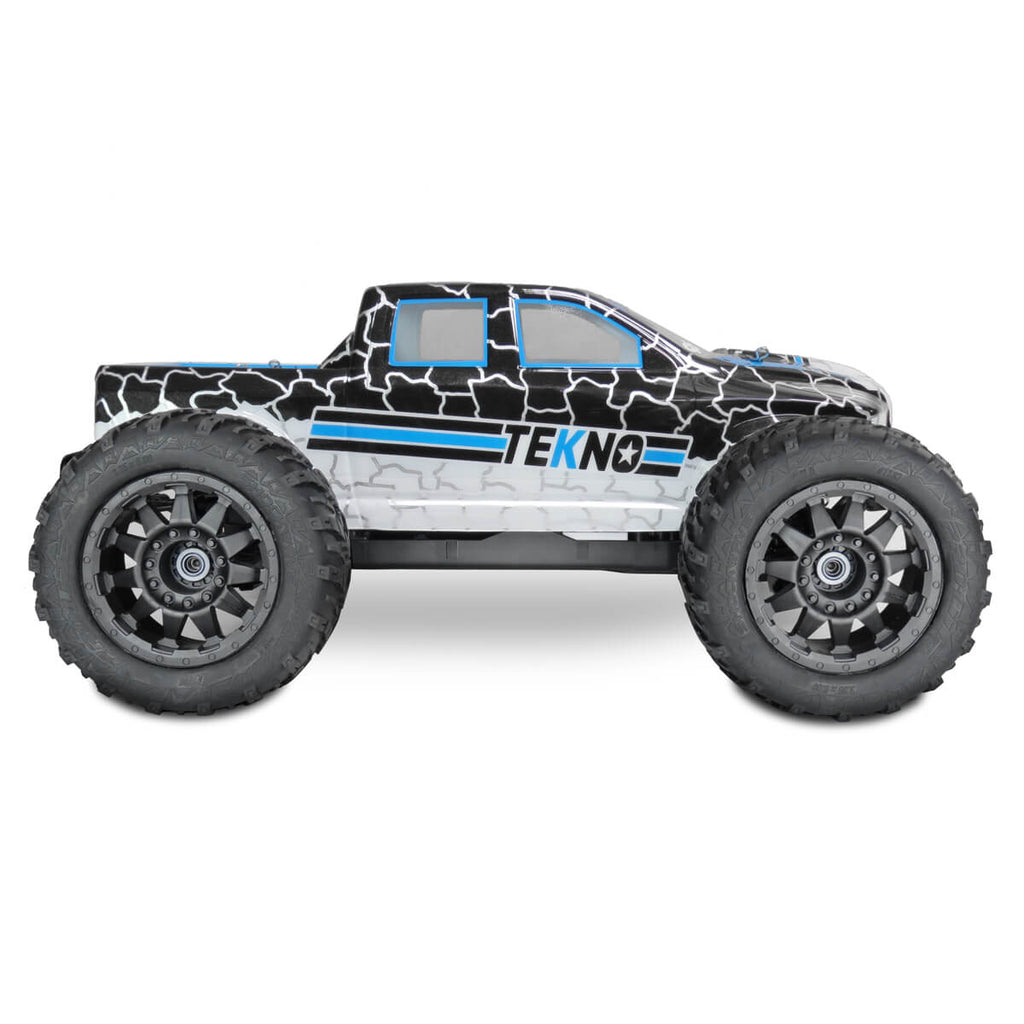

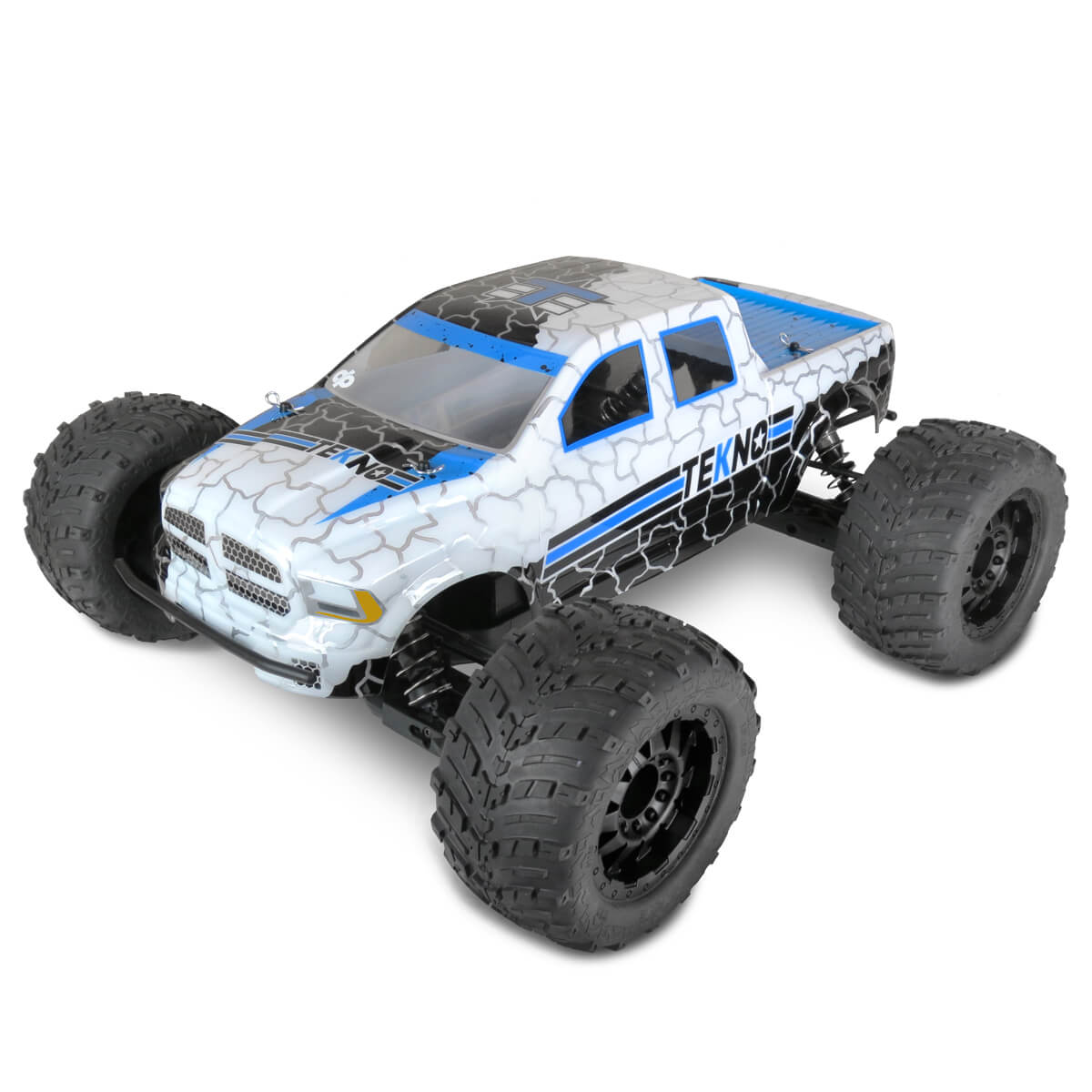

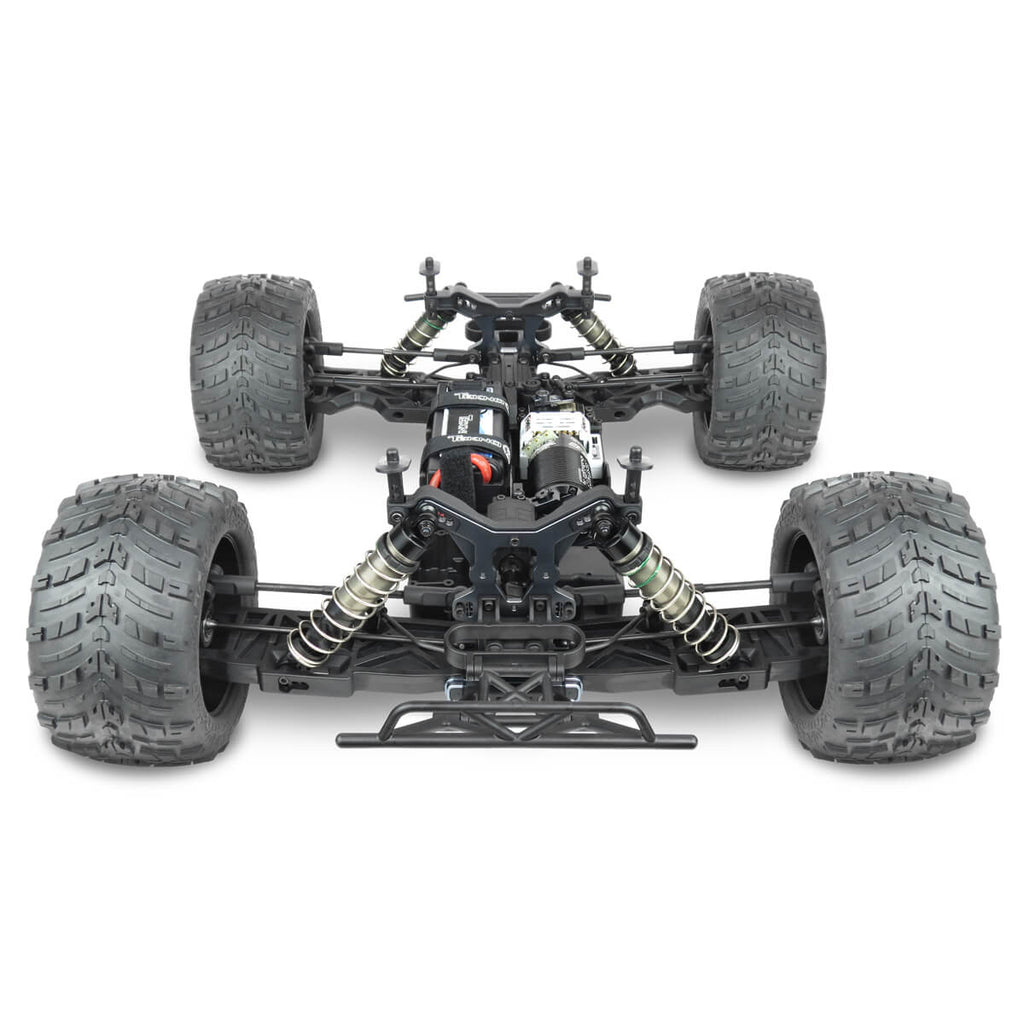

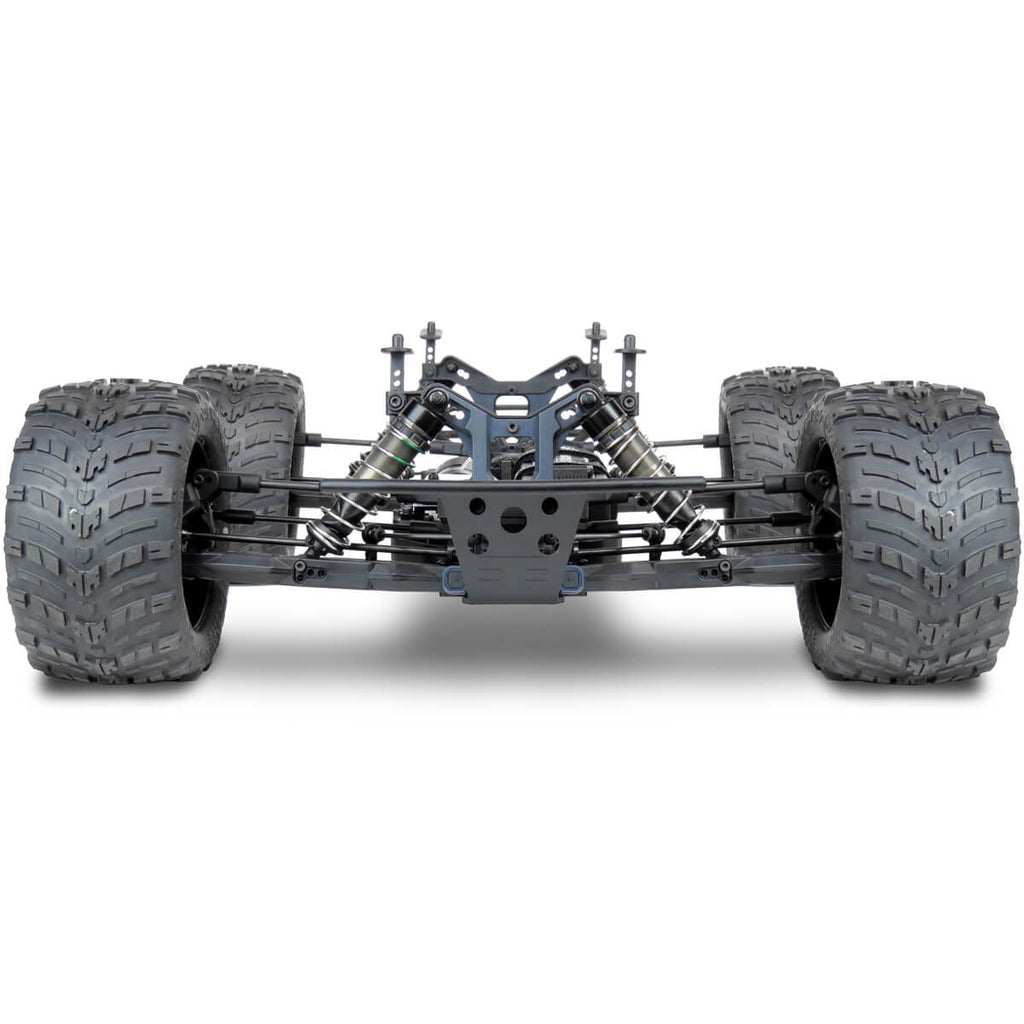

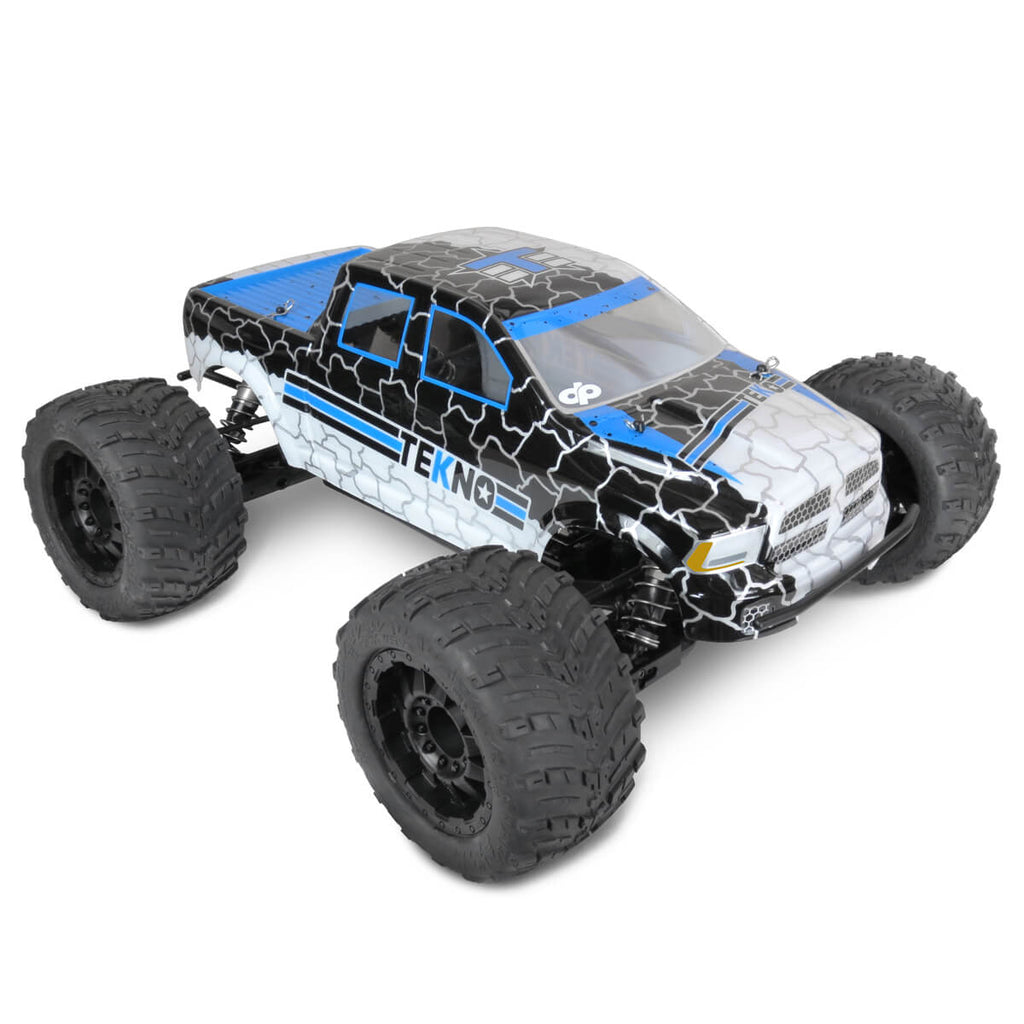

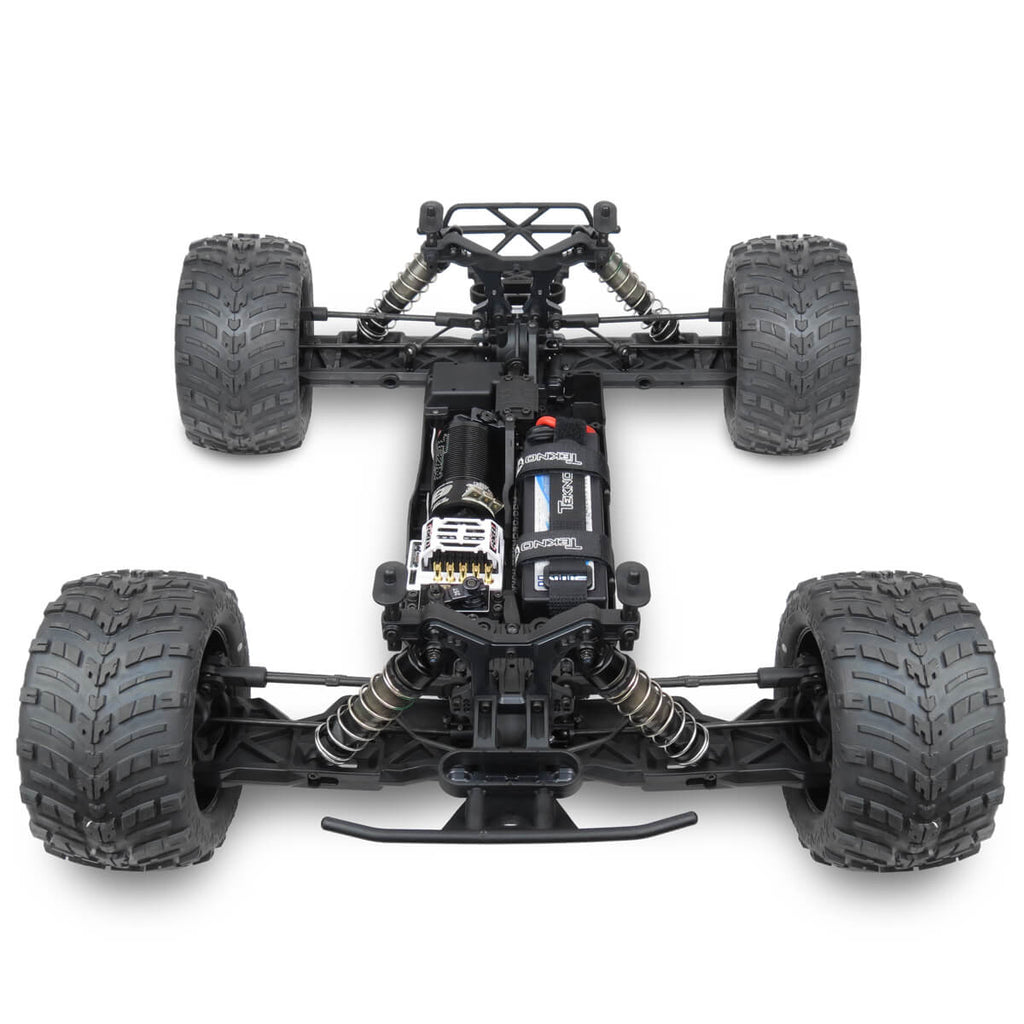

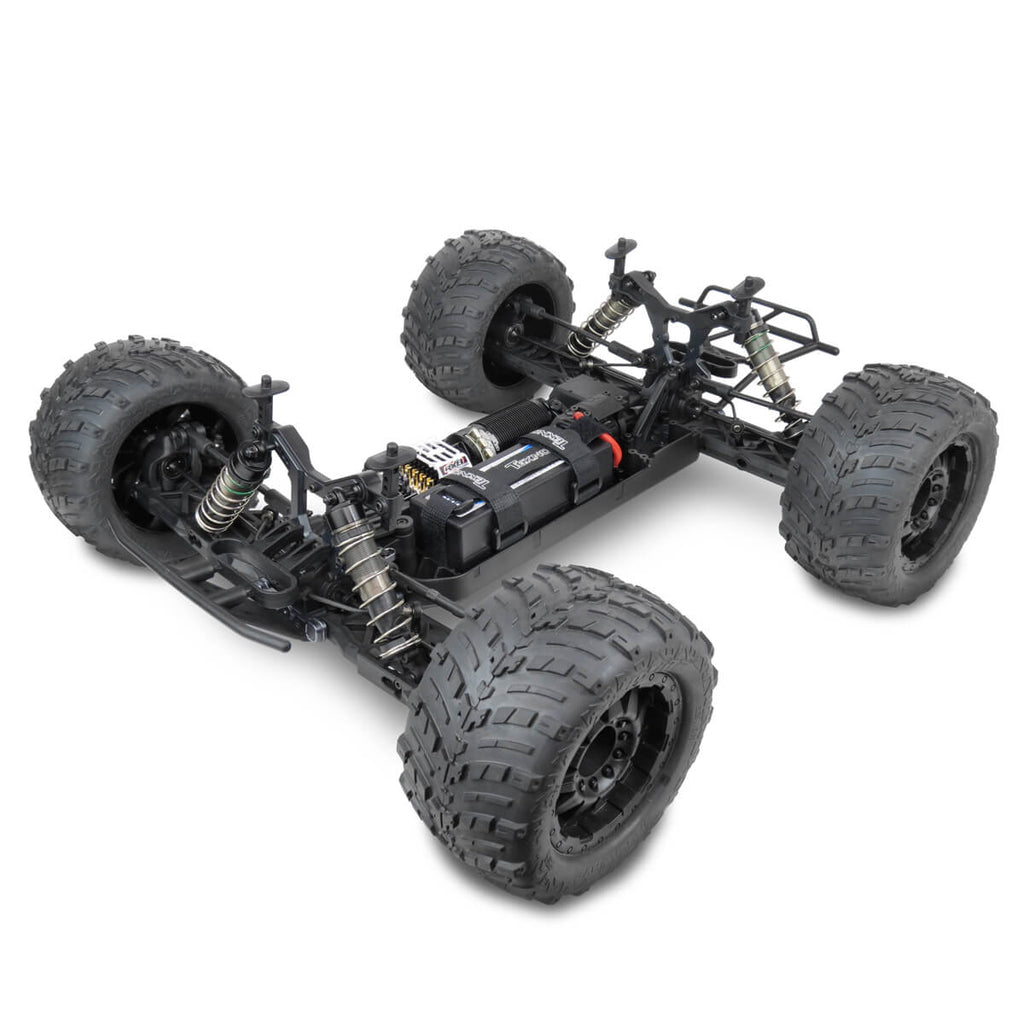

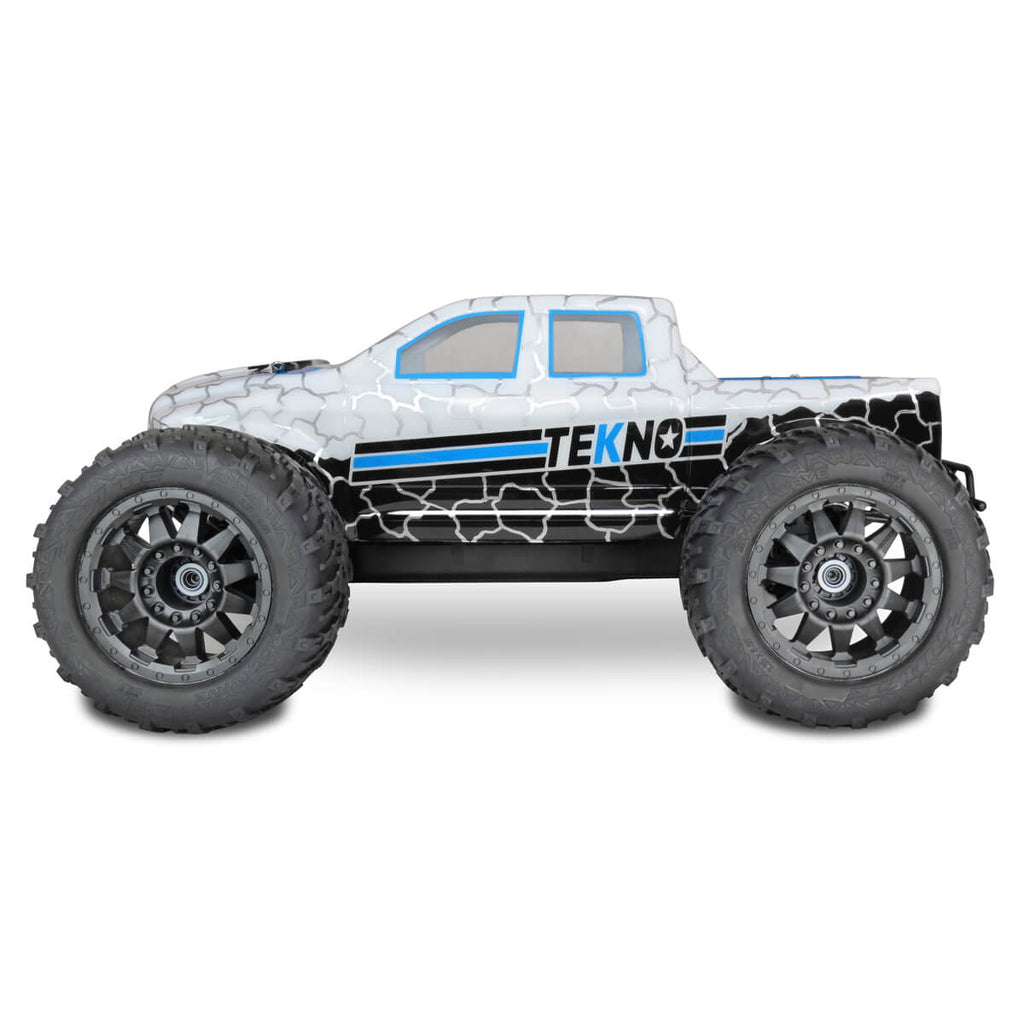

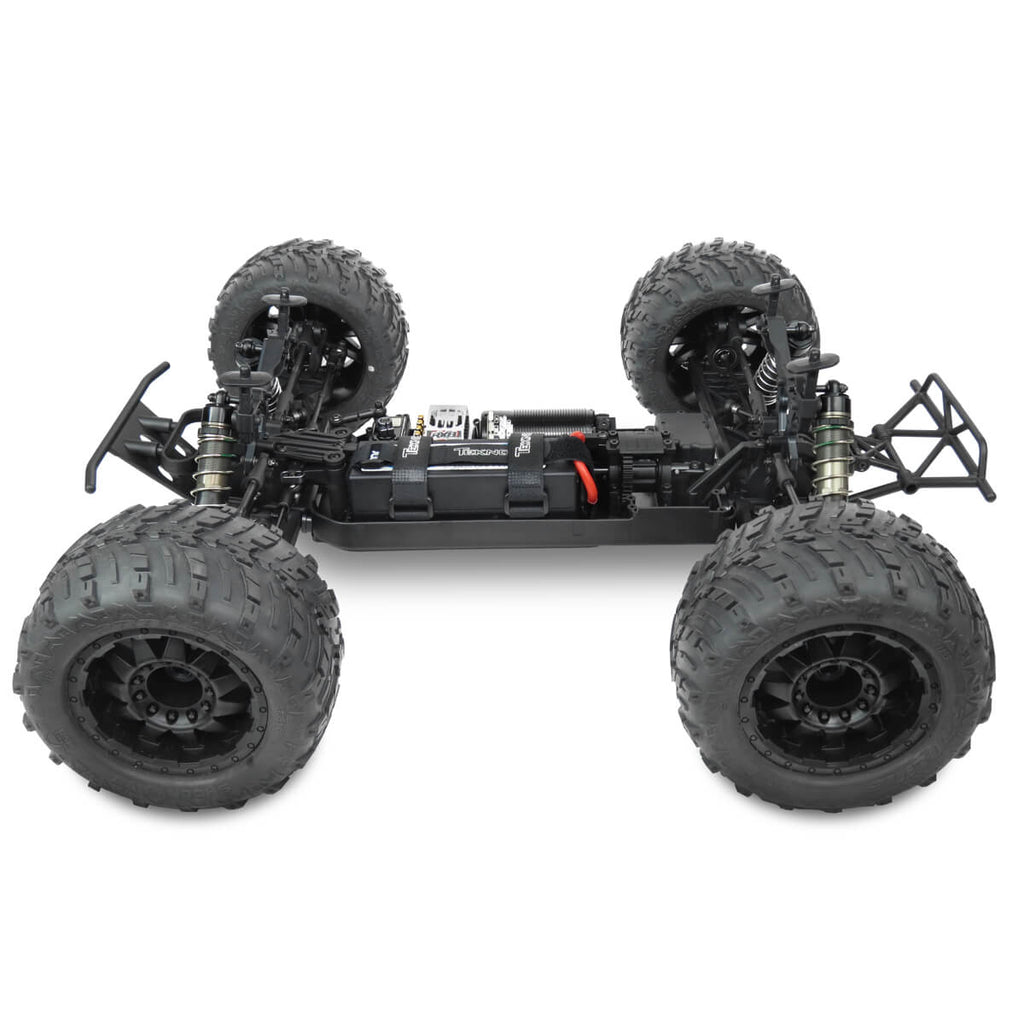

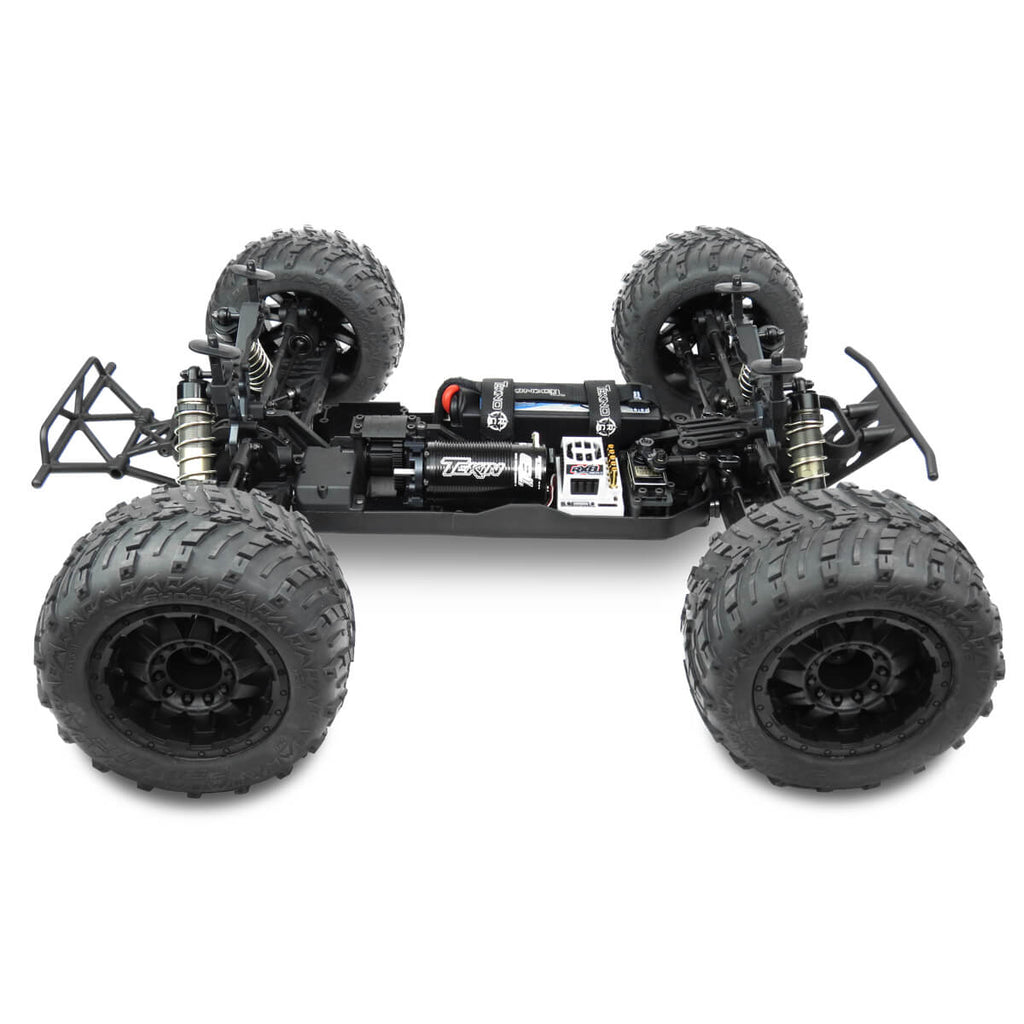

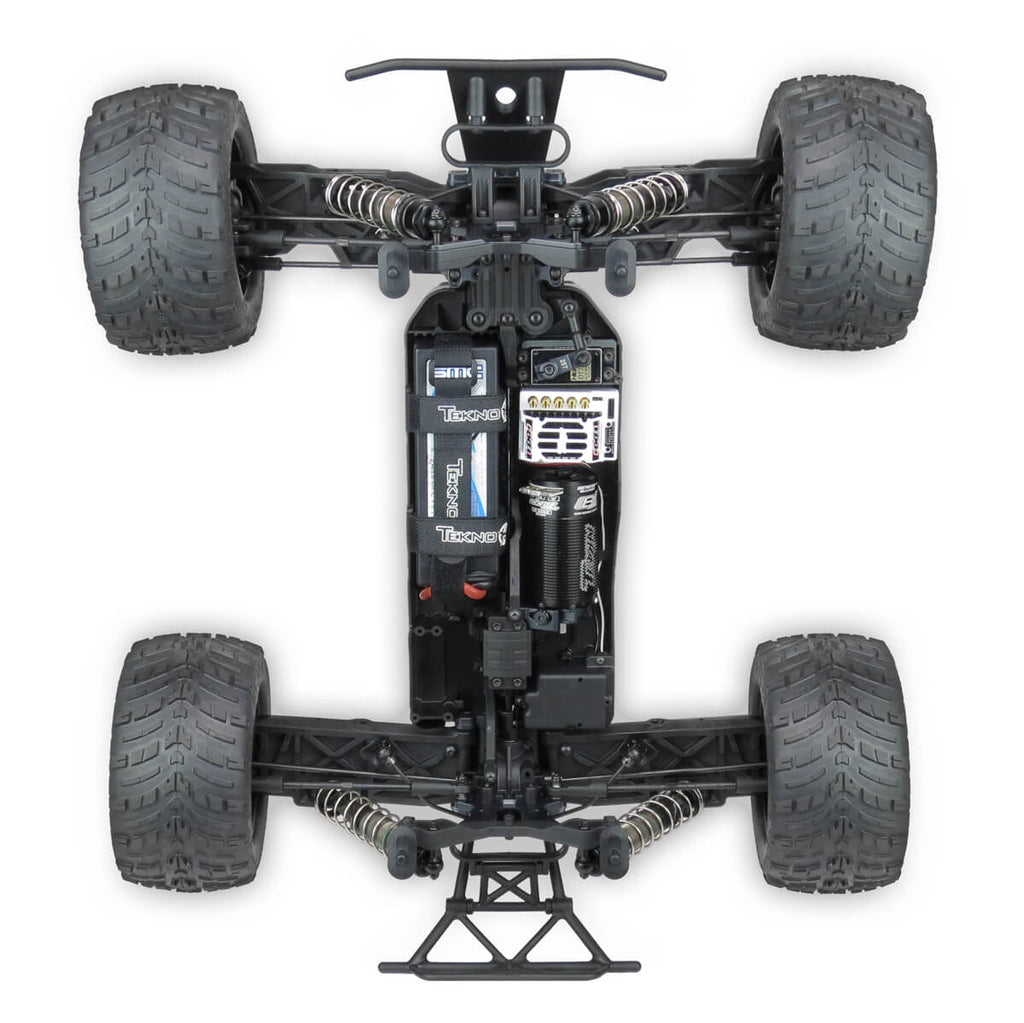

Tekno: TKR5603 MT410 1/10th Electric 4×4 Pro Monster Truck Kit

With the MT410, we are presenting a new standard of performance and value to customers without compromising on the great qualities that Tekno RC has established.

MT410 Features:

• Thick 4mm CNC Aluminum Black Anodized Chassis
• Easy to Build Kit with Detailed Instructions for All Skill Levels
• Super Smooth Threaded 16mm Big Bore Shocks
• Variety of Motor/Battery Configurations Accommodated
• Wide Range of Body Styles and Wheels Accommodated
• Best-in-class Durability and Wear
• Lowest CG Available in Monster Truck Class
• Many Aluminum Upgrades Throughout
• Race Inspired Design and Dependability
• All Metric Hex Hardware

Parts required to complete

• 2 channel radio/transmitter
• Recommended: FlySky NB4
• Monster truck body and paint (or equivalent size body)
• Recommended: HPI Racing Ford F-150 SVT Raptor
• See chart for other compatible bodies
• 1/8th scale ESC and motor system
• Recommended: Hobbywing Max8 G2 Combo
• Recommended: Hobbywing Xerun XR8 Plus G2S Combo (1900kV)
• High torque steering servo (at least 350 oz/in)
• Recommended: Savox SW-2290SG-BE
• Recommended: Savox SW-1210SG-BE
• 3s-4s LiPo battery (at least 5000mAh)
• Recommended: Gens Ace - 5300mAh 14.8V 60C
• Recommended: Gens Ace - 5300mAh 11.1V 60C
• Recommended: Gens Ace - Redline Series 6000mAh 15.2V 130C
• 1/8th scale Monster Truck tires, wheels & CA glue (or premounts)
• Recommended: HPI Racing - Goliath Tires
• Recommended: Arrma BLX 4x4 Backflip LP 4S
• MOD1 Pinion 15 tooth – 25 tooth (TKR4175 – TKR4185)
• Recommended:

Specifications

• Length:  530mm
• Wheelbase:  323-335mm
• Width:  420mm
• Weight:  ~3850g (8.3lb) out of the box RTR (RTR weight equipped w/ Tekin RX8, 2200kv truggy motor, 700g battery, rx, etc)
• Diff Ratio:  F/R – 10/40t, Center – 44t
• Battery tray dimensions: 50x148mm
• Kit/RTR: Kit

Tools needed

• Hex drivers 1.5mm (TKR1104), 2.0mm (TKR1105), 2.5mm (TKR1106)
• Nut drivers 5.0mm (TKR1107, 5.5mm (TKR1108), 7.0mm (TKR1109)
• 17mm Wheel Wrench
• Hobby knife
• Needle-nose pliers
• Shock tool (TKR1115) OR adjustable (Crescent) wrench (for shock assembly)
• 4mm turnbuckle wrench (TKR1103) – 5.5/7.0 two sided wrench (TKR1119)
• 4mm arm reamer (or #19 drill bit)
