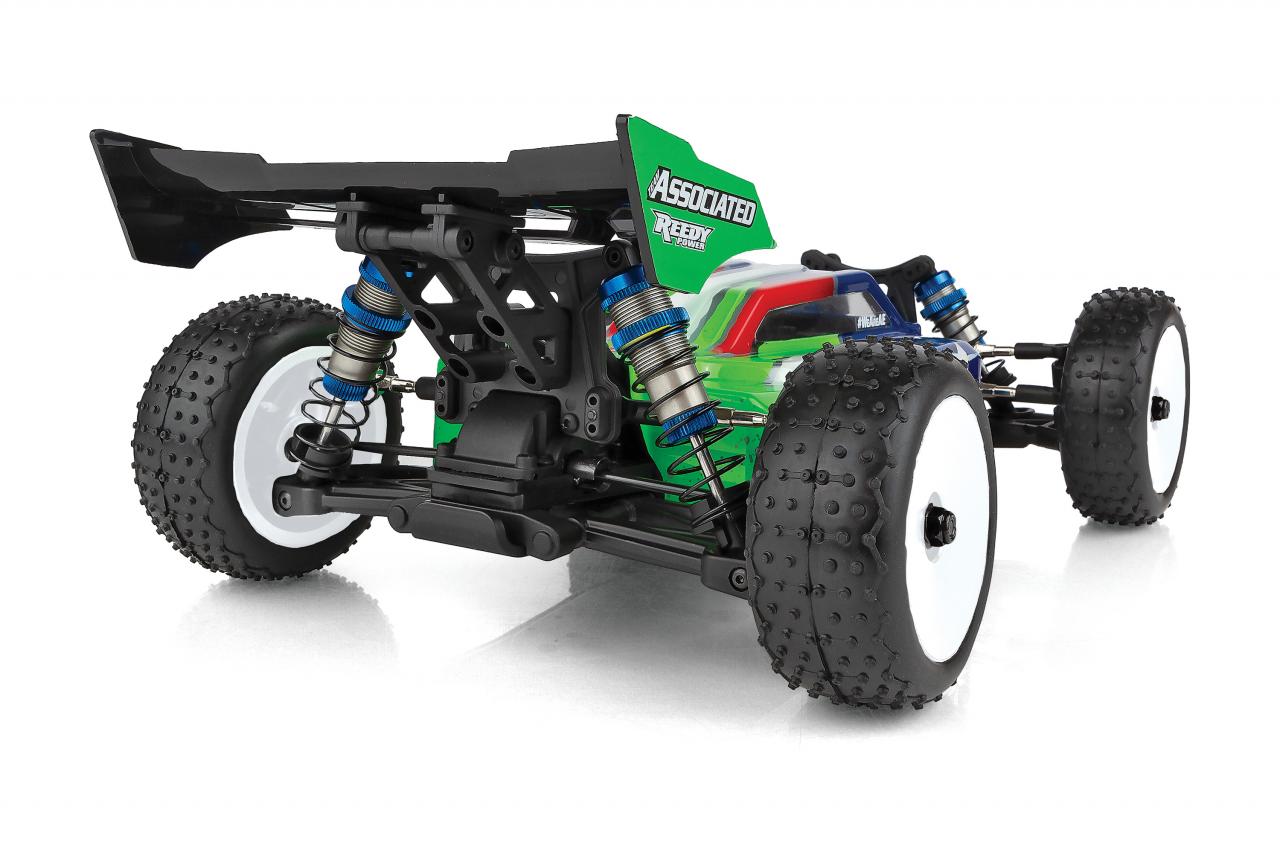

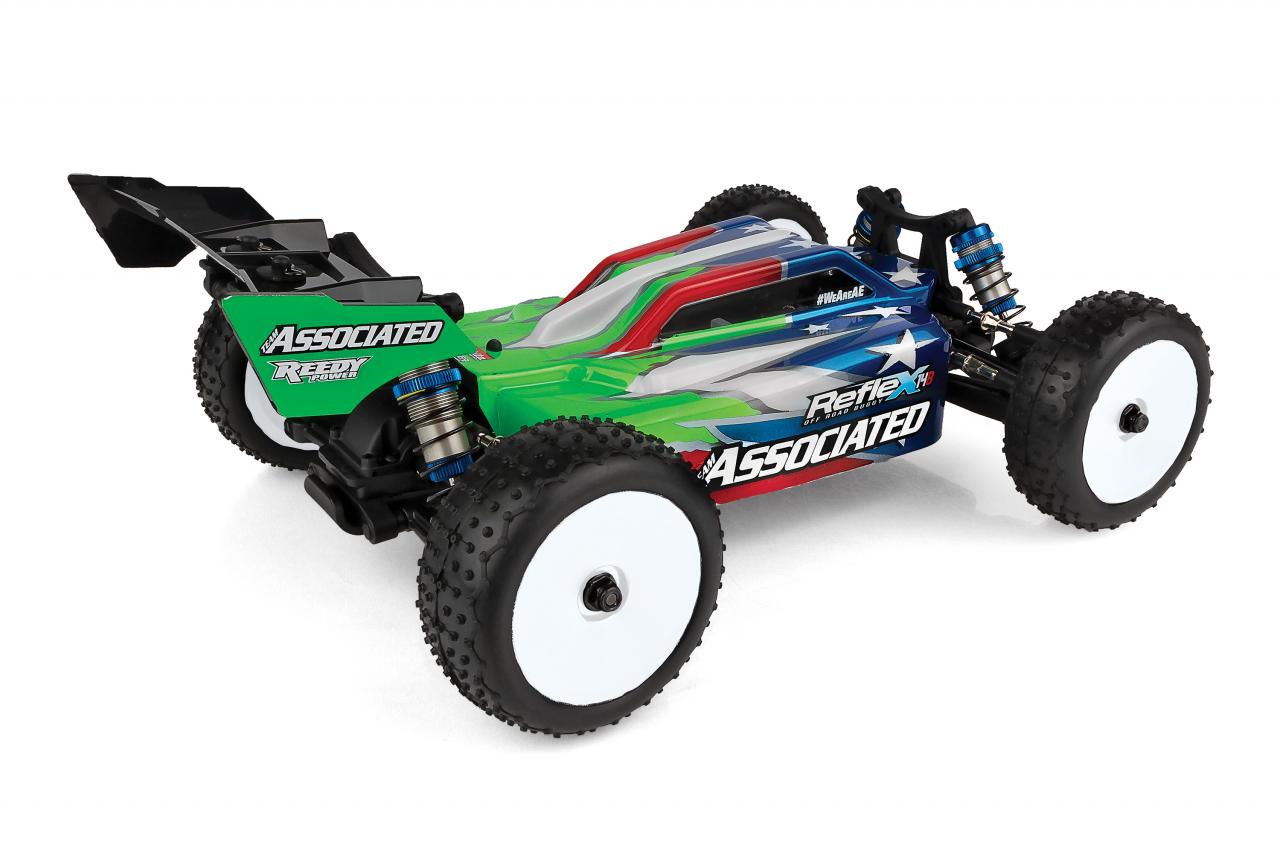

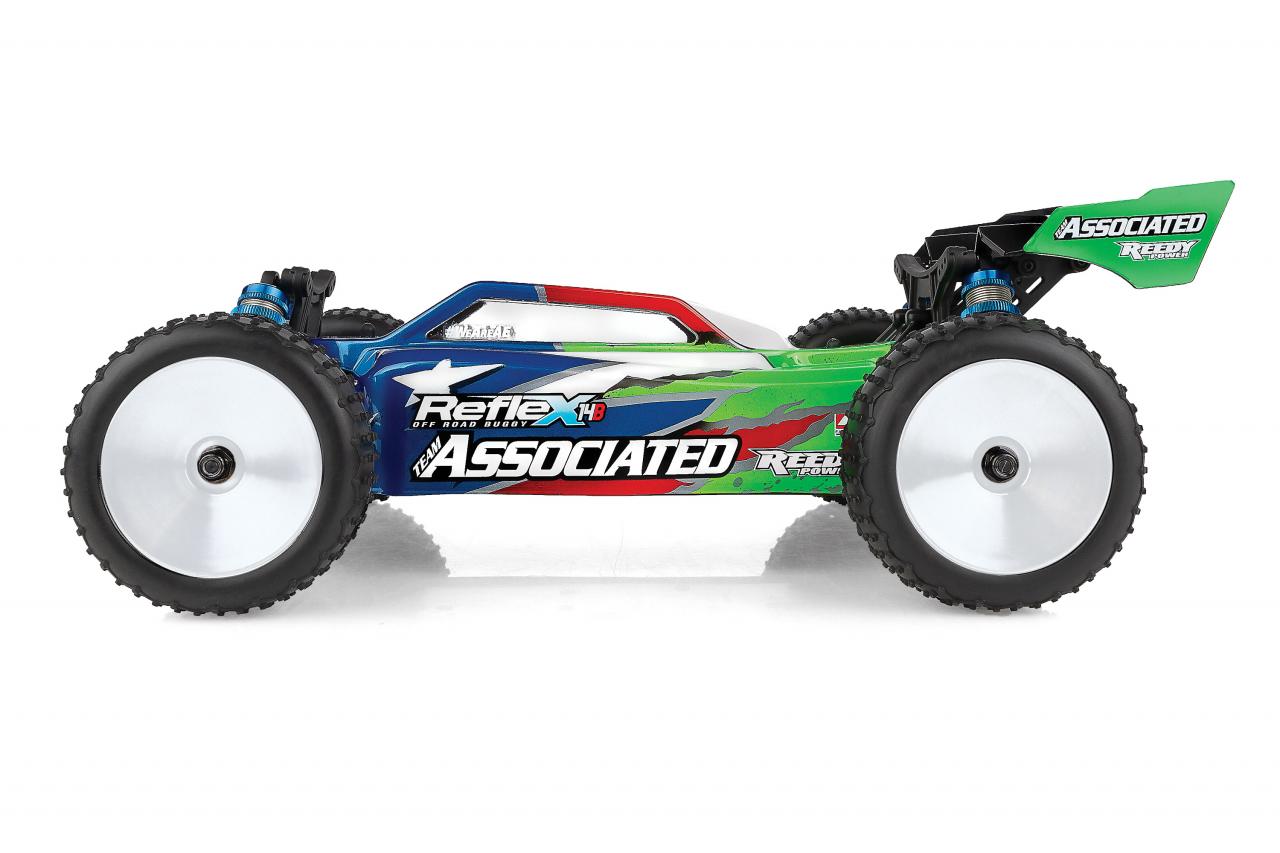

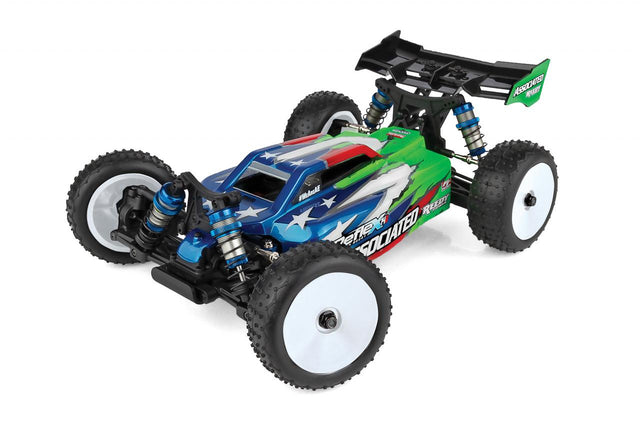

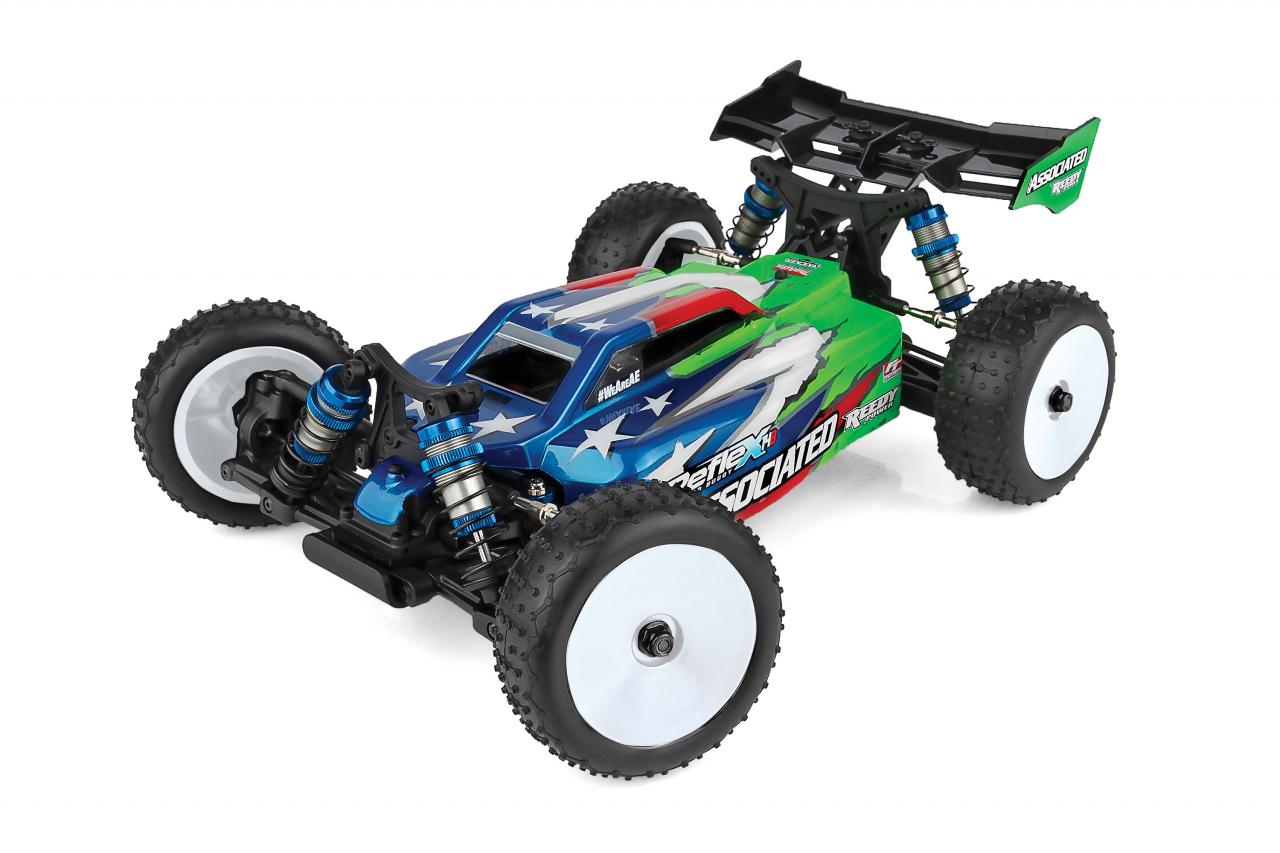

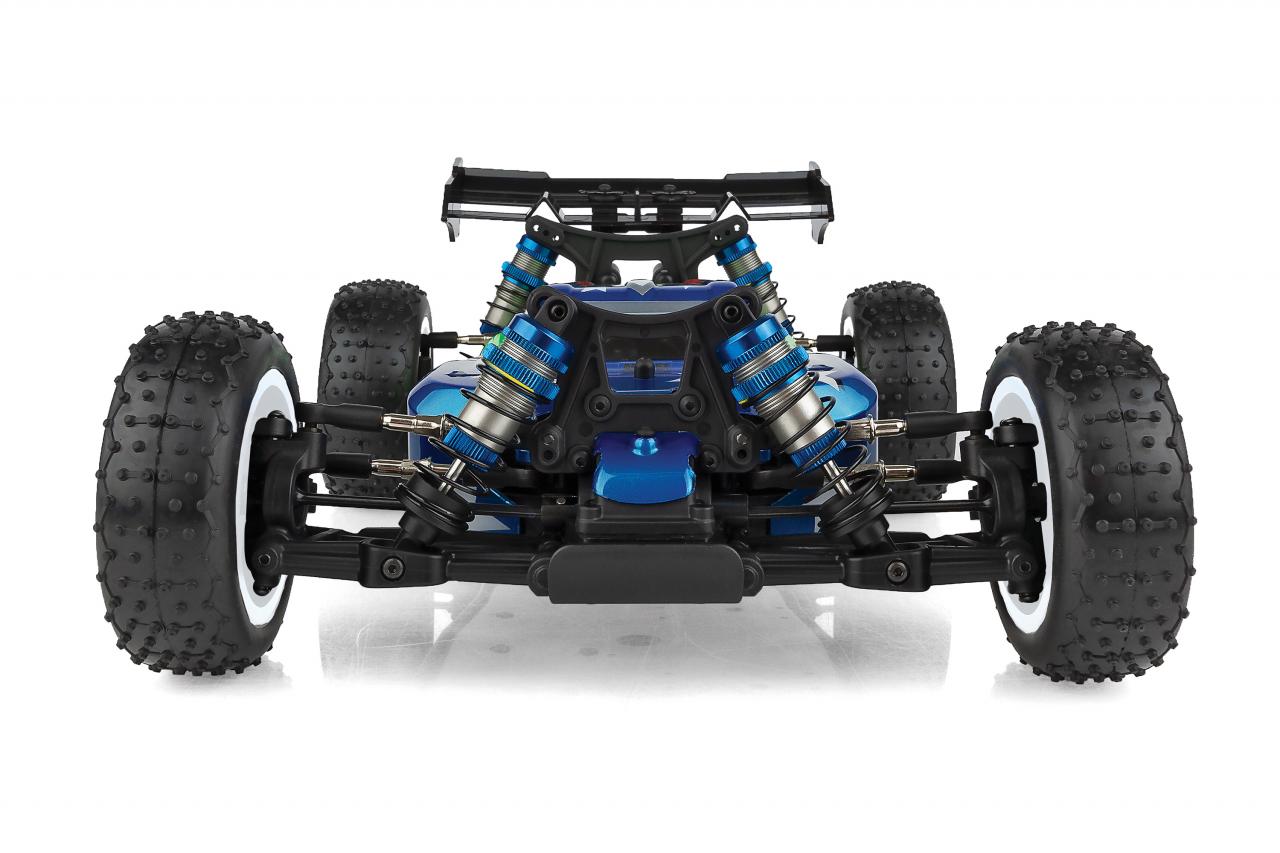

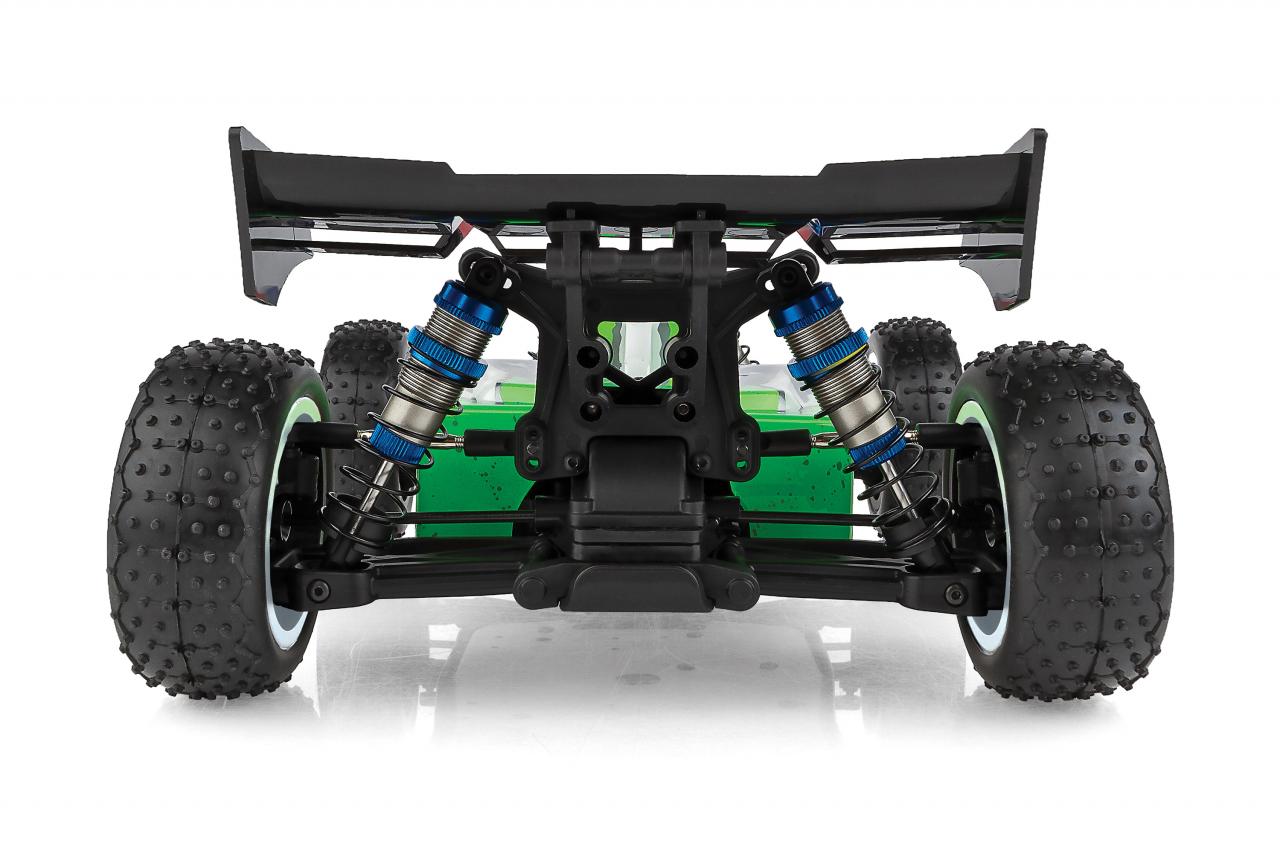

Team Associated: Reflex 14B Buggy Kit

Part Number: 20186

Team Associated has been at the leading edge of off-road fun for over 40 years and is proud to introduce the 1:14 scale Reflex 14B Kit 4WD electric buggy in kit form. You know this buggy was designed with performance in mind: the adjustability offered by the turnbuckles, springs, fluids, shock tower hole placement, gearing, and included Factory Team parts make the Reflex 14B Kit perfect for any terrain you can throw at it. Additional features include three sealed differentials, aluminum steering rack, and lightweight aluminum center driveshaft. These innovations have increased the potential for grip and corner speed, which leads to faster lap times and an overall thrilling-to-drive feel. With the Reflex 14B kit, you can now have big performance in a small-scale package!

You can always count on the durability, speed, and lineage of a champion with any Team Associated race platform.

Required to Complete

• 1:14 scale electric motor (Hobbywing: XERUN 2848 Sensored Motor)
• Electronic speed control (Hobbywing: QUICRUN 10BL60)
• 2S LiPo fitting 100x30x20mm space (Gens Ace: G-Tech 1800mAh)
• Radio control battery charger (Gens Ace: iMars III PRO)
• 2-channel surface transmitter and its batteries (Flysky: Noble NB4+)
• 2-channel receiver (Flysky: Noble FGR4S)
• Steering servo (Batan D135F)
• Lexan specific spray paint for body
• 4x AA batteries
• Other helpful items: Silicone Shock Fluid, Silicone Diff Fluid, Body Scissors (#1737), Reamer (#1499) / Hole Punch, FT Wrench Set (#1519), Hobby Knife, Needle Nose Pliers, Wire Cutters, Soldering Iron, Calipers or a Precision Ruler

Features

• Factory Team aluminum wheel hexes

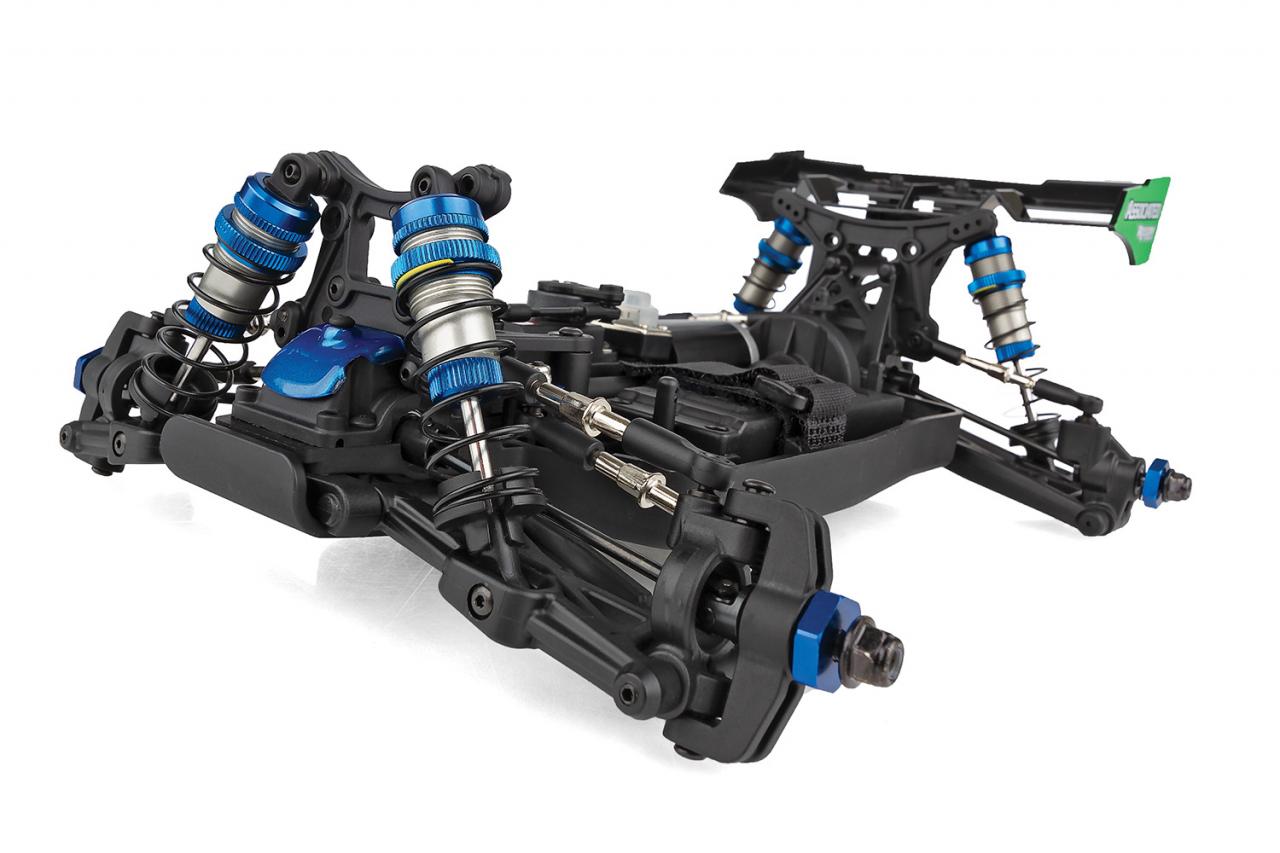

• Factory Team aluminum threaded racing shocks
• Three sealed differentials
• Threaded coil-over shock absorbers
• Turnbuckles to adjust camber and toe
• Aluminum steering rack
• Front universal driveshafts

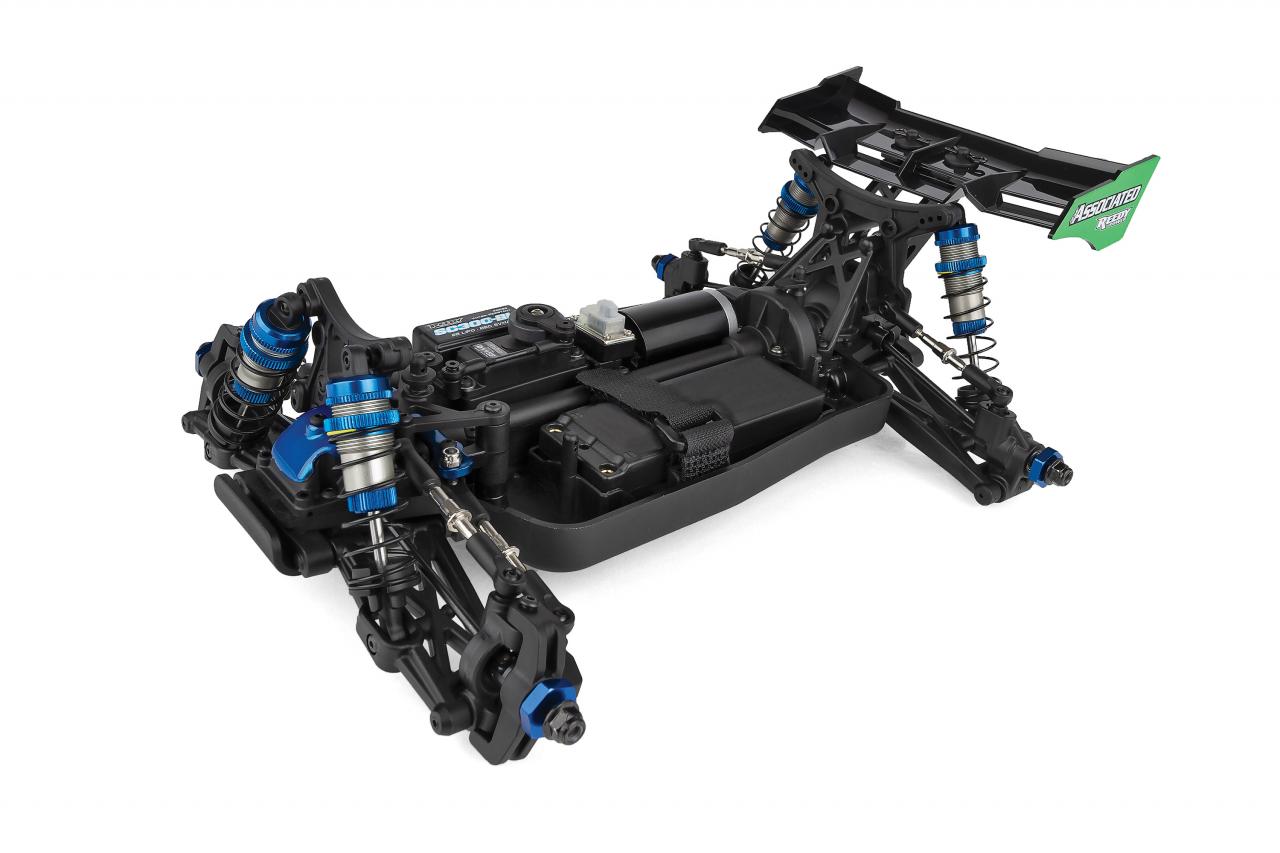

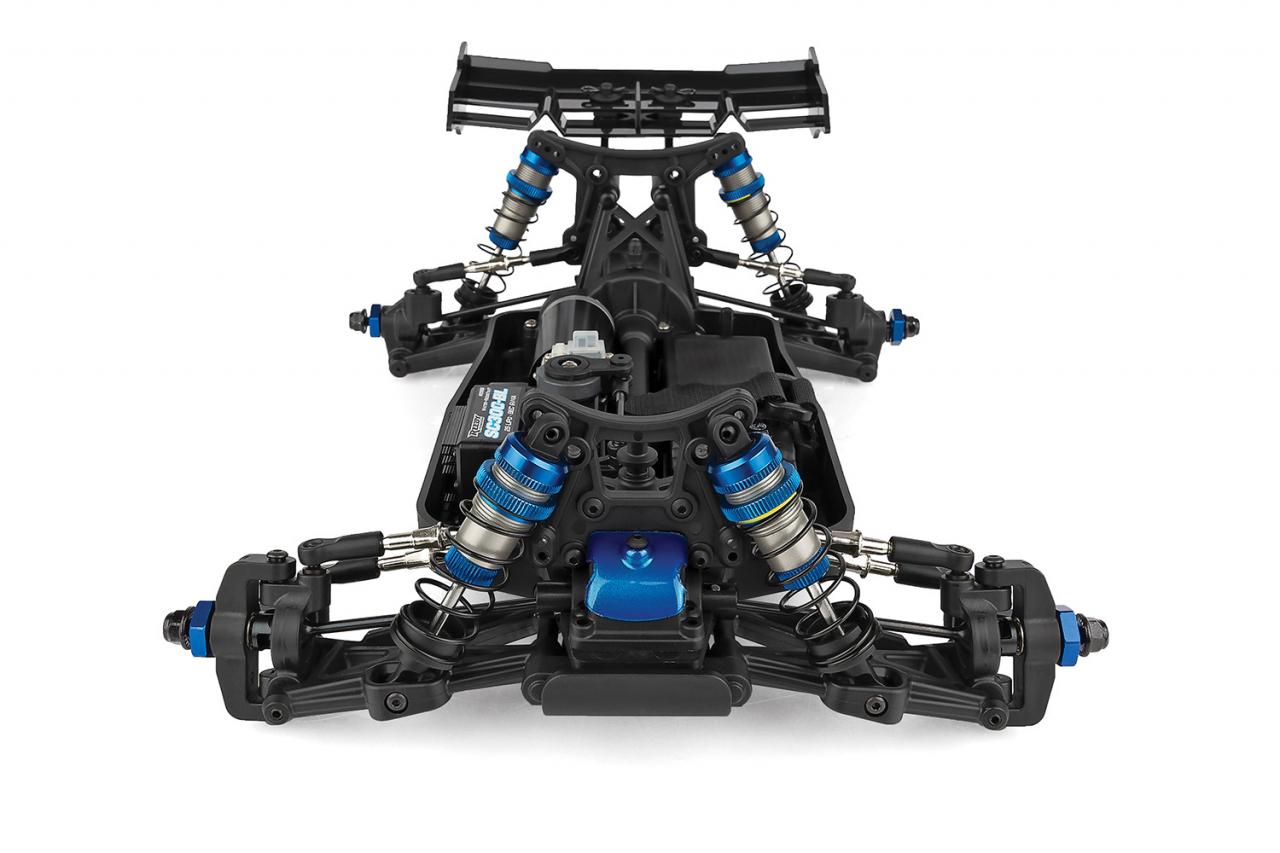

• Molded tub chassis with covered center driveshaft
• Updated battery strap system
• Aluminum center driveshaft
• Clear Lexan Reflex 14B Gamma body

Specifications

• Scale - 1:14
• Power - Electric
• Length - 304mm (11.9")
• Width - 202mm (7.95")
• Weight - Varies
• Wheelbase - 190mm (7.48in)
• Transmission Ratio - 2.46:1
