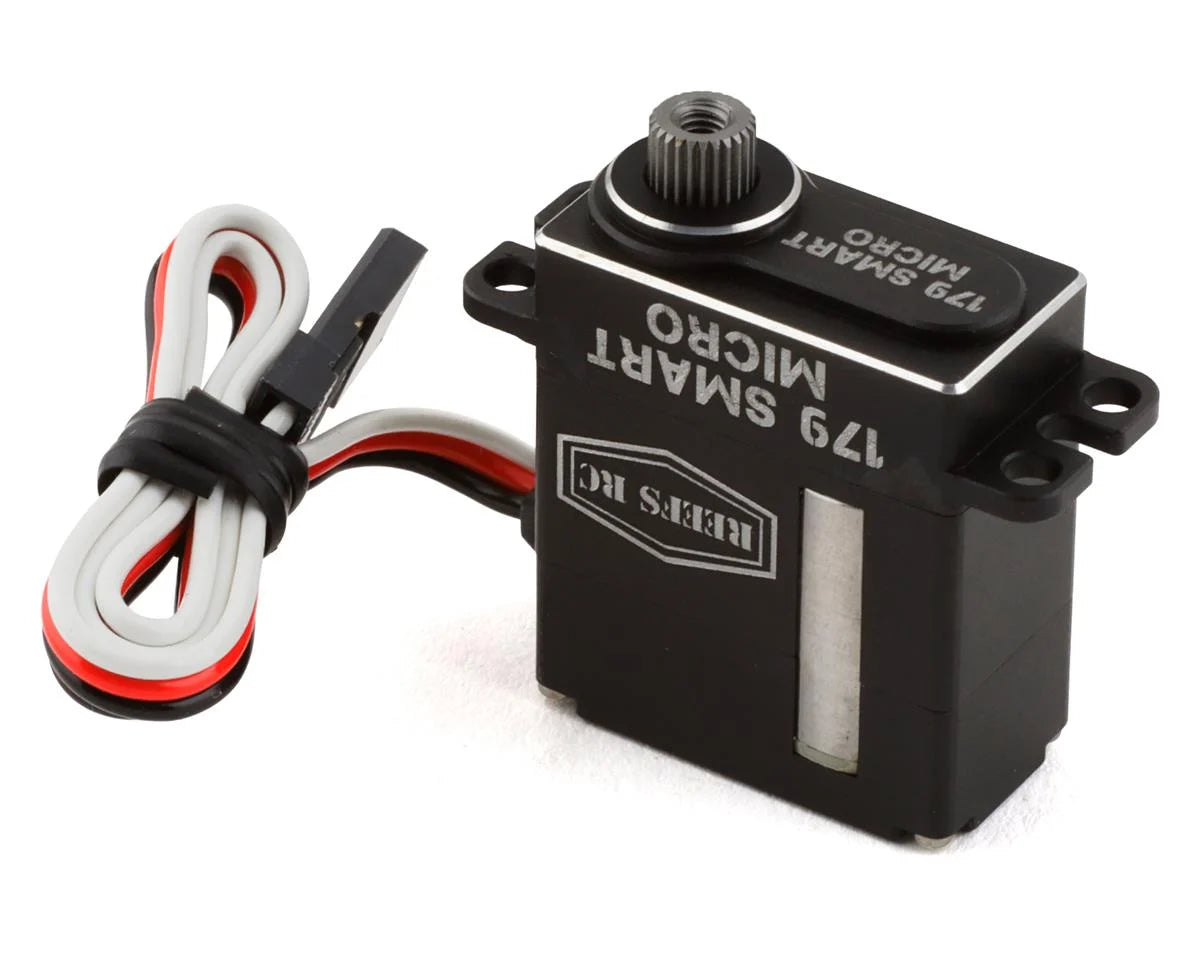

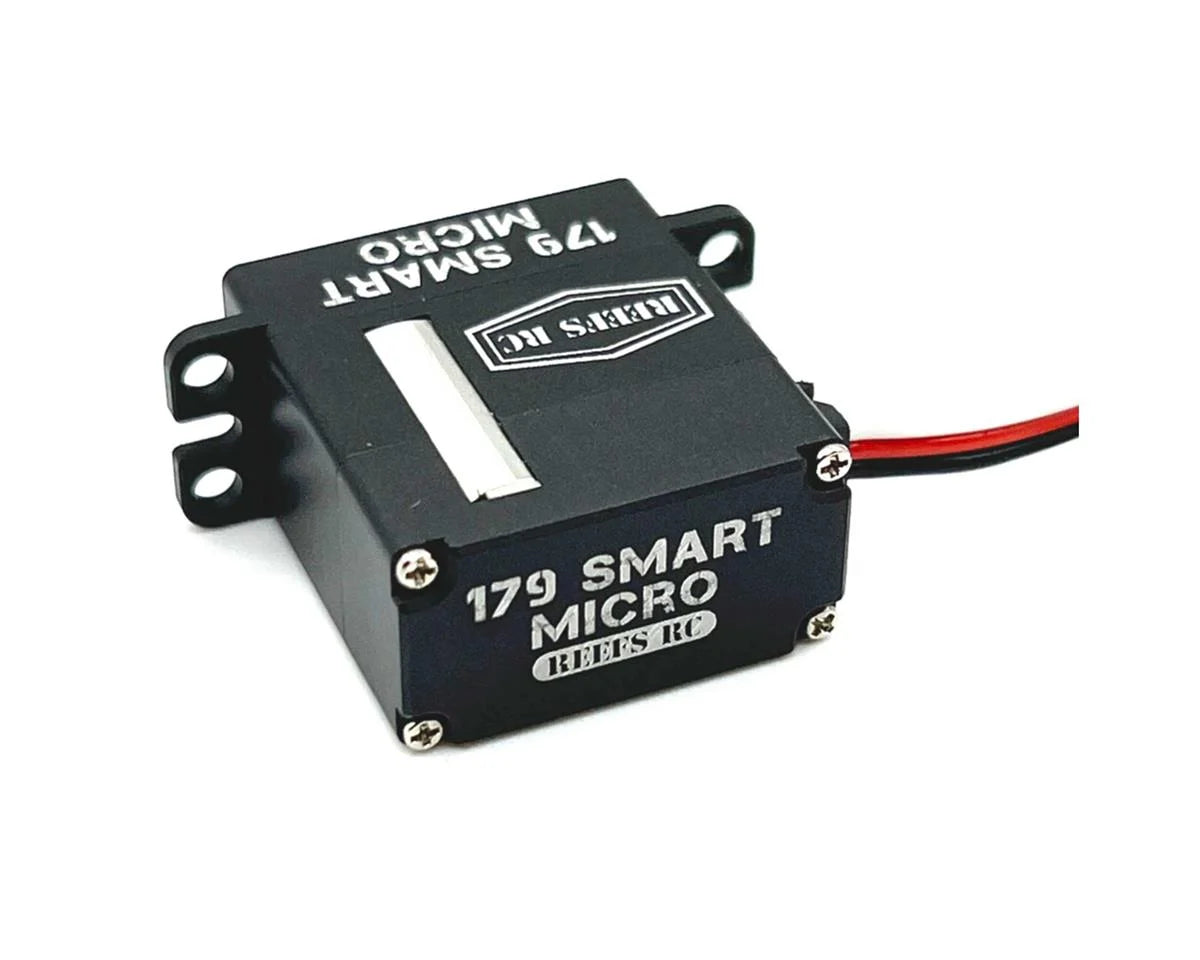

Reefs RC: 179 Smart Micro Servo/Winch
Reefs RC: 179 Smart Micro Servo/Winch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Free shipping on orders over $99 within the continental US.
Ships from Livermore, CA. Ships the same day if ordered before 12PM PST Monday-Friday.
Orders ship once ALL items are available to ship. If you wish to have in-stock items ship sooner, please order them separately from pre-ordered items.
Compact and powerful micro servo with brushless performance, programmable modes, and up to 179 oz-in of torque for steering or winch applications.
Features
- Fully programmable with optional REEFS LINK software
- Built-in winch controller with continuous rotation capability
- Pulse width modulation control
- High torque digital brushless performance
- Dual ball bearing support
- High voltage compatible from 6.0V–8.4V
Specifications

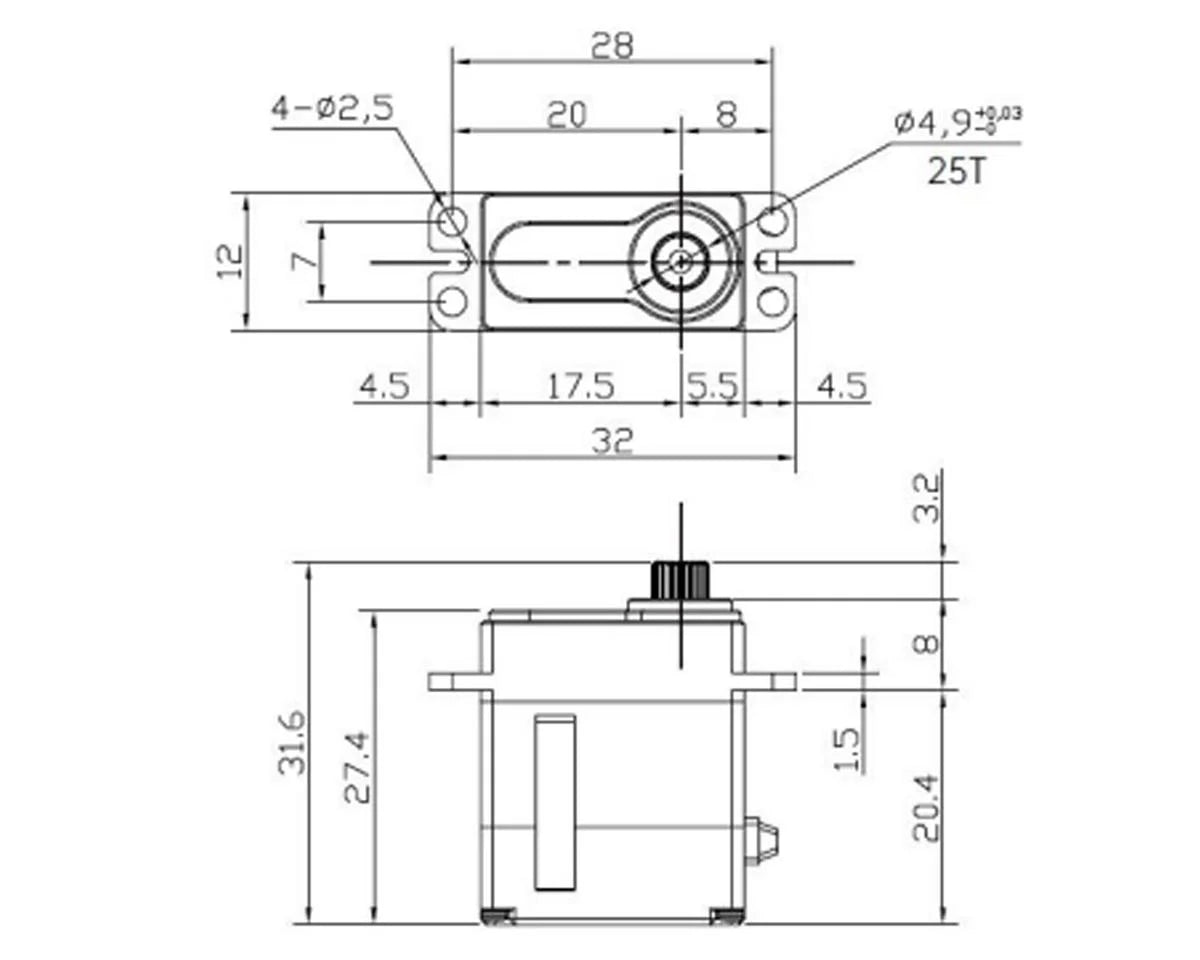

- Dimensions (LxWxH): 23x12x27mm
- Weight: 21g
- Torque at 6.0V: 135 oz-in
- Torque at 7.4V: 159 oz-in
- Torque at 8.4V: 179 oz-in
- Speed at 6.0V: 0.09 sec/60°
- Speed at 7.4V: 0.07 sec/60°
- Speed at 8.4V: 0.06 sec/60°
- Servo type: Digital brushless
- Servo size: Micro
- Programmable: Yes (optional programmer required)
- Operating voltage: 6.0V–8.4V
- Spline count: 25T
- Bearings: Dual ball bearings
- Deadband: 2μs
Contents
- 1x Reefs RC 179 Smart Micro Servo/Winch

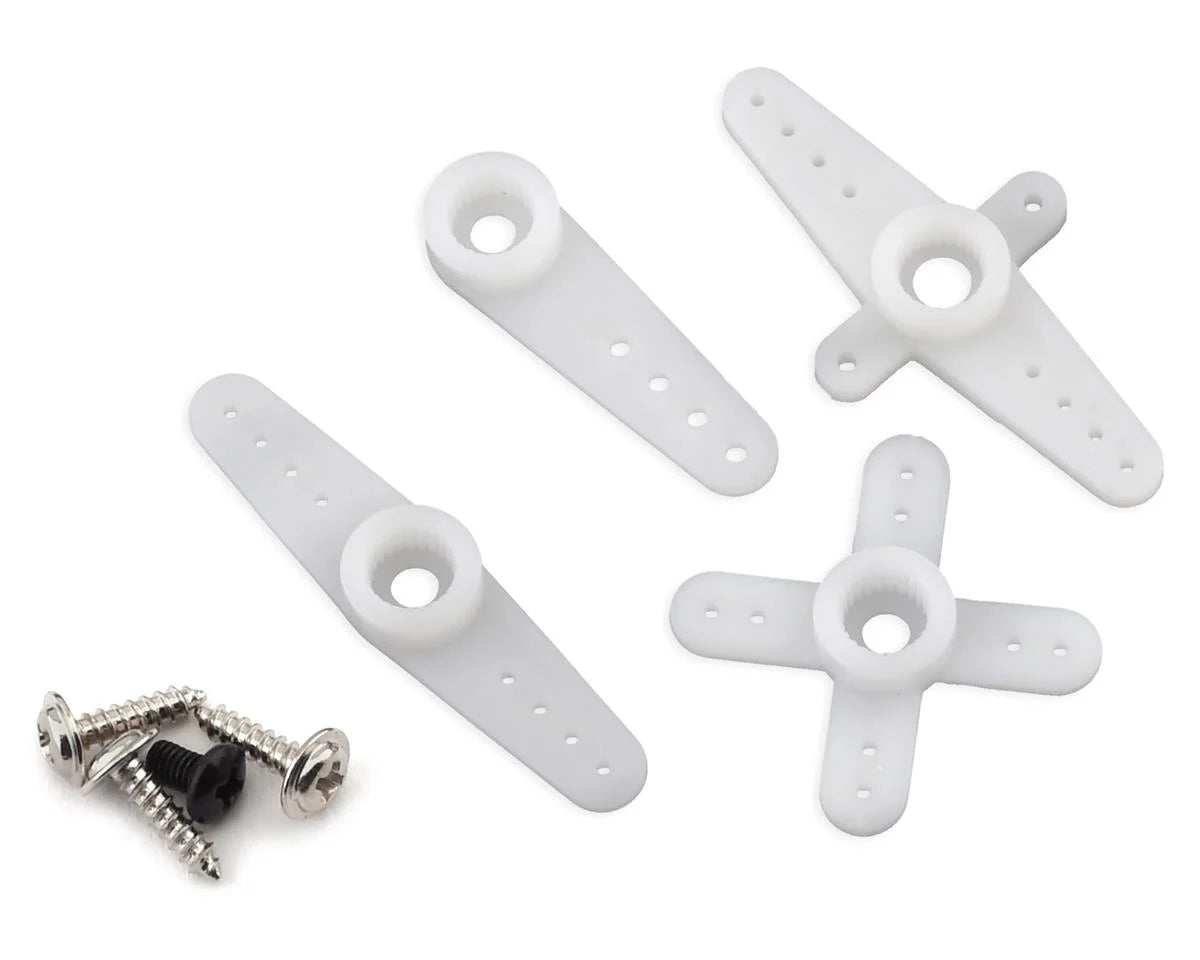

- Servo horn assortment
- Mounting hardware
