Kyosho  |  SKU: 32891  |  Barcode: 4548565458707

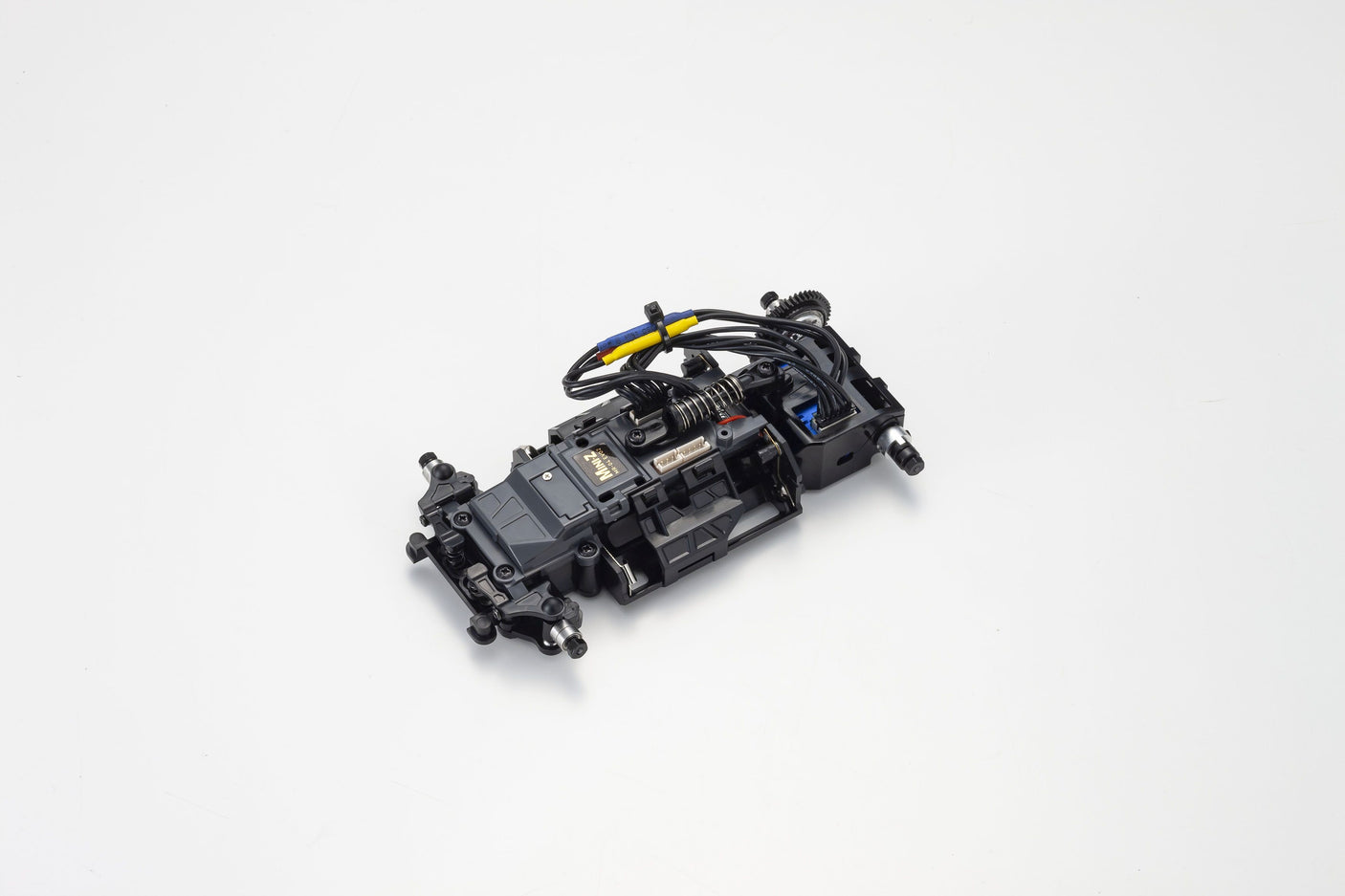

Kyosho: MINI-Z Racer MR-04 EVO2 Chassis (W-MM/5600KV)

$199.99 $319.99
Shipping calculated at checkout.

Delivery and Shipping

Free shipping on orders over $99 within the continental US.

Ships from Livermore, CA. Ships the same day if order before 3PM PST Monday-Friday.

Orders ship once ALL items are available to ship. If you wish to have in-stock items ship sooner, please order them separately from pre-ordered items.

The 1/27.6 MINI-Z RWD MR-04 features a micro sensored brush motor as its power source, which linearly responds to throttle control from the bottom to top RPM range. The EVO2 main system features super low latency control. Almost everything has been updated from the 14-year-old MR-03!

Required to Run

Features

  • The EVO2 mainboard shortens the latency from 2.6 msec to less than 1 msec.
  • Battery mount position is lowered to lower the center of gravity for better cornering
  • The all-new front section reduces the scrub radius by 1.5mm for better steering control.
  • The one-piece MA-030 type kingpin/knuckle reduces weight and play.
  • The 3-mm diameter front wheel shaft and bearing reduce friction loss.
  • The new potentiometer is more durable, and it ensures precise steering control.
  • IC tag mount position is raised by 0.5 mm, which means you can use even smaller front tires
  • The EVO2 main board also supports existing EVO receiver units.

      Specifications

      • Length: 124.5mm
      • Width: 72~76mm
      • Height: 31mm
      • Motor Mount: MM
      • Wheelbase 98.0mm (LL)
      • Tires: Not included
      • Gear Ratio: 7.3, 6.3, 5.5, 4.9:1
      • Weight: 135.5g (Body/tires/wheels not included)
      • Motor Kyosho Speed House Xspeed 56 (KV5600)

      Contents

      • MR-04 EVO2-W-MM Factory assembled chassis with KYOSHO SPEED HOUSE KV5600 brushless motor
      • Parts set for changing front tread
      • 6T, 7T, 8T, 9T Pinion gears
      • Wheel wrench
      • Tools for pinion gears
      • Spare wheel nuts
