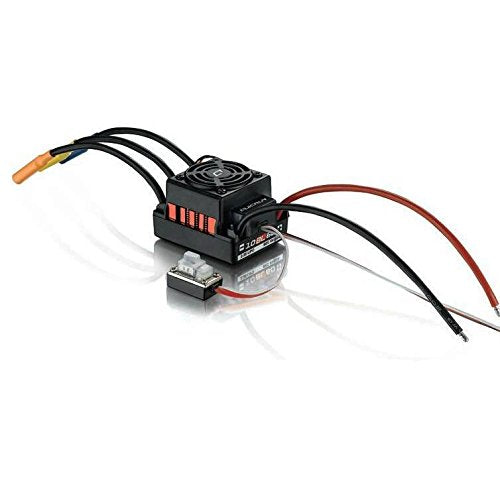

Hobbywing: QUICRUN 10BL60 SL Brushless ESC
Regular price
$49.99
Sale price
$71.00
Shipping calculated at checkout.
Part Number: 30107100
Features
- Water-proof and dust-proof for all-weather races. Please make sure to uninstall the cooling fan before using this ESC in water. Clean and dry it soon after the use for avoiding the connectors get rusty.
-
External programming port, easy to connect to the LED Program Card (purchase separately) when setting the ESC
- Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
- 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks.
- Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection.
- One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
- Compatible with the optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.
Specifications
- Continuous Current: 60A
- Peak Current: 360A
- Resistance: 0.001Ω
- Motor Type Supported: Sensorless Brushless Motor
- Car Applicable: 1:10 On-road or Off-road
- Motor Limit For 2S LiPo or 6 cell NiMH:
- 1. On-road: 3656-size or smaller motor with the KV<6000
- 2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<4000
-
For 3S Lipo or 9 cells NiMH:
- 1. On-road: 3656-size or smaller motor with the KV<4000
- 2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<3000
- Battery: 2-3S LiPo or 4-9 Cell NiMH
- BEC Output: 6V/2A (Linear Mode)
- Bullet Connector: 4mm
- Size: 48.5x38x32 (LxWxH in mm)
- Weight 90g
- External Program Port: Available
- Working voltage of Fan: From battery directly without regulating
