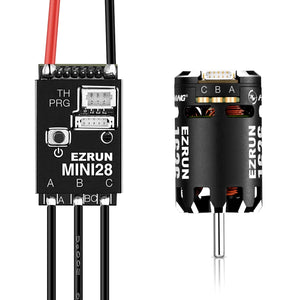

Hobbywing - EZRUN Mini28 Combo (Mini28 ESC + 1626 5000kv Motor)

• Improved top speed / Precision response / High efficiency with the cool operation
• When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically.
• Zero cogging, consistent torque, and excellent low-speed response give an amazing feel and drivability
• Modular detachable structure, convenient for daily cleaning and maintenance.

Specifications

EZRUN 1626 Sensored Brushless Motor (5000kv)

• Pole: 2
• KV: 3500KV
• No-load Current(A): 0.4A
• Input Voltage: 2S
• Diameter/Length (mm): 16
• Shaft Diameter/Length (mm): 26
• Weight: 18g
• Applications: 1/28th Mini

EZRun MINI28 2s ESC

• Cont./Peak Current: 30A / 80A
• Motor Type: Sensored / Sensorless Brushless Motors
• Motor Limit: 1626 Size Motor
• LiPo/NiMH Cells: 2S Lipo
• BEC Output: 6V/7.4V Adjustable, 3.5A Peak (Switch-mode)
• Size: 22.7x14.2x11.8mm

Contents

• Mini28 ESC + 1626 SD Motor (5000kv)
