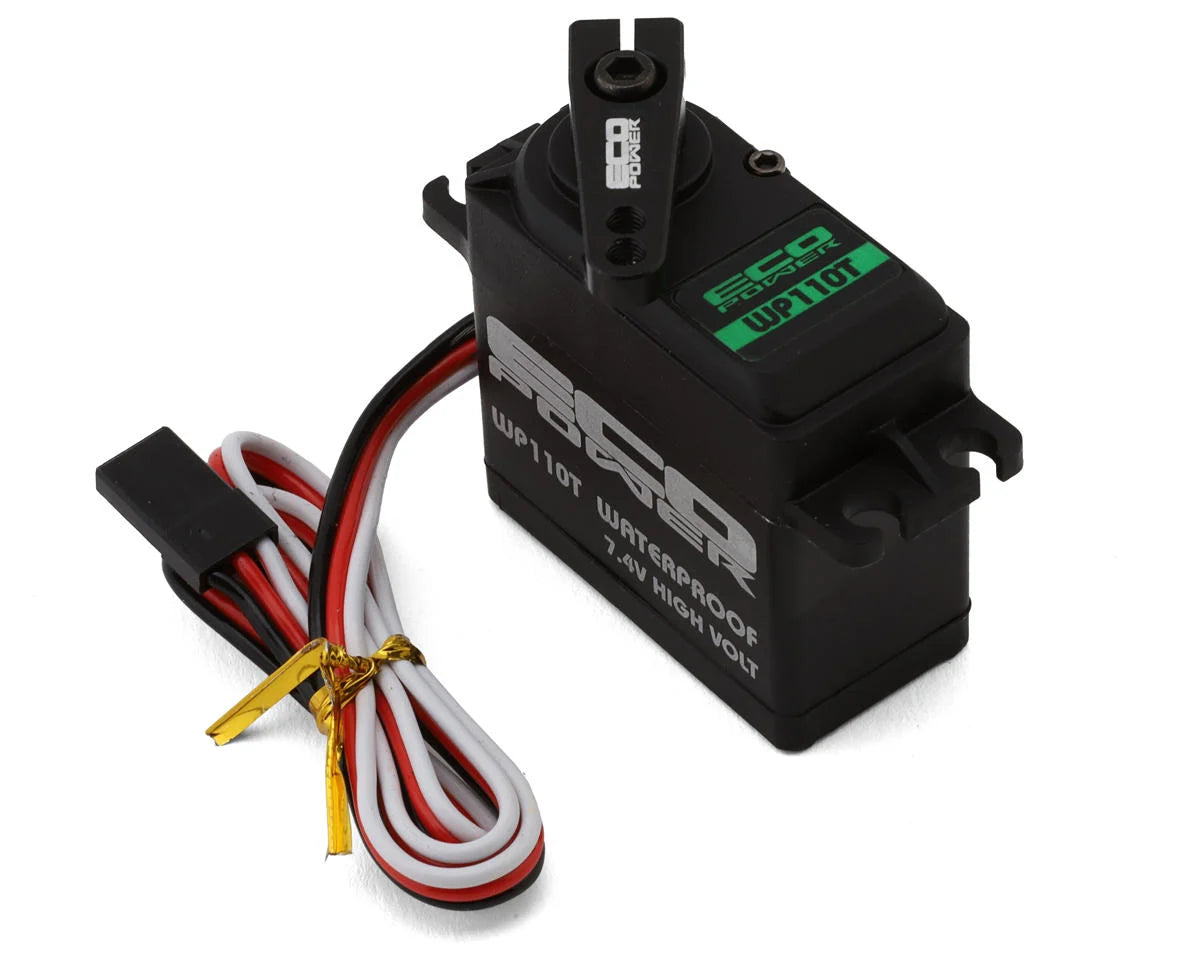

EcoPower: WP110T Waterproof High Torque Metal Gear Servo

Features

• 280 oz-in of torque at 6.0V with 0.16 sec transit speed
• Waterproof up to 1 meter
• Digital circuitry with cored DC motor
• Full metal gears and dual ball bearings
• Lightweight plastic upper/lower case with black anodized aluminum center
• 220mm servo lead
• Includes aluminum clamping servo horn

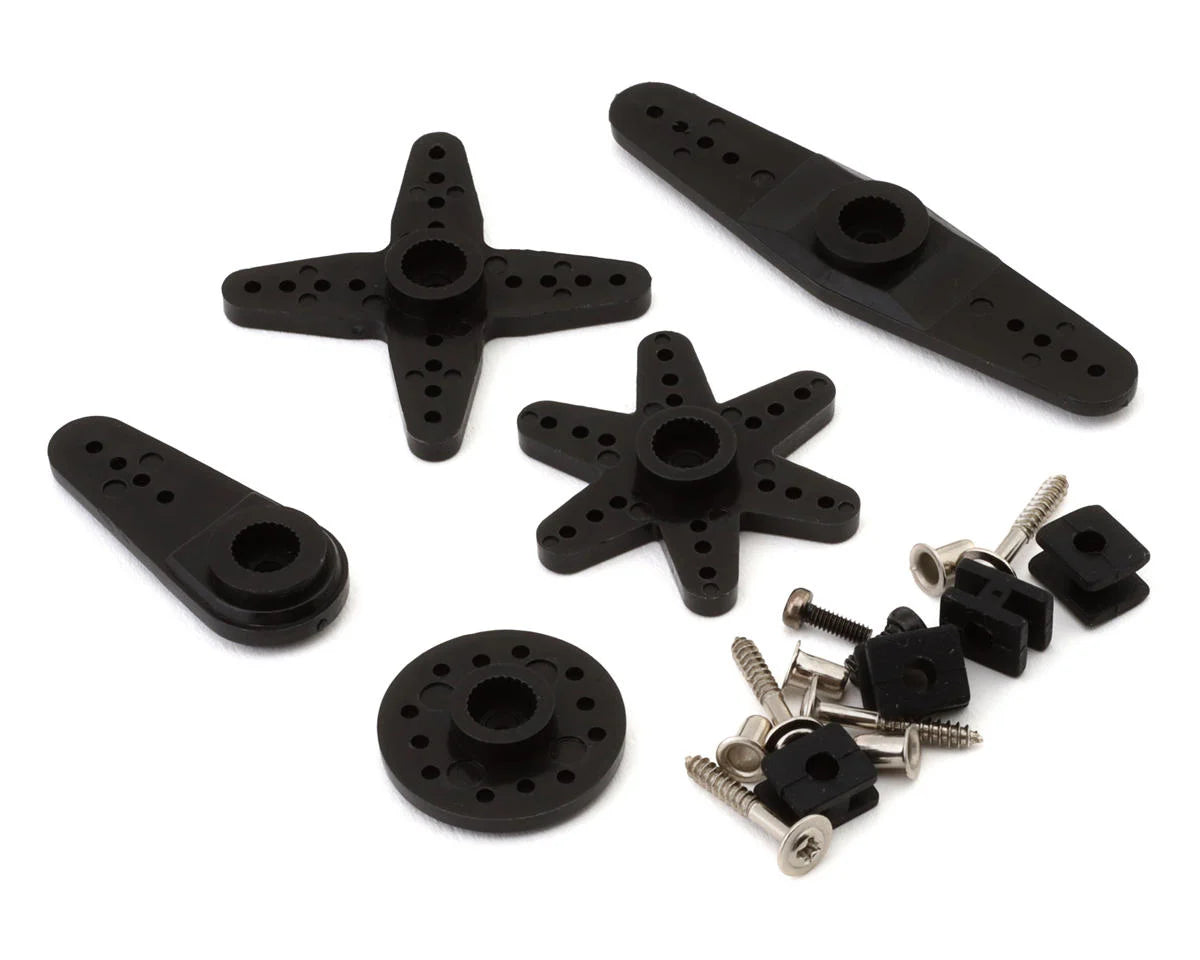

• Includes plastic star, 4-way, dual, single, and round servo horns plus mounting hardware
• Compatible with 1/10 monster trucks, 2WD/4WD buggies, boats, and more
• 1-year manufacturer defect warranty*Stripped gears or abuse-related damage not covered

Specifications

• Model: WP110T
• Recommended Application: 1/10 Scale Surface
• Waterproof: Yes
• Operating Voltage: 4.8V – 7.4V
• Operating Temperature: 14°F to 140°F (-10°C to +60°C)
• Speed:
  • 0.18 sec/60° @ 4.8V
  • 0.16 sec/60° @ 6.0V
  • 0.14 sec/60° @ 7.4V
• Torque:
  • 175 oz-in @ 4.8V
  • 280 oz-in @ 6.0V
  • 334 oz-in @ 7.4V
• Motor Type: Cored DC
• Output Shaft: 25T spline
• Gear Type: Full Metal
• Weight: 1.87 oz (53g)
• Signal: 1520µs / 333Hz
