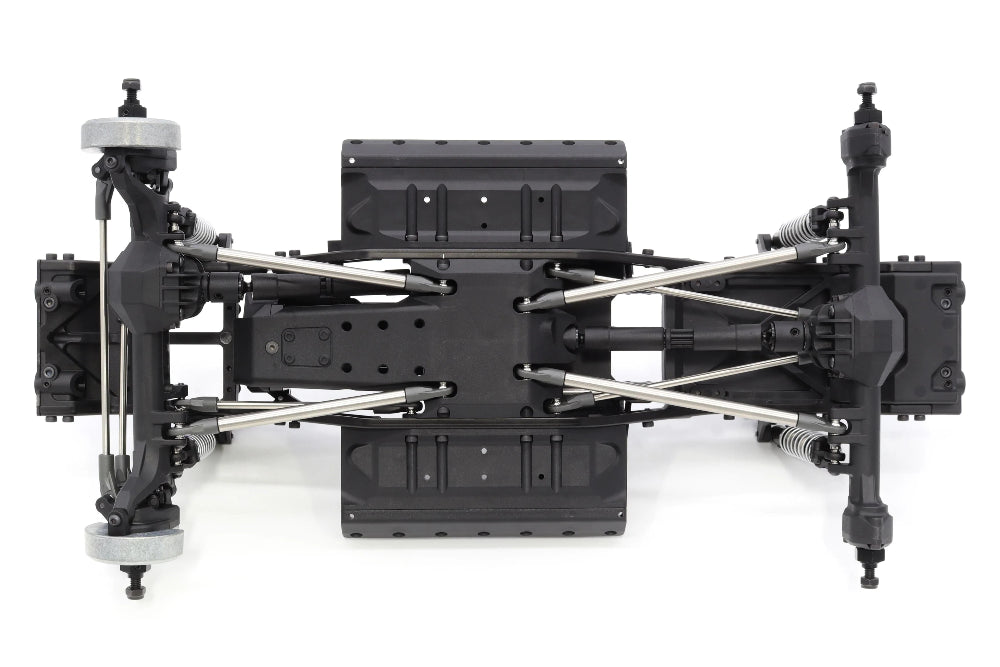

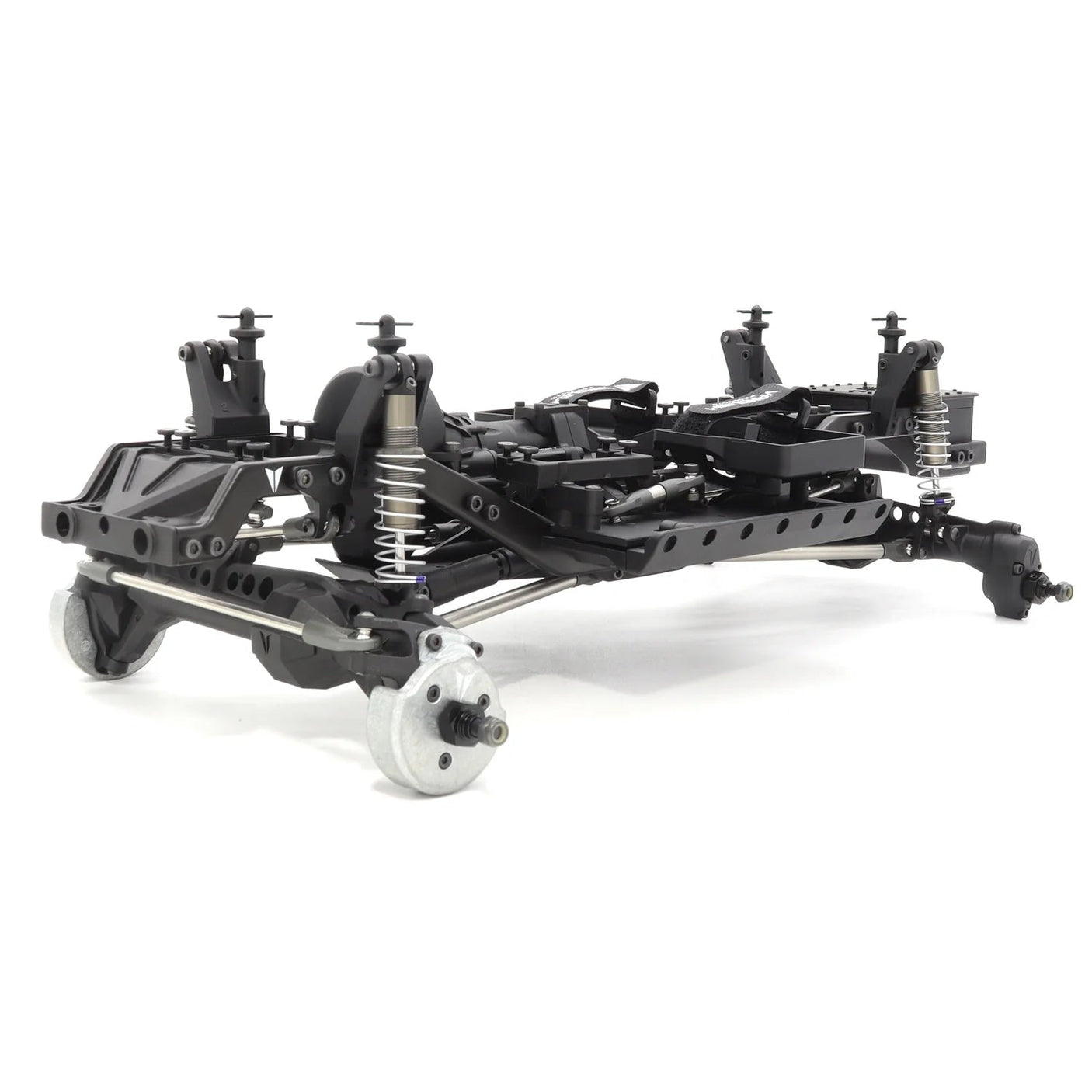

Vanquish: VS4-10 Builders Kit with Portal Axles

The VS4-10 Builders Kit with portal axles offers premium performance and scale detail, featuring a VFD transmission, F10 axles, and steel C-channel chassis.

Required To Run

• Assembly of kit
• 540 Sized Motor, ESC, Servo
• Transmitter and compatible receiver
• Battery and charger
• Body and Paint
• 1.9 Tires and Wheels
• Tools

Features

• F10 portal axles offer high clearance, 49° steering, and brass inserts for strength
• VFD Twin transmission with selectable 6.5% or 46% overdrive and 3-position dig
• Incision S8E 80mm shocks with aluminum bodies and dual X-ring seals
• Steel C-channel chassis with molded crossmembers and integrated mounts
• ISD10 driveshafts with CV-style joints for smooth articulation
• Brass axle tube inserts and knuckle weights improve traction and balance
• Includes shock oil, grease, threadlock, and build tools for easy assembly

Specifications

• 5.25:1 Axle Gear Ratio
• 15T Pinion
• 52T Spur Gear
• Overall Width Hex to Hex - 200mm (7.87”)
• Wheelbase: 313mm (12.3")
• Overall Front Ratio (Standard 6.5% OD): 53.7:1
• Overall Front Ratio (High 46% OD): 35.8:1
• Overall Rear Ratio: 57.2:1

What’s In The Box

• VS4-10 Builders Kit with Portal Axles

• Manual
