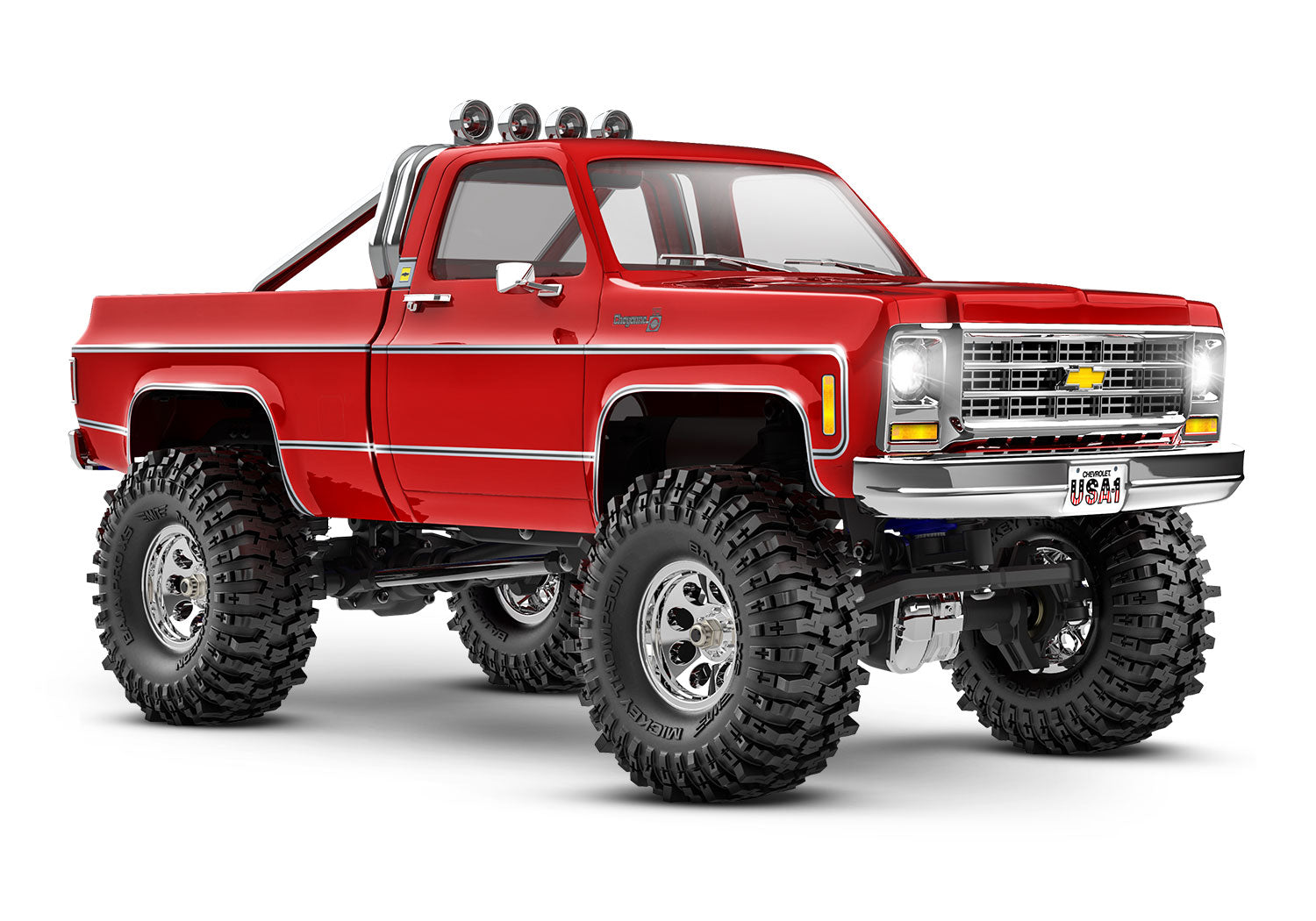

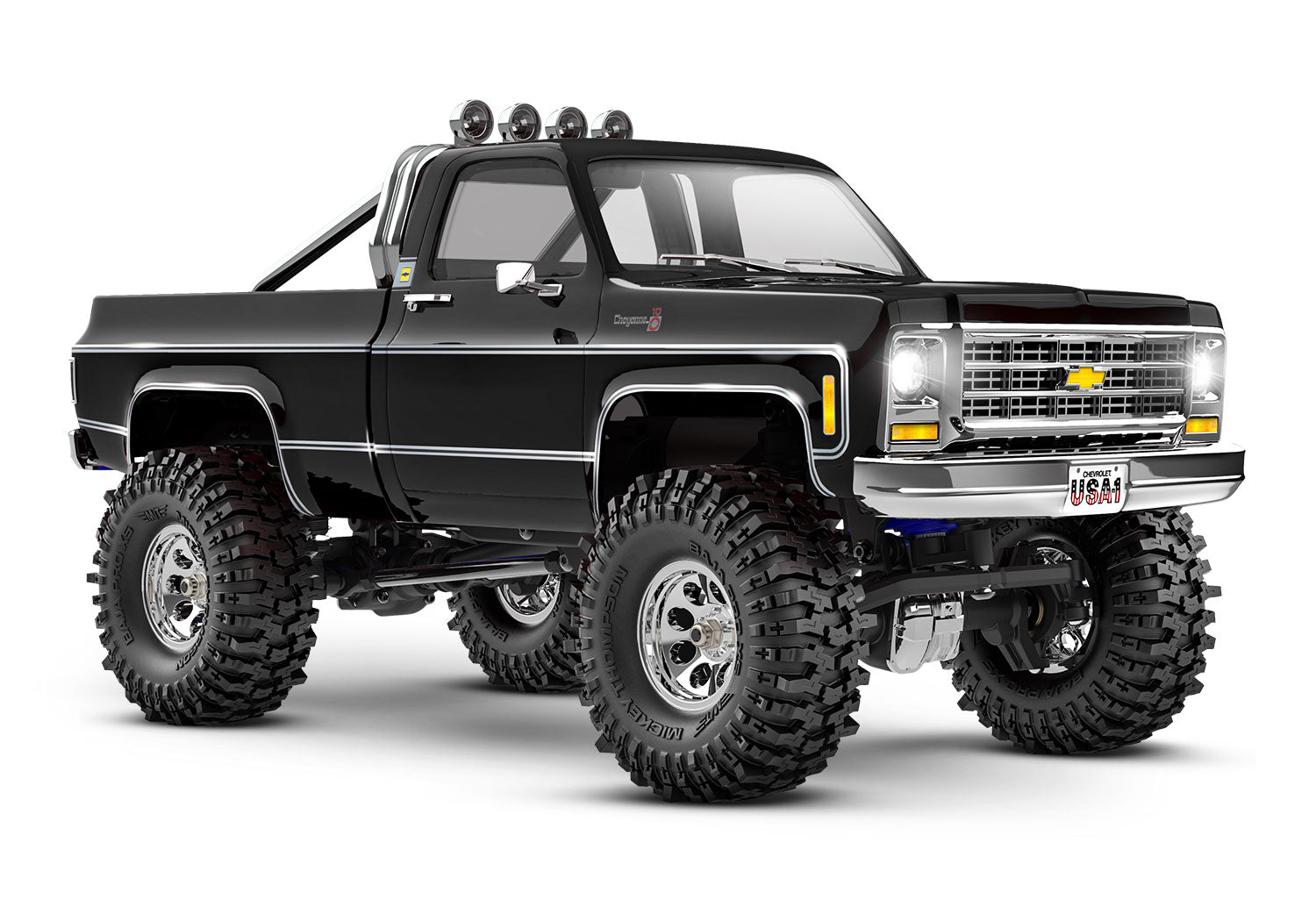

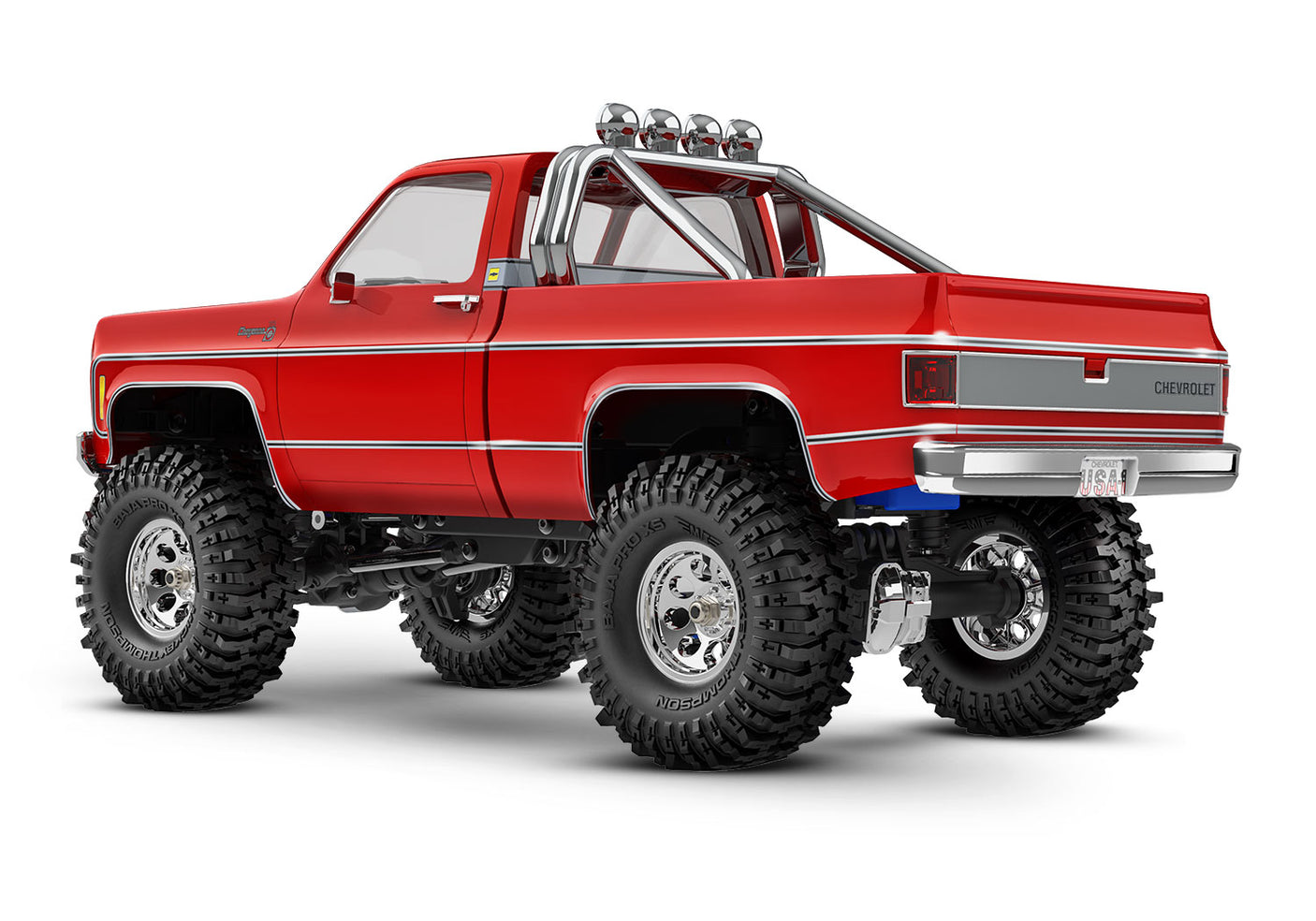

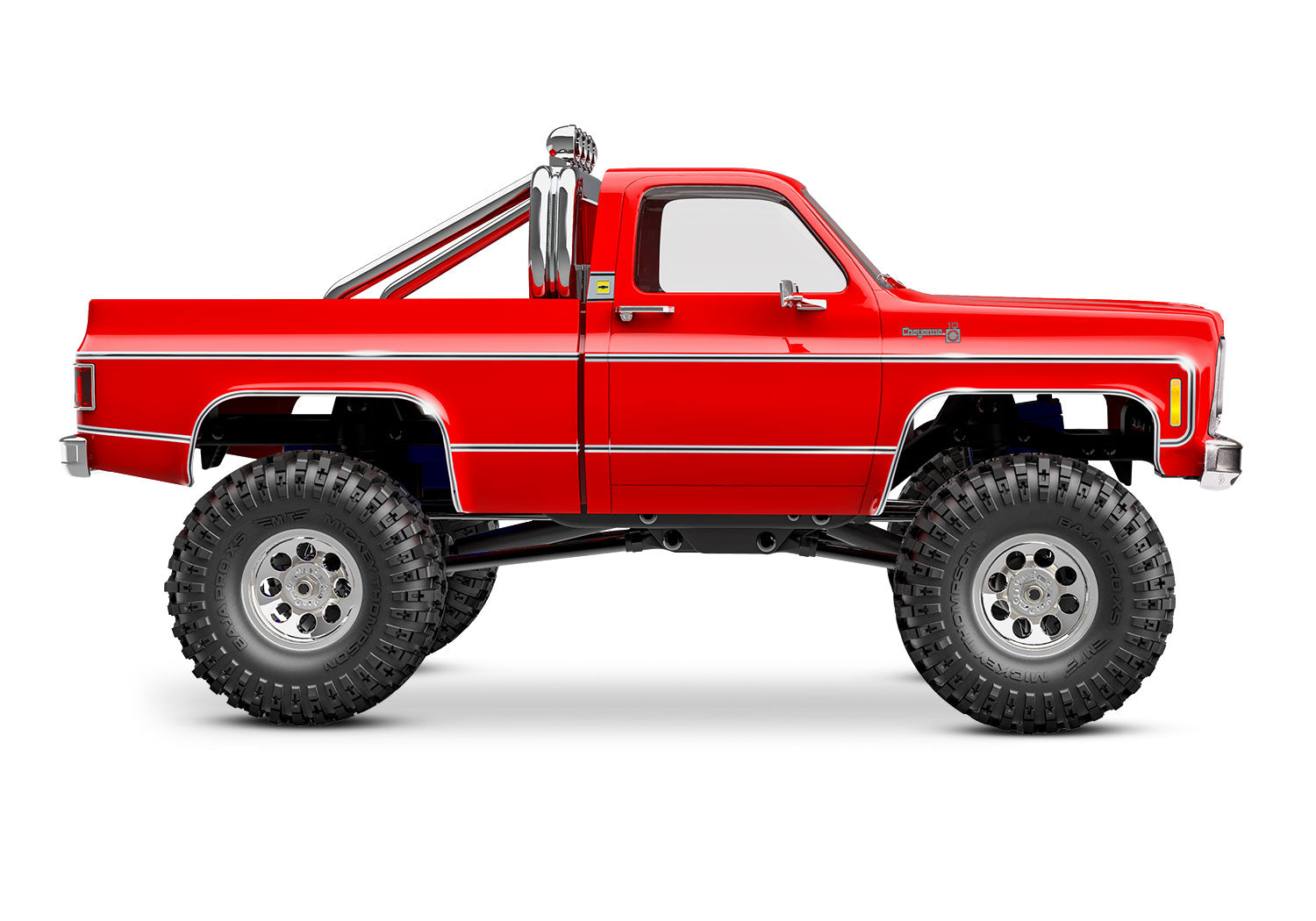

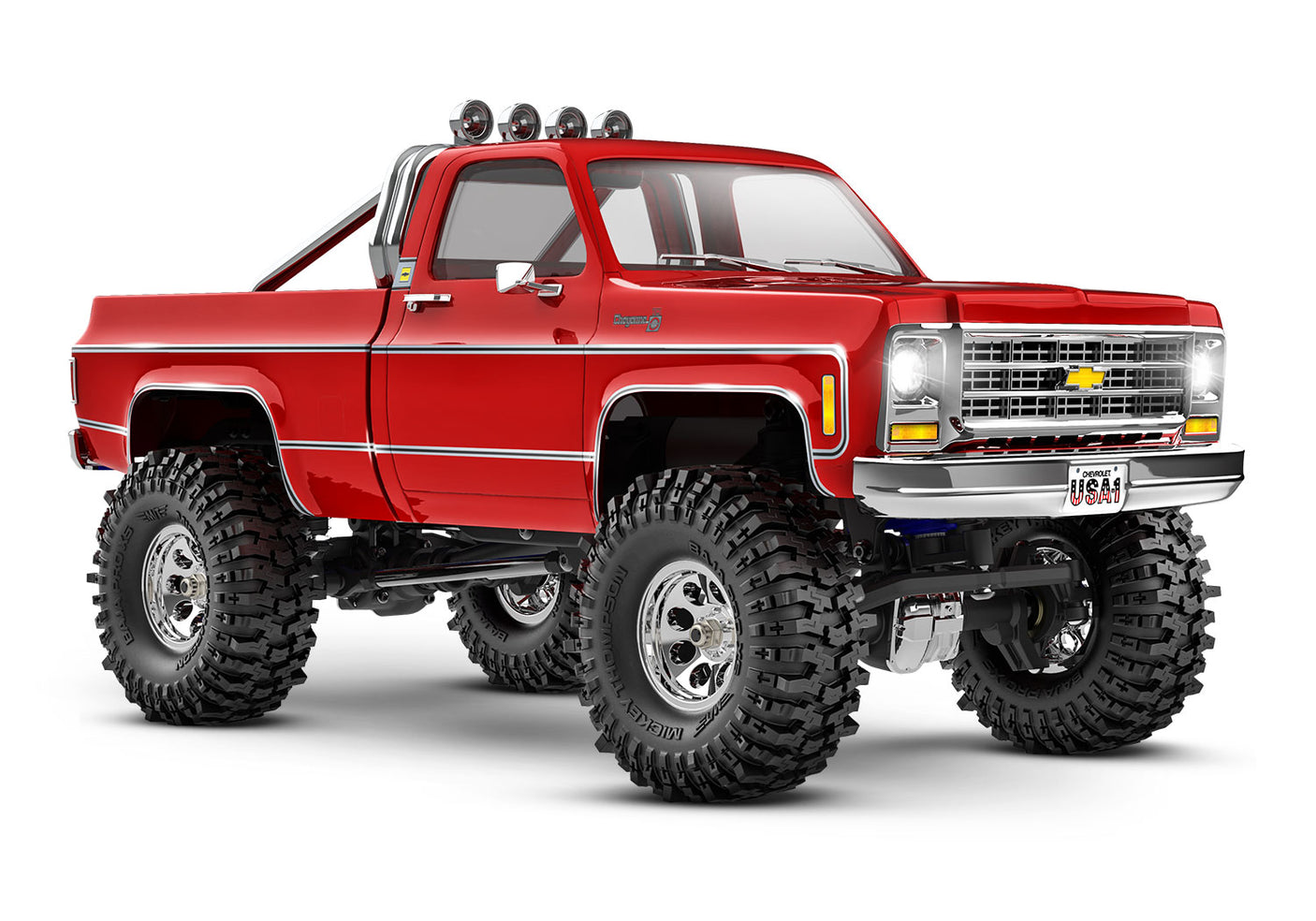

Traxxas: TRX-4M Chevrolet K10 High Trail Edition

Built for adventure, this High Trail Edition captures vintage pickup charm with a lifted stance, rugged tires, and surprising 1/18 scale power that conquers trails far beyond its size.

Required to Run

• Four AA alkaline batteries for the transmitter.

Features

• Officially Licensed Chevrolet K10 Clipless Body
• ECM-2.5 Electronic Control Module
• TQ 2.4 GHz Transmitter
• Titan 180 87-Turn Brushed Motor

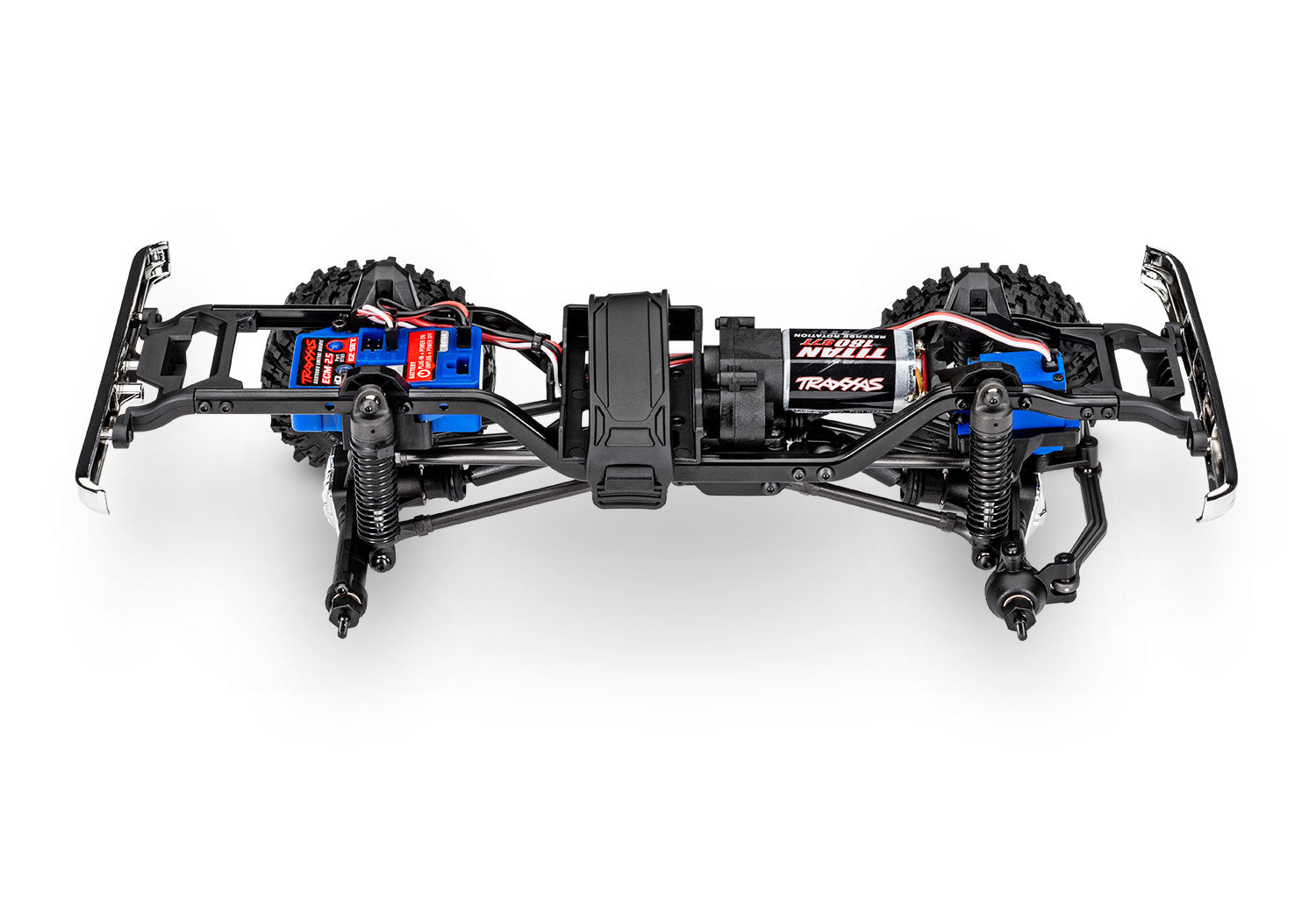

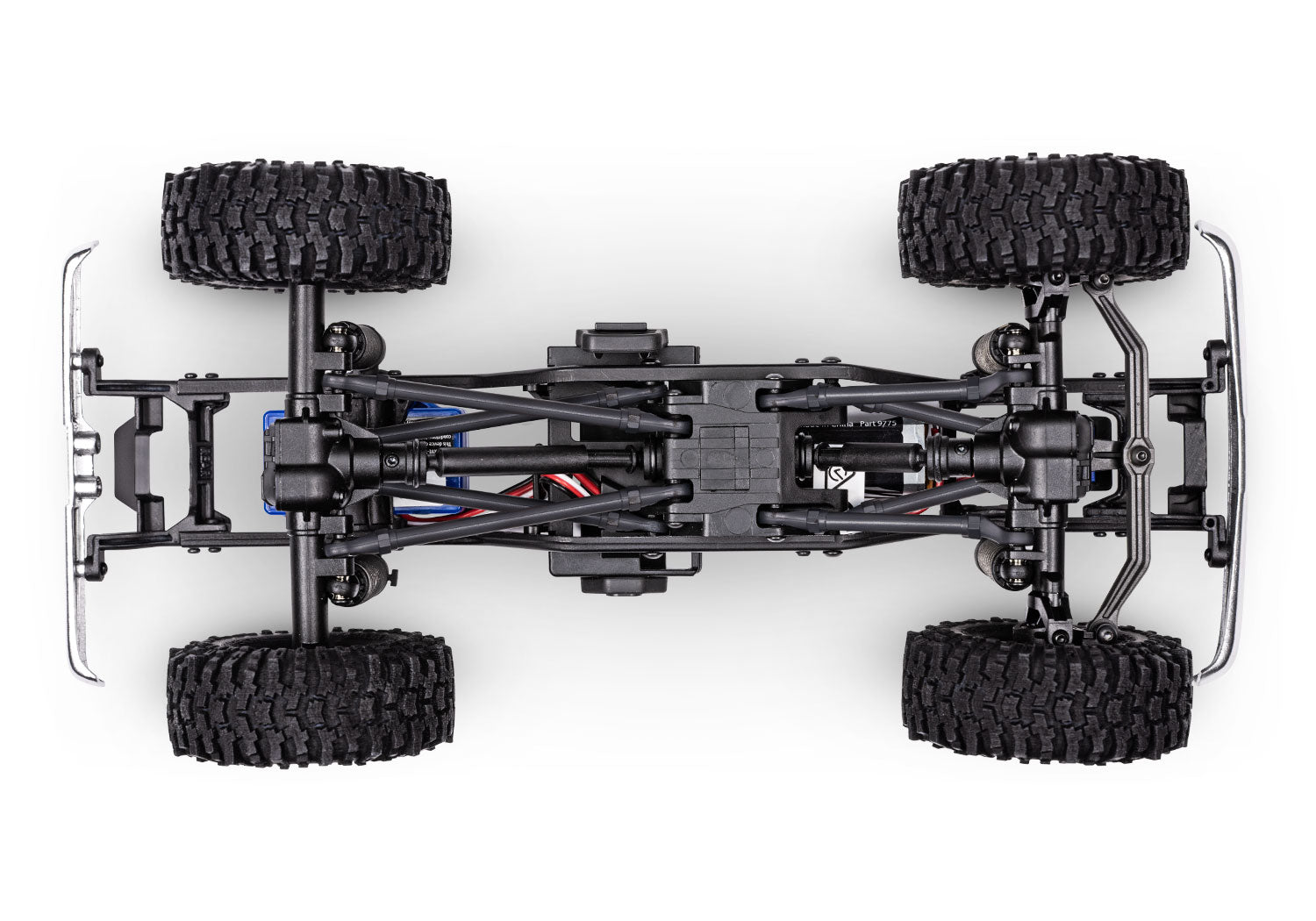

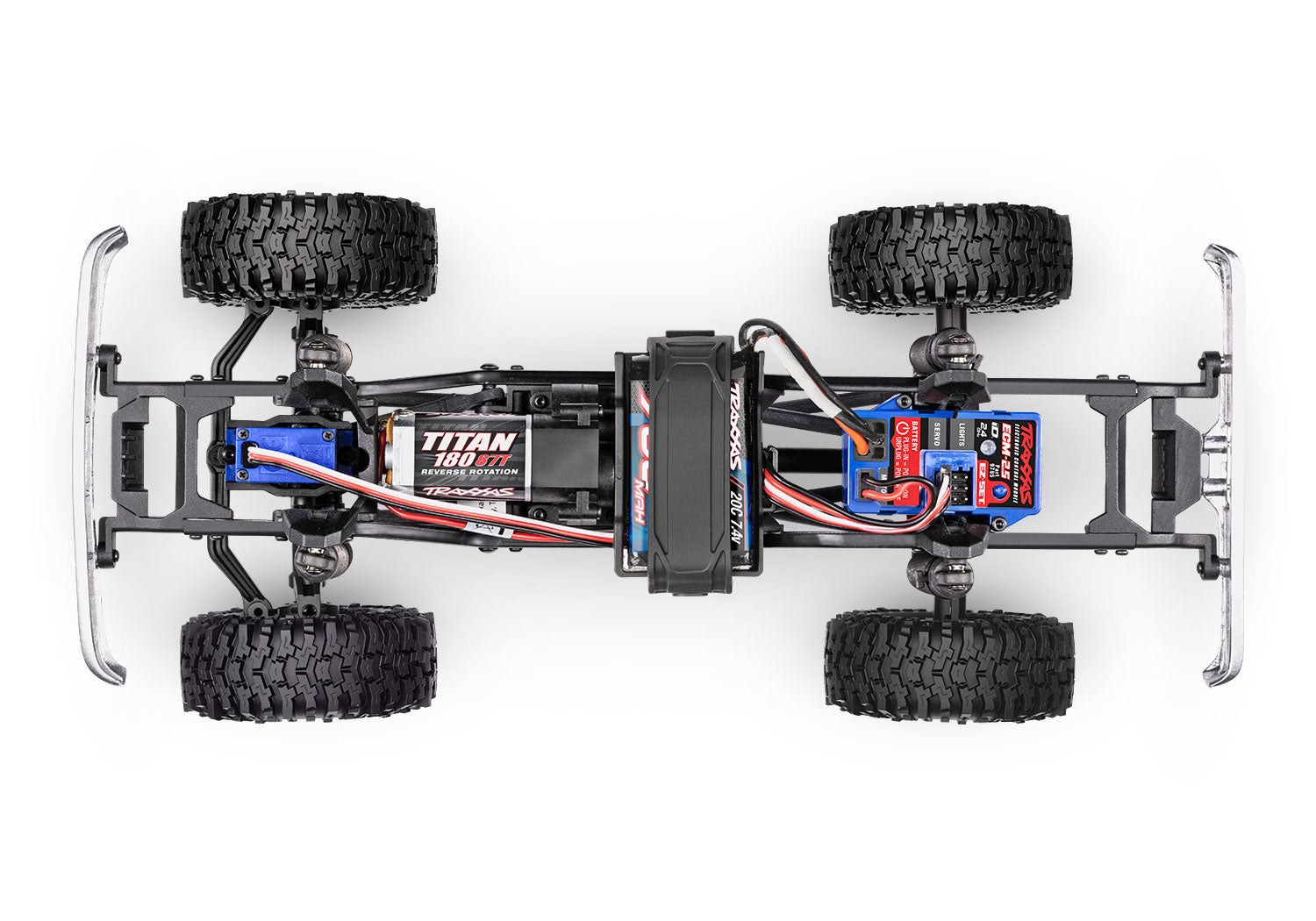

• Heavy-Duty Steel Ladder Frame

Specifications

• Model Skill Level: 1
• Scale: 1/18
• Weight: 468g
• Length: 269mm
• Width: 127mm
• Front Track: 127mm
• Rear Track: 127mm
• Height: 127mm
• Wheelbase: 162mm
• Center Ground Clearance: 40mm
• Battery Type: Lithium polymer (LiPo)
• Drivetrain: Shaft-driven 4WD
• Transmission: Single speed direct drive
• Differential Type: Locked spool
• Gear Ratio (Internal): 11.38
• Gear Pitch: 64 pitch
• Servo(s): 2065T
• Radio System: TQ 2.4 GHz 2-channel transmitter
• Battery Compartment Specs: 51 mm x 31 mm

Motor Specifications

• Motor Name: Titan 180
• Motor Type: 87-turn brushed motor
• Motor Weight: 1.16 ounces (33 g)
• Motor Length: 1.66 inches (42 mm)
• Motor Diameter: 0.81 inches (21 mm)

ESC Specifications

• ESC Name: ECM 2.5
• ESC Type: Brushed
• ESC Case Size: 1.79" x 1.26" x 0.6" (45 x 32 x 15mm)
• ESC Weight: 0.92 ounces (26 g)

What's in the box

• TRX-4M High Trail model

• TQ transmitter

• 7.4 volt 750 mAh 2-cell LiPo battery

• 2-amp USB fast charger with iD

• High-quality maintenance tools
