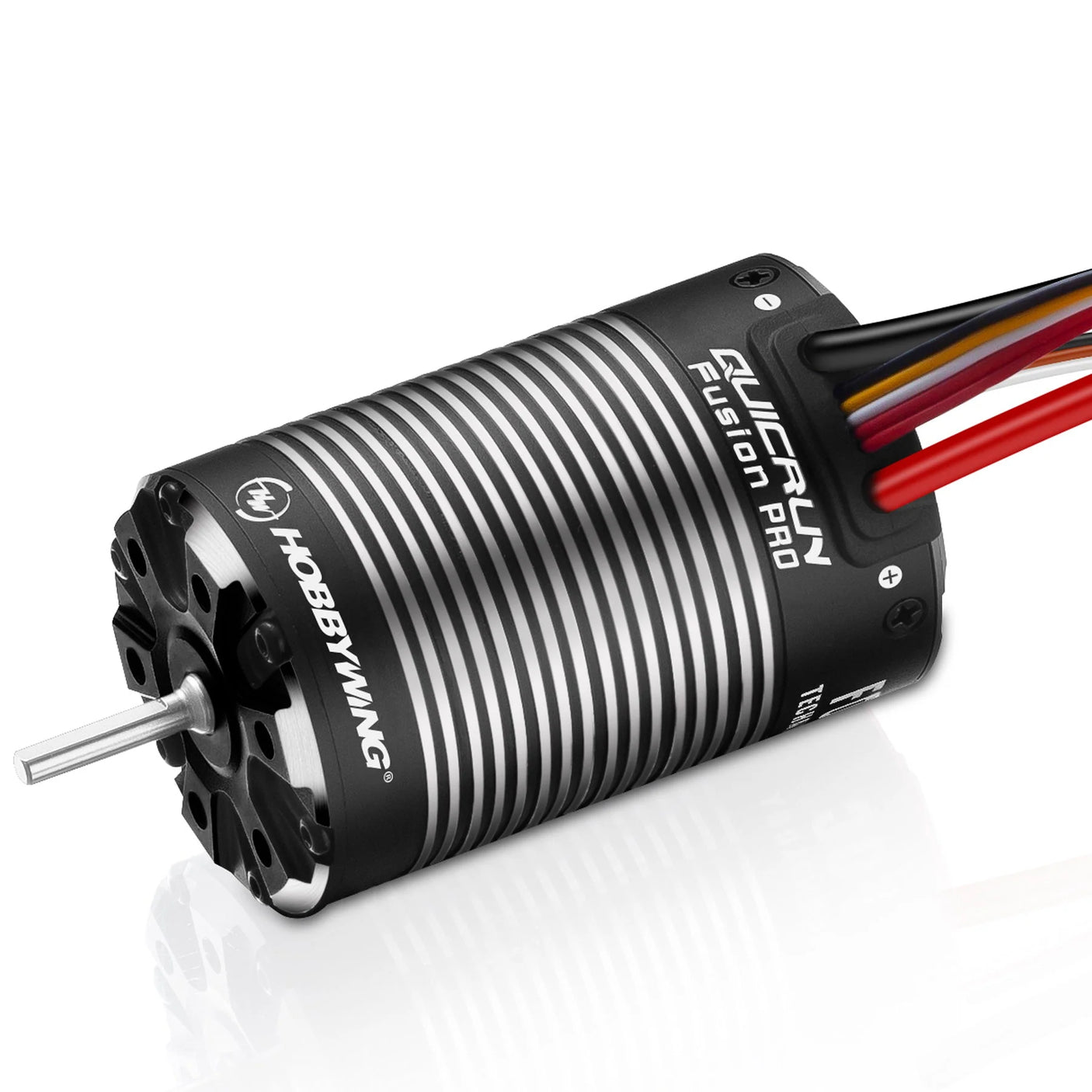

Hobbywing: QUICRUN FUSION PRO 10en (2in1 FOC System)

Integrated 2in1 FOC brushless motor and ESC for 1/10 scale vehicles. Compact design delivers ultra-smooth low-speed control, strong torque, quiet operation, IP67 protection, and advanced crawl-focused performance.

Features

• Integrated motor and ESC design reduces size and simplifies wiring.
• Exceptionally strong low-speed torque with ultra-smooth crawl performance.
• Sine-wave drive provides high efficiency, low heat, and quiet operation.
• IP67 waterproof and dustproof construction for all-weather driving.
• Intelligent torque output with closed-loop speed control.
• Cruise control and controlled downhill descent capability.
• Adjustable active drag brake for superior hill-hold performance.
• High-output switch-mode BEC delivers up to 6A with selectable 6V or 7.4V output.
• Built-in protection features including low-voltage cutoff, overheat protection, throttle signal loss, and motor lock protection.
• Compatible with Hobbywing LED Program Box via independent programming interface.

Specifications

• Motor KV: 2300KV
• Continuous peak current: 60A 200A
• Input voltage: 2-3S LiPo 6-9 cell NiMH
• BEC output: Switch mode 6V or 7.4V 6A
• Input wires: Red 14AWG 330mm x1 Black 14AWG 330mm x1
• Input connector: XT60 factory installed
• Programming port: Independent interface with integrated switch
• Dimensions and weight: 37mm x 58mm 209g with wires and plug
• Shaft diameter and length: 3.175mm 16mm
• Motor poles: 4
• Programming: LED programmer sold separately

Contents

• FOC brushless motor with built-in ESC x1
• Factory-installed XT60 plug
• Decal and manual x1
• Heatshrink kit, double-sided tape, and zip ties x1
