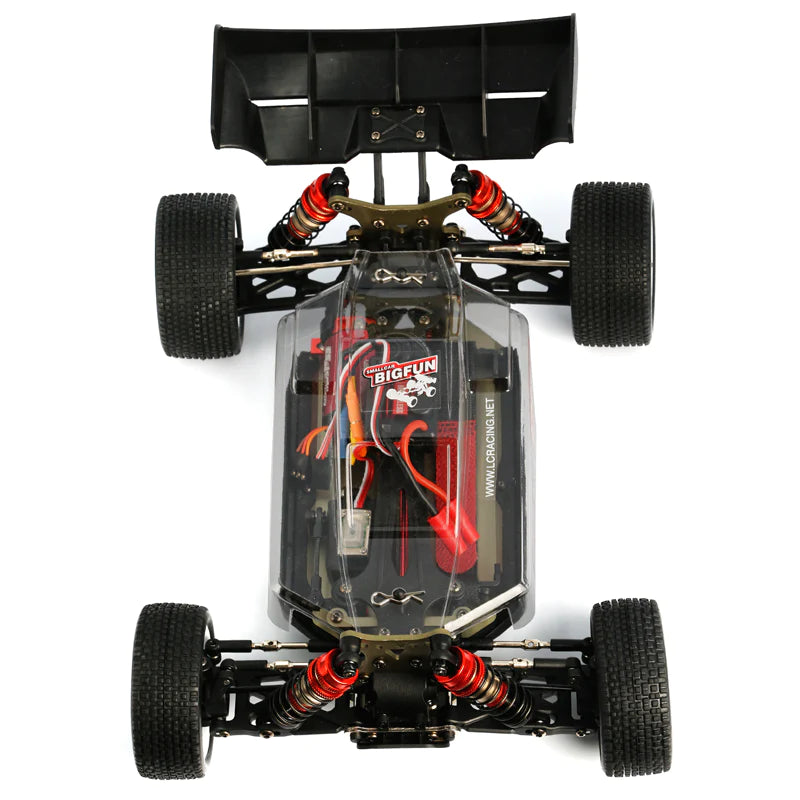

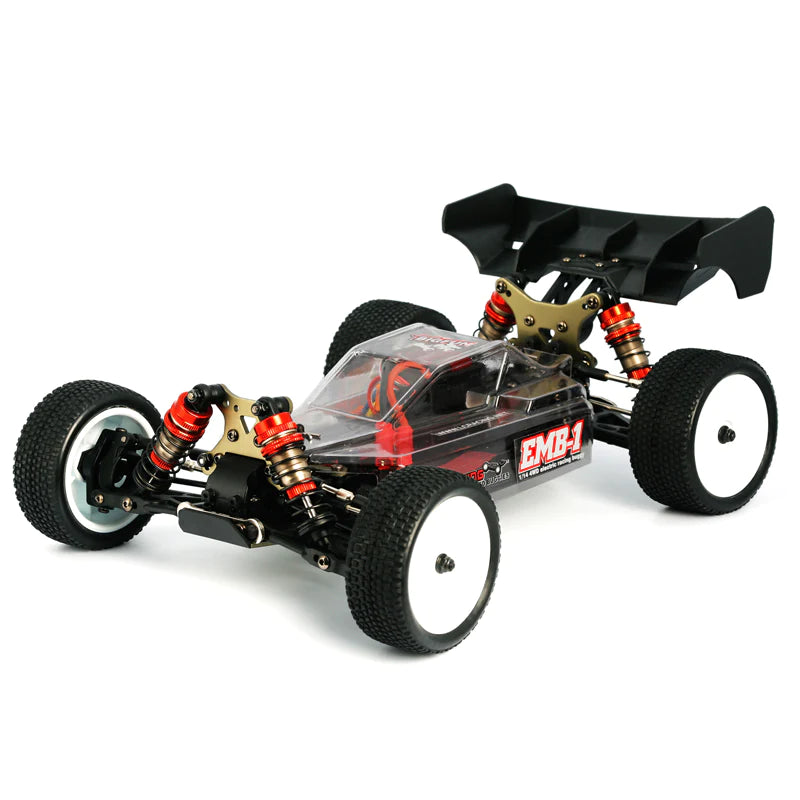

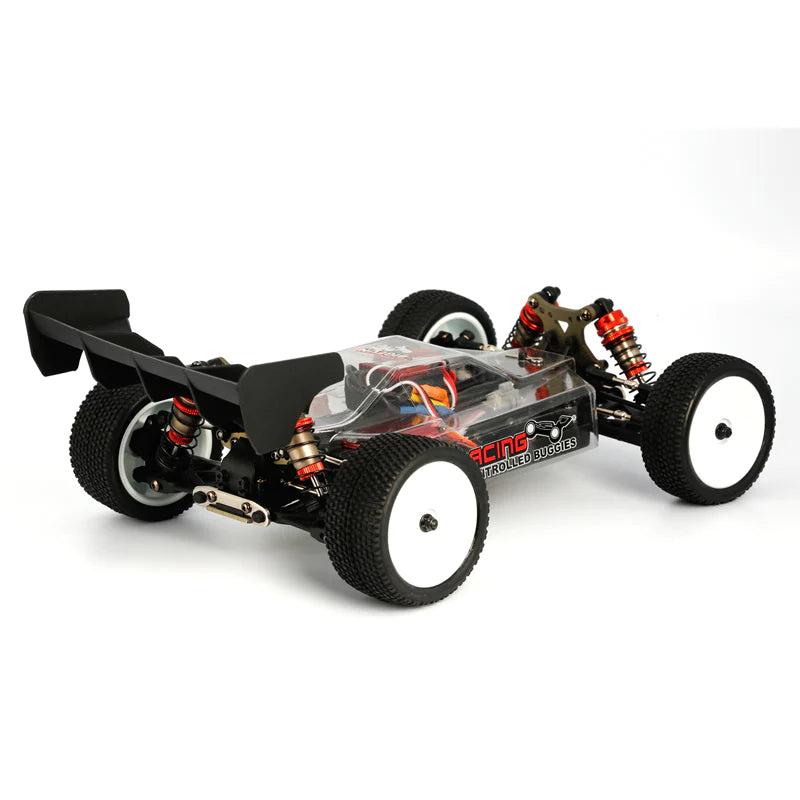

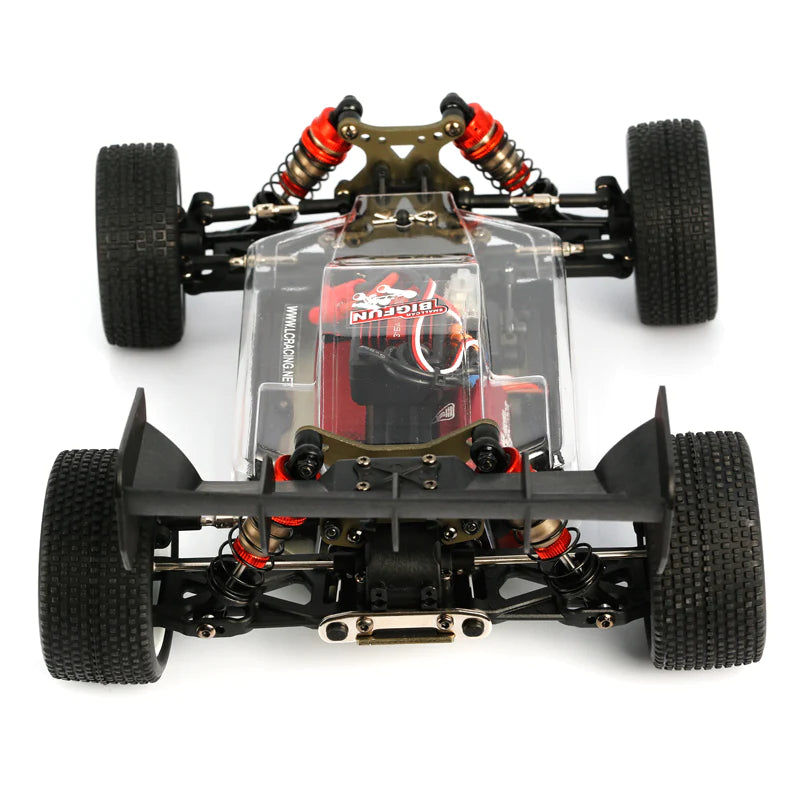

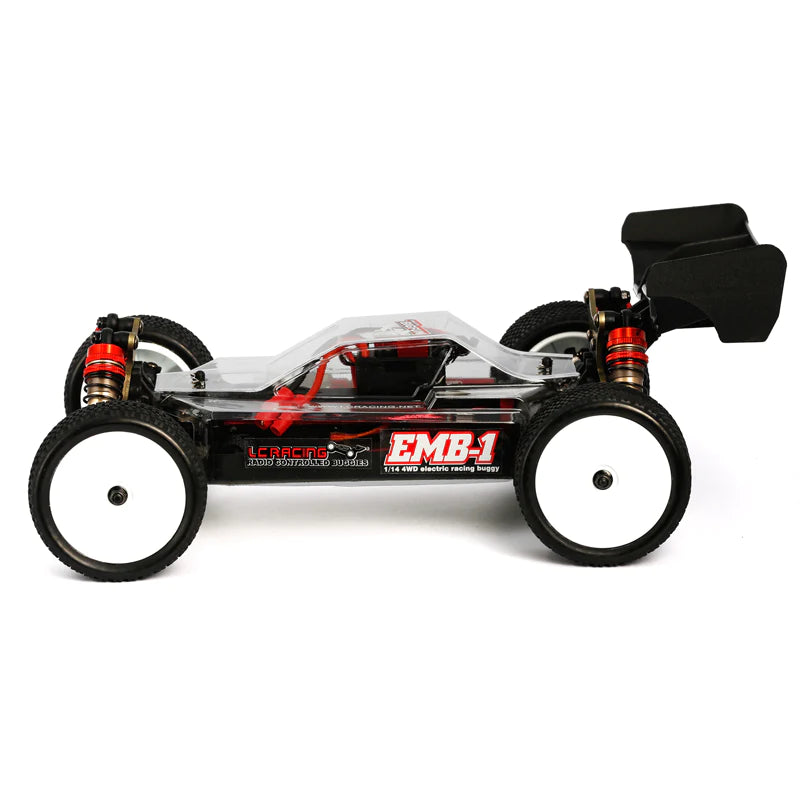

LC Racing: EMB-1HK Pro 1/14 4WD Buggy Kit

Required to Run

• Assembly of kit
• Transmitter and compatible receiver (Recommended: Radiomaster MT12 ELRS)
• Lipo Battery (Recommended: 1800mah Gens Ace)
• Charger (Recommended: iMars S100 or iMars D300)
• Shock (Recommended: Racers Edge 15wt to 25wt)
• Diff oil (Recommended: Racers Edge 3000 cST to 7000 cST)
• Tools and paint

Contents

• Unassembled EMB-1HK Pro 1/14 4WD Buggy Pro Kit
• High Down-Force Buggy body (unpainted, pre-cut)

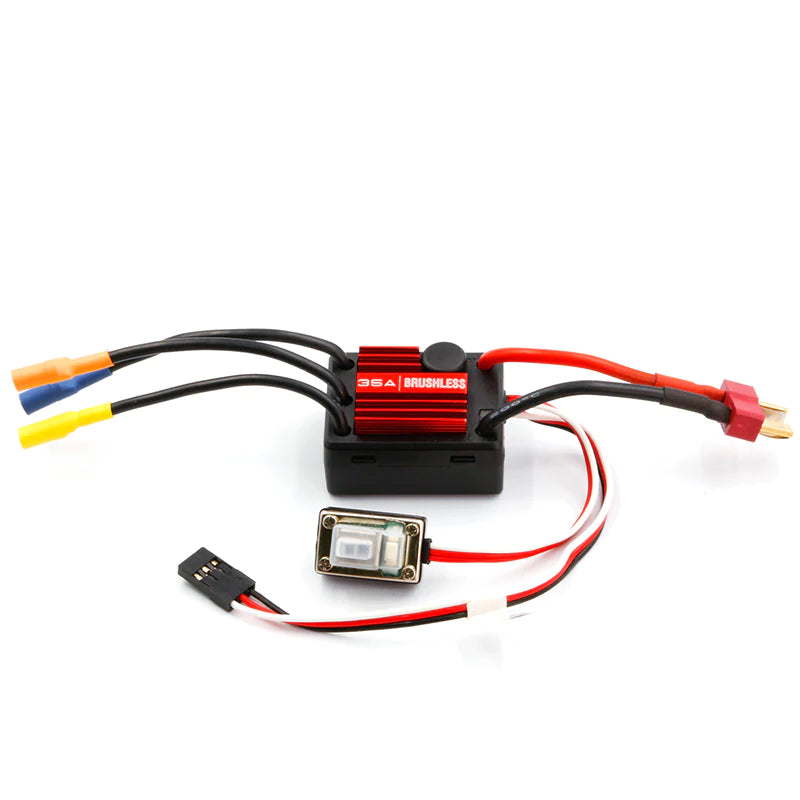

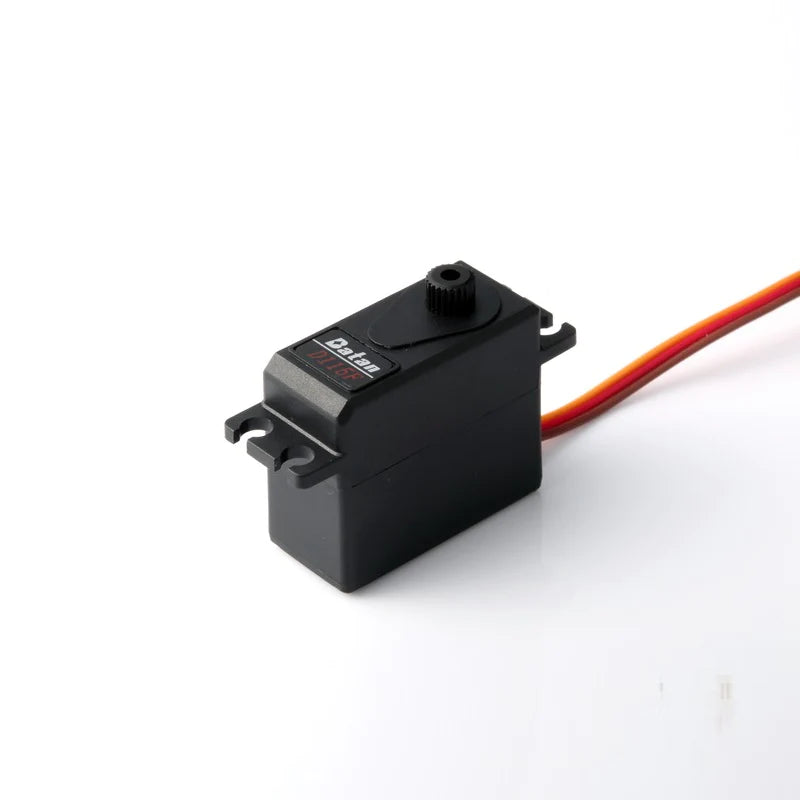

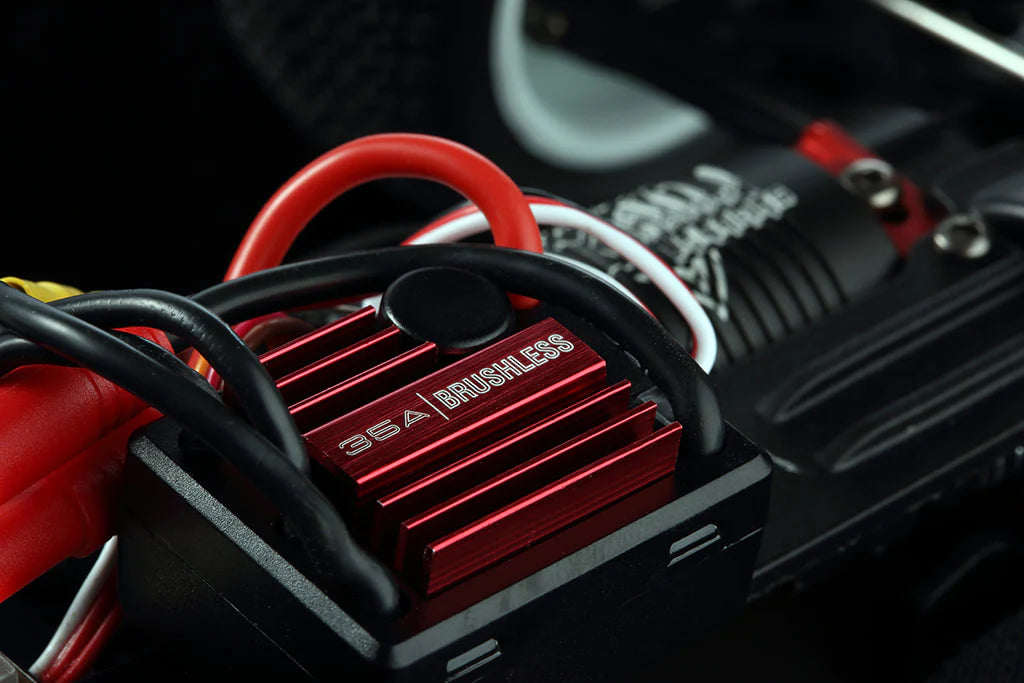

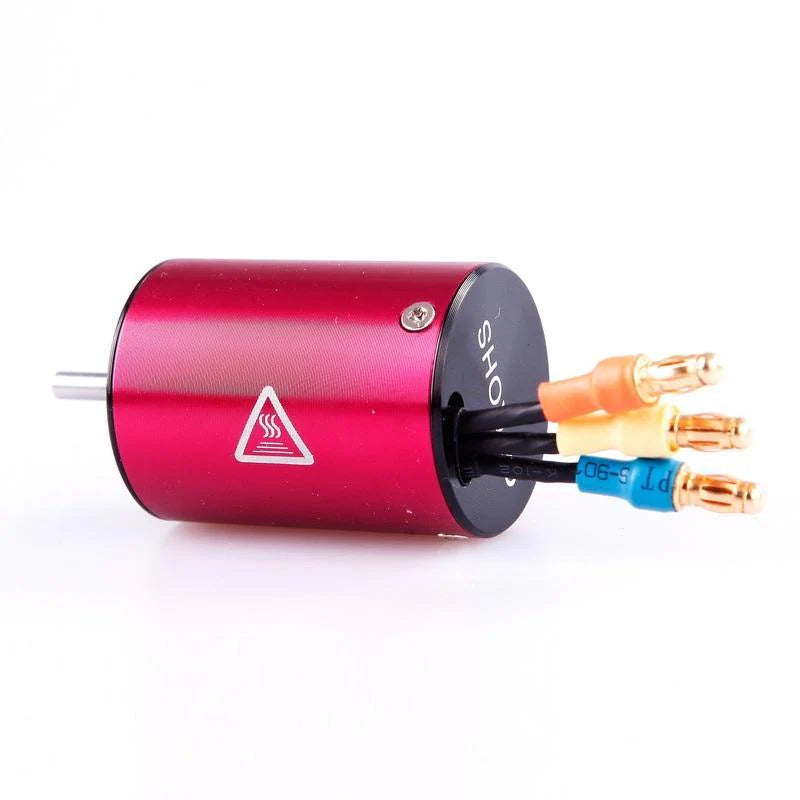

• ES28 4500kv 2840 brushless motor, Hobbywing brushless 35A ESC and Batan D115F servo

Features

• LC Racing design pre-mounted all terrain buggy tires
• LC Racing design slipper clutch with adjustable gear cover

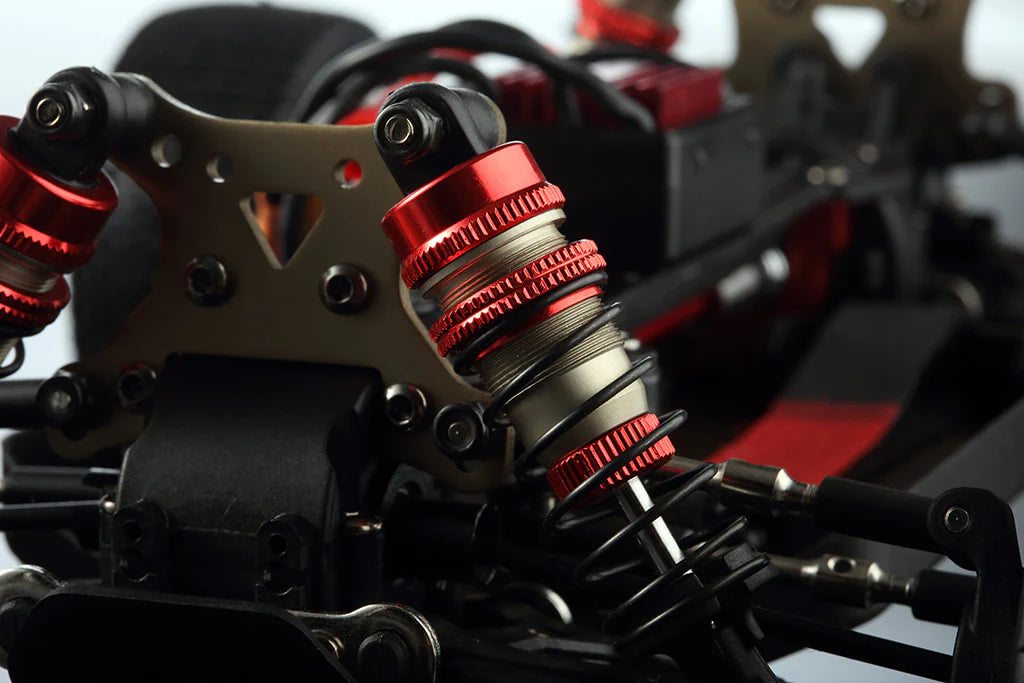

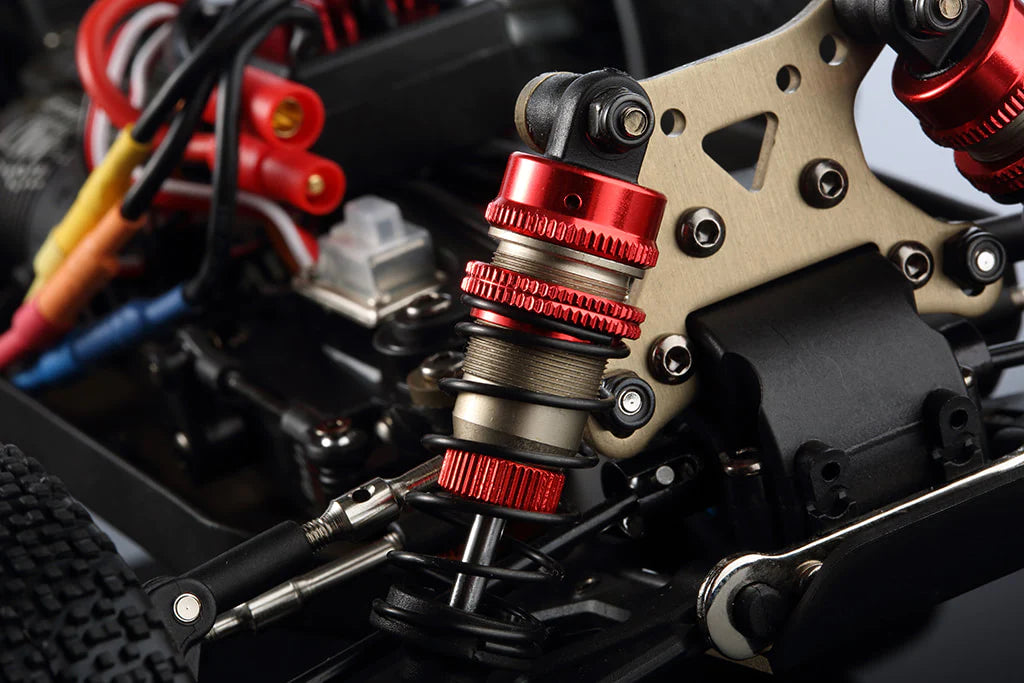

• 6061-T6 aluminum-threaded, coil-over, adjustable shocks (oil not included)

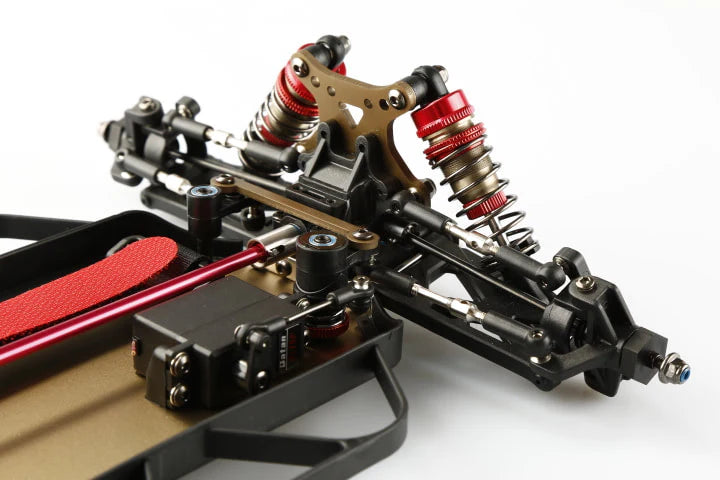

• 2.5mm 6061-T6 aluminum shock towers
• Front and rear metal gear differentials
• Center shaft driven 4WD
• Adjustable Servo Saver
• Steel hinge-pins
• 2.0mm anodized aluminum chassis with front and rear kick-up
• Industry standard 12mm wheel hex adaptor

Pro Kit Features

• Ti-Nitride coated shock shafts
• Shock Spring Set
• Anti-roll bar set
• L6093 2.0mm Carbon fiber upper deck
• 17T, 18T and 19T Pinion Gears

Specifications

• Scale: 1/14
• Length: 300mm
• Width: 205mm
• Height: 110mm
• Wheelbase: 185mm
• Weight: 1.98lbs
• Tire Type: LC Racing pre-mounted all terrain buggy tires
• Chassis: 2.0mm anodized aluminum
• Gear ratio: 8.23
• Ball bearings: Complete
