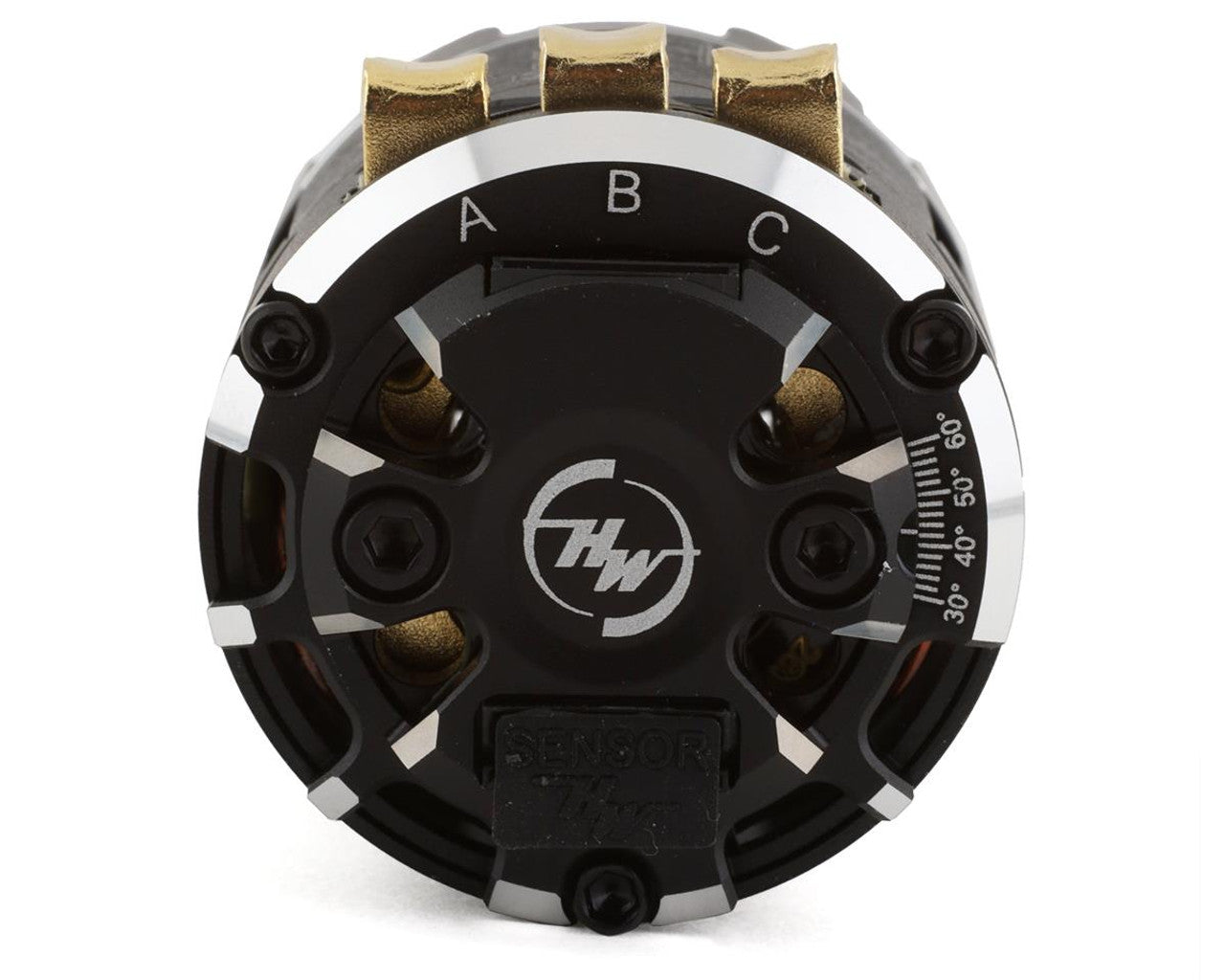

Hobbywing: XERUN V10 G4 Motor SPEC Class

Part Number: 30401141

Features

• Excellent performance, specially designed for racing; Compared with the V10 G3R motor, the KV value of the G4 motor is increased by 9.8%, the maximum output power is increased by 5%, and the internal resistance is reduced by 4%.
• The innovative outer diameter structure of the fully exposed stator core maximizes the heat dissipation area and increases the direct heat dissipation area by 25.6% compared with G3R. In addition, the rear end of the motor is a big opening structure to further improve the heat dissipation effect.
• Dual sensor interface design to meet various wiring/layout requirements.
• The special copper bar is customized and the spacing of the copper bar is widened, which greatly facilitates the operation of soldering wire.
• The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.
• The motor case is designed to be easy to dismantle for maintenance purposes and for the replacement of common wearing parts.
• The use of a high-performance stator core, heat(200°C)-resistant wire, heat(180°C)-resistant rotor with strong structure, world-class high precision, and high strength bearings, and copper solder tabs with super-current
• It’s compliant with IFMAR, ROAR, EFRA, BRCA, JMRCA rules, and is certificated by RoHS, CE, FCC and etc.

Specifications

• KV: 3020KV
• Lipos: 2-3S
• (Ω): 0.036Ω
• No-load Current (A): 3.7A
• Max. Output Power (W): 234
• Current @Max. Output Power (A): 51
• Stock Rotor: Φ7-12.5*25.2-HUS
• Bearing (Front / Rear): D9*D4*t4 /  D8*D3*t4
• Weight: 149g
