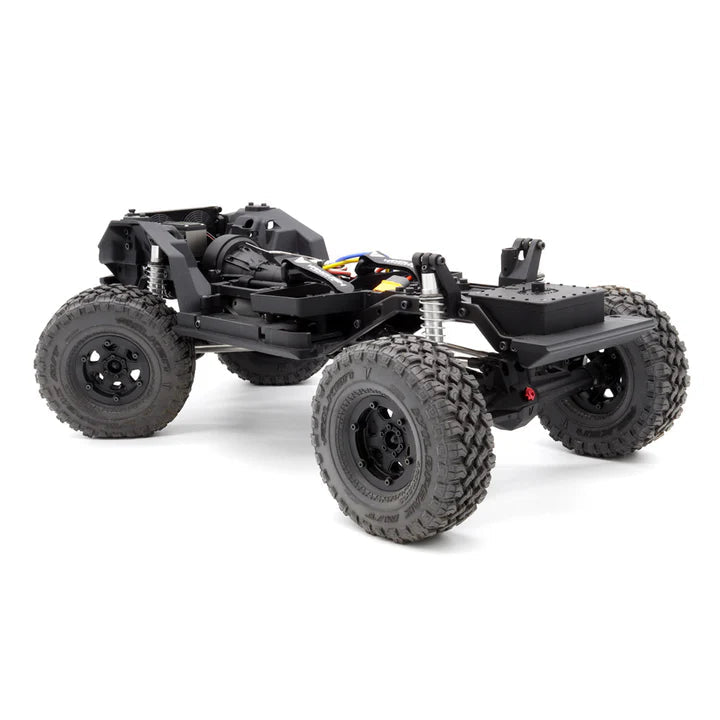

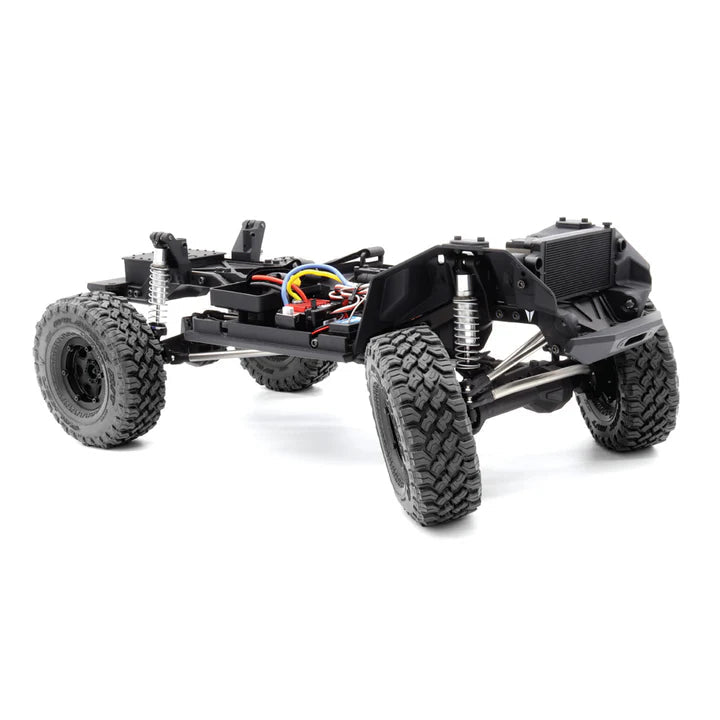

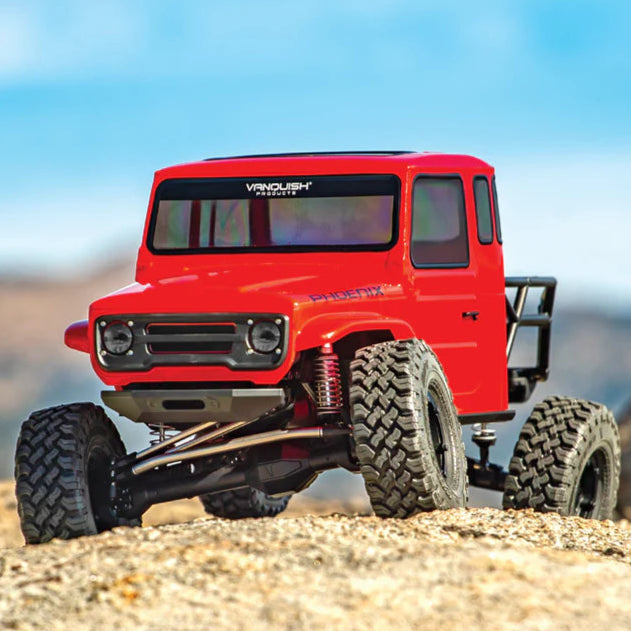

Vanquish: VS4-10 Phoenix RTR

The Vanquish VS4-10 Phoenix RTR delivers trail-tuned performance with dig and overdrive, F10 axles, a durable chassis, and scale body on beadlock wheels.

Required To Run

• 2-3S LiPo Battery or 6 cell NiMh (XT60 Plug)
• Compatible battery charger for selected battery (XT60 Plug)

Features

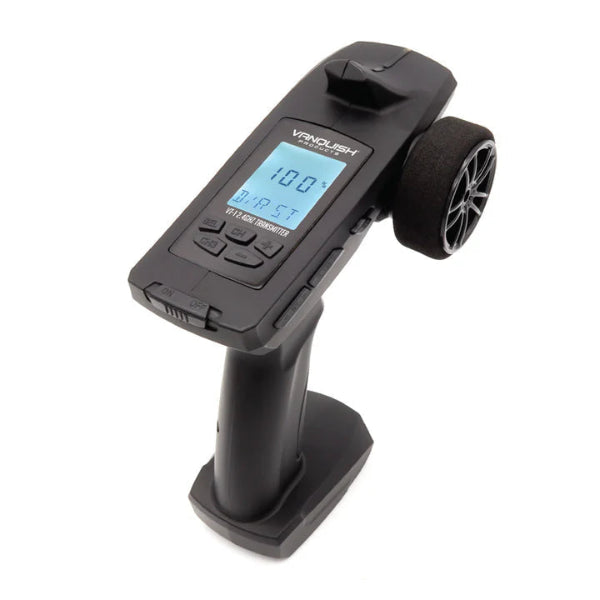

• VT-1 Digital 4 Channel Transmitter with screen, memory, and switches for dig and overdrive control
• VM-1 35T Brushed Motor delivers smooth low-end torque and trail-ready speed
• VS-1 Metal Gear Servo offers 200 oz-in of torque with water-resistant durability
• VFD Twin Transmission features selectable 6.5% or 46% overdrive and 3-position dig
• F10 Straight Axles provide 49° steering with high-pinion gears and integrated truss design

Specifications

• 1/10th Scale
• Falken Wildpeak RED Compound 4.65″ x 1.9″ tires
• 3.75:1 Axle Gear Ratio
• 13T Pinion / 56T Spur
• Overall Width: 242 mm (9.53″)
• Overall Height: 242 mm (9.53″)
• Wheelbase: 313 mm (12.3″)
• Overall Front Ratio (Standard 6.5% OD): 47.6:1
• Overall Front Ratio (Optional High 46% OD): 31.8:1
• Overall Rear Ratio: 50.8:1
• RTR Weight (without battery): 5.9 lb (2.7 kg)
• Front/Rear Axle Width (pin-to-pin): 182 mm (7.17″)

Motor Specifications

• Motor Name: VM-1 35T Brushed Motor
• Turns: 35T
• Motor Type:  Brushed
• Motor Shaft Size: 3.175 mm (1/8")

• Designed Use: Trail and crawling – high torque with moderate speed

ESC Specifications

• ESC Type: Brushed electronic speed control

• Battery Compatibility: 2S–3S LiPo

• Water Resistance: Sealed design suitable for light water exposure

• Connector Type: XT60


What’s In The Box

• VS4-10 Phoenix RTR
• VT-1 Digital 4 Channel Transmitter
• Manual
