Traxxas: TRX-4 Chevrolet K10 High Trail Edition
Traxxas: TRX-4 Chevrolet K10 High Trail Edition - Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Free shipping on orders over $99 within the continental US.
Ships from Livermore, CA. Ships the same day if ordered before 12PM PST Monday-Friday.
Orders ship once ALL items are available to ship. If you wish to have in-stock items ship sooner, please order them separately from pre-ordered items.
The TRX4 Chevy K10 High Trail conquers tough terrain with remote locking diffs, 2 speed transmission, and lifted stance for unstoppable trail fun.
Required to Run
- 2-3s Lipo Battery and compatible charger
- Four AA alkaline batteries for the transmitter.
Features

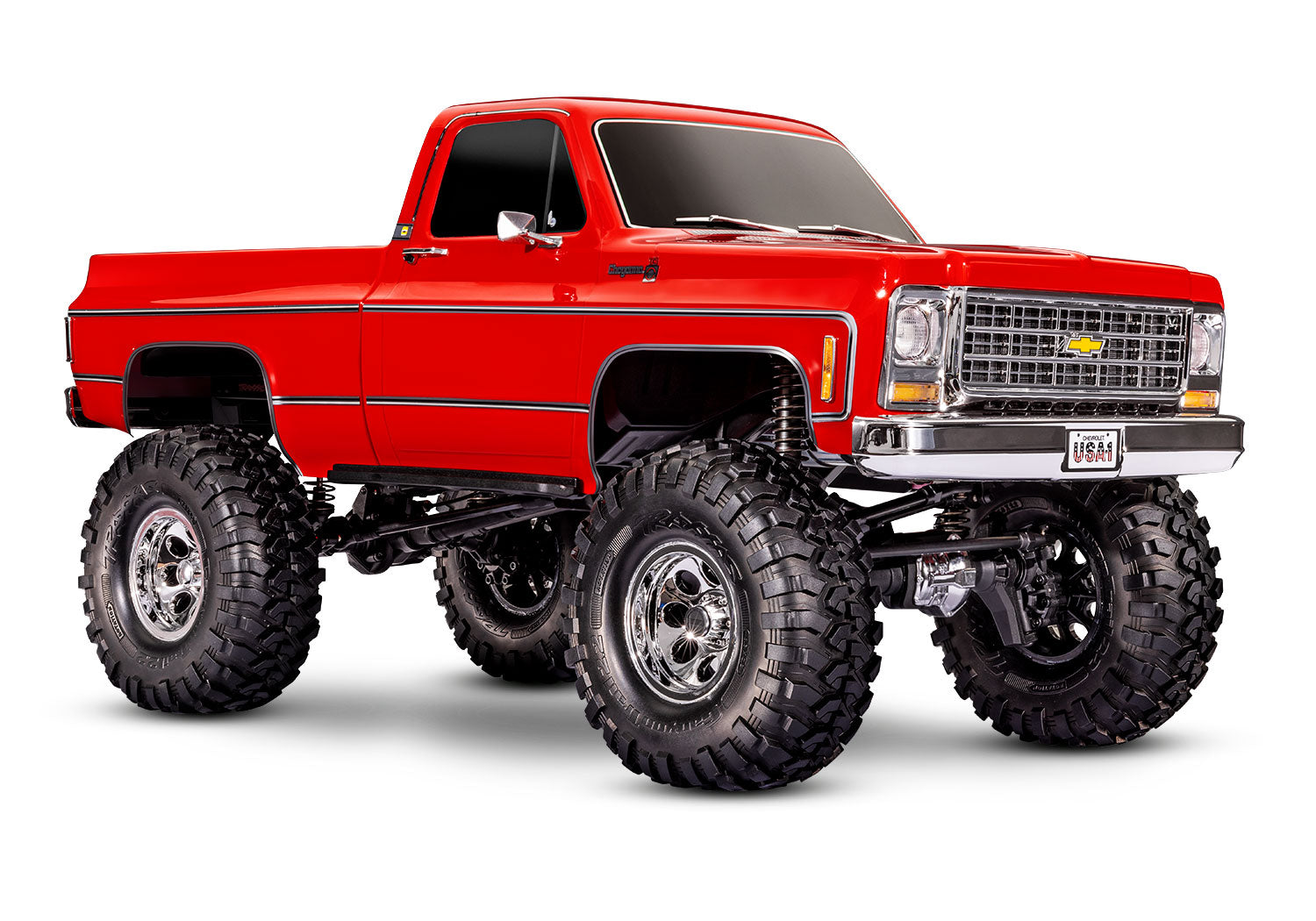

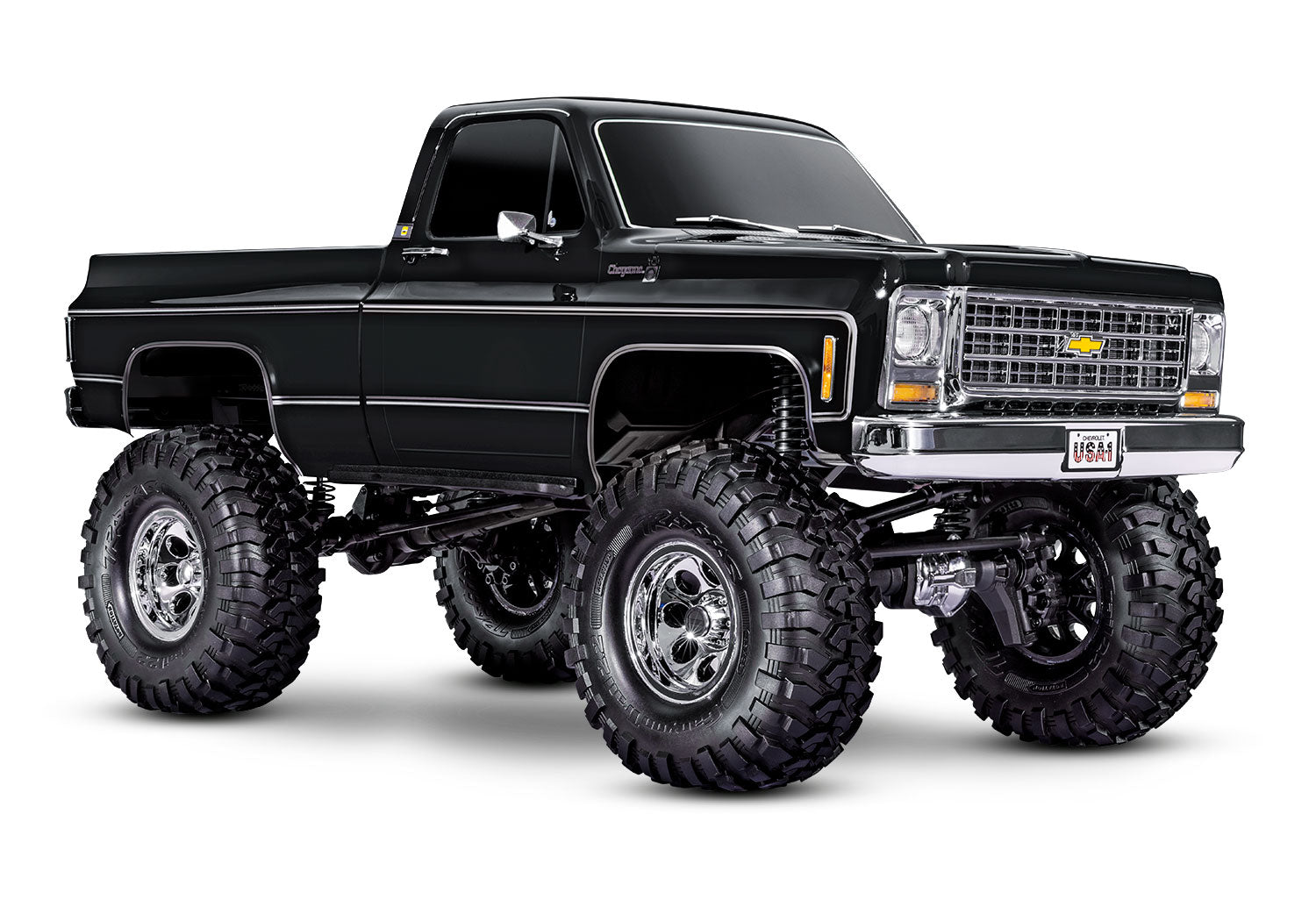

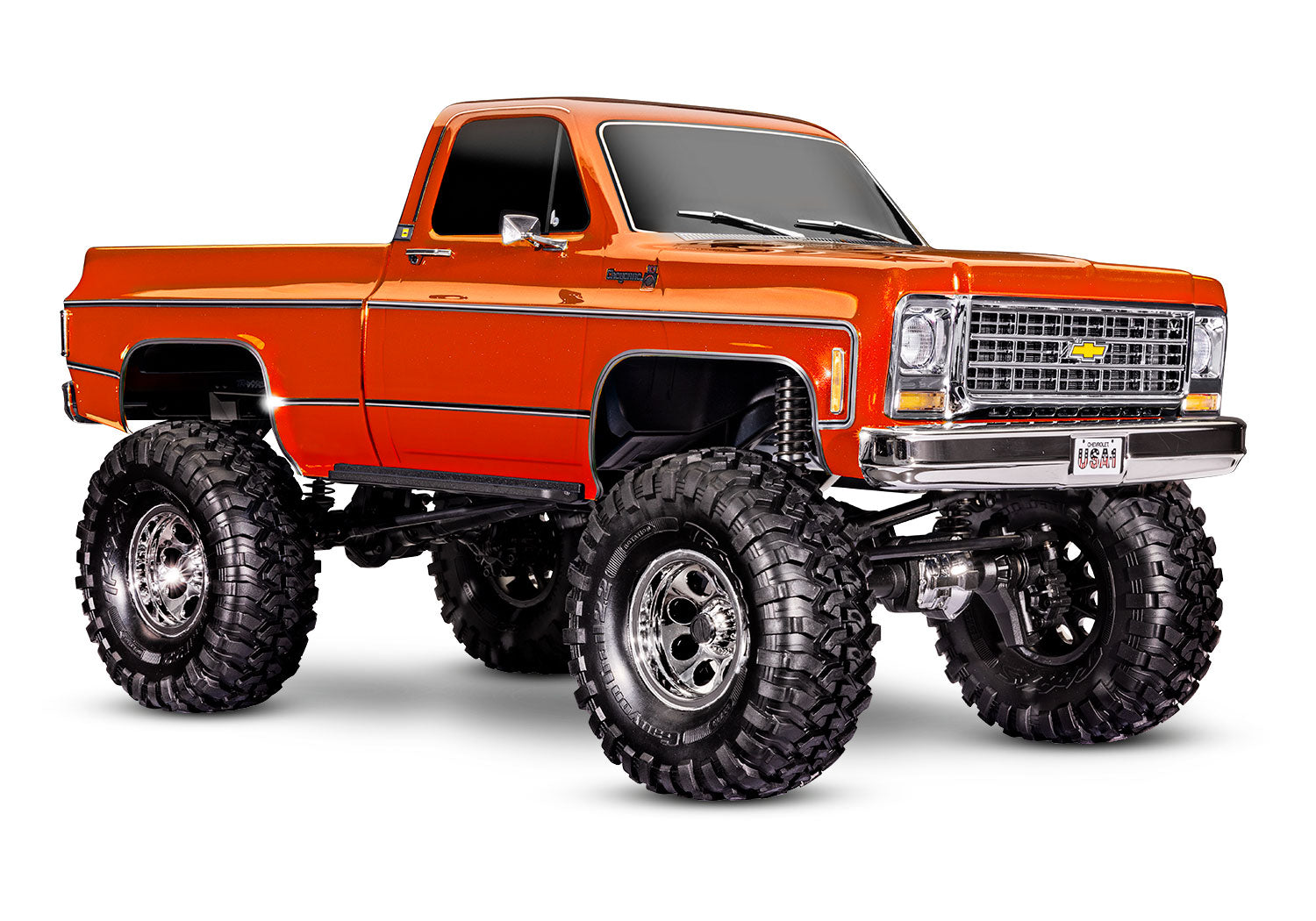

- Officially Licensed 1979 Chevrolet K10 Pickup Body
- Clipless Body mounting
- Trail-tuned XL-5 HV Waterproof ESC and Titan 550 Motor
- Portal Axles
- Factory-Installed Long Arm Lift Kit
- TQi 2.4 GHz Radio System
Specifications
- Model Type: Trail / Crawler
- Model Skill Level: 1
- Scale: 1/10
- Weight: 7.38 pounds (3.35 kg)
- Length: 526 mm
- Width: 270 mm
- Front Track: 270 mm
- Rear Track: 270 mm
- Height: 277 mm
- Wheelbase: 336 mm
- Center Ground Clearance: 102 mm
- Drivetrain: Shaft Driven 4WD
- Transmission: 2 Speed High / Low Remote Shifting
- Differential Type: 4 Gear Remote Locking
- Gear Pitch: 32 Pitch
- Servo(s): 2075X Metal Gear Digital High Torque Waterproof
- Radio System: TQi 2.4 GHz 4 Channel with 6533 Receiver
- Battery Compartment Specs: 159 x 47 x 23 mm (fits up to 26 mm height)
Motor Specifications
- Motor Name: Titan 550 21T Reverse Rotation
- Motor Type: High Torque Brushed Motor
- Motor Weight: 8.47 ounces (240 g)
- Motor Length: 78 mm overall, 57 mm can length
- Motor Diameter: 39 mm
- Motor Shaft Size: 3 mm
- Motor Connector Type: Bullet
ESC Specifications
- ESC Name: XL5 HV
- ESC Type: Brushed
- ESC Case Size: 31 x 55 x 26 mm
- ESC Weight: 2.6 ounces (74 g)
- Motor Connectors: Bullet
- Battery Connectors: Traxxas High Current Connector
- ESC Power Wire: 14 Gauge
What’s In The Box
- TRX-4 with XL-5 HV ESC and Titan 21T motor
- TQi 2.4G Hz radio system with cruise control
- High-quality maintenance tools
