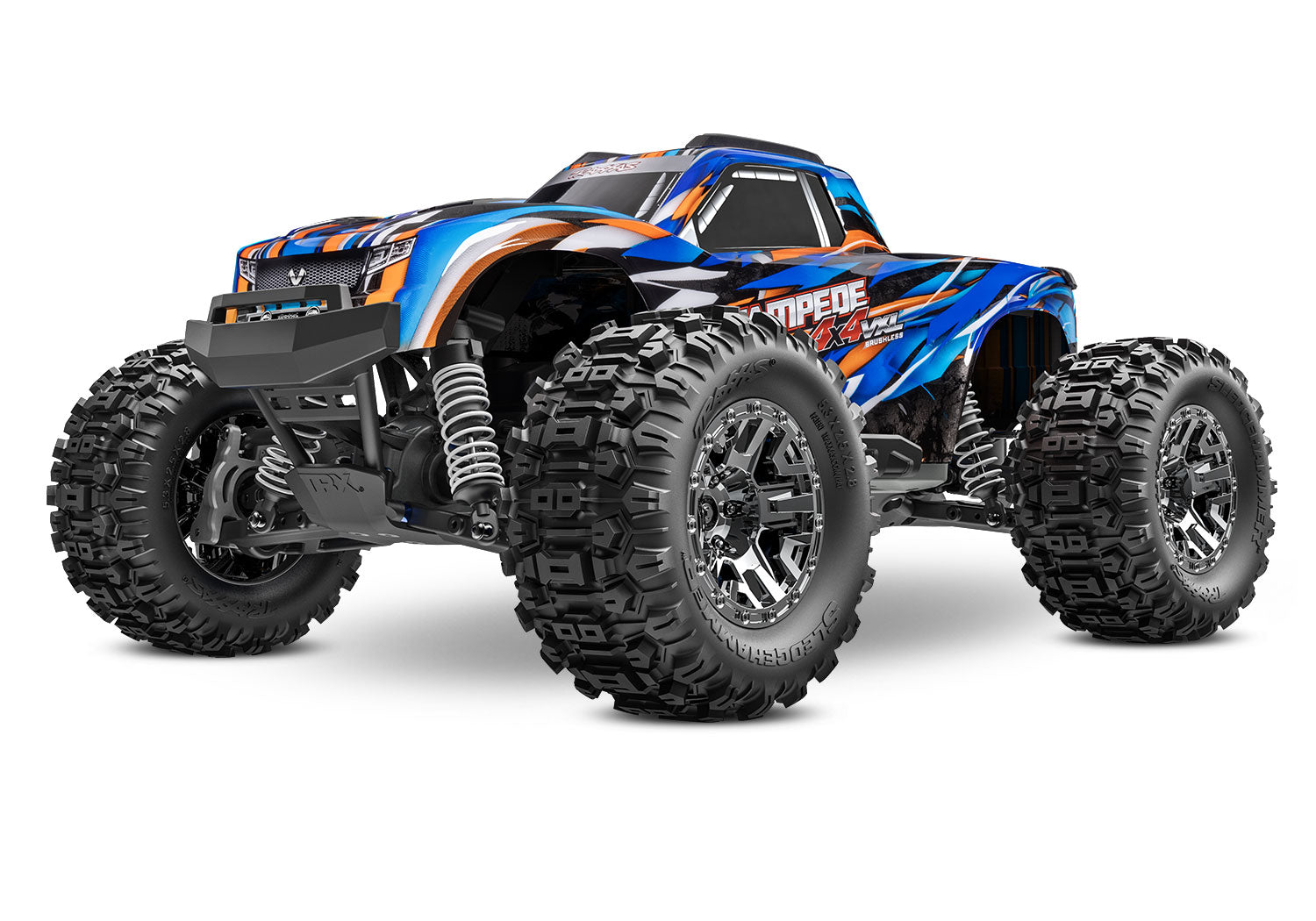

Traxxas: Stampede 4X4 VXL

The Traxxas Stampede 4X4 VXL delivers brutal speed, waterproof power, and tough 4WD performance—perfect for bashing, jumping, and all-terrain RC action.

What You’ll Need

• 2-3s Lipo and compatible charge (Recommended: 5800mah 2s Lipo)
• Four AA alkaline batteries for the transmitter

Features

• Up to 60+ mph with 3s LiPo battery (sold separately)
• VXL-3s™ Waterproof ESC and Velineon 540XL Brushless Motor
• Extreme Heavy Duty Upgrade Kit Installed
• Traxxas Stability Management
• TQi 2.4 GHz High Output Radio System
• Clipless Body

Specifications

• Model Type: Monster Truck

• Model Speed: 60+ mph with optional gearing and 3s LiPo battery (items sold separately)

• Model Skill Level: 4

• Scale: 1/10

• Weight: 6.3 lbs (2.9 kg)

• Length: 20.24 inches (514 mm)

• Width: 13.10 inches (333 mm)

• Height: 8.34 inches (212 mm)
• Wheelbase: 11.62 inches (295 mm)

• Center Ground Clearance: 2.75 inches (70 mm)

• Drive System: Shaft-driven 4WD

• Drivetrain: Shaft-driven, 4WD

• Differential Type: Hardened steel bevel, sealed, limited slip

• Gear Ratio (Internal): 10.99:1

• Gear Pitch: 32 pitch

• Servo(s): 2075 digital high-torque waterproof

• Battery Compartment Specs: 162 mm X 50 mm X 26 mm *35 mm with optional battery strap (9026, sold separately)

Motor Specifications

• Motor Name: Velineon® 540XL 2400 kV sensorless brushless

• Motor Type: Sensorless brushless

• Motor Weight: 11.18 oz (317 g)

• Motor Length: 3.58 inches (91 mm)

• Motor Diameter: 1.41 inches (36 mm)

• Motor Shaft Size: 5 mm

• Motor Connector Type: Traxxas 6.5 mm bullet connectors

ESC Specifications

• ESC Name: Velineon® VXL-3s™ electronic speed control

• ESC Type: Fan-cooled brushless speed control

• ESC Case Size: 2.19″ (56 mm) x 1.54″ (39 mm) x 1.65″ (45 mm)

• ESC Weight: 3.84 oz (109 g)

• Motor Connectors: 6.5 mm bullet connectors

• Battery Connectors: Traxxas High-Current Connector

• ESC Power Wire: 12 gauge Maxx® Cable

What’s In The Box

• Stampede 4X4 VXL with Velineon VXL-3s and 540XL

• Quick Start Guide

• TQi 2.4G Hz radio system

• High quality maintenance tools
