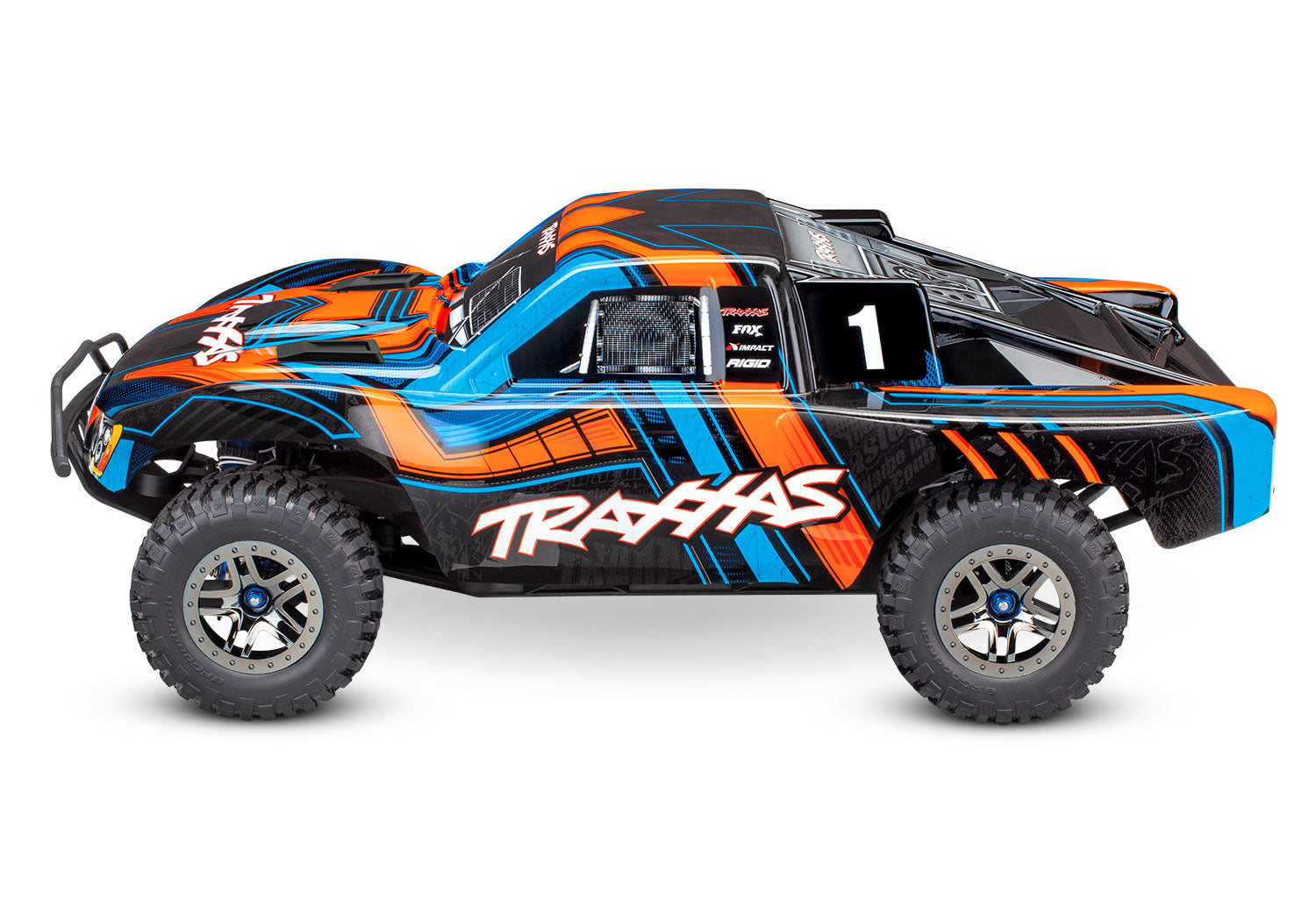

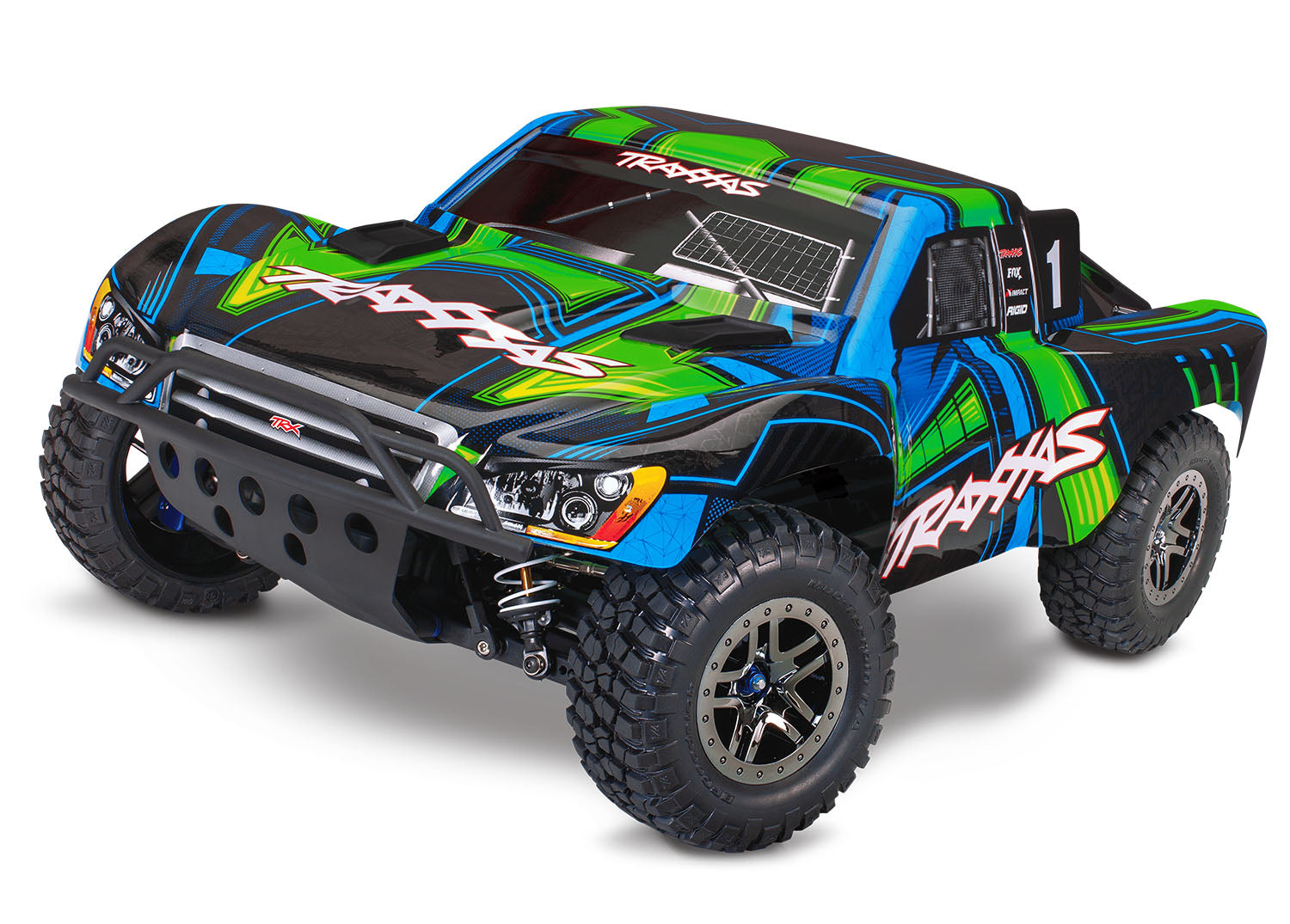

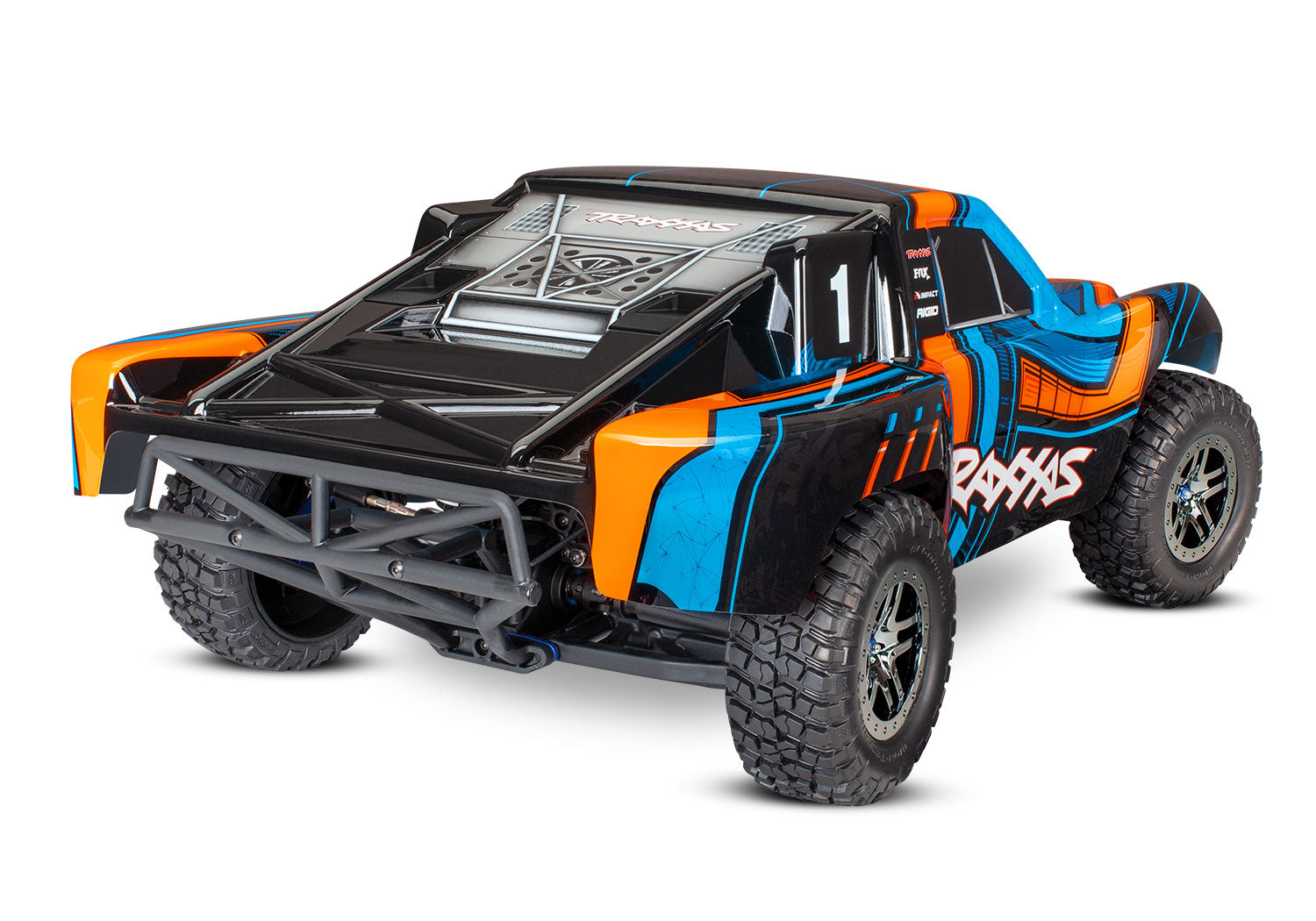

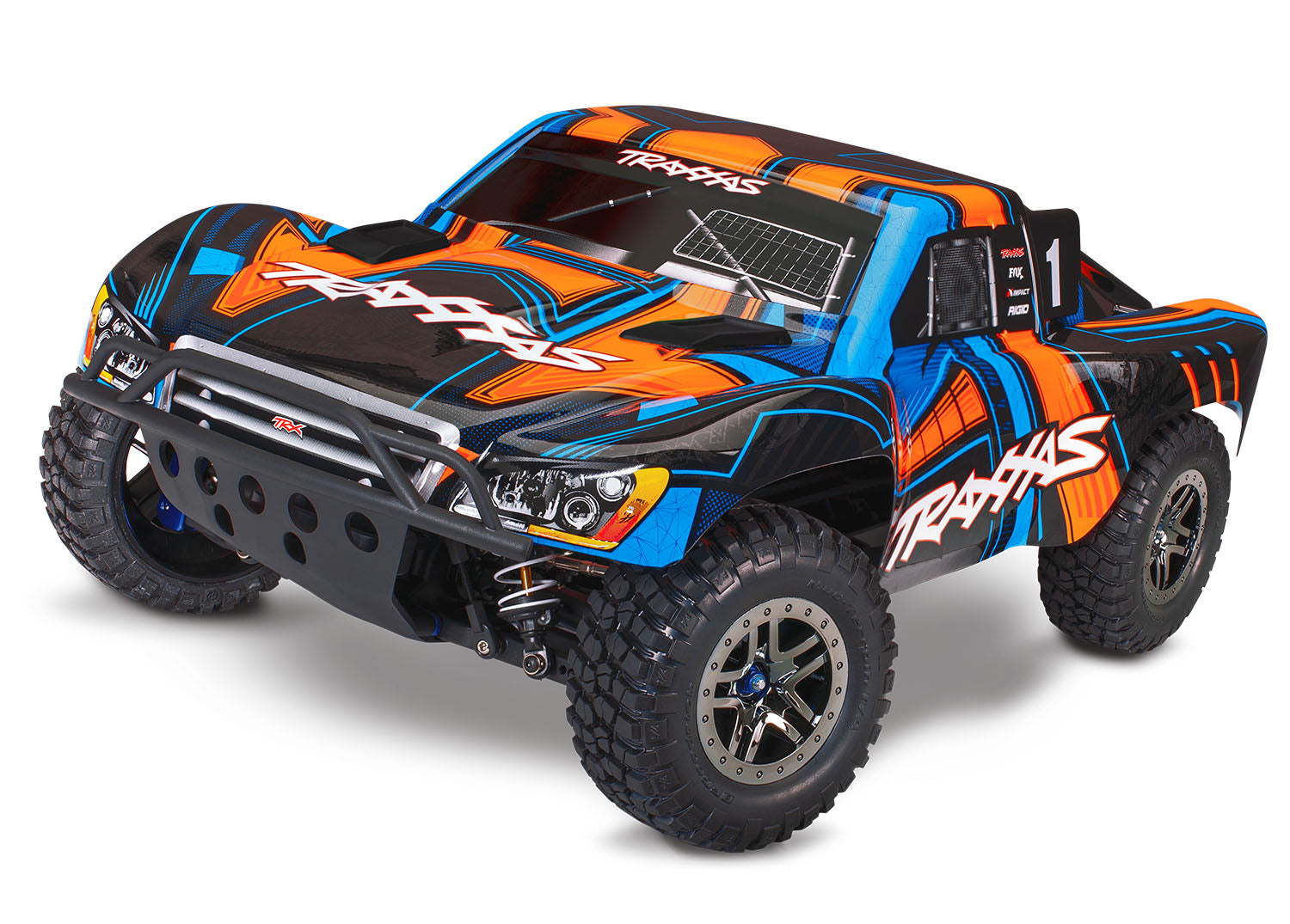

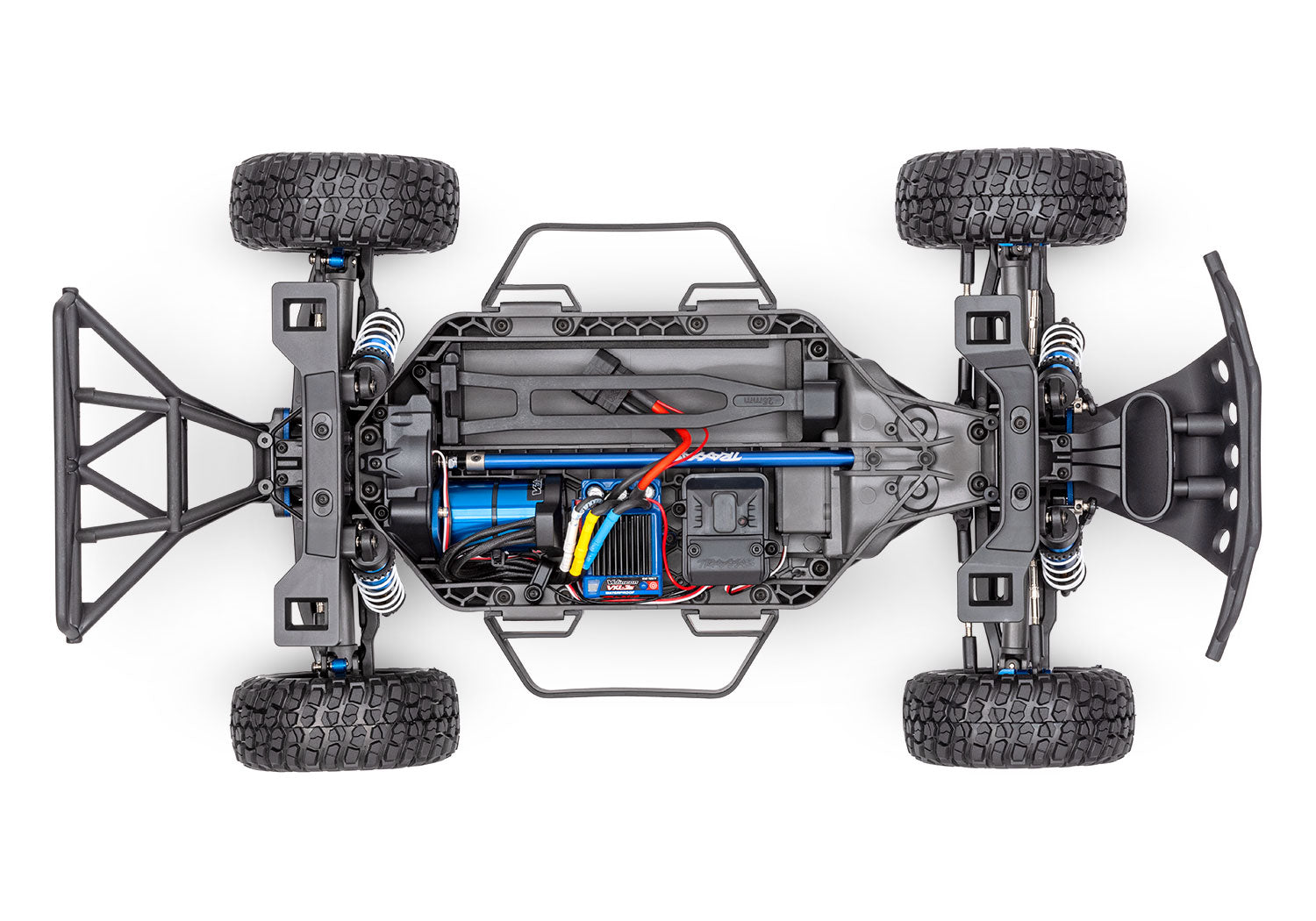

Traxxas: Slash 4X4 VXL Ultimate

The Slash 4X4 VXL Ultimate delivers 60+ mph performance with brushless power, aluminum upgrades, and factory-installed telemetry for pro-level control.

What You’ll Need

• 2-3s Lipo and compatible charge (Recommended: 5800mah 2s Lipo)
• Four AA alkaline batteries for the transmitter

Features

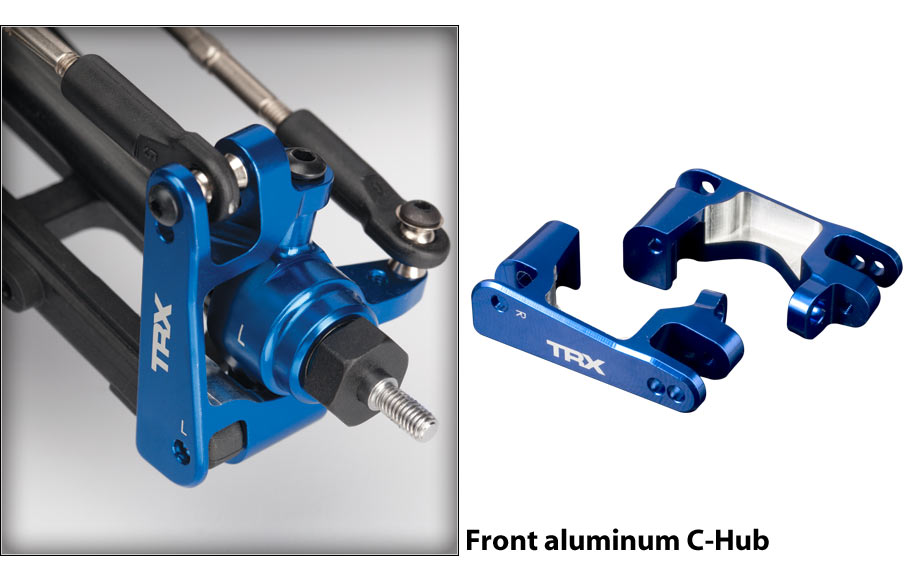

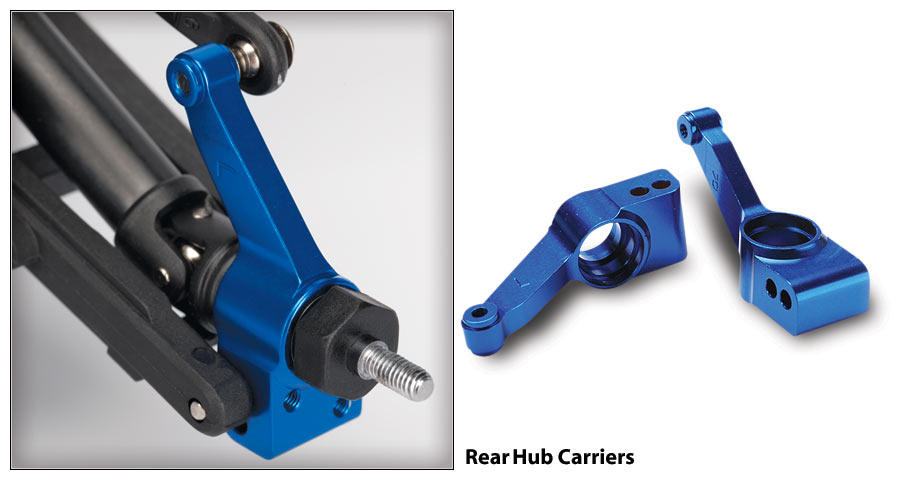

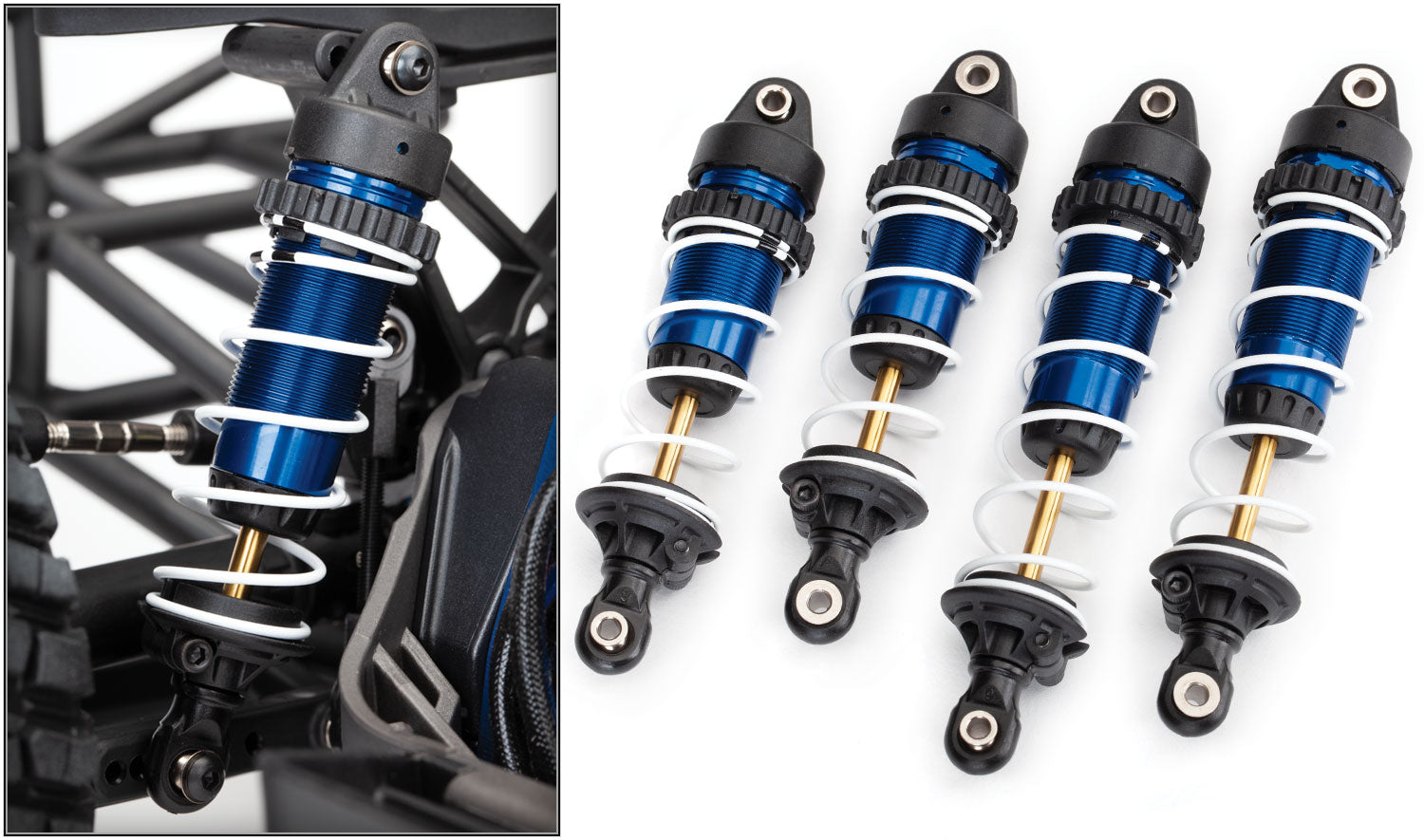

• Pre-Installed Heavy-Duty Aluminum Upgrades
• VXL-3s Waterproof ESC and Velineon Brushless Motor

• Traxxas Stability Management
• TQi 2.4 GHz High Output Radio System
• Clipless ProGraphix Painted Body

Specifications

• Model Type: Short Course Trucks

• Model Speed: 60+ mph with optional gearing and 3s LiPo battery (items sold separately)

• Model Skill Level: 2

• Scale: 1/10

• Weight: 5.03 pounds (2.28 kg)

• Length: 22.36 inches (568 mm)

• Width: 11.65 inches (296 mm)

• Front Track: 11.65 inches (296 mm)

• Rear Track: 11.65 inches (296 mm)
• Height: 7.60 inches (193 mm)

• Wheelbase: 12.75 inches (324 mm)

• Center Ground Clearance: 2.83 inches (72 mm)

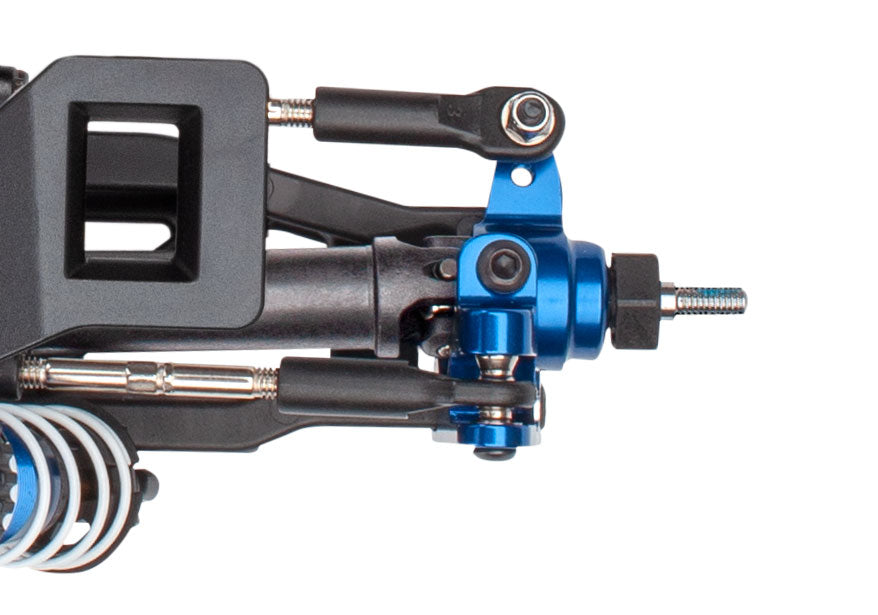

• Drivetrain: Shaft-driven 4WD

• Differential Type: Hardened steel bevel, sealed, limited slip

• Gear Ratio (Internal): 11.82:1

• Gear Pitch: 32 pitch

• Servo(s): 2075 digital high-torque waterproof

• Radio System: TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver

• Battery Compartment Specs: 165 x 50 x 23/25mm

Motor Specifications

• Motor Name: Velineon 3500

• Motor Type: Sensorless brushless

• Motor Weight: 9.24 ounces (262 g)

• Motor Length: 3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length

• Motor Diameter: 1.41 inches (36 mm)

• Motor Shaft Size: 3mm

• Motor Connector Type: 3.5 mm bullet

ESC Specifications

• ESC Name: VXL-3s™ electronic speed control

• ESC Type: Brushless

• ESC Case Size: 1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)

• ESC Weight: 3.17 ounces (90 g)

• Motor Connectors: 3.5 mm bullet

• Battery Connectors: Traxxas High-Current Connector

• ESC Power Wire: 12 gauge Maxx® Cable

What’s In The Box

• Slash 4X4 VXL Ultimate

• TQi 2.4 GHz High Output Radio System
• High-quality maintenance tools
• Quick Start Guide
