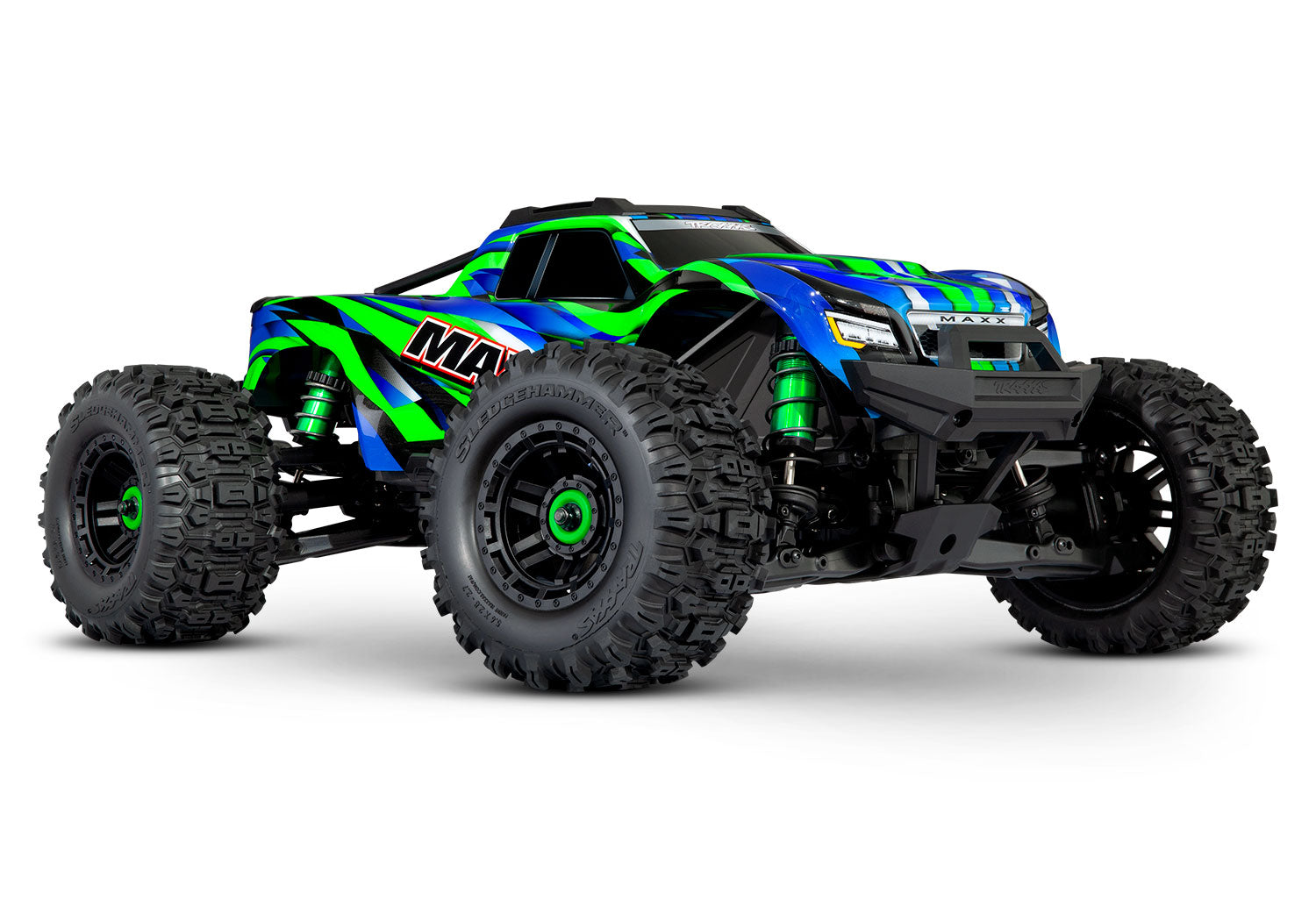

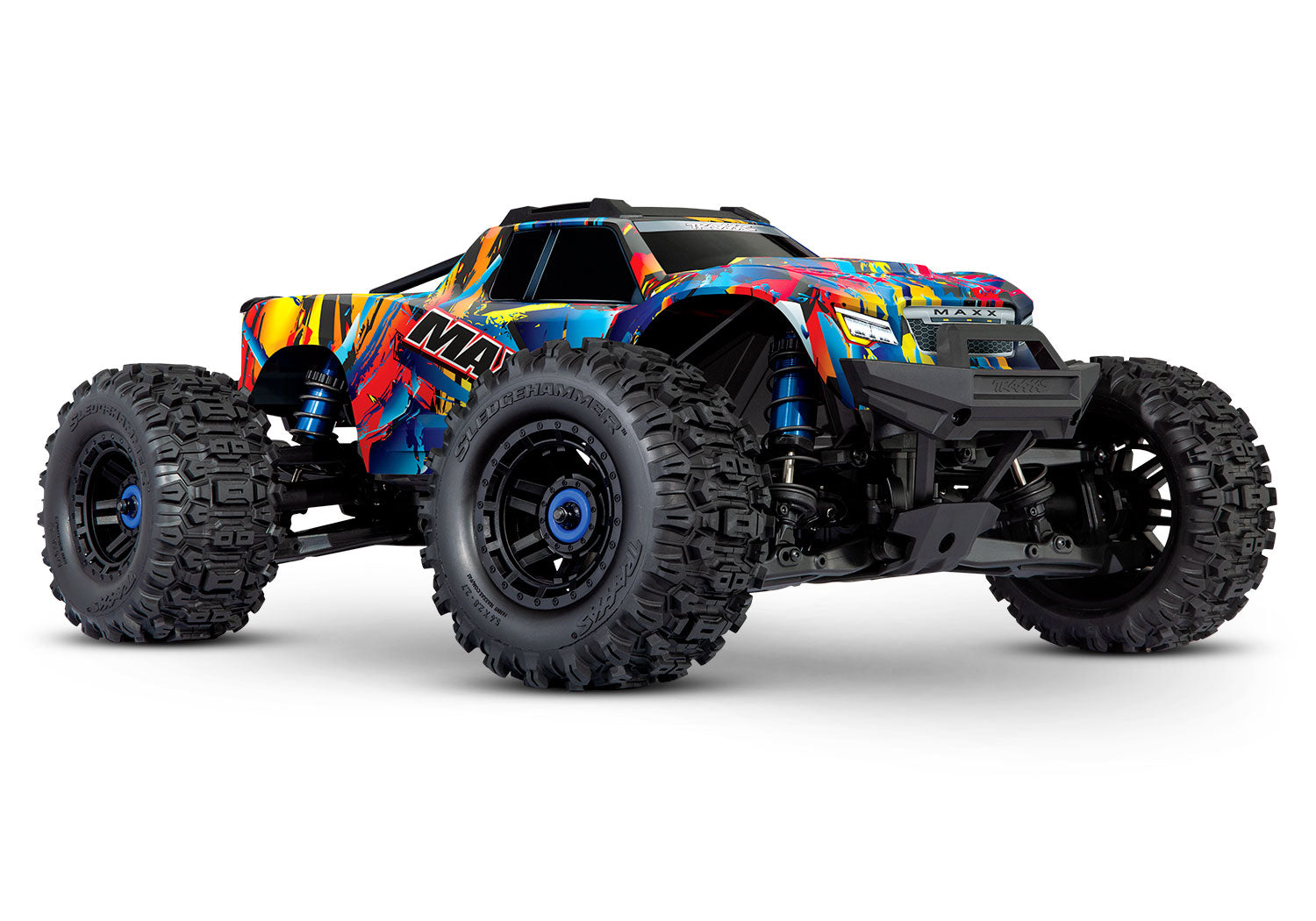

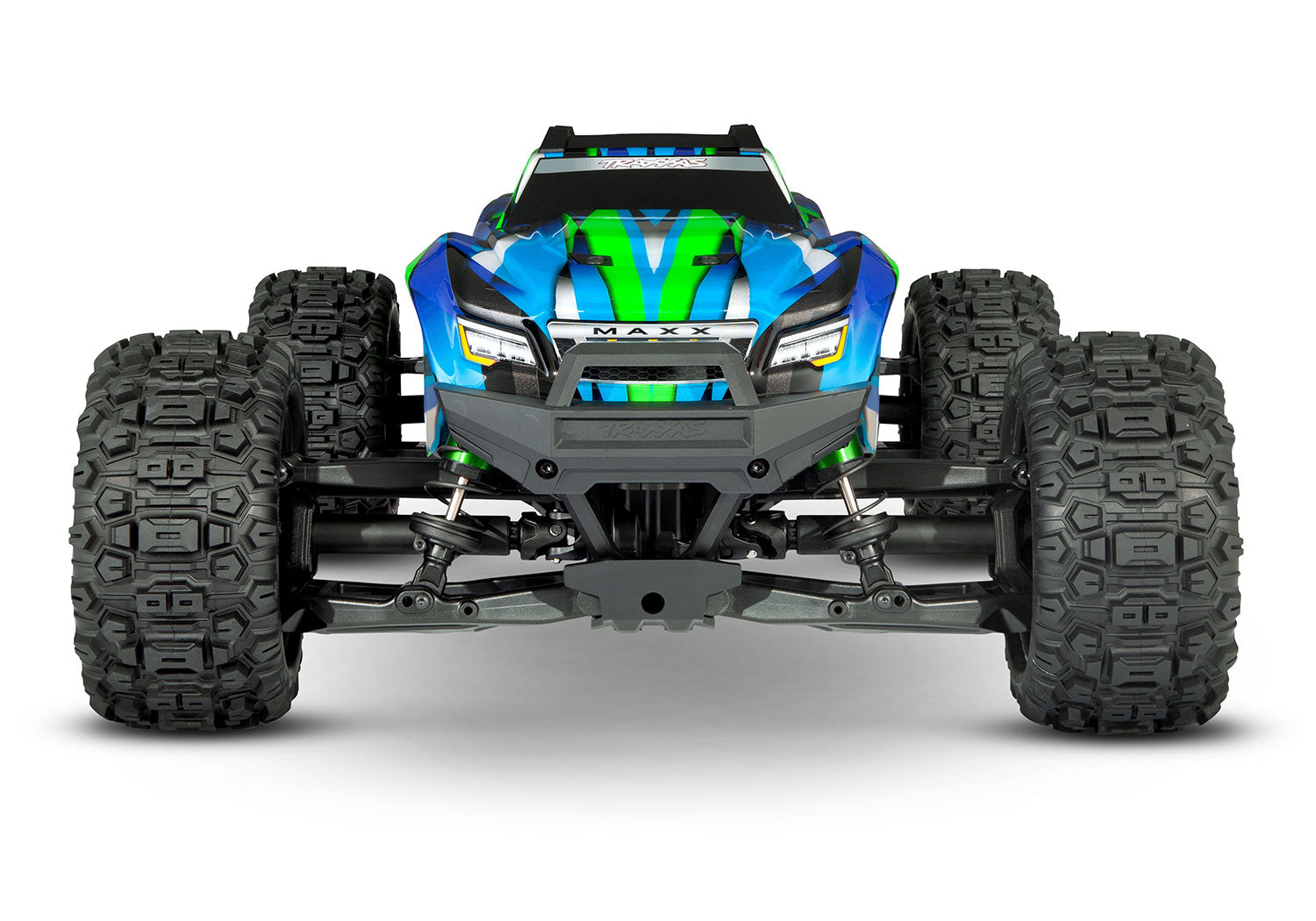

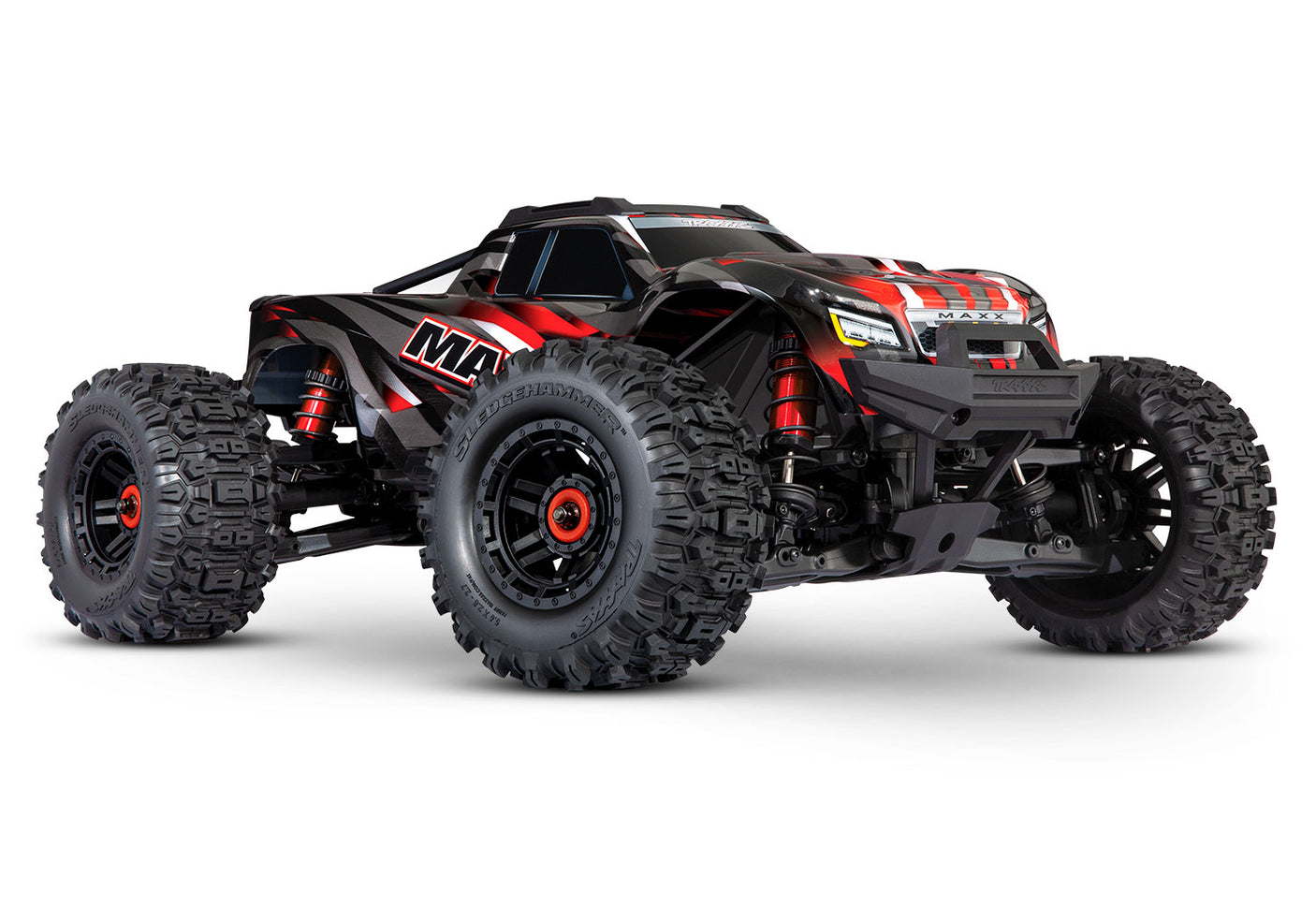

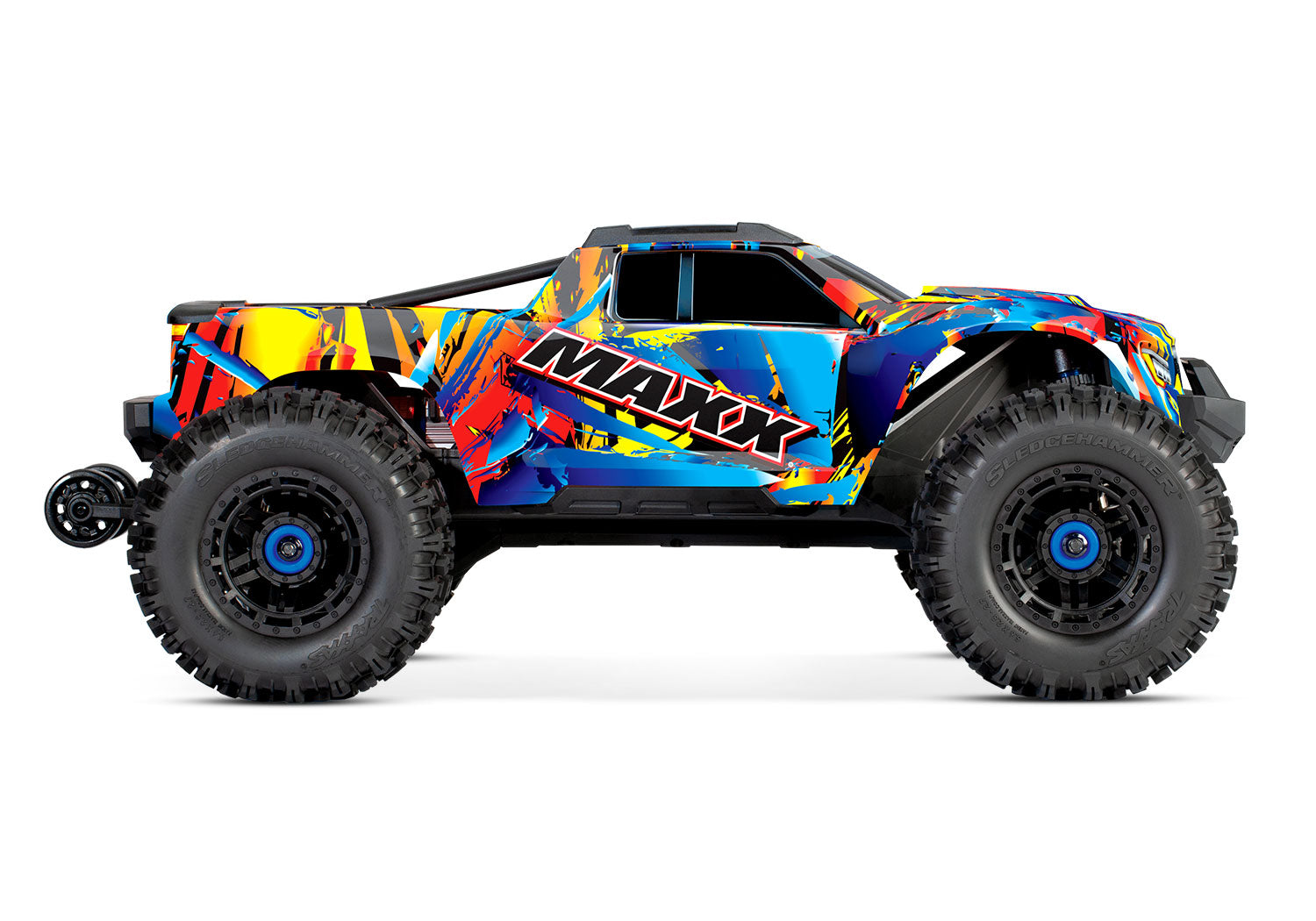

Traxxas: Maxx with WideMaxx

The Traxxas Maxx with WideMaxx suspension delivers extreme 4X4 power, stability, and control. Tough, fast, and built for big air and rough terrain action!

What You’ll Need

• 3-4s Lipo and compatible charger
• Four AA alkaline batteries for the transmitter

Features

• 55+ MPH out of the box using single 4s LiPo battery

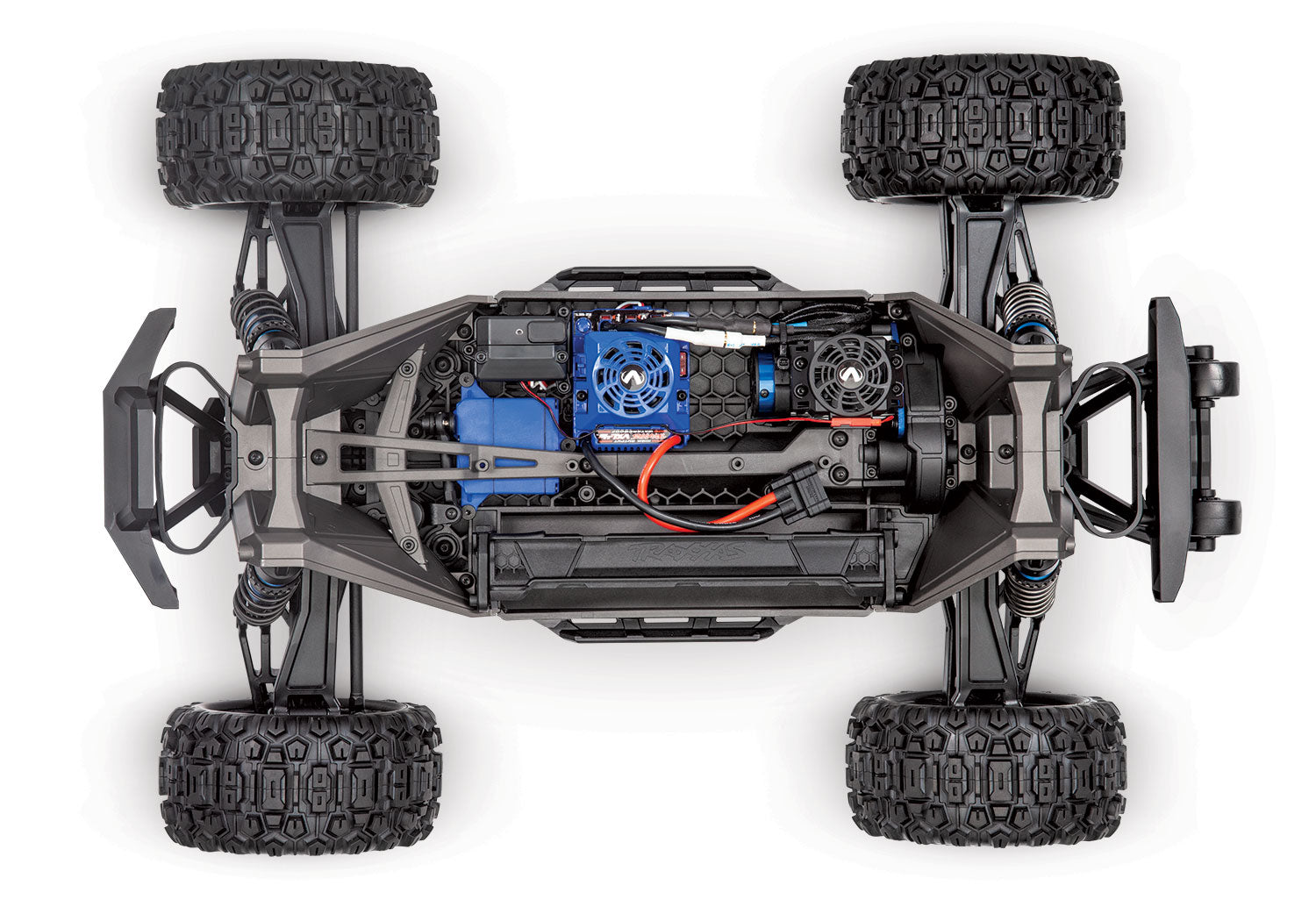

• VXL-4s Waterproof ESC and Velineon 540XL Brushless Motor
• TQi 2.4 GHz High Output Radio System
• VXL-3s Waterproof ESC and Velineon Brushless Motor
• Traxxas Stability Management (TSM)

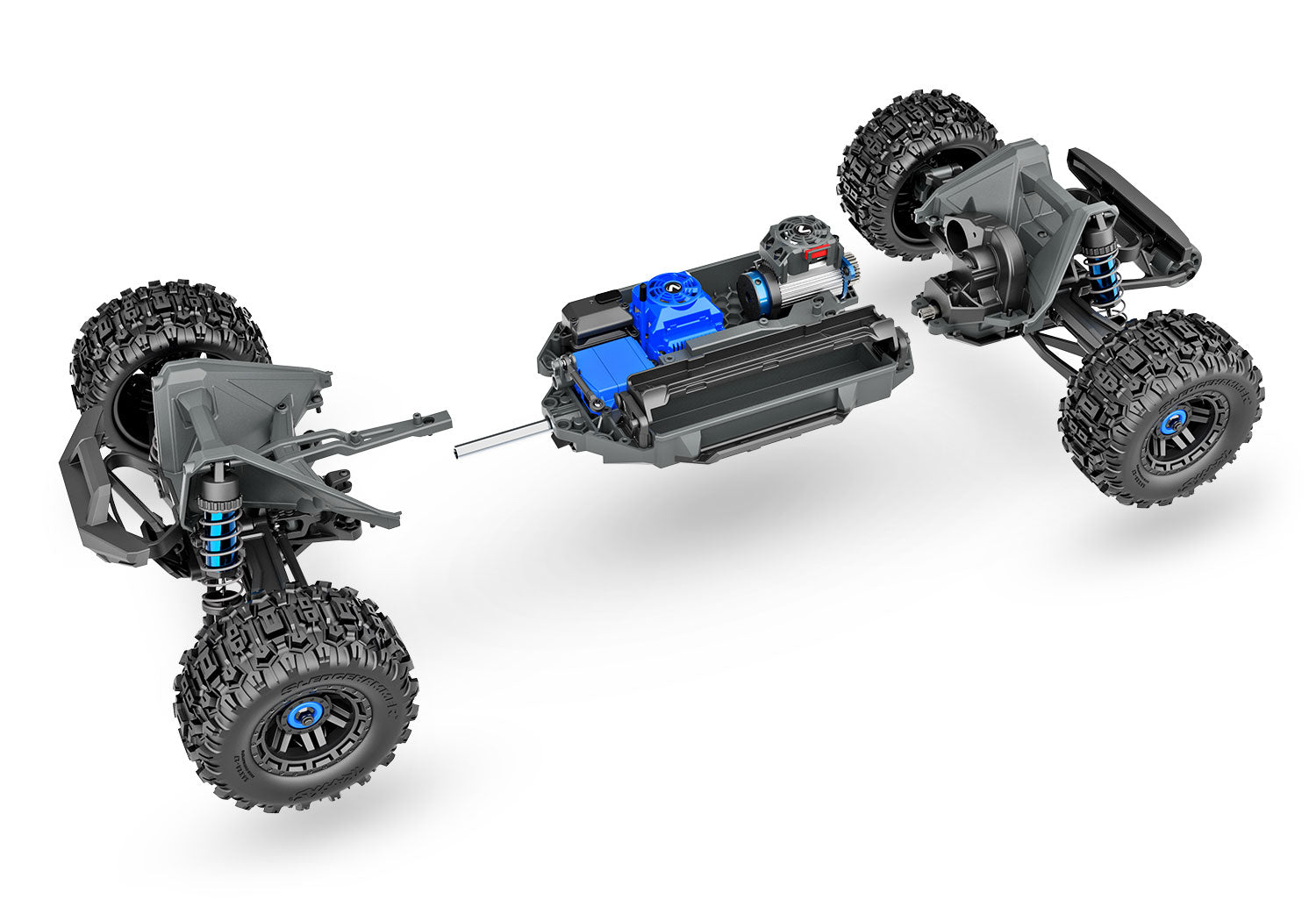

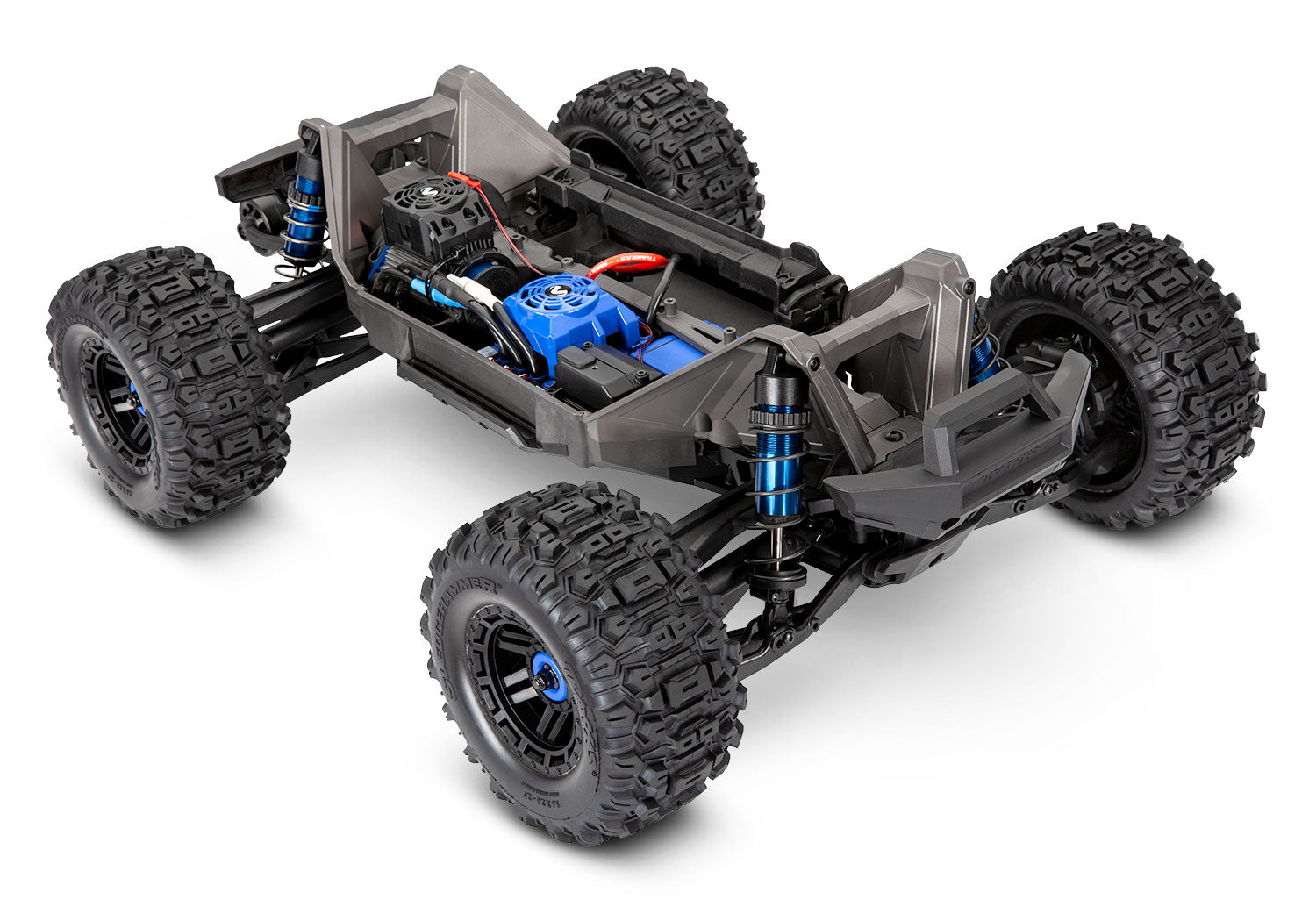

• Clipless Body Mount System

Specifications

• Model Name:    Maxx with WideMAXX

• Model Type:    Monster Truck

• Model Speed:    60+ mph with 4s LiPo battery and optional gearing

• Model Skill Level:    4

• Scale:    1/10

• Weight:    10.40 pounds (4.7 kg)

• Length:    22.50 inches (572 mm)

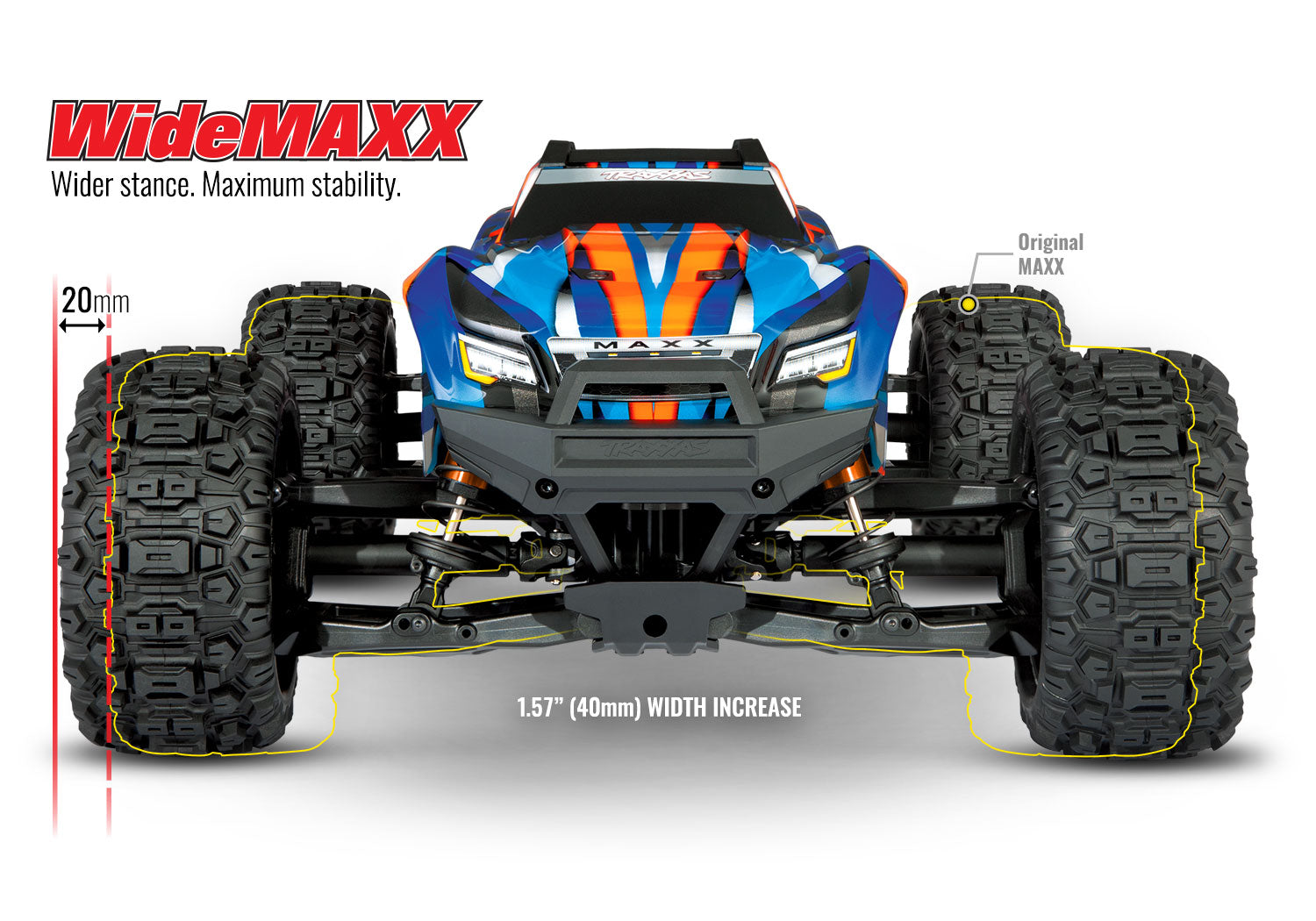

• Width:    15.95 inches (405 mm)

• Front Track:    15.95 inches (405 mm)

• Rear Track:    15.95 inches (405 mm)

• Height:    9.12 inches (232 mm)

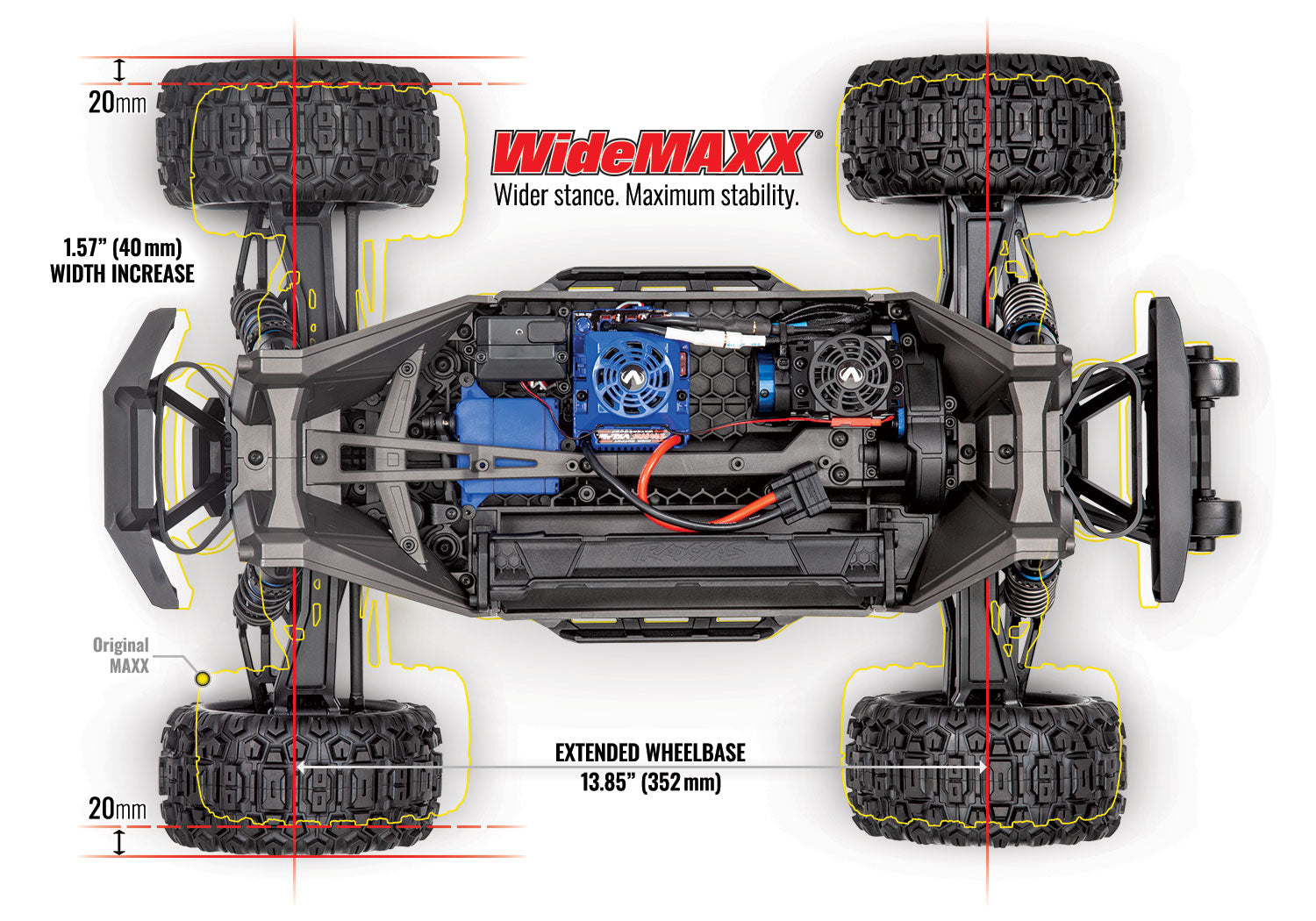

• Wheelbase:    13.85 inches (352 mm)

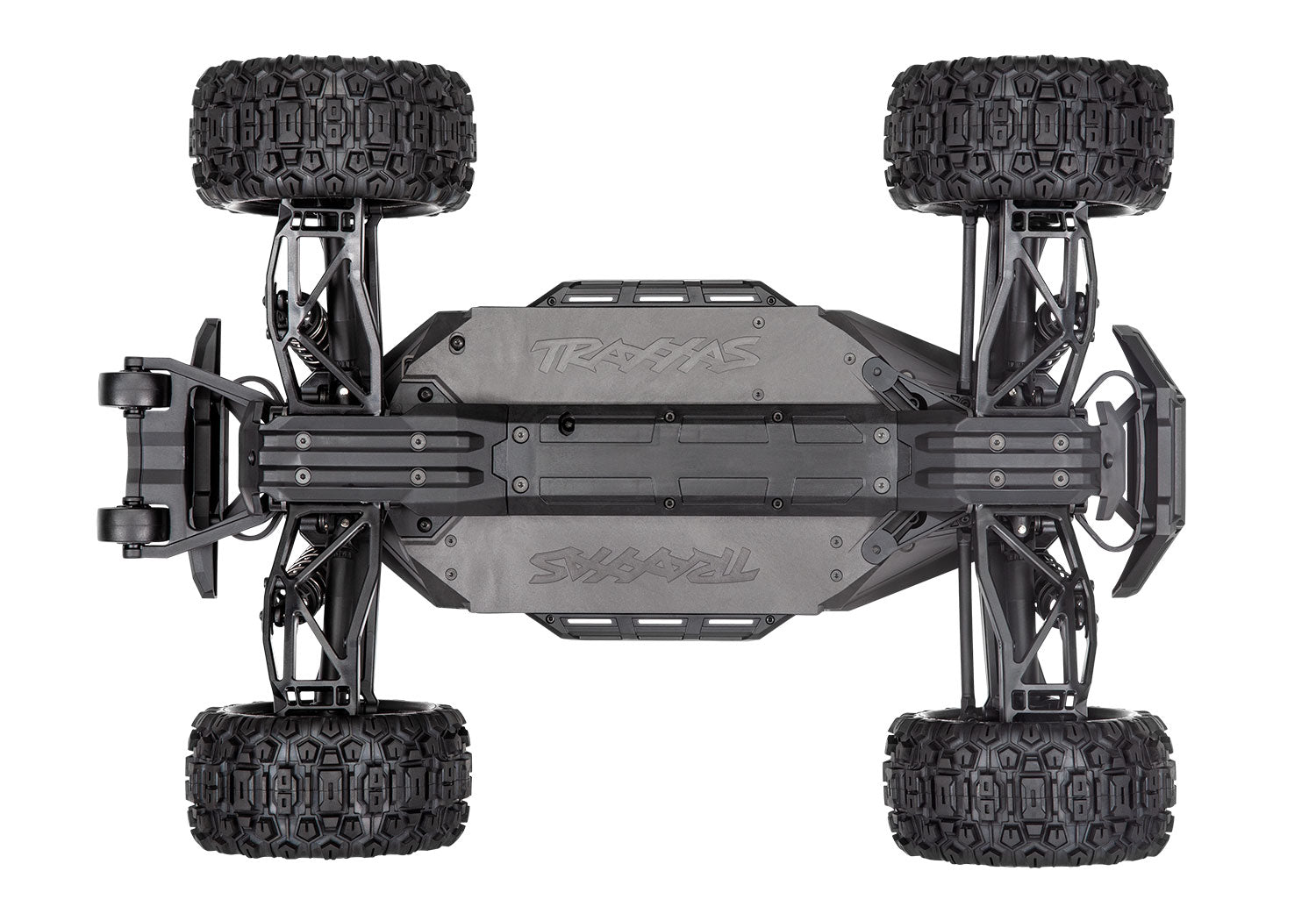

• Center Ground Clearance:    2.6 inches (67 mm)

• Drivetrain:    Shaft-driven 4WD

• Transmission:    Single speed

• Differential Type:    Sealed, hardened steel bevel, limited slip

• Gear Ratio (Internal):    12.37:1

• Gear Pitch:    1.0 metric pitch

• Servo(s):    2090 digital high-torque waterproof (285 oz-in)

• Radio System:    TQi™ 2.4 GHz transmitter with TSM® receiver

• Battery Compartment Specs:    186 mm X 48 mm X 43 mm

Motor Specifications

• Motor Name:    Velineon® 3500

• Motor Type:    Sensorless brushless

• Motor Weight:    9.24 ounces (262 g)

• Motor Length:    3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length

• Motor Diameter:    1.41 inches (36 mm)

• Motor Shaft Size:    3 mm

• Motor Connector Type:    3.5 mm bullet

ESC Specifications

• ESC Name:    Velineon® VXL-4s

• ESC Type:    Brushless

• ESC Case Size:    72 mm L x 59 mm W x 49 mm H

• ESC Weight:    7.09 ounces (201 grams)

• Motor Connectors:    6.5 mm bullet connectors

• Battery Connectors:    Traxxas High-Current Connectors

What’s In The Box

• Maxx, Ready-To-Race® model with Traxxas 540XL brushless motor

• VXL-4s waterproof electronic speed control with integrated telemetry

• Quick Start Guide

• TQi™ 2.4 GHz radio system

• High quality maintenance tools
