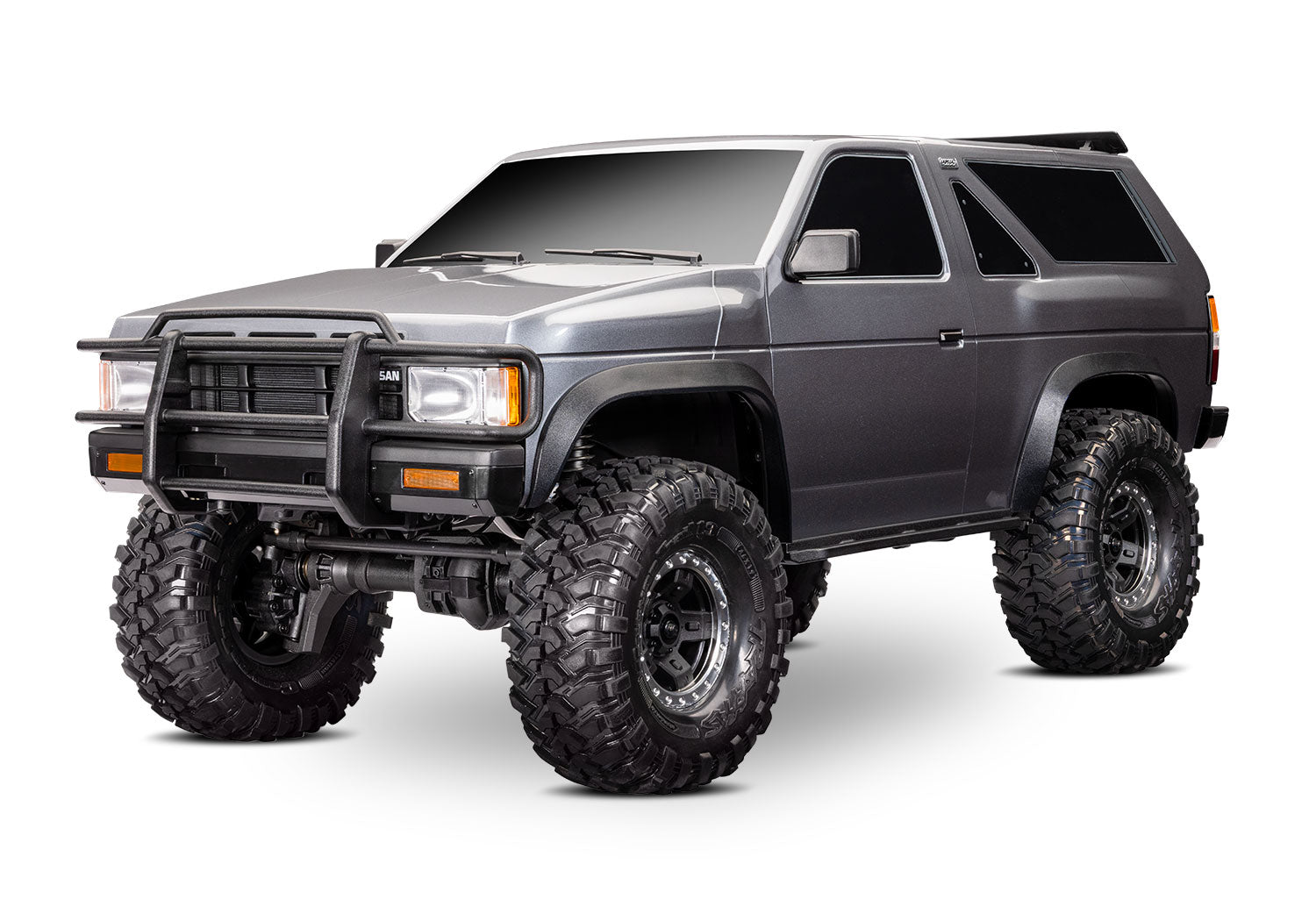

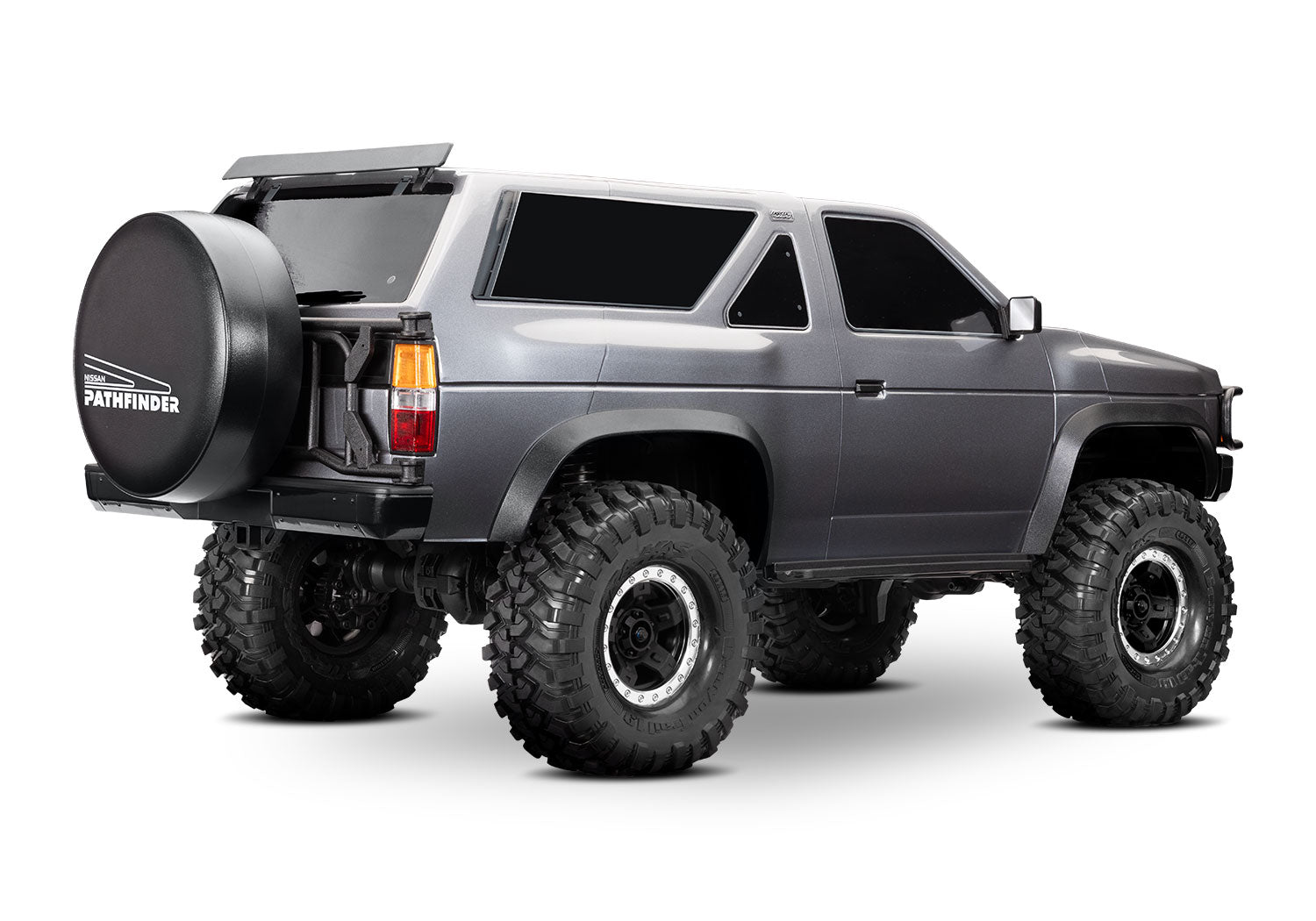

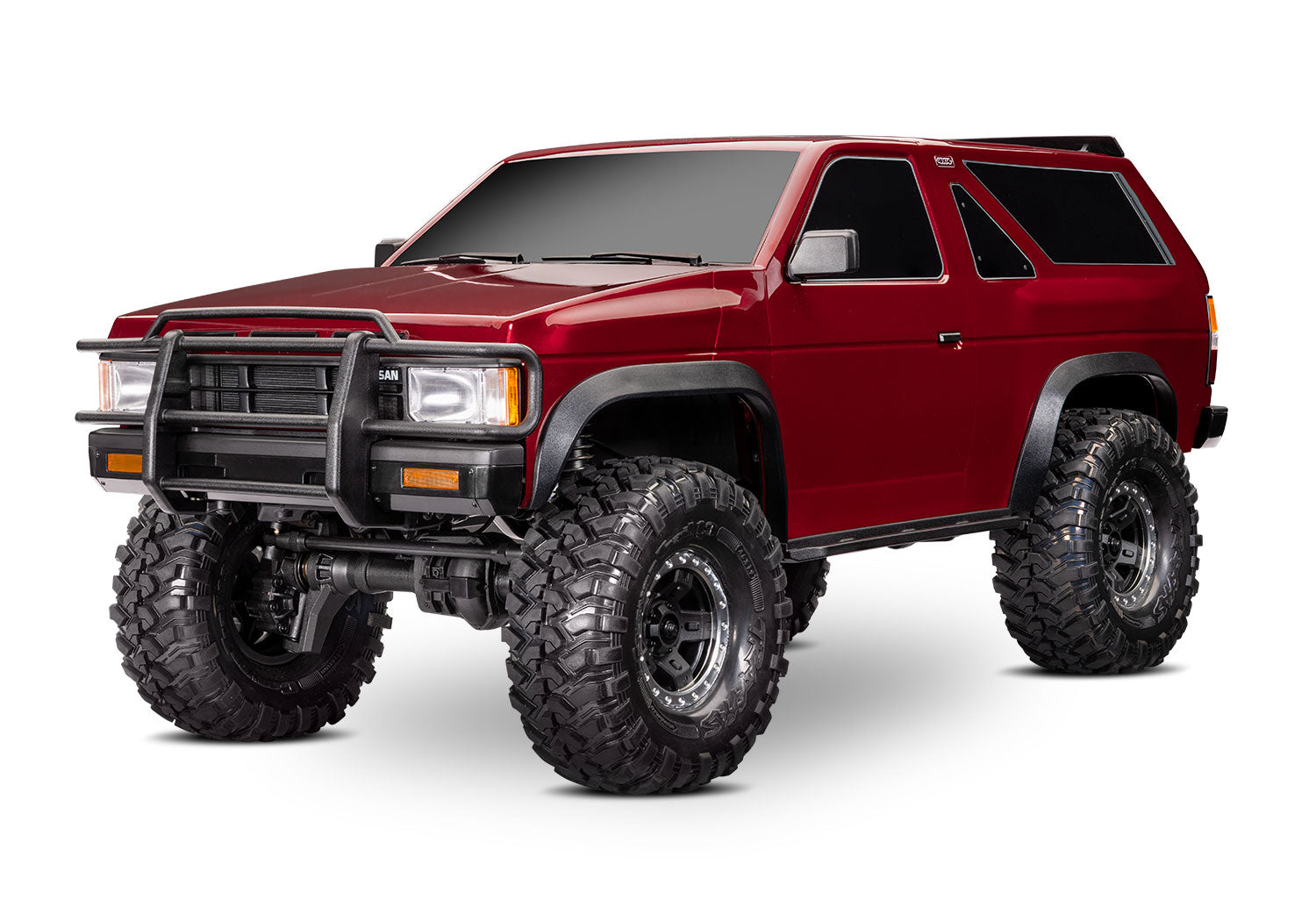

Traxxas: TRX-4 Nissan Pathfinder

Classic Nissan Pathfinder styling meets TRX-4 performance with portal axles, remote lockers, and 2-speed gearing for serious trail adventures.

Required to Run

• 2-3s Lipo Battery and compatible charger
• Four AA alkaline batteries for the transmitter.

Features

• Officially Licensed Nissan Pathfinder Clipless Body

• Trail-tuned XL-5 HV Waterproof Electronic Speed Control

• Portal Axles

• TQi 2.4 GHz Radio System

Specifications

• Scale: 1/10
• Type: Trail / Crawler
• Skill Level: 1

• Weight: 6.78 lb (3.08 kg)
• Length: 22.72 in (577 mm)
• Width: 9.78 in (249 mm)
• Track: 9.78 in (249 mm)
• Height: 9.49 in (241 mm)
• Wheelbase: 12.28 in (312 mm)
• Center Ground Clearance: 3.14 in (80 mm)
• Driveline: Shaft-driven 4WD
• Transmission: 2-speed high/low with remote shifting
• Differential Type: 4-gear remote locking
• Gear Pitch: 32-pitch
• Steering Servo: 2075X metal-gear digital high-torque waterproof
• Radio System: TQi 2.4GHz 4-channel transmitter with 6533 receiver
• Battery Compartment Dimensions: 159x47x23 mm

Motor Specifications

• Motor Name: Titan 550 21T Reverse Rotation
• Motor Type: High Torque Brushed Motor
• Motor Weight: 8.47 ounces (240 g)
• Motor Length: 78 mm overall, 57 mm can length
• Motor Diameter: 39 mm
• Motor Shaft Size: 3 mm
• Motor Connector Type: Bullet

ESC Specifications

• ESC Name: XL5 HV
• ESC Type: Brushed
• ESC Case Size: 31 x 55 x 26 mm
• ESC Weight: 2.6 ounces (74 g)
• Motor Connectors: Bullet
• Battery Connectors: Traxxas High Current Connector
• ESC Power Wire: 14 Gauge

What’s In The Box

• TRX-4 with XL-5 HV ESC and Titan 21T motor

• TQi 2.4G Hz radio system with cruise control

• High-quality maintenance tools
