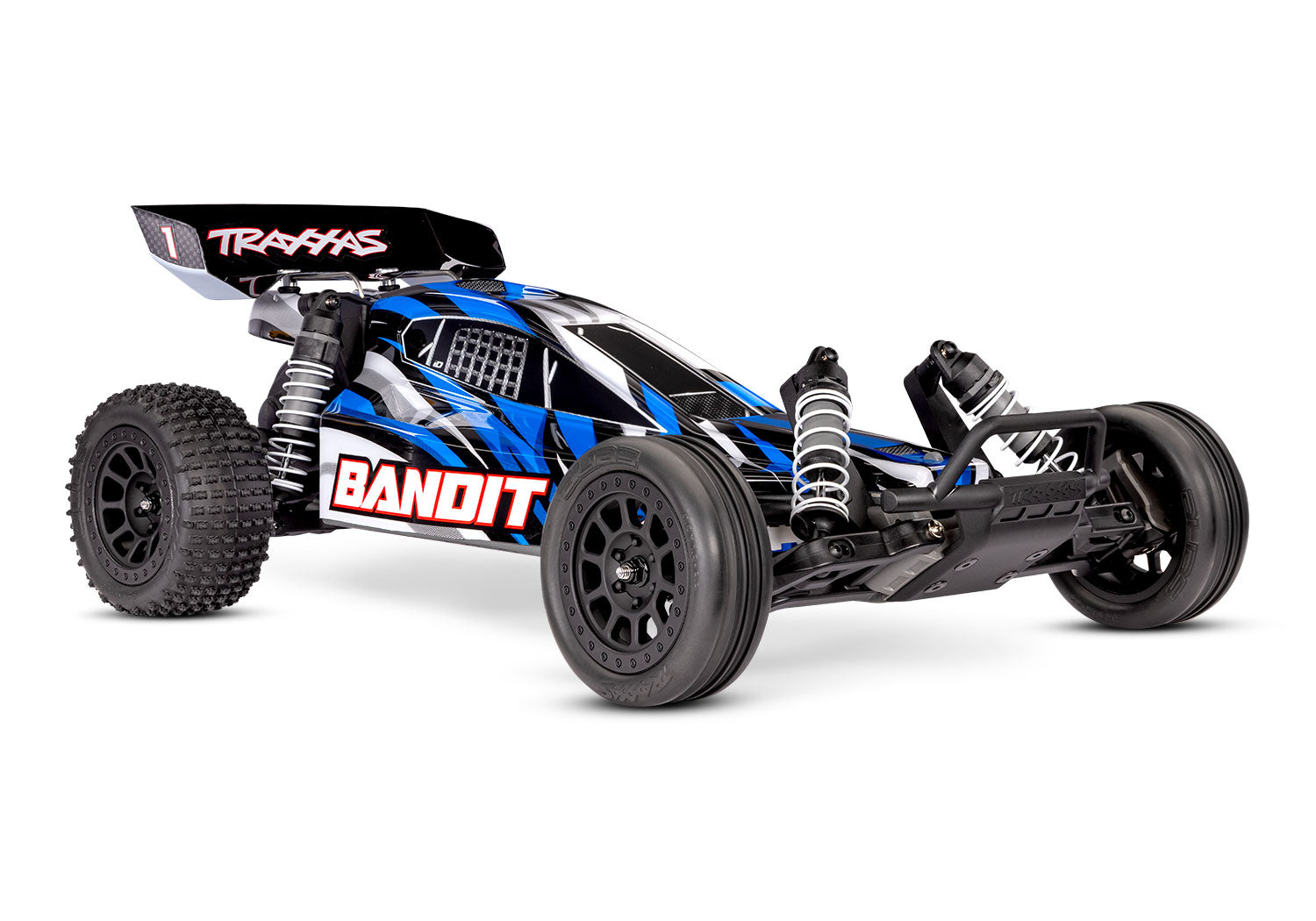

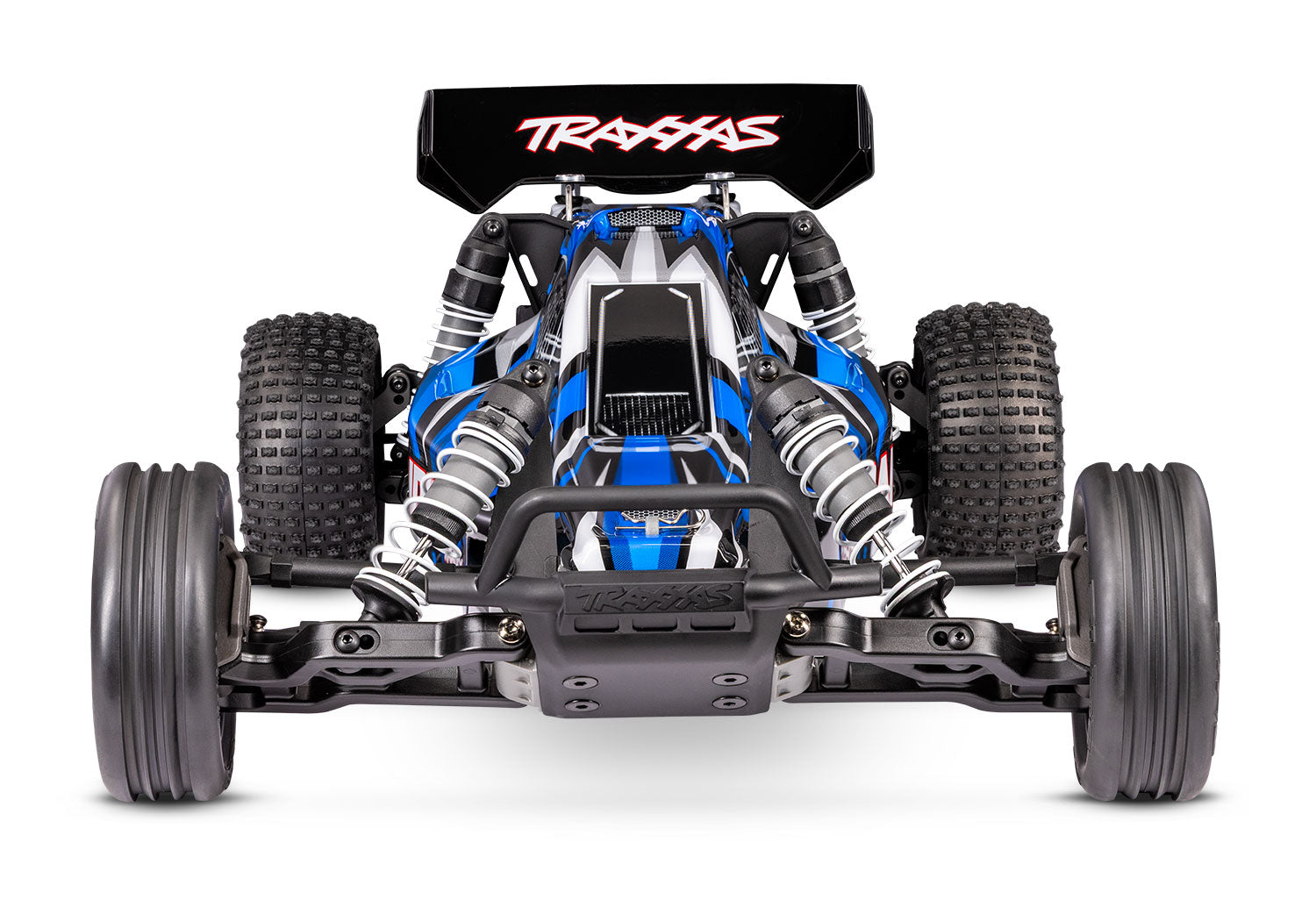

Traxxas: Bandit XL-5 with Battery

Hit the dirt with this ready to run 1/10 scale 2WD buggy featuring XL 5 waterproof ESC and included battery for fast backyard bashing fun right out of the box

Required to Run

• Four AA alkaline batteries for the transmitter.
• USB-C Power Adapter and USB-C Cable


Features

• Pre-painted body with applied decals

• High-Performance Waterproof XL-5 ESC and Titan 550 Motor

• Traxxas Stability Management
• TQ 2.4 GHz 2-Channel Radio System

• Includes Battery and Charger


Specifications

• Type: Buggy
• Top Speed: 35 plus mph with 7 cell battery
• Skill Level: 1
• Scale: 1/10
• Weight: 3 lb 1.36 kg
• Length: 16.25 in 413 mm
• Width: 9.84 in 250 mm
• Front Track: 9.84 in 250 mm
• Rear Track: 9.84 in 250 mm
• Height: 7 in 178 mm
• Wheelbase: 11.25 in 286 mm
• Driveline: 2WD
• Transmission: Magnum 272
• Differential Type: Planetary steel gear
• Internal Gear Ratio: 2.72
• Final Drive Ratio: 12.34
• Gear Pitch: 48 pitch
• Steering Servo: 2056 high torque waterproof
• Radio System: TQ 2.4GHz 2 channel radio
• Battery Compartment: 164x46x26 mm

Motor Specifications

• Motor Name: Titan 12T 550
• Motor Type: High speed brushed motor
• Motor Weight: 8.47 ounces (240 g)
• Motor Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
• Motor Diameter: 1.41 inches (36 mm)
• Motor Shaft Size: 3 mm
• Motor Connector Type: Bullet

ESC Specifications

• ESC Name: Waterproof XL-5 ESC with low voltage detection
• ESC Type: Brushed
• ESC Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm)
• ESC Weight: 2.44 ounces (69 g)
• Motor Connectors: Bullet
• Battery Connectors: Traxxas High Current Connector
• ESC Power Wire: 14 gauge

What's in the box

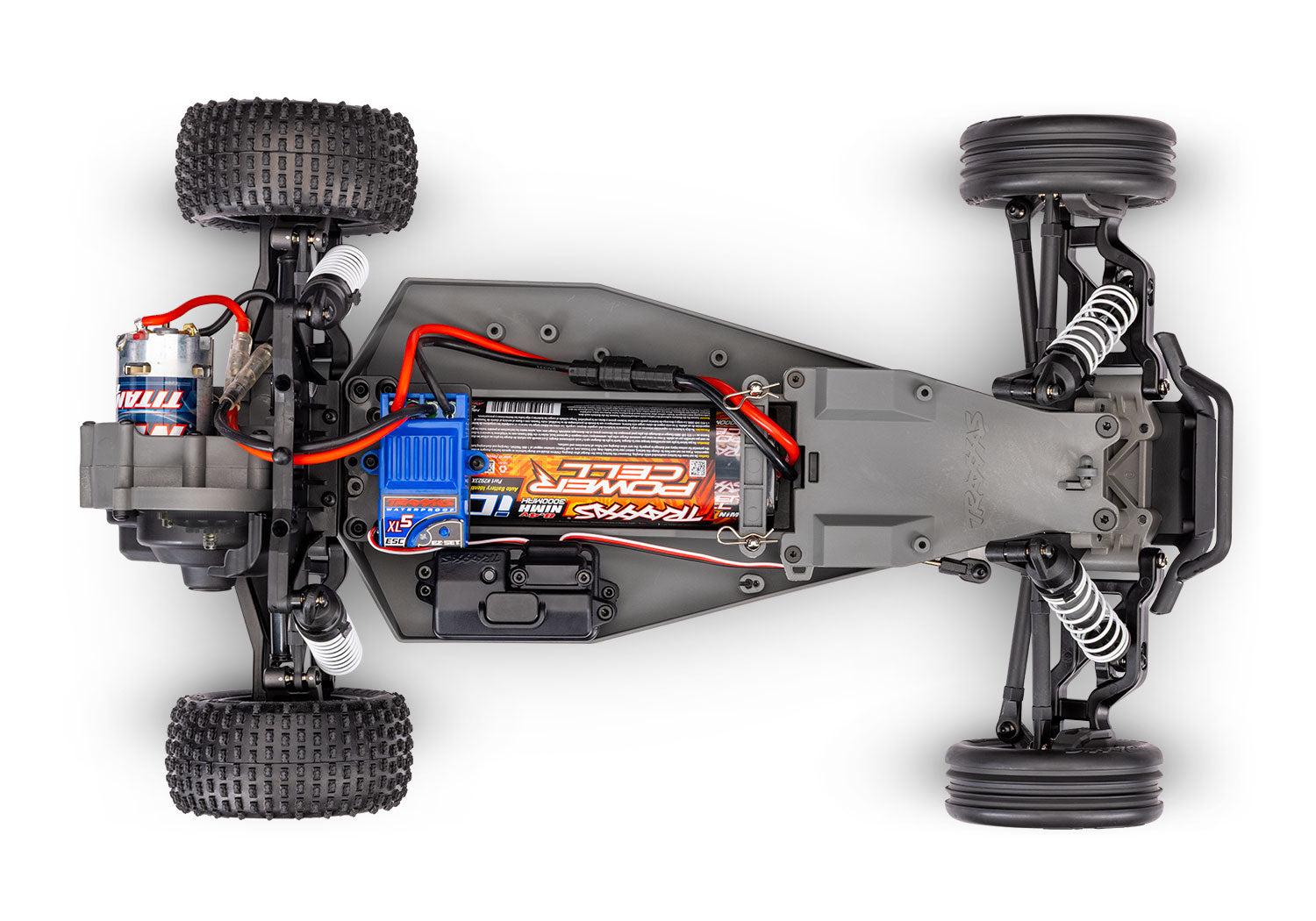

• Bandit 2WD with XL-5 ESC and Titan 550 Motor
• TQ 2.4 GHz radio transmitter
• Traxxas 3000mAh, 8.4-volt 7-cell NiMH battery with iD
• 4-amp USB-C fast charger
• High-quality maintenance tools
