Kyosho: Mini-Z RWD MR04 Readyset Honda NSX

Experience Mini-Z racing with the latest MR-04 chassis and a highly detailed Honda NSX body. This Readyset combines responsive rear-wheel-drive handling, a low center of gravity, and an easy-to-use KT-531P 2.4GHz radio system.

Required to Run

• 4x AAA alkaline batteries for chassis
• 4x AAA alkaline or Ni-MH batteries for transmitter

Features

• MR-04 rear-wheel-drive chassis with improved low center of gravity and steering geometry
• Factory assembled and ready to run after adding batteries

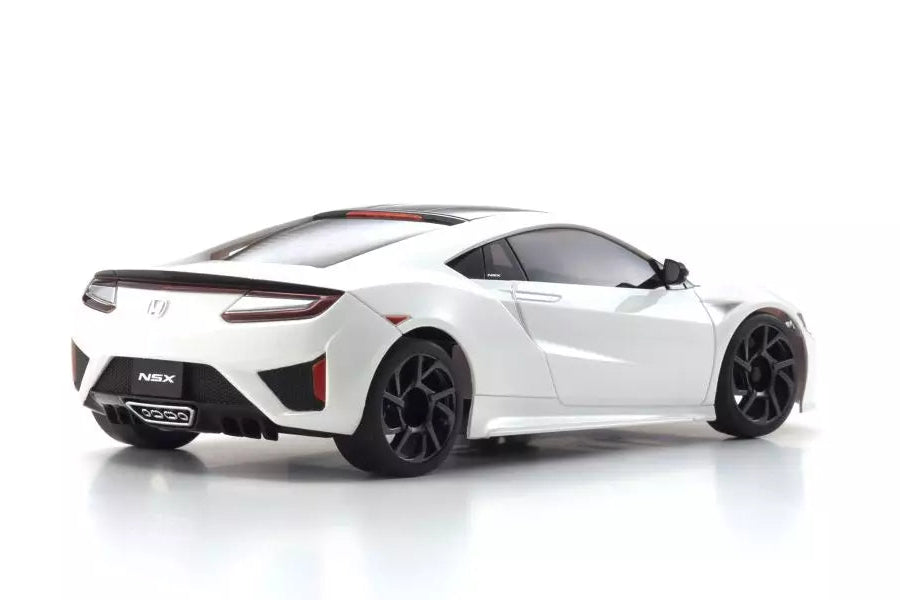

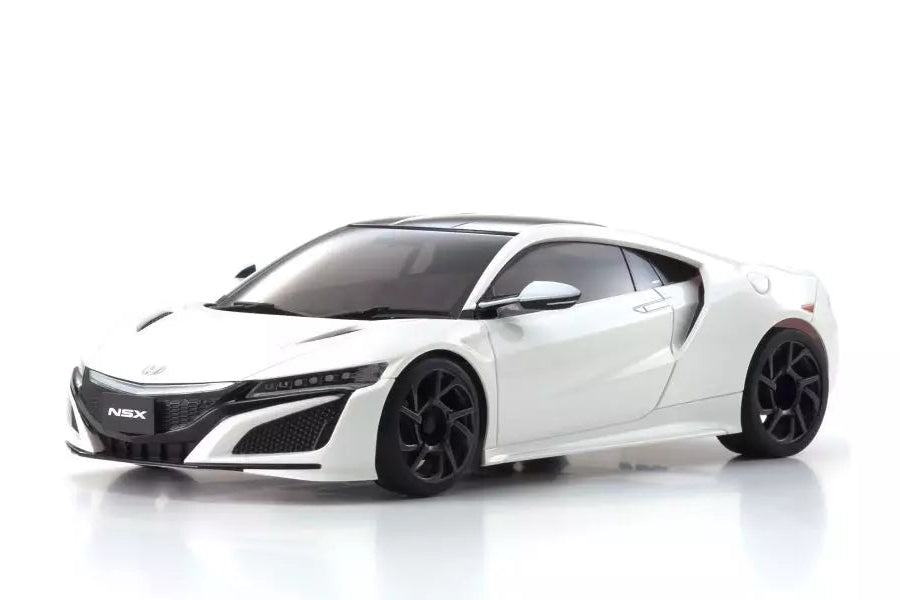

• Detailed pre-painted Honda NSX body with applied markings

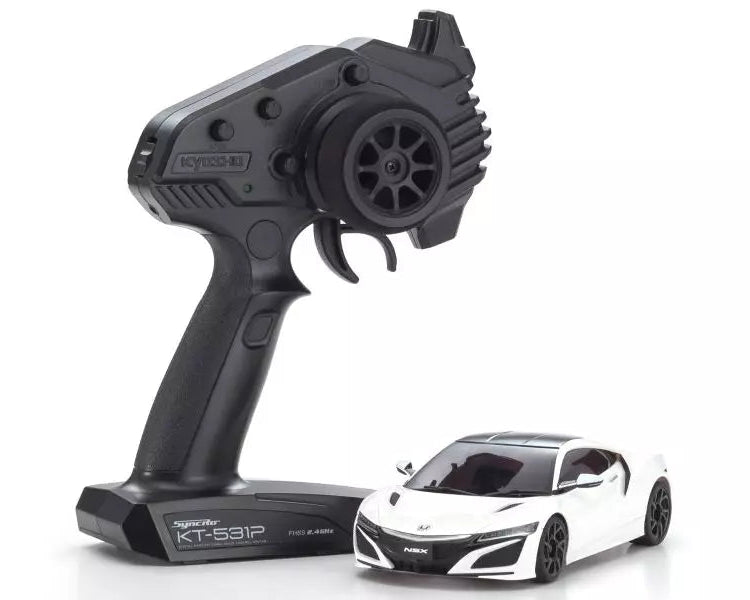

• Syncro KT-531P 2.4GHz pistol-grip transmitter
• 130-class brushed motor
• Geared differential for smooth cornering
• Full ball bearing drivetrain
• Includes 6T, 7T, 8T, and 9T pinion gears for gearing adjustments
• Compatible with optional MZW711 gyro unit
• Compatible with a wide range of Mini-Z Racer optional parts

Specifications

• Scale: Mini-Z
• Drive Type: Rear-Wheel Drive
• Chassis: MR-04W-MM
• Motor Type: 130-Class Brushed
• Length: 167.5 mm
• Width: 75.0 mm
• Height: 46.0 mm
• Wheelbase: 98.0 mm (2L)
• Front Tread: 64.5 mm
• Rear Tread: 62.0 mm
• Front Wheel Offset: Narrow +1.5 mm
• Rear Wheel Offset: Wide +1.5 mm
• Weight: 163 g
• Radio System: Syncro KT-531P 2.4GHz
• Body: Honda NSX 130R
• Color: White

Contents

• Kyosho Mini-Z MR-04W-MM Chassis
• Honda NSX 130R Pre-Painted Body
• Syncro KT-531P 2.4GHz Transmitter
• Front Tread Adjustment Parts
• 6T, 7T, 8T, and 9T Pinion Gears
• Spare Nuts
• Wheel Wrench
• Pinion Gear Tool
• Tires and Wheels
