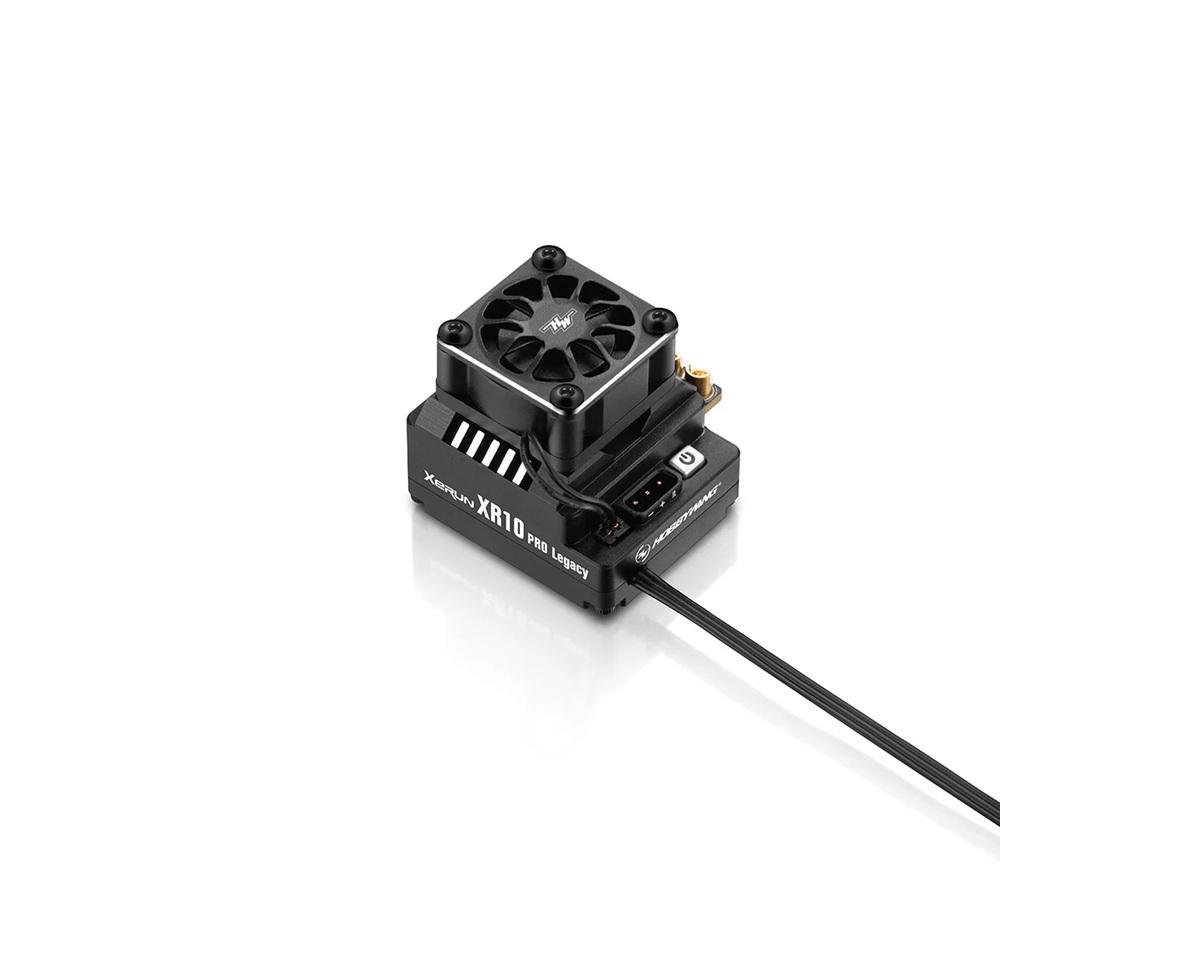

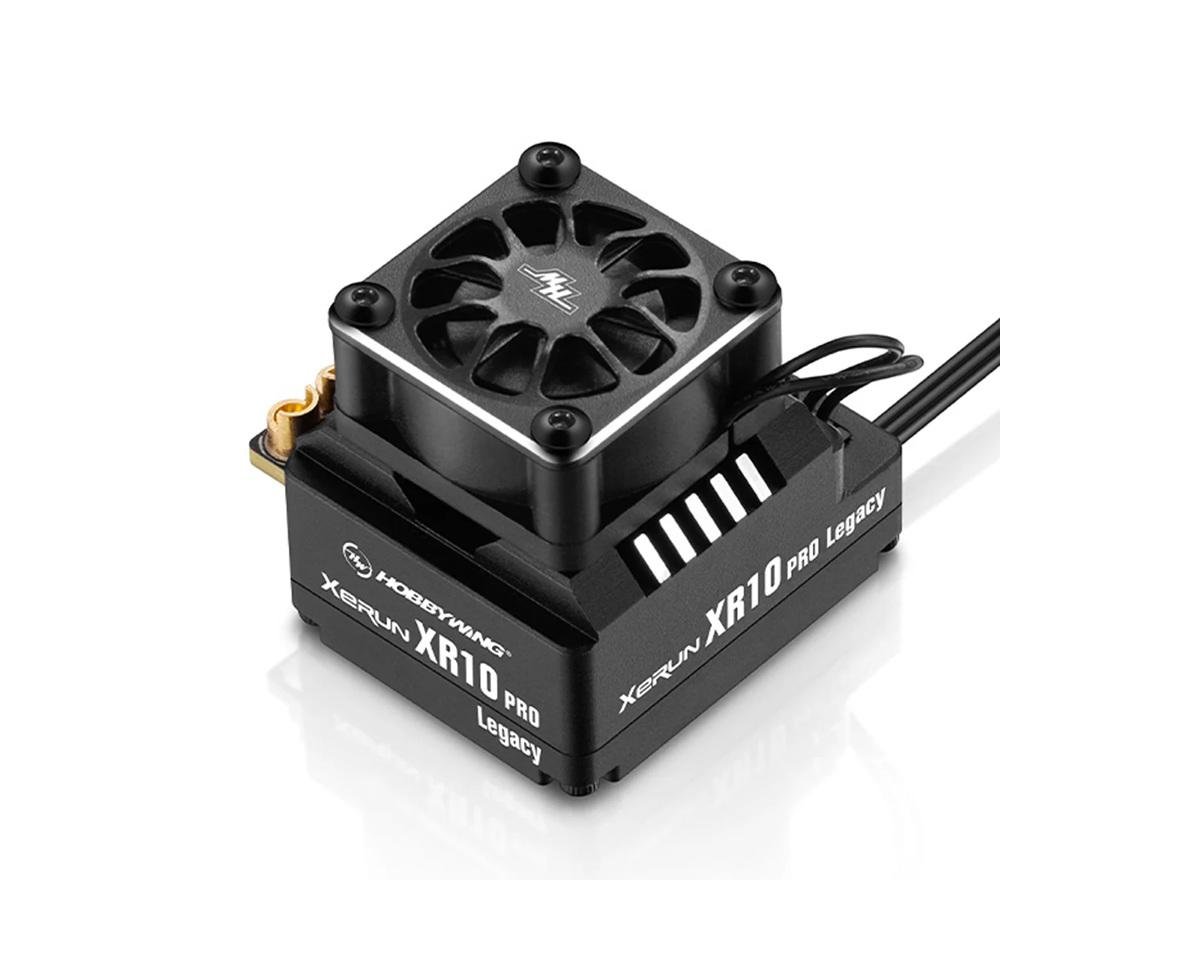

Hobbywing: XR10 PRO Legacy ESC

The Hobbywing Xerun XR10 Pro Legacy 150A sensored ESC delivers elite 1/10 racing performance with ultra-fast 32-bit processing, advanced tuning, data logging, multiple profiles, and robust protection for precise control and reliability.

Features

• 150A continuous current for high-output racing power
• Patented Reverse Polarity Protection*
• 9 tunable profiles for all 1/10 racing classes
• Variable PWM frequency and brake control
• Built-in data logging with OTA support
• Internal or external power switch options
• Softening function for smoother throttle response
• Disc brake mode for stronger braking control
• ESC and motor thermal protection
• Designed for durability and long-term reliability

Specifications

• Suggested application: 1/10 touring cars & buggies
• Motor type: Sensored or sensorless brushless
• Input voltage: 2S LiPo only
• Continuous current: 150A
• Peak current: 1000A
• Dimensions: 1.48x1.48x1.30in (37.7x37.7x33.2mm)
• Weight: 3.32oz (94.2g)
• Motor limits touring: Above 4.5T
• Motor limits buggy: Above 5.5T
• BEC output: 5–7.4V adjustable
• BEC current: 5A continuous
• Motor connector: Solder
• Battery connector: Solder
• Programmable: Yes with OTA or LCD Program Box Pro**

Contents

• 1x Xerun XR10 Pro Legacy 1/10 150A Sensored Brushless ESC
• 1x Cooling fan
• Factory decals & accessories
• Product manual
