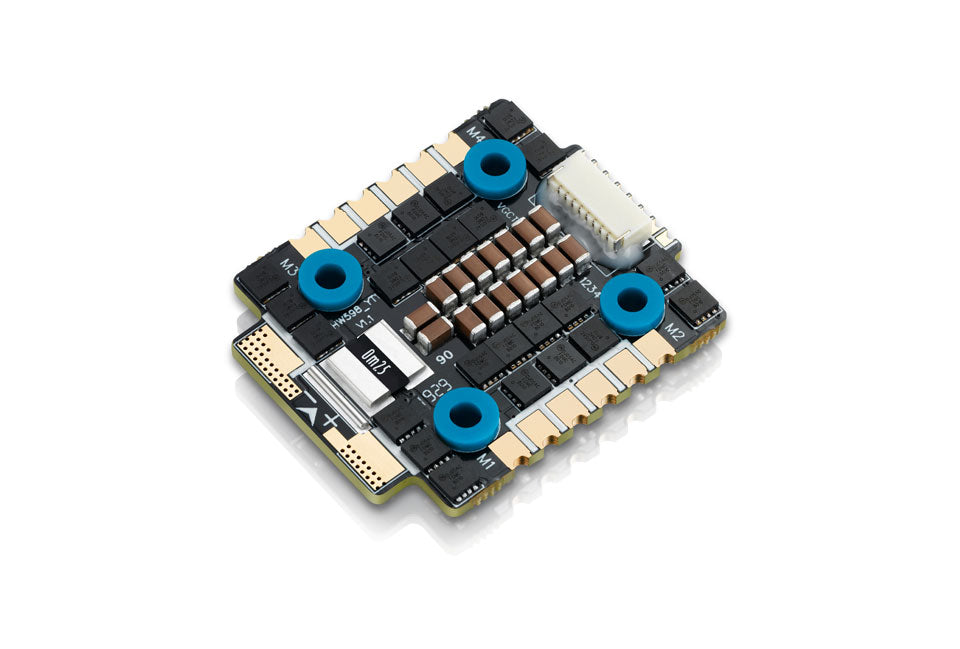

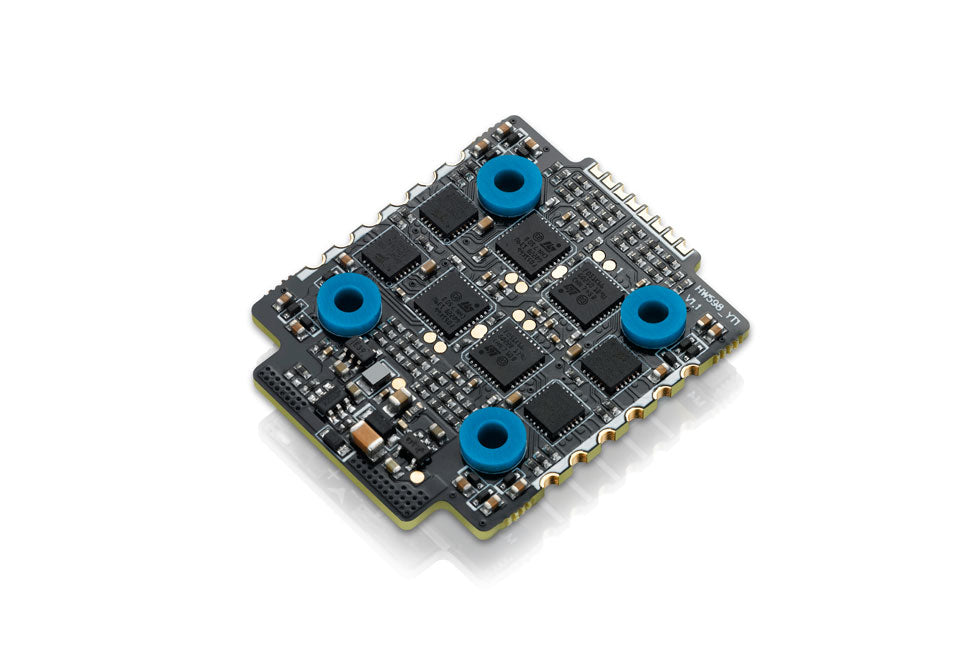

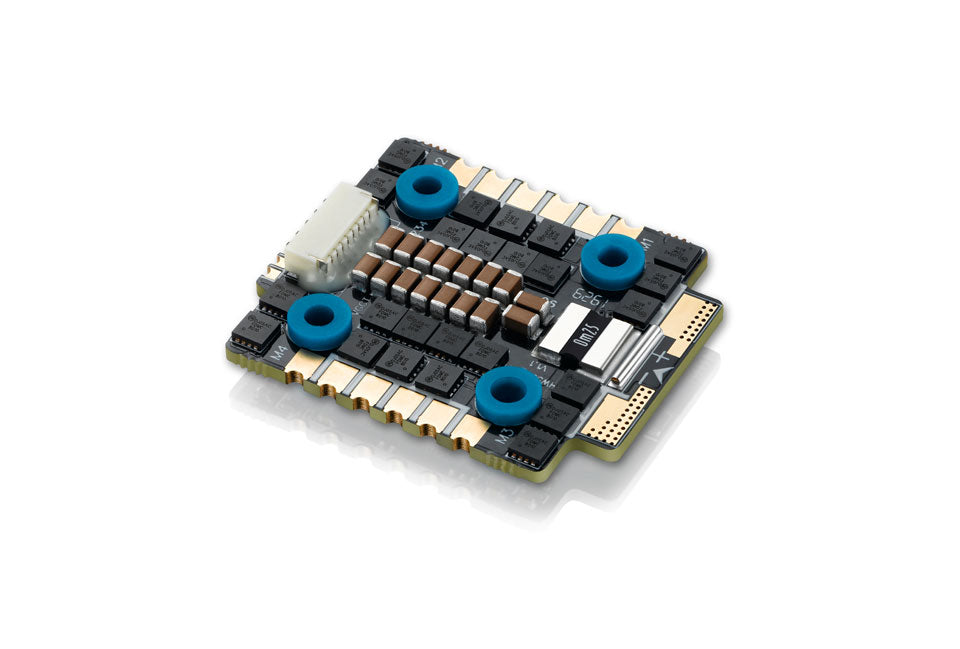

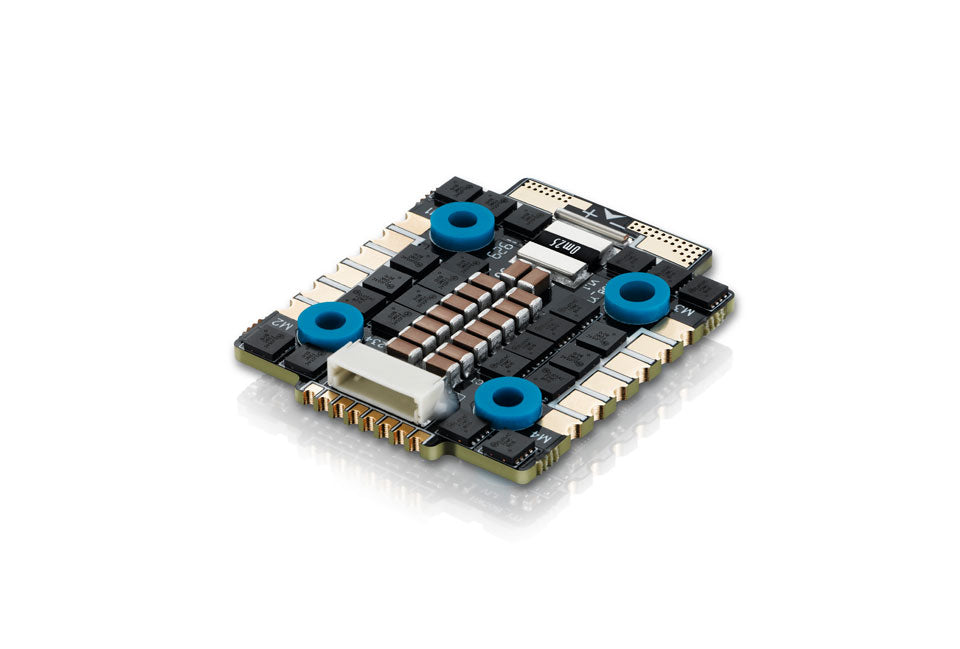

Hobbywing: XRotor Micro 40A 6S 4in1 ESC (20x20)

XRotor Micro 40A 4in1 ESC features 32bit MCU and 3rd-generation BLHeli-32 firmware, handles 6S up to 40A per channel. The built-in voltameter module which allows FC to monitor the battery volt & amp in real time. With this 20x20 ESC makes your electronic stack smaller and be able to shave some grams.

Specifications

• Cont./Peak Current: 40Ax4/ 60Ax4
• Input Voltage: 3-6S Lipo
• BEC output: No

Wires and Connectors

• Input Wires: Red-14AWG-100mm/ Black-14AWG-100mm
• Output Wires: No wires but solder tabs
• Input Connectors: XT60 plug enclosed with package.
• Output Connectors: No

(Note: All the wire length above is the original length not the length you see from the outside.)

Features

• Firmware: Hobbywing_XRotor_BLHeli-32 Version
• ESC Programming: BLHeliSuite32
• Stick Programming supported
• DEO supported
• Throttle Range Calibration supported
• Oneshot125 Mode supported
• Oneshot42 Mode supported
• MultiShot Mode supported
• DShot150/300/600/1200 supported
• Timing supported
• Motor Rotation supported


Size & Weight

• Size: 40x33x5mm
• Weight: 12g

Note: If you have any issues with this product, Hobbywing supports the product directly via there support website https://www.hobbywingdirect.com/pages/rma

Manual: https://www.hobbywing.com/products/enpdf/XRotorMicro40A20x20.pdf
