Team Associated - RC10B6.4 Team Kit - 1/10 2WD Electric Buggy

Regular price $399.99 Sale price $585.99 Unit price per
Shipping calculated at checkout.

UPC: 784695900349

New Features

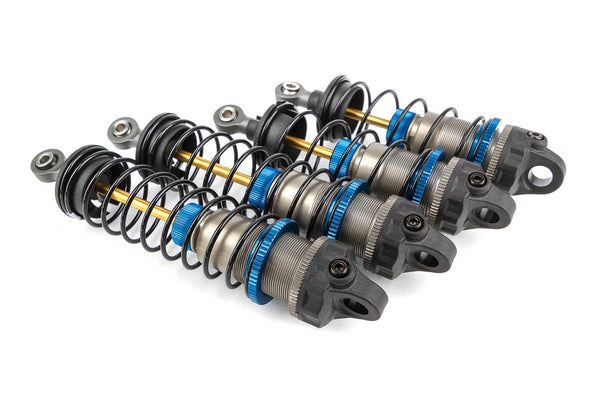

  • New 13mm big-bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling

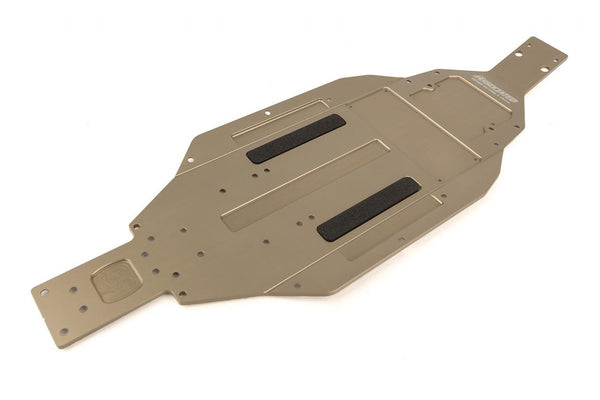

  • New +3mm length aluminum chassis with 22.5 degree kick-up to complement updated front-end geometry and with new shape to reduce chassis scrub with the track surface
  • 20deg., 22.5deg., and 25deg. molded bulkheads included for a complete range of caster and kickup options
  • New adjustable height steering bellcrank and rack system for optimized bumpsteer at all ride heights and caster angles

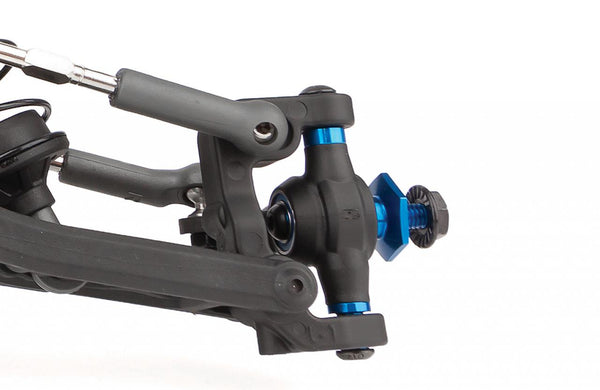

  • New -1mm kingpin offset steering and caster block set for smoother and more predictable steering through the entire wheel throw

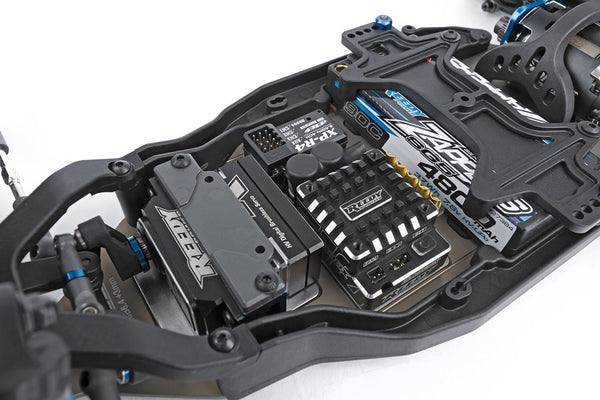

  • New steel RC10B6.4 ESC mounting tray shifted forward in the chassis and with a wider footprint to fit electronics, resulting in a further forward weight bias
  • New front ballstud mount, top plate, and front wing mount to account for the kickup angle change
  • New chassis side rails with 3 optional fan mount locations to choose from depending on chassis length and transmission used

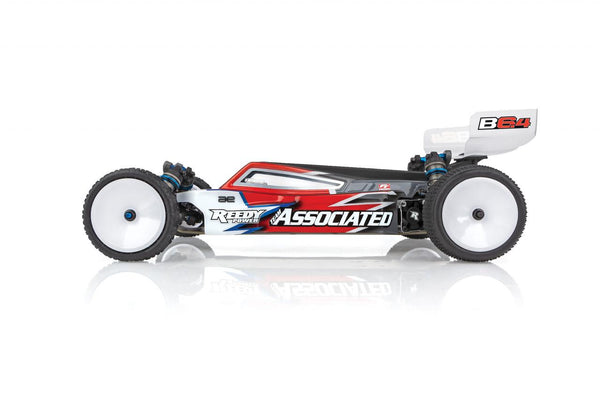

  • New cab-forward design RC10B6.4 bodyshell offered in standard (kit) and lightweight (optional) thickness

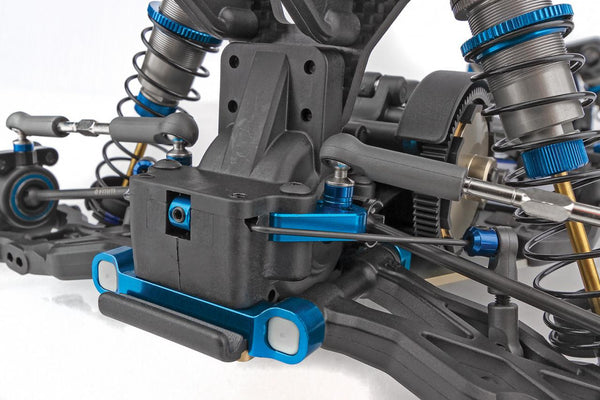

  • Front and rear anti-roll bars included

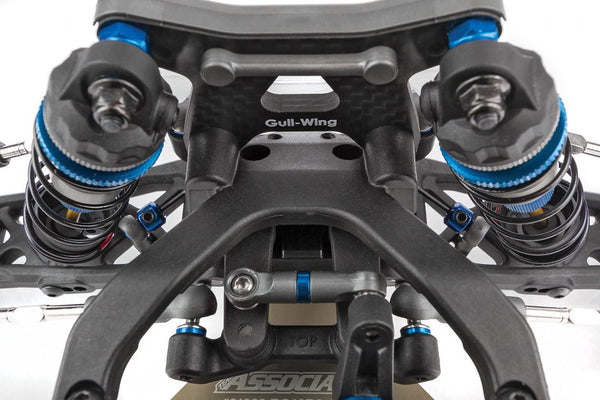

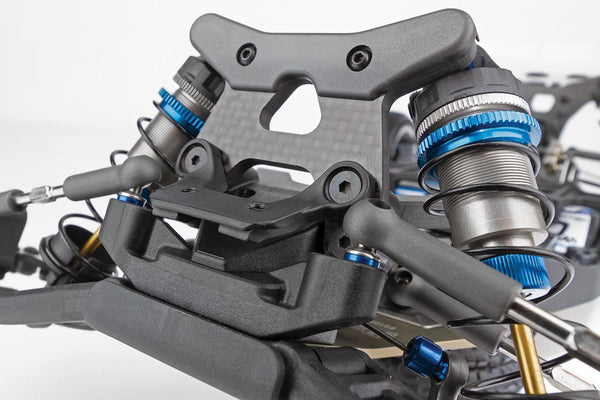

  • 4mm carbon fiber front and rear shock towers with molded protective covers

Legacy Features

  • Steel servo weight included for low CG and forward weight bias
  • Front and rear anti-roll bars included
  • 4mm carbon fiber front and rear shock towers with molded protective covers
  • Aluminum servo mounting system with direct-to-chassis mounts and molded brace with transponder mounting location

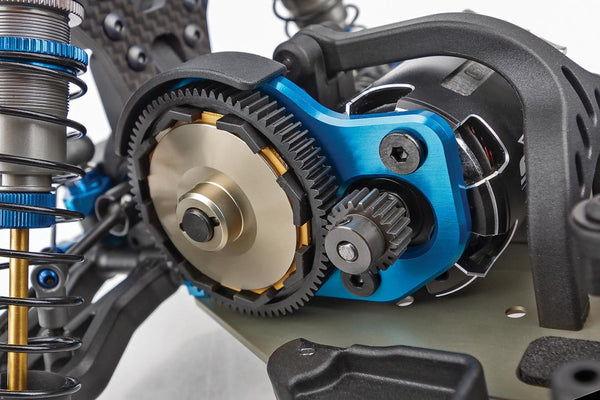

  • Octalock spur gear and 11mm Octalock LCF pads
  • Wide pivot rear aluminum arm mounts for use with 73mm arms and 69mm CVA bones gives more predictable rear traction and an easy-to-drive rear-end feel. Also compatible with 75mm optional arms using the narrowest insert settings.
  • Symmetric rear arms with improved geometry and stiffness that can be flipped to allow a "split" for rear shock mounting position. Arms are available in 73mm and 75mm lengths (73mm included)

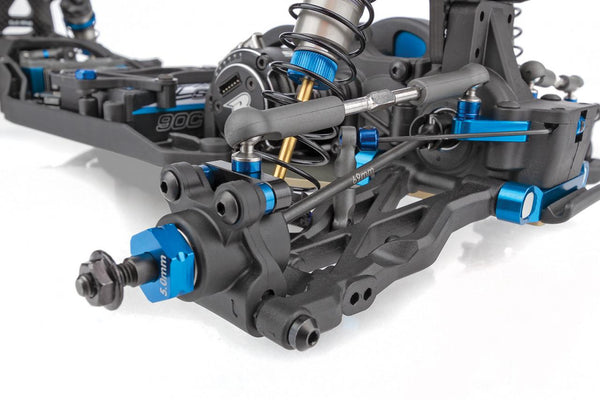

  • Rear hub assembly with modular vertical ball stud camber link mounts and axle height adjustments for precise roll center adjustments
  • Outer rear hinge pins captured with bolt head and locknut for increased durability
  • Rod end battery brace parts and hardware included in kit
  • Molded wire clips included for motor and ESC wires
  • +1 carbon fiber steering arms
  • Black steel LP serrated wheel nuts

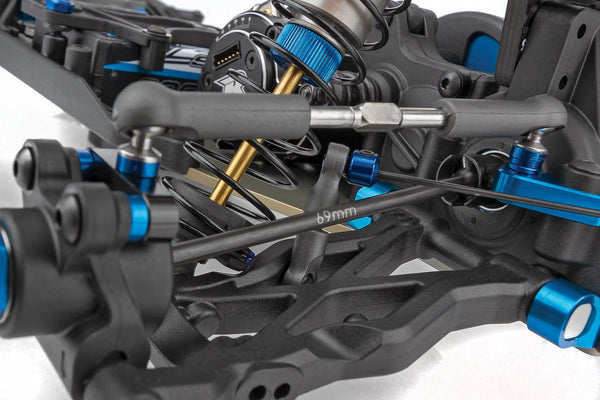

  • 69mm CVA bones for reduced bone plunge and minimized friction at drive pin
  • Clear body and clear wing included
  • Front wing mount and front wing included
  • 5mm aluminum clamping wheel hexes
  • Fluid-filled gear differential
  • Adjustable differential height to allow drive shaft alignment through all ride height & axle height configurations
  • Shocks include X-rings for low friction assembly
  • Aluminum rear ballstud mount with three link positions for maximum adjustability and added strength
  • Lightweight aluminum one-piece top shaft and gear
  • Factory Team ball bearing set with 24 precision ball bearings, now oiled instead of greased for a more efficient drivetrain

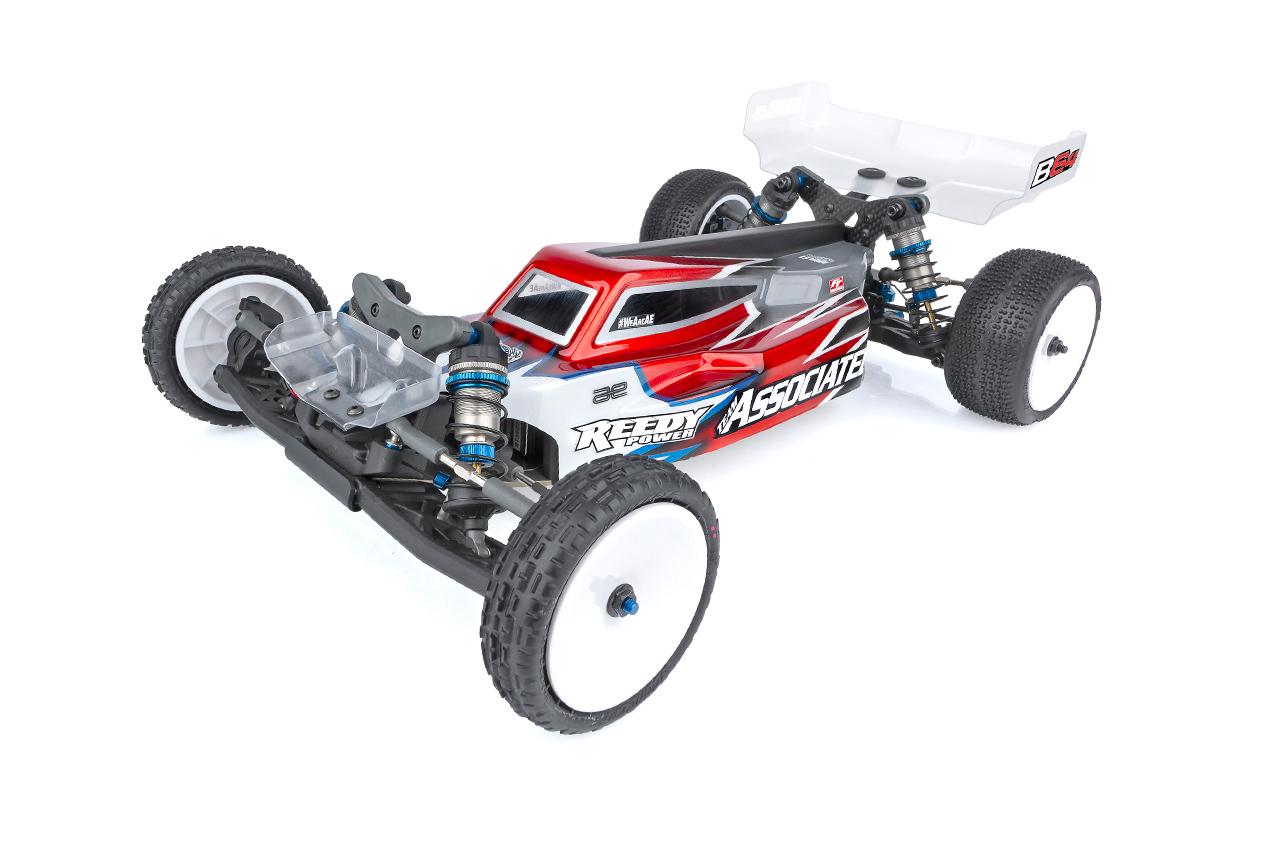

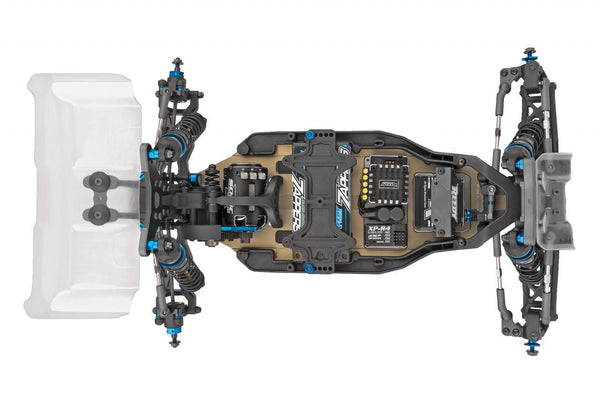

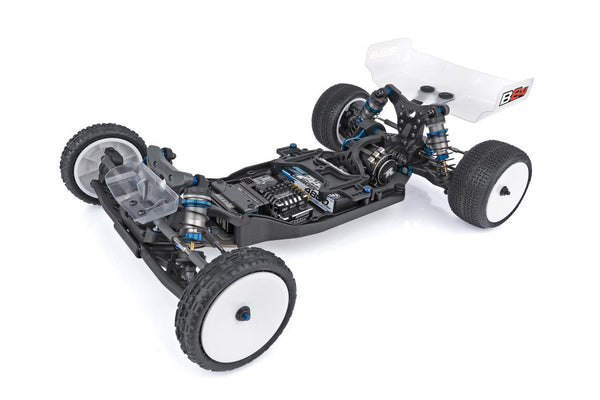

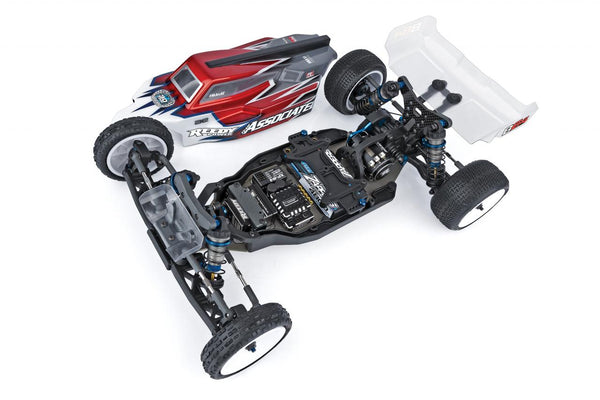

Note: Pictures show a finished kit with with electronics that are not included with this kit. Please see the "Required to complete" list below for all required parts to complete the kit.

Required to Complete:

  • 1:10 scale electric motor and electronic speed control
  • 7.4V-7.6V 2s LiPo with "shorty" battery dimensions.
  • Battery charger
  • 2-channel surface transmitter
  • 2-channel receiver
  • Steering servo
  • Lexan(TM)-specific spray paint for body
  • 1:10 scale off-road wheels and tires
  • Pinion gear
  • Other helpful items: Silicone shock fluid, Silicone diff fluid, FT body scissors (#1737), FT body reamer (#1499), FT hex/nut driver set (#1519), CA tire adhesive (#1597), Hobby knife, Needle nose pliers, Wire cutters, Soldering iron, Calipers or a precision ruler

Please reach out to us for recommendations!

Specifications

  • Power Source: Electric
  • Terrain: Off-Road
  • Body Style: Buggy
  • Scale Size: 1:10 Scale
  • Assembly Level: Kit*
  • Length: 390mm (15.35in)
  • Width: varies
  • Wheelbase: varies
  • Weight: 821g (1.81lbs)
  • Internal Gear Ratio: 2.6:1
  • Drive: 2WD
