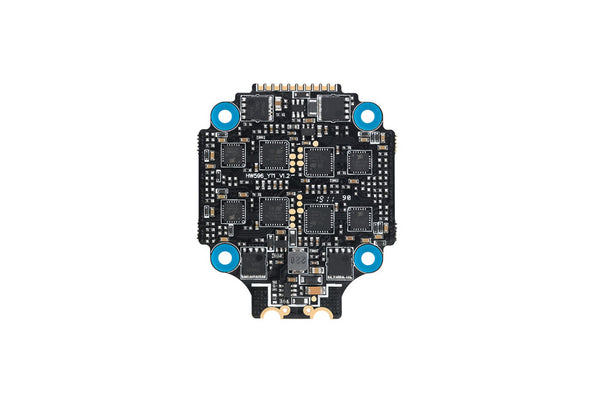

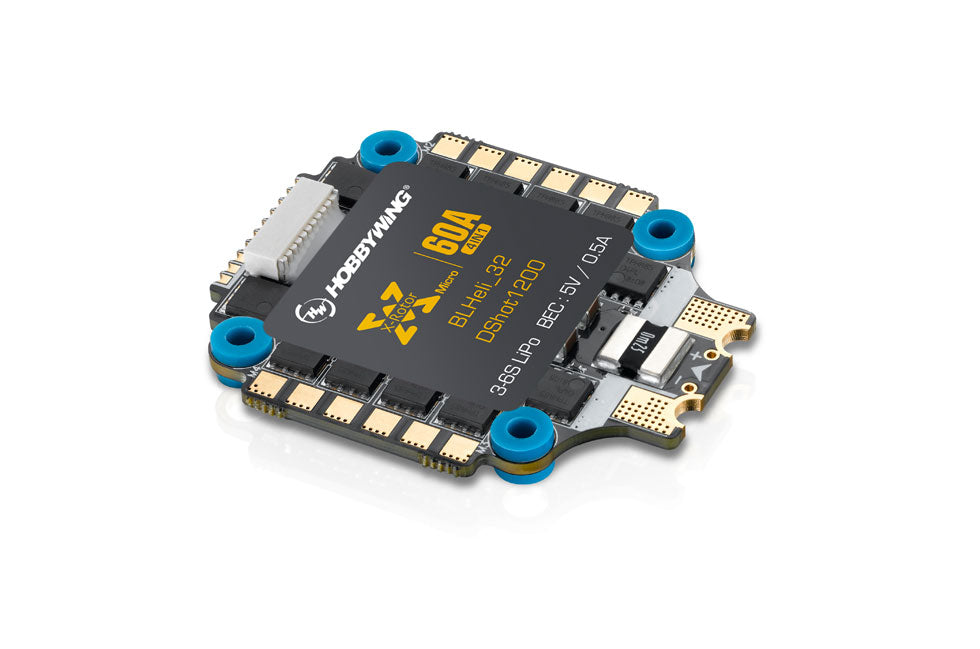

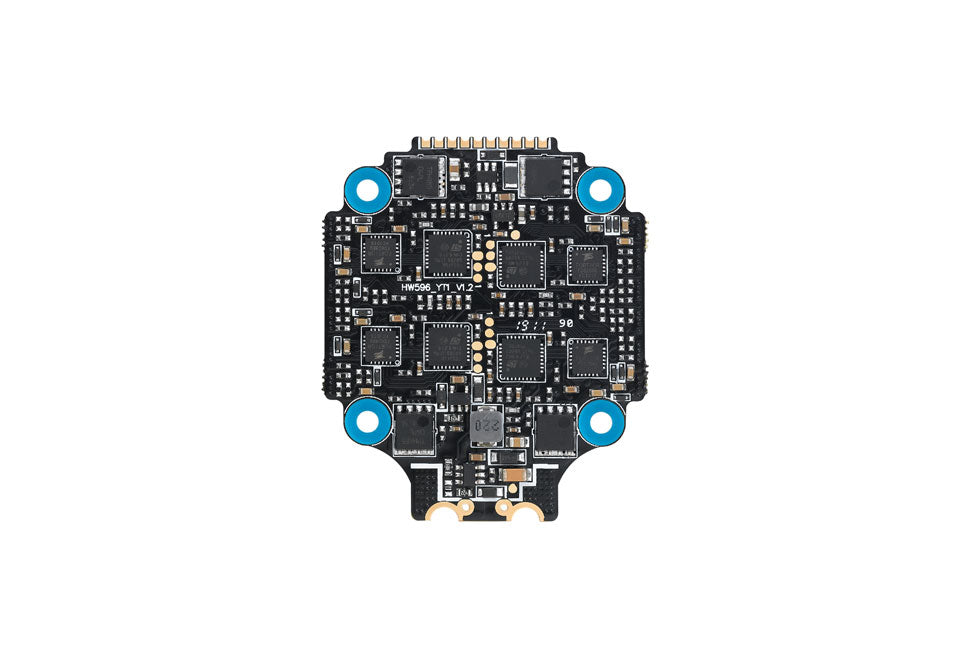

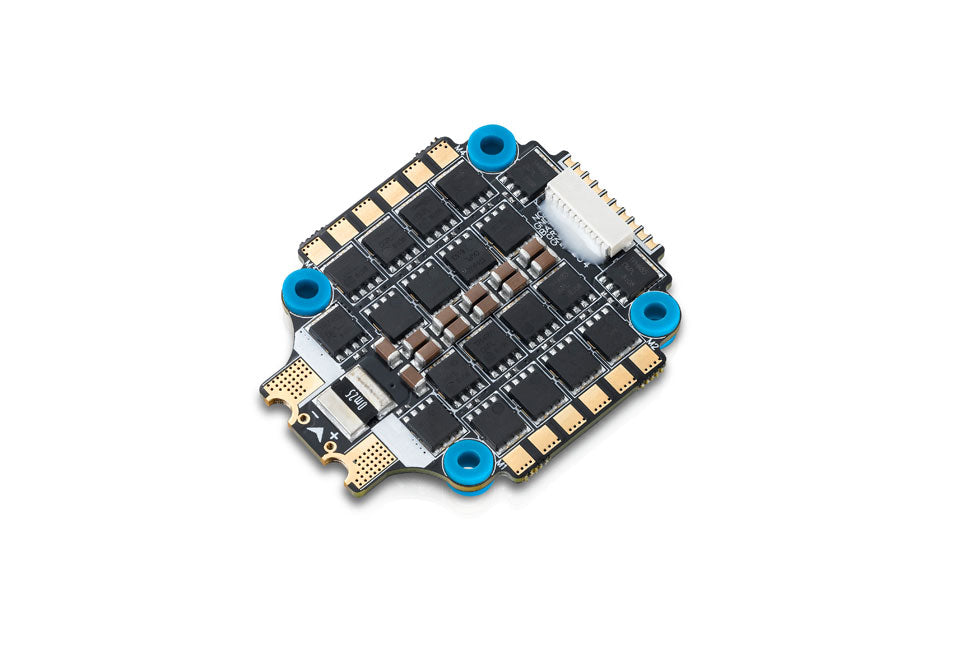

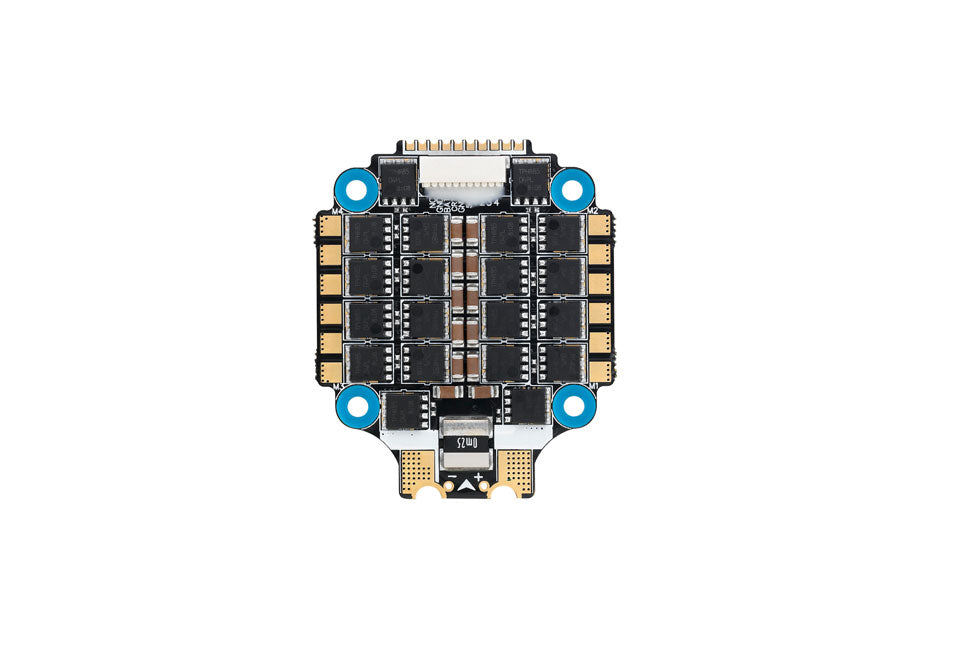

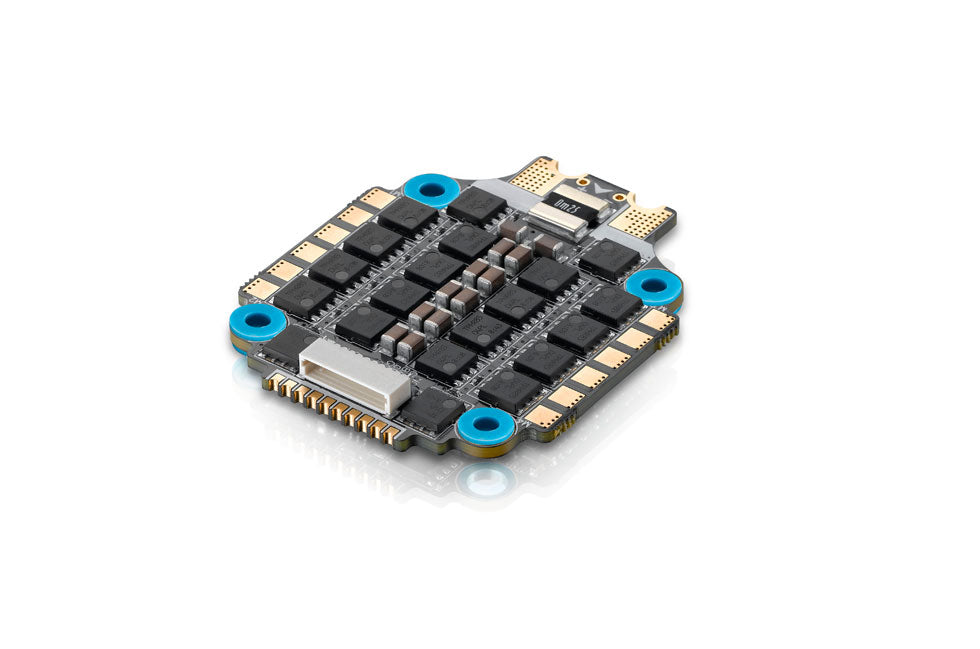

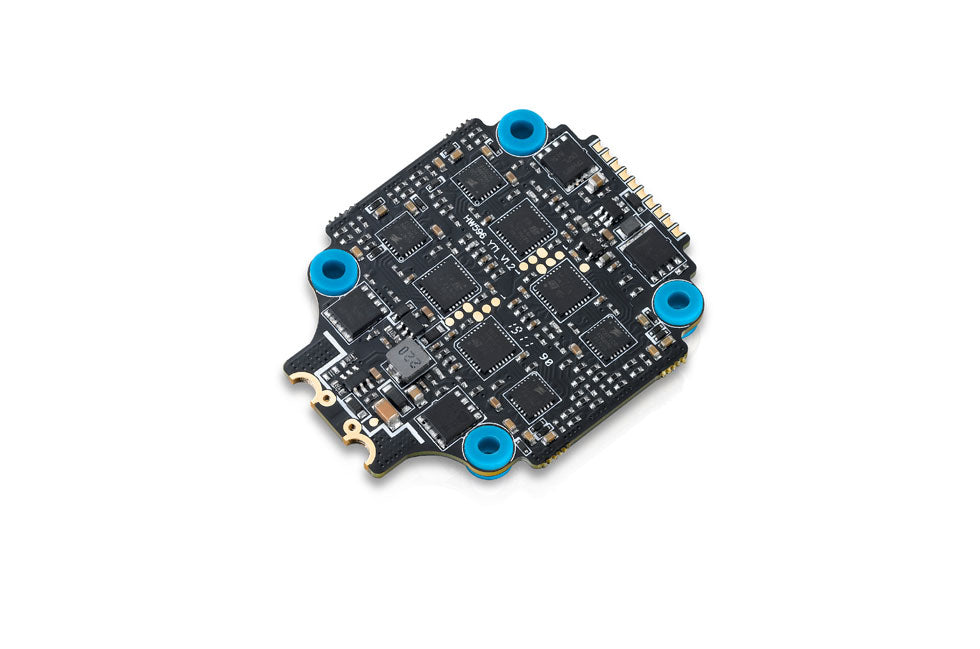

Hobbywing: XRotor Micro 60A 3-6S 4in1 ESC (30x30)

UPC: 088718514748

With a similar size of a FC, the 4IN1 ESC includes 4 high performance 60A BLHeli_32 DShot1200 ESCs, a 5V BEC which can provide power for devices (i.e. FC), and a voltmeter which allows FC to monitor the amp & volt in real time. Two ways for connecting the ESC to a FC: 1) connecting via soft cables, 2) soldering via solder tabs are provided for selection. And the shock-absorbing design of mounting holes effectively reduces the external vibration’s impact on high-sensitivity components and provides great shock-absorbing protection to upper devices (i.e. FC). This ESC is designed for FPV racing.

Specifications

• Cont./Peak Current: 60Ax4/ 80Ax4
• Input Voltage: 3-6S Lipo
• BEC output: 5V & 0.6A

Wires and Connectors

• Input Wires: Red-12AWG-130mm/ Black-12AWG-130mm
• Output Wires: No wires but solder tabs
• Input Connectors: XT60(w/ Wires Soldered on)
• Output Connectors: No

(Note: All the wire length above is the original length not the length you see from the outside.)

Features

• Firmware: Hobbywing_XRotor_BLHeli-32 Version
• ESC Programming: BLHeliSuite32
• Stick Programming:  supported
• DEO:  supported
• Throttle Range Calibration:  supported
• Oneshot125 Mode: supported
• Oneshot42 Mode: supported
• MultiShot Mode: supported
• DShot150/300/600/1200: supported
• Timing: supported
• Motor Rotation: supported


Size & Weight

• Size: 52x42x6.6mm
• Weight: 15g

Note: If you have any issues with this product, Hobbywing supports the product directly via there support website https://www.hobbywingdirect.com/pages/rma.

Manual: https://www.hobbywing.com/products/enpdf/XRotorMico60ADShot1200en.pdf
