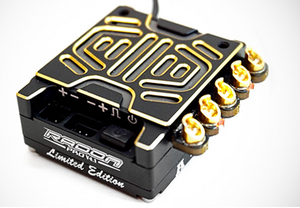

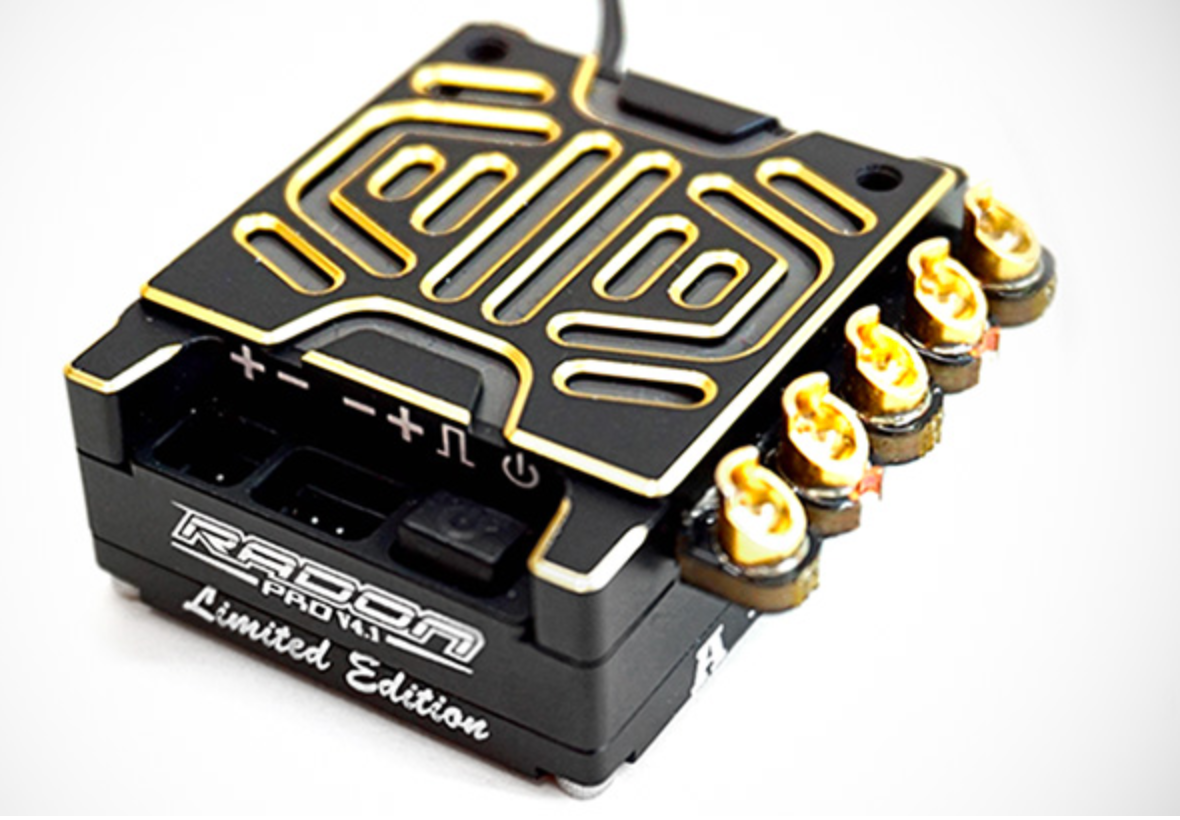

Team Powers - Radon Pro V4.1 - 2S 200Amp - Brushless ESC
Team Powers

Team Powers - Radon Pro V4.1 - 2S 200Amp - Brushless ESC

Regular price $189.99 Sale price $274.99 Unit price per
Shipping calculated at checkout.

LIMITED EDITION

  • Gold Anodized
  • 15.5mm height(1.5mm lower compared to V4 Standard)
  • Updated internal components for better reliability
  • V5.0 software - adds limit power, limit power range, and 32KHz throttle frequency
  • ROAR APPROVED

Includes:

  • Speed Control w/ 12 gauge wires pre-soldered
  • PC link programmer
  • ESC to PC link cable
  • USB to PC link adapter
  • Sensor cable
  • Double-sided servo tape
Features:
  • Ultra-smooth, Precise Throttle and Braking Control
  • Compatible with Sensored/Sensorless Brushless Motors
  • Data Analysis Capability(RPM, Low voltage and ESC temperature)
  • Easy PC Link Interface for Advanced Programming and Updating (wires and adapters included)
  • Built-in one touch On/Off switch with LED
  • Built-in Low voltage cut-off, Overheat protection and signal loss protection
Improvements based on Radon Pro V3:

Hardware:
  • Upgraded higher amperage FET to low the hardware internal resistance
  • Lower IR can lower the speed control operating temperature and increase output power
  • Open case design allows the dissipation of more heat which lowers the speed control operating temperature by 6%
  • The speed control height is only 17mm which is 2mm lower compared to the Radon V3
  • Weight is ~6% lighter
  • Supports Ch3/Ch4 Aux Input signal to control different item function values
  • New PCB layout design with better stability and reliability
Software:
  • Ch3/Ch4 Aux function to control one of the below pre-defined control item function (e.g. IP-Limiter, Throttle Rate, RPM Lock, Initial Brake, Drag Brake, Brake Force, I-BK-RSP, Brake Rate, Boost Timing, Boost Trig LVL, Boost Trig Rate, Turbo Timing, Turbo Delay, Turbo On Rate)
  • Optimized brake function with smoother feel
Specs:
  • Controls: Forward/Brake/Reverse
  • Input Voltage: 2S-3S lipo
  • BEC: 6V/7.4V selection/max ~5A
  • Motor Limit: 4.0T or over
  • Max current: ~200A per phase
