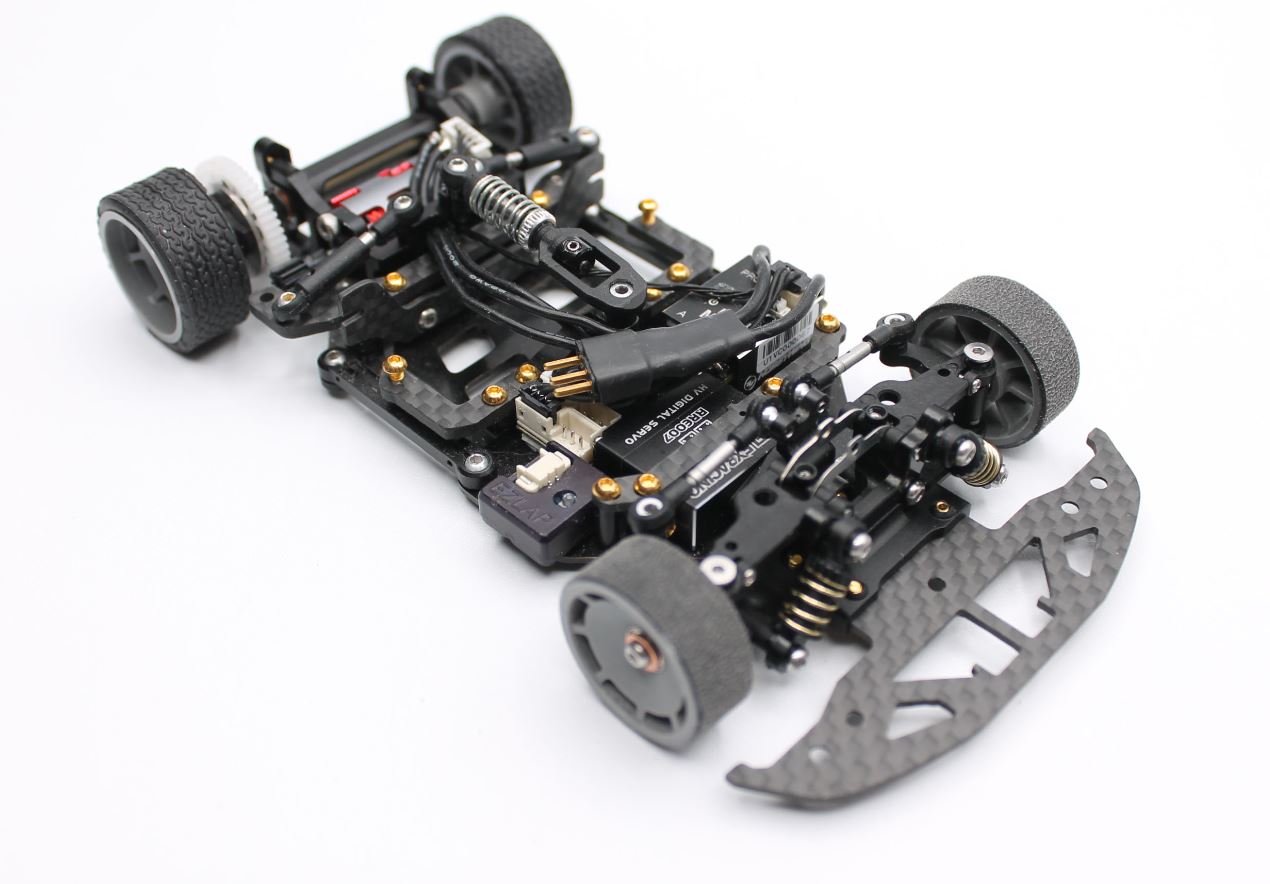

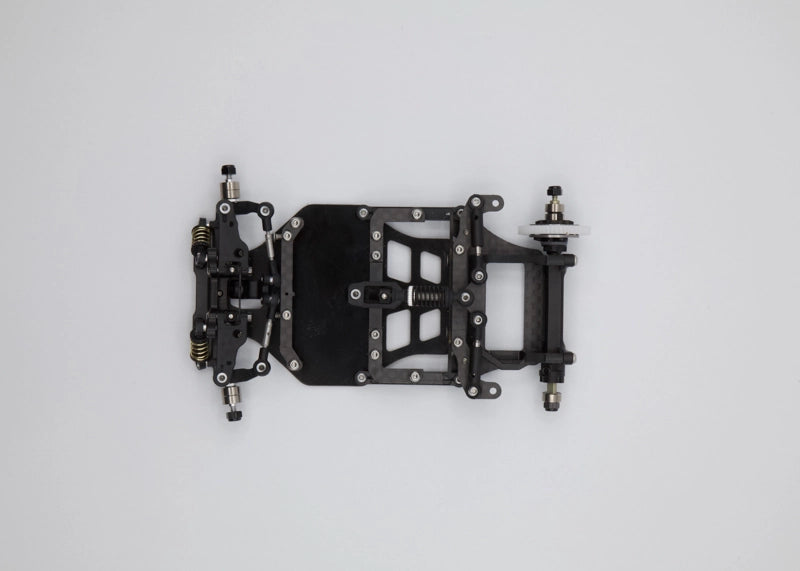

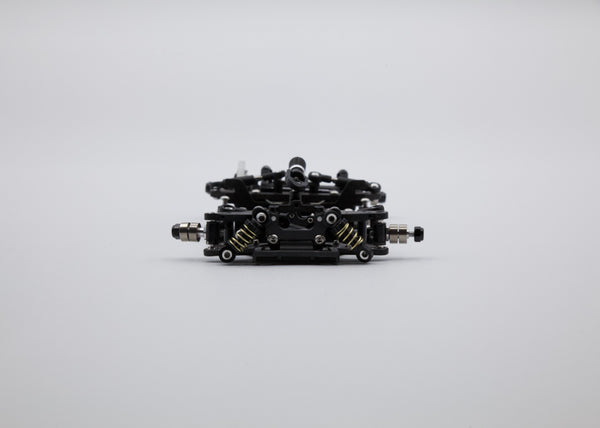

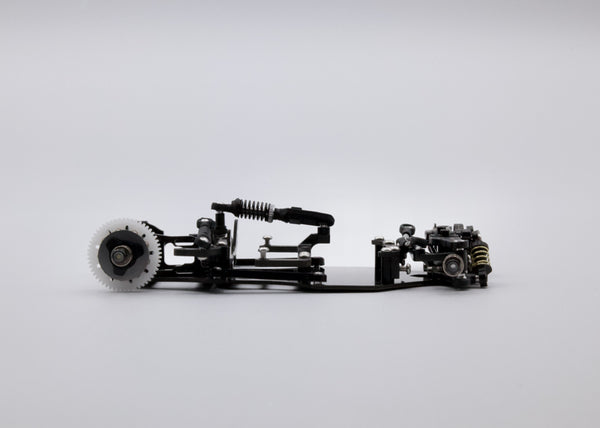

Reflex Racing - RX28 1/28 2WD Kit (Version 2)

Regular price $359.99 Sale price $360.00 Unit price per
Shipping calculated at checkout.
The new updated v2 kit includes:
  • Molded Medium Arms (Black) and corresponding hardware.
  • Updated Motor Mount
  • Molded Front Shocks
  • Reflex Racing Speed Dish Wheels
  • Updated CF Rear Body Clip Mount (1.5mm thickness)
The RX28 Features
  • Lowest CG in the Market
  • Adjustable Rear Slider Pod
  • Adjustable linkages and ball sockets
  • Adjustable Rear Plastic Body Height
  • Vertical Loaded Rear Side Springs
  • Threaded Center Shock with Adjustable Positions
  • Easy Adjustable Front Droop Access
  • Long arm front suspension and Zero Bumpsteer turning geometry with easily adjustable ackerman
  • Machined Delrin Plastic Arms, Pivot, Side Links and Threaded Front Shocks
  • Machined 7075 Aluminum Pod and Axle Carrier, Bulkhead, knuckles, shock mount, shock tower, axles and ball ends and ball studs
  • Ultra Light Rear Ball Differential
  • High Speed Steel Ball Bearings
  • Machined and Coated Brass Chassis
  • Premium Carbon Fiber throughout
Dimensions
  • 98mm Wheelbase
  • 145g-170g weight RTR Depending on body and Electronics
  • 69mm to 78mm Rear Track Width
  • 72mm to 75mm Front Track Width
Need to Complete
  • Body and either front clip or front bumper
  • Wheels and Tires
  • Electronics
    • Motor
    • ESC
    • Receiver
    • Servo (Please note, the provided servo horn is designed to work with the Reflex Racing RRE007 Servo 20T Spline.  Additionally, the  AGFC A06CLS V1, the GL, the PN Anima and the Atomic Servo (it is a little bit of a tight fit but same sized spline) will fit as well.
    • Lipo Battery

Manual: https://www.reflexracing.net/assets/images/RX28/RX28AssemblyGuide.pdf?rdm=2BFB02D78B1B
