Kyosho - Mini-Z - MR-03EVO Chassis Set (W-MM/8500KV)
Kyosho - Mini-Z - MR-03EVO Chassis Set (W-MM/8500KV)
Kyosho - Mini-Z - MR-03EVO Chassis Set (W-MM/8500KV)
Kyosho - Mini-Z - MR-03EVO Chassis Set (W-MM/8500KV)

Kyosho - Mini-Z - MR-03EVO Chassis Set (W-MM/8500KV)

Regular price $169.99 Sale price $269.99 Unit price per
Shipping calculated at checkout.

Part Number: 32799

W-MM configured chassis equipped with a high-performance 8500KV motor, EVO chassis set is the perfect step up from the Readyset. First released in December 2018 the MR-03EVO series delivered amazingly fast processing speed and featured a separate receiver board that provided the flexibility of transmitter choice. Two years after its stunning debut, the MR-03 EVO lineup has been strengthened with a race-based chassis. A 8500KV motor is combined with a standard specification chassis that you can customize to your liking with various optional parts available. While retaining the full bearing specifications and Ball Diff Set II, align the base chassis with the new standard speed range and open a wider group of users.

Required to Run

  • Receiver unit
  • Transmitter compatible with receiver unit
  • Auto Scale Collection body (body set, wheels, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter

Compatible Rx Modules

  • No. 82040 for Kyosho KT-18, EX-6, EX-6R and KO EX-2, EX-RR
  • No. 82041 for Kyosho KT-531P, KT432PT
  • No. 82042 for Futaba 10PX, 7PX, 7XC, 4PM
  • No. 82043 for KO Propo EX-NEXT, MC-8


  • First MINI-Z MR-03 Chassis Set that adopts separate ESC and receiver design.
  • Includes new KYOSHO SPEED HOUSE XSPEED 41 brushless motor (4100KV).
  • I.C.S manager features detailed steering and throttle parameter adjustment, as well as switching between brushless and brushed modes.
  • Powered by independent CPUs for ESC and receiver, increased internal processing speed contributes to precision steering and throttle control.
  • Equipped with ball bearings and blue anodized Ball Diff Set II.

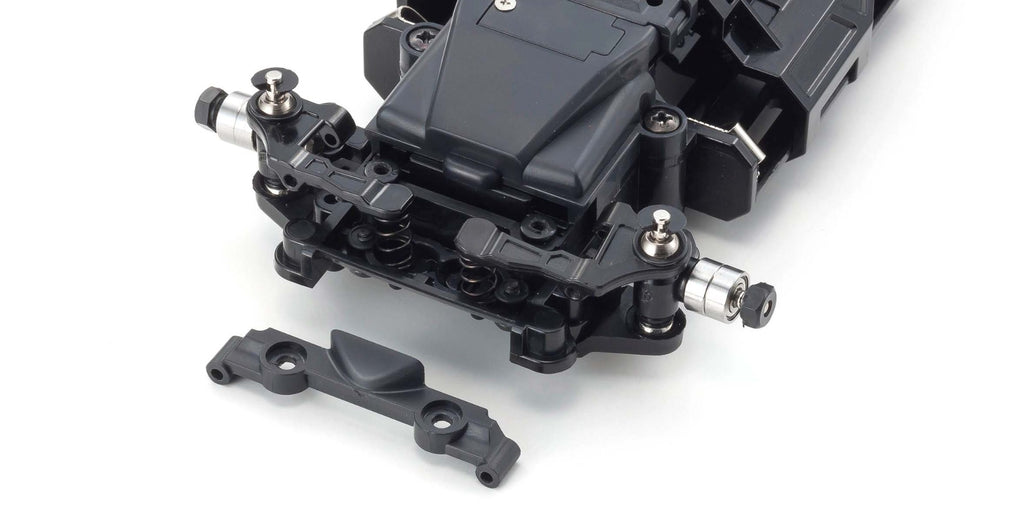

  • Newly designed separate receiver cover and front upper arm mount make tread adjustment easier.
  • Compatible with optional parts for the MR-03 chassis.
  • Including newly developed front upper arms with caster angles (1 deg., 2 deg. and 3 deg.)
  • Special version equipped with a blue colored chassis and parts, which is only available in this chassis set.


  • Length: 123.5mm
  • Width: 70-76mm
  • Height: 35mm
  • Wheelbase: 98mm(L)
    • Motor Mount: MM
    • Tread:
      • Front: 61.5-65.0mm
      • Rear: 61.5-65.0mm
    • Tires
      • Front: 25×8.5mm (sold separately)
      • Rear: 25×11mm (sold separately)
    • Gear Ratio: 7.3, 6.3, 5.5, 4.9:1
    • Weight: 135g (Body / tires / wheels not included, battery included.)

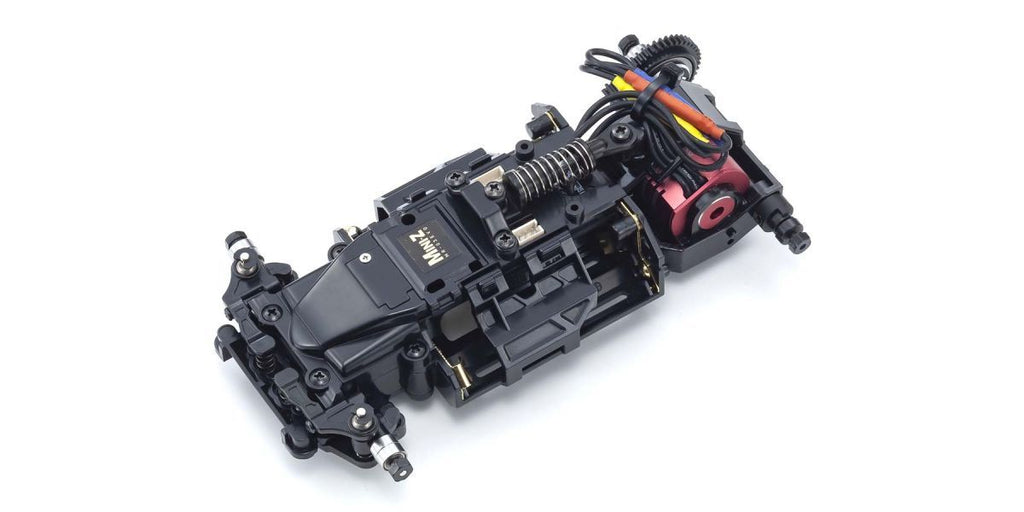

    • MR-03W-MM Factory assembled chassis with KYOSHO SPEED HOUSE KV4100 brushless motor
    • Parts set for changing front tread
    • 6T, 7T, 8T, 9T Pinion gears
    • Wheel wrench
    • Tools for pinion gears
    • Spare wheel nuts
