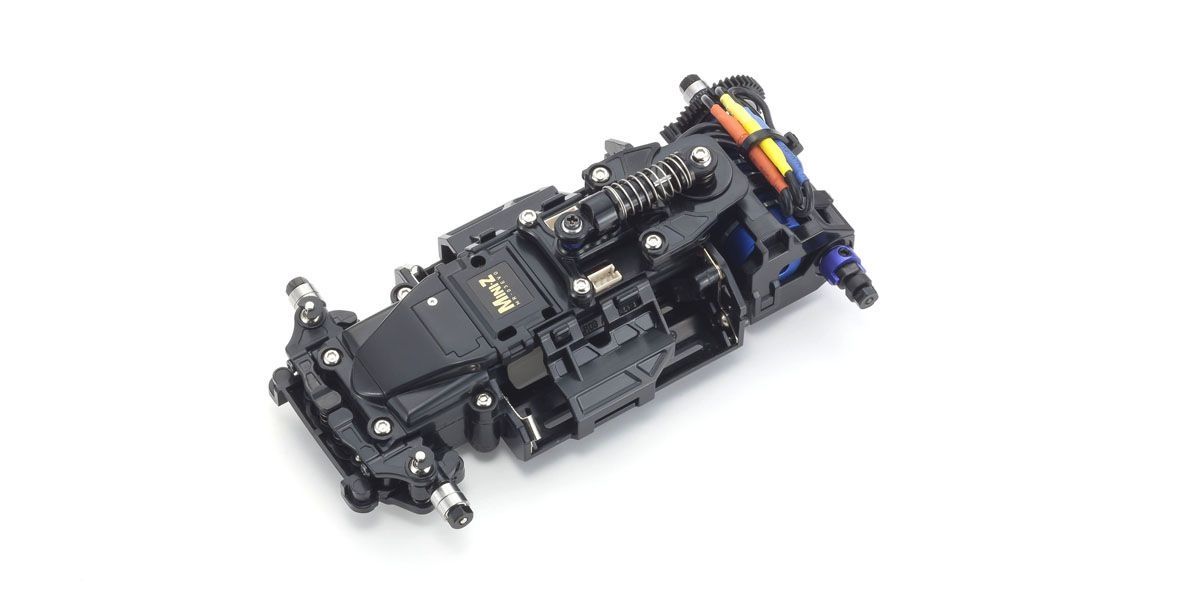

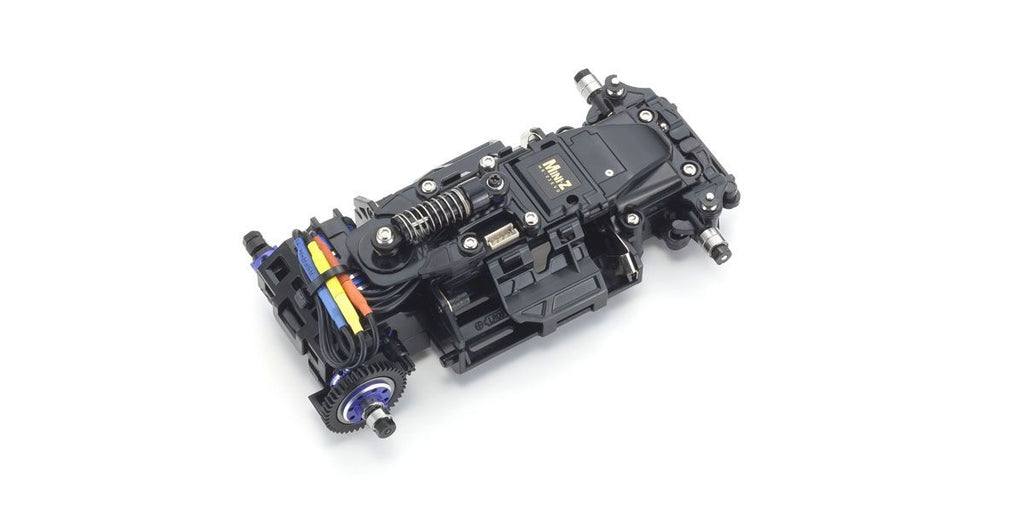

Kyosho - Mini-Z - MR-03EVO SP Chassis Set (N-MM2/5600KV)
Kyosho - Mini-Z - MR-03EVO SP Chassis Set (N-MM2/5600KV)
Kyosho

Kyosho - Mini-Z - MR-03EVO SP Chassis Set (N-MM2/5600KV)

Regular price $169.99 Sale price $269.99 Unit price per
Shipping calculated at checkout.

Part Number: 32793

The existing MINI-Z is installed receiver, servo and ESC by 1 controlled PCB unit. But the MR-03EVO Chassis Set has separate receiver as 1 unit. By purchasing and installing an optional receiver unit depending on applied transmitter, it allows for Kyosho (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO Propo (EX-2/EX-RR) and Futaba (T7PX/T7XC/T4PM) transmitters. Further, by installing new CPU which control servo function only, it improves internal feedback of positioning control which is 11.2 times faster than existing VE PRO models. The developed control program realizes the best ever steering feeling in the MINI-Z history. The ESC also improves the response speed in maximum 100 times faster than existing VE PRO models. The included KYOSHO SPEED HOUSE XSPEED 56 (5600KV) brushless motor features a one-piece aluminum case that provides efficient heat dissipation for superior cooling. Unlike previous chassis sets, you can change to the brushed motor mode though the I.C.S manager to install an optional brushed motor. The I.C.S manager also allows more precise setting adjustments to be made. Advanced performance features in the MR-03EVO take the MINI-Z racing experience to the next level!

The SP edition is equipped with nickel plated hex screws and an oil shock (MZW432) as standard. Also, the ball diff is specially finished with blue anodizing. Furthermore, new upper arms with various caster angles (1 deg./2 deg./3 deg.) are included allowing wider setting range.

Required to Run

  • Receiver unit
  • Transmitter compatible with receiver unit
  • Auto Scale Collection body (body set, wheels, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter

Compatible Rx Modules

  • No. 82040 for Kyosho KT-18, EX-6, EX-6R and KO EX-2, EX-RR
  • No. 82041 for Kyosho KT-531P, KT432PT
  • No. 82042 for Futaba 10PX, 7PX, 7XC, 4PM
  • No. 82043 for KO Propo EX-NEXT, MC-8

Specifications

  • Length: 115.5mm
  • Width: 70-76mm
  • Height: 35mm
  • Wheelbase: 94mm(L)
    • Motor Mount: MM2
    • Tread:
      • Front: 61.5-63.0mm
      • Rear: 61.5-63.0mm
    • Tires
      • Front: 25×8.5mm (sold separately)
      • Rear: 25×11mm (sold separately)
    • Gear Ratio: 7.3, 6.3, 5.5, 4.9:1
    • Weight: 135g (Body / tires / wheels not included, battery included.)
    • Motor KYOSHO SPEED HOUSE/XSPEED 56 (5600KV)

    Contents

    • MR-03EVO-N-MM2 Factory assembled chassis with KYOSHO SPEED HOUSE XSPEED 5600KV brushless motor
    • Parts set for changing front tread
    • 6T, 7T, 8T, 9T Pinion gears
    • Wheel wrench
    • Tools for pinion gears
    • Spare wheel nuts
