Hobbywing - XRotor Flight Controller F7 - 30x30 or 20x20

Regular price $49.99 Sale price $69.00 Unit price per
Shipping calculated at checkout.

UPC: 032733833907

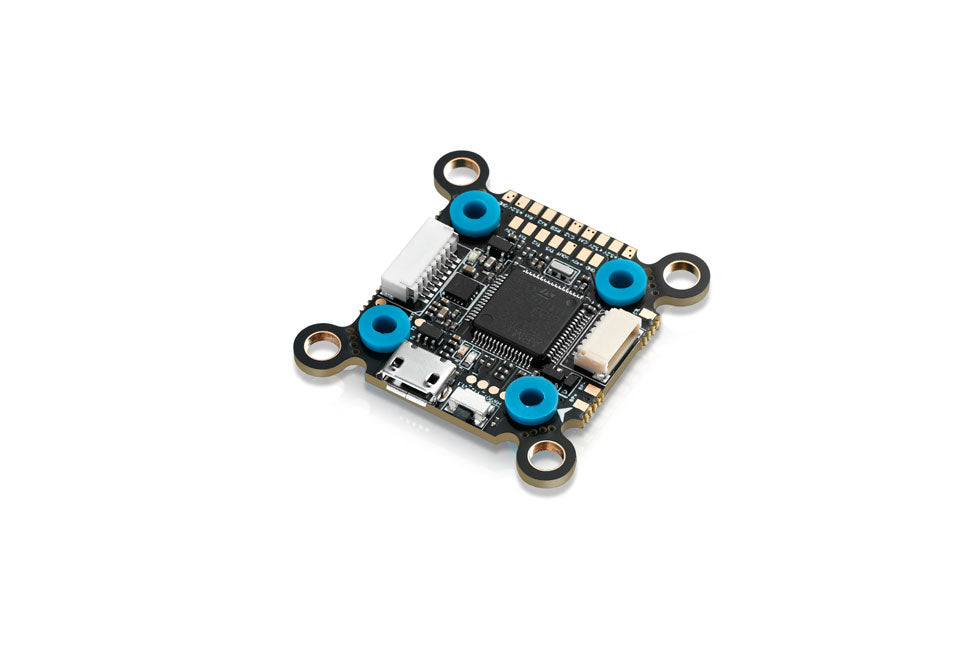

Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor. It can perfectly support bidirectional DShot digital throttle communication. The integrated OSD chip can adjust and set each OSD parameters in FC parameter adjustment software and radio, which is simple and convenient. On-board large capacity Flash memory chip can record and store more flight logs, which is convenient for users to debug aircraft based on flight data.

Features

  • Firmware: HOBBYWING_XROTORF7CONV
  • FC Programming:  Supported
  • Programming via: Betaflight/Cleanflight-configurator
  • Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot,
  • Dshot150, Dshot300, Dshot600, PROSHOT1000
  • Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
  • OSD: Built-in
  • Voltage Monitoring: Supported
  • Current Monitoring: Supported
  • External Buzzer: Supported
  • LED Control: Supported
  • BEC: 5V @ 1.5A ; 10V @ 1.5A
  • USB Port: Micro USB
  • Size: 32x32mm
  • Weight: 3.3g
Note: If you have any issues with this product, Hobbywing supports the product directly via there support website https://www.hobbywingdirect.com/pages/rma.
