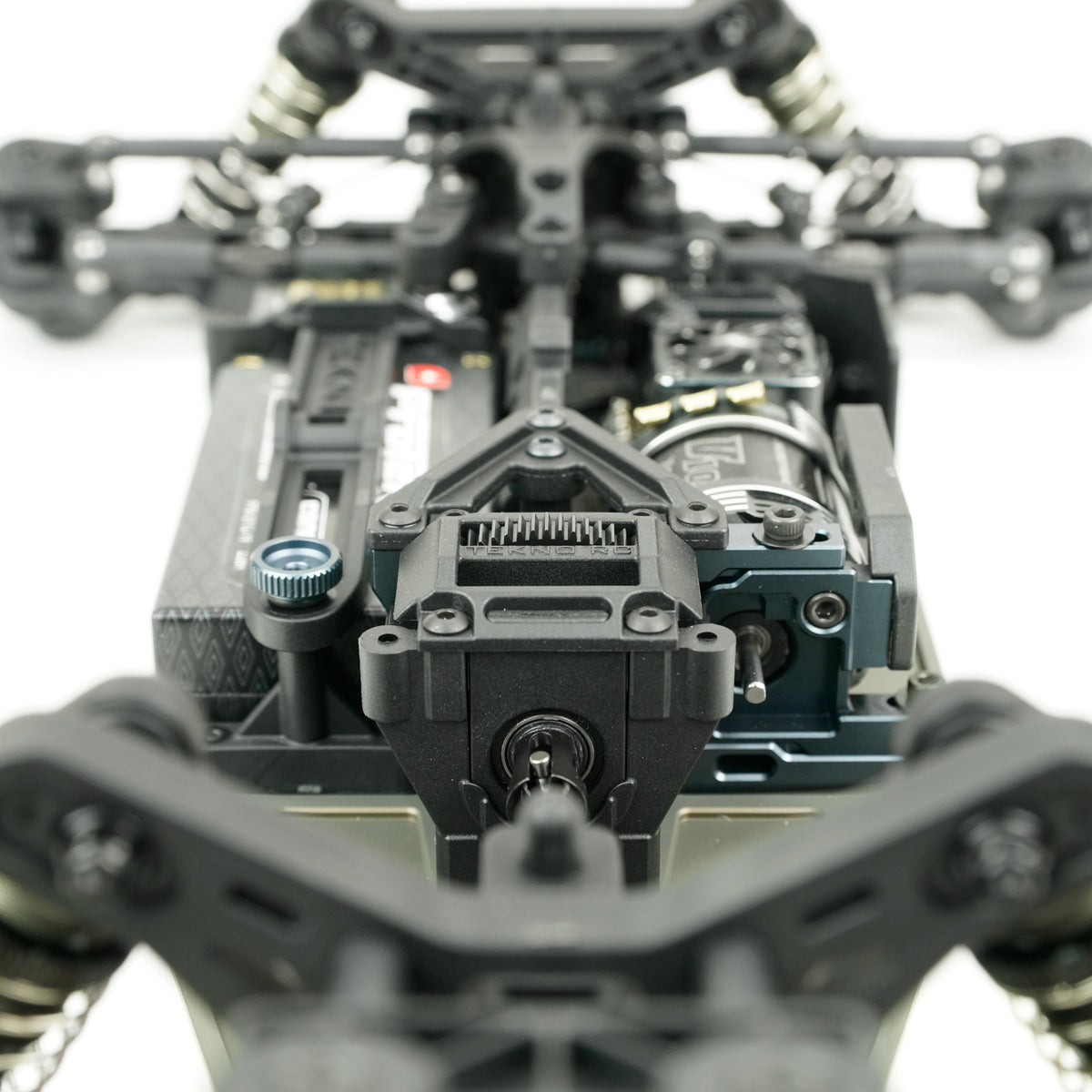

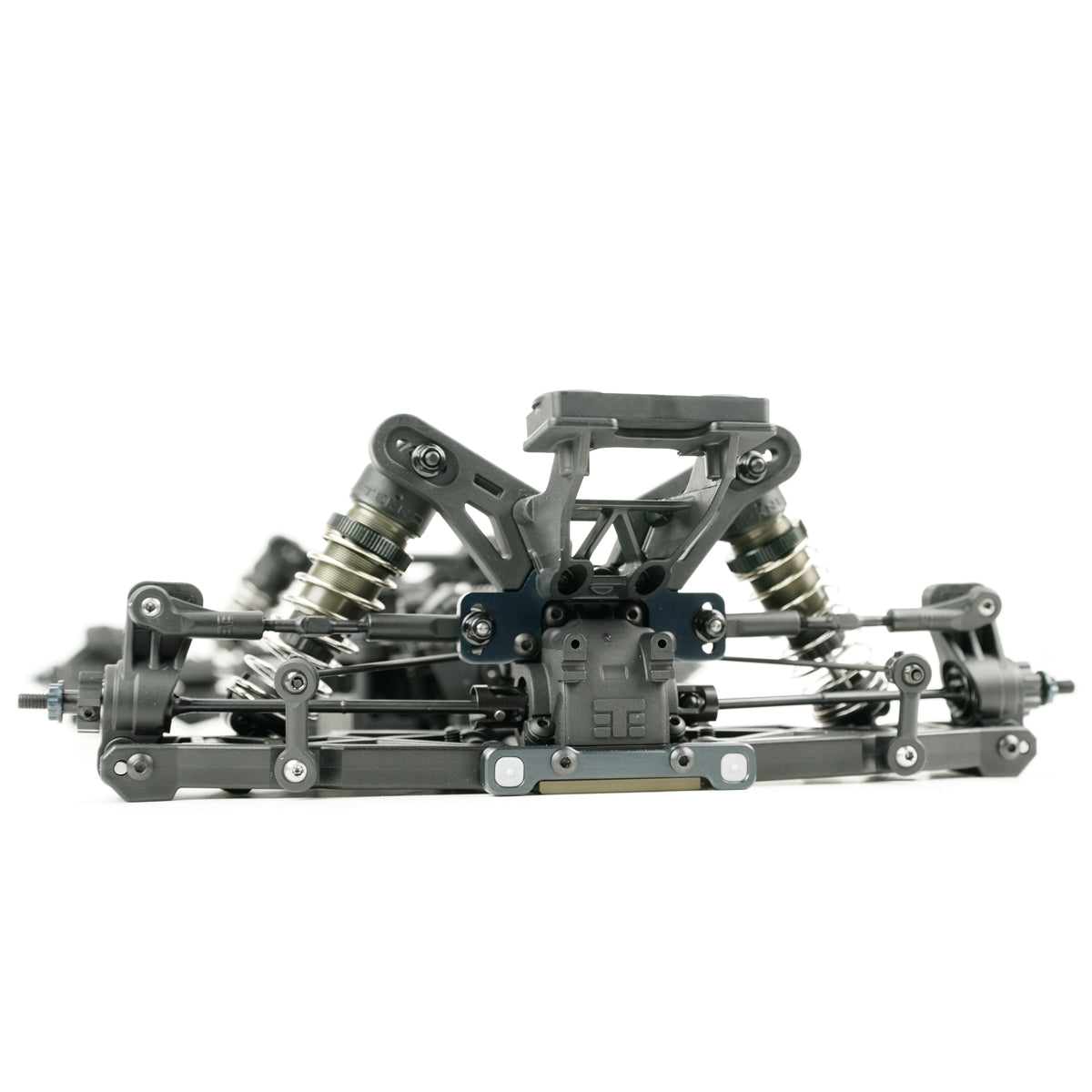

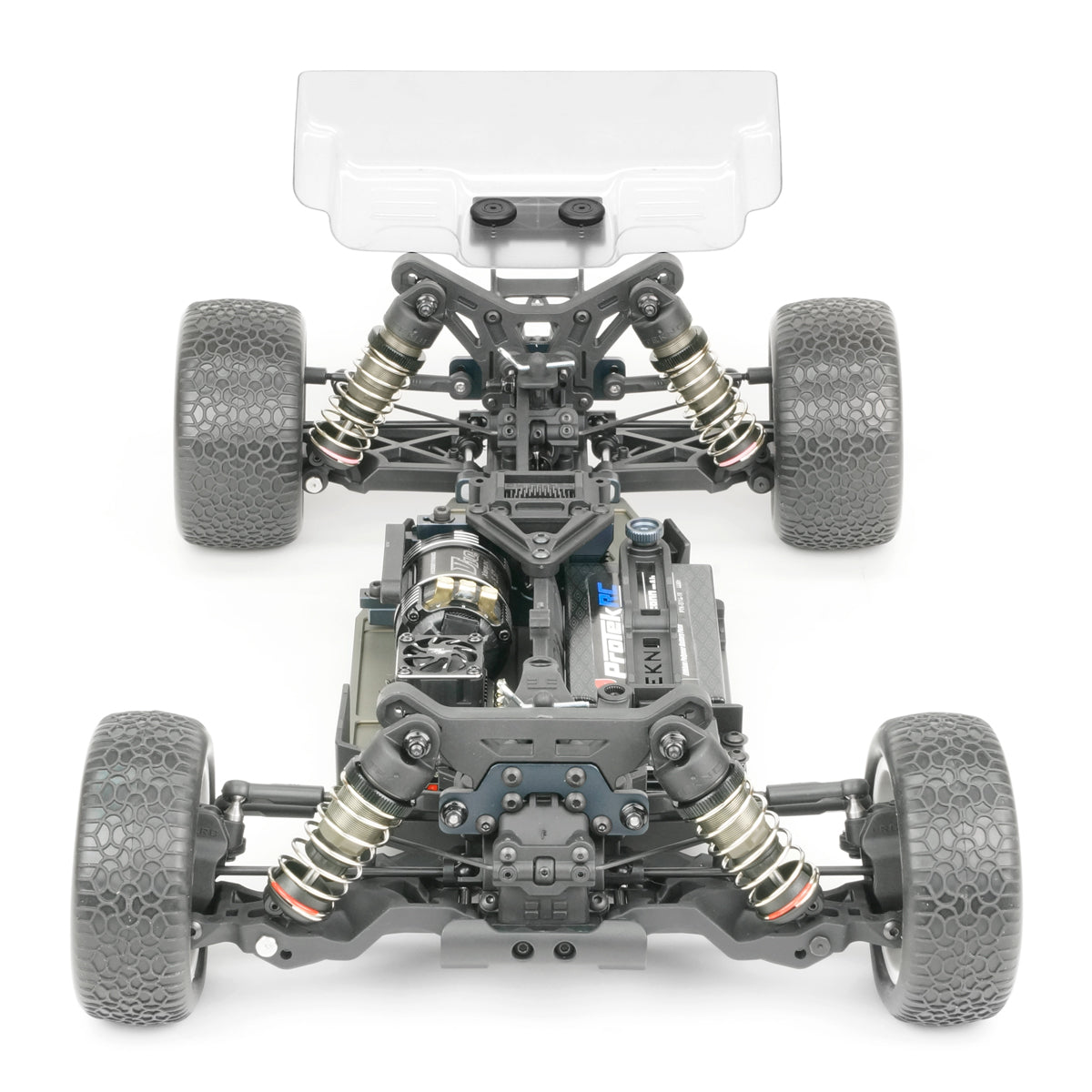

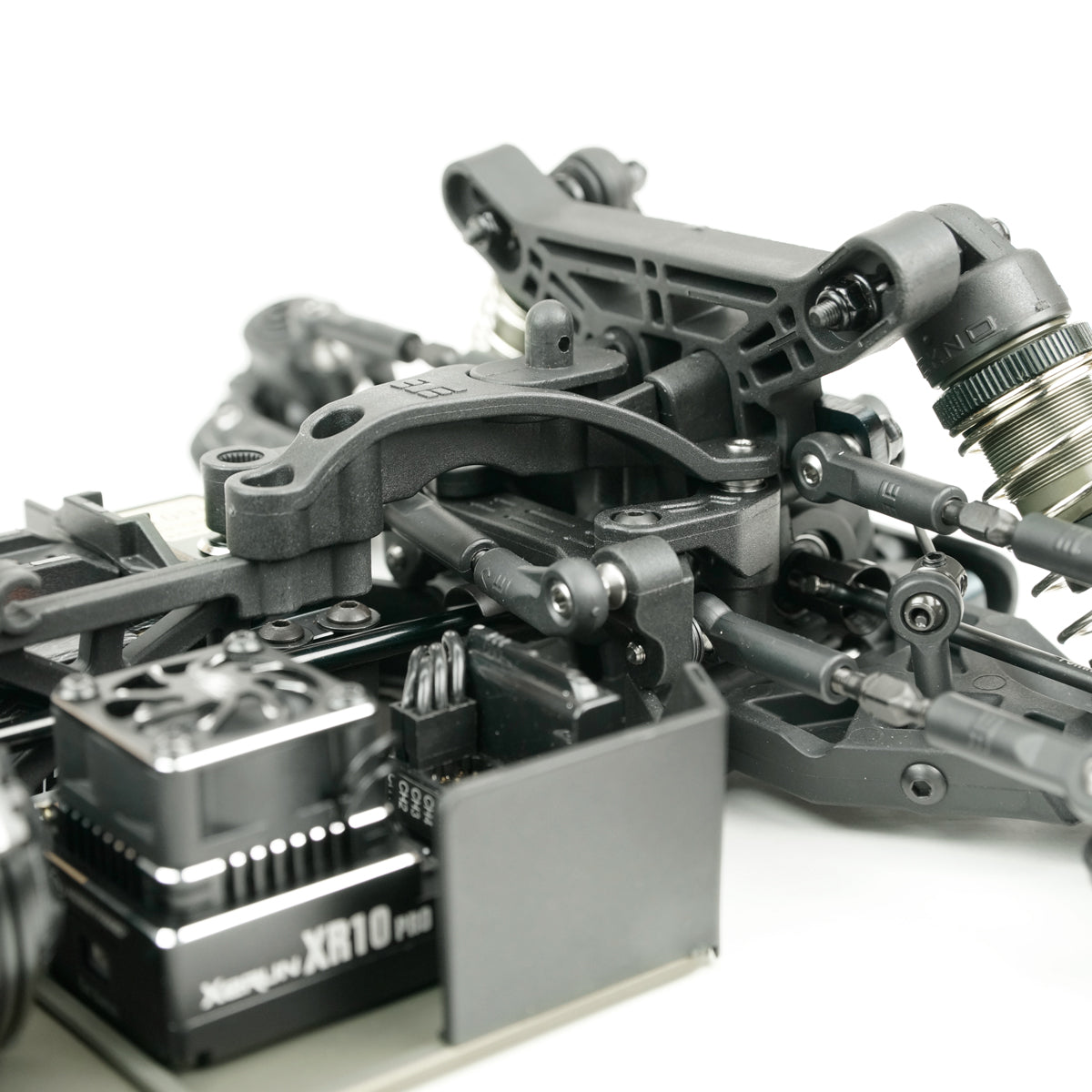

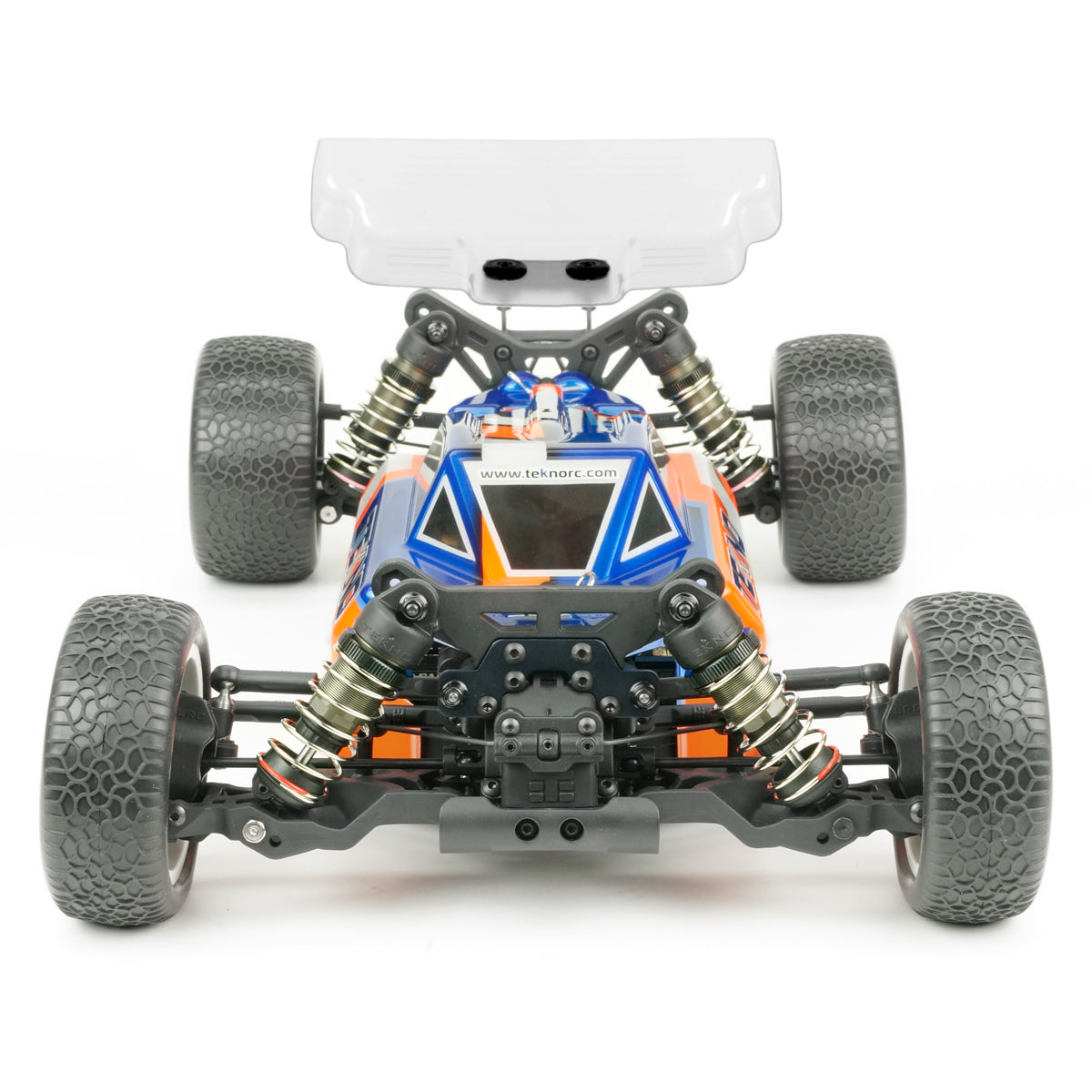

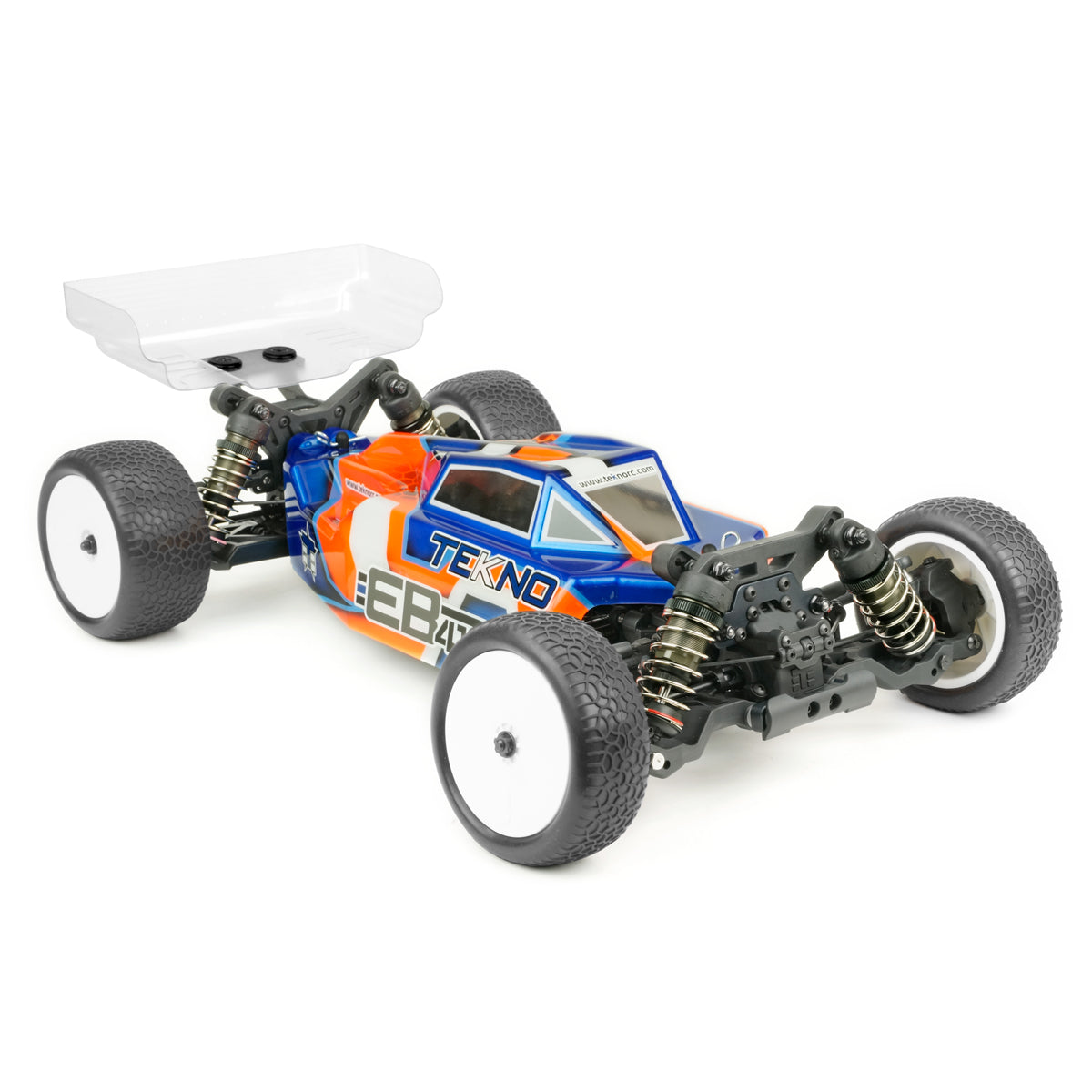

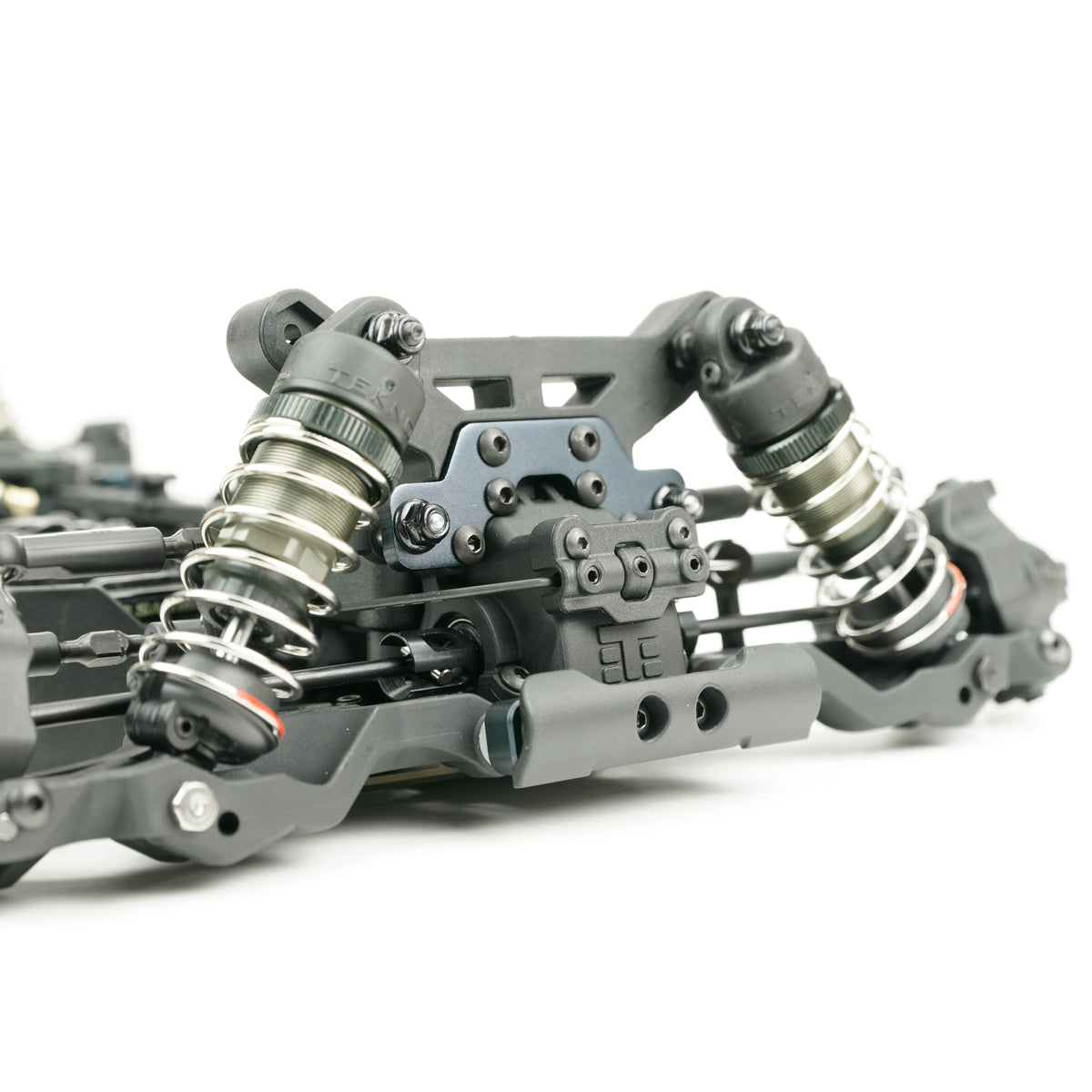

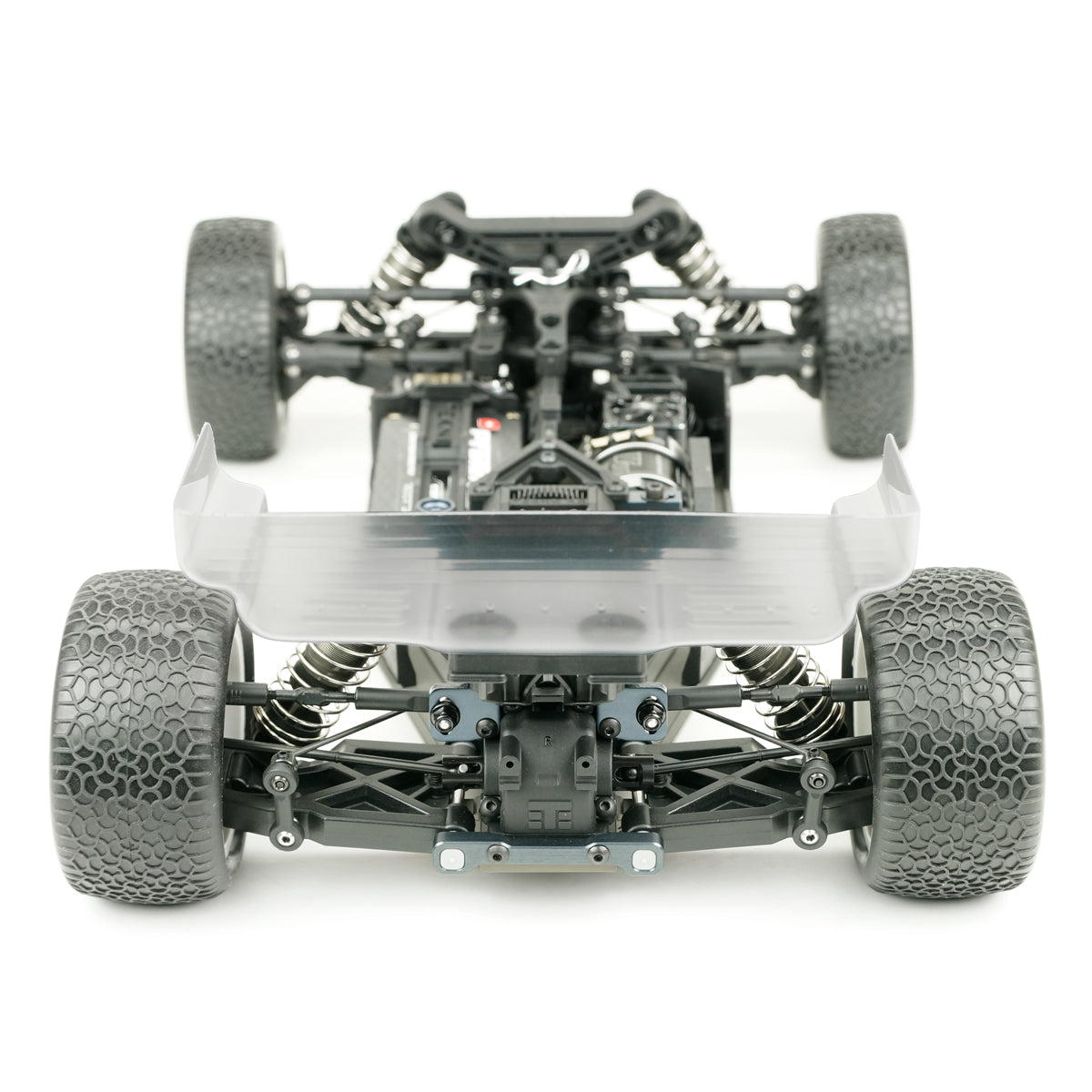

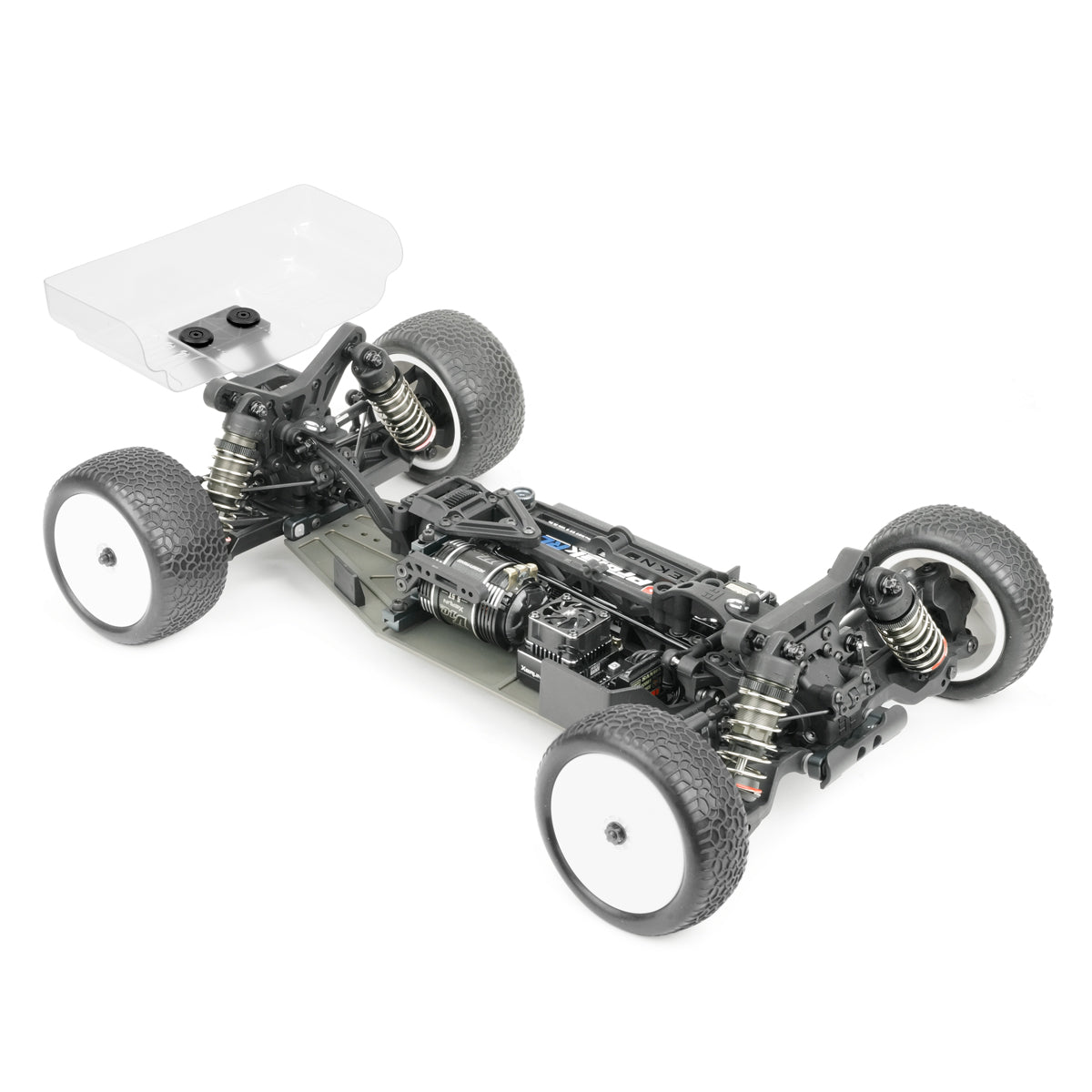

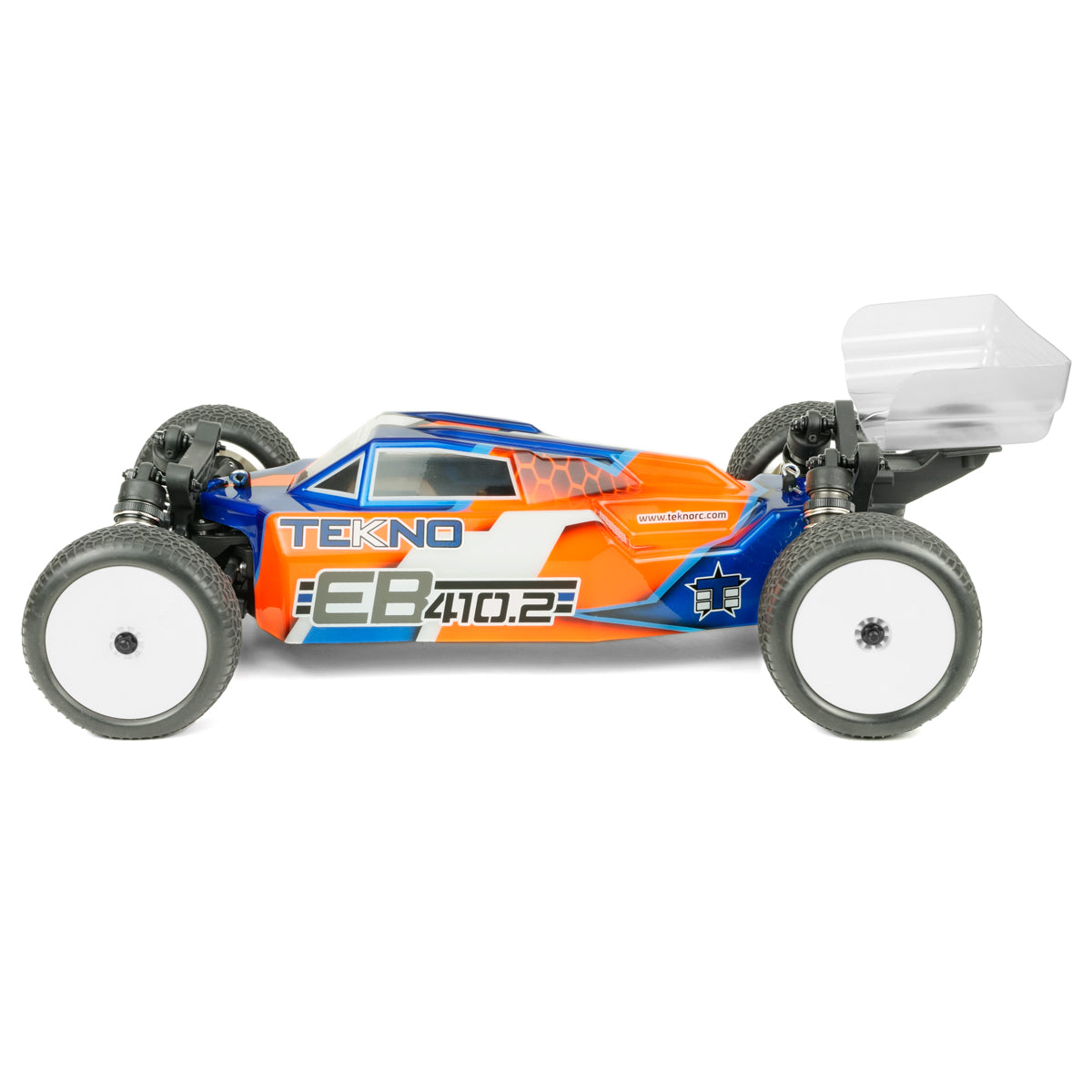

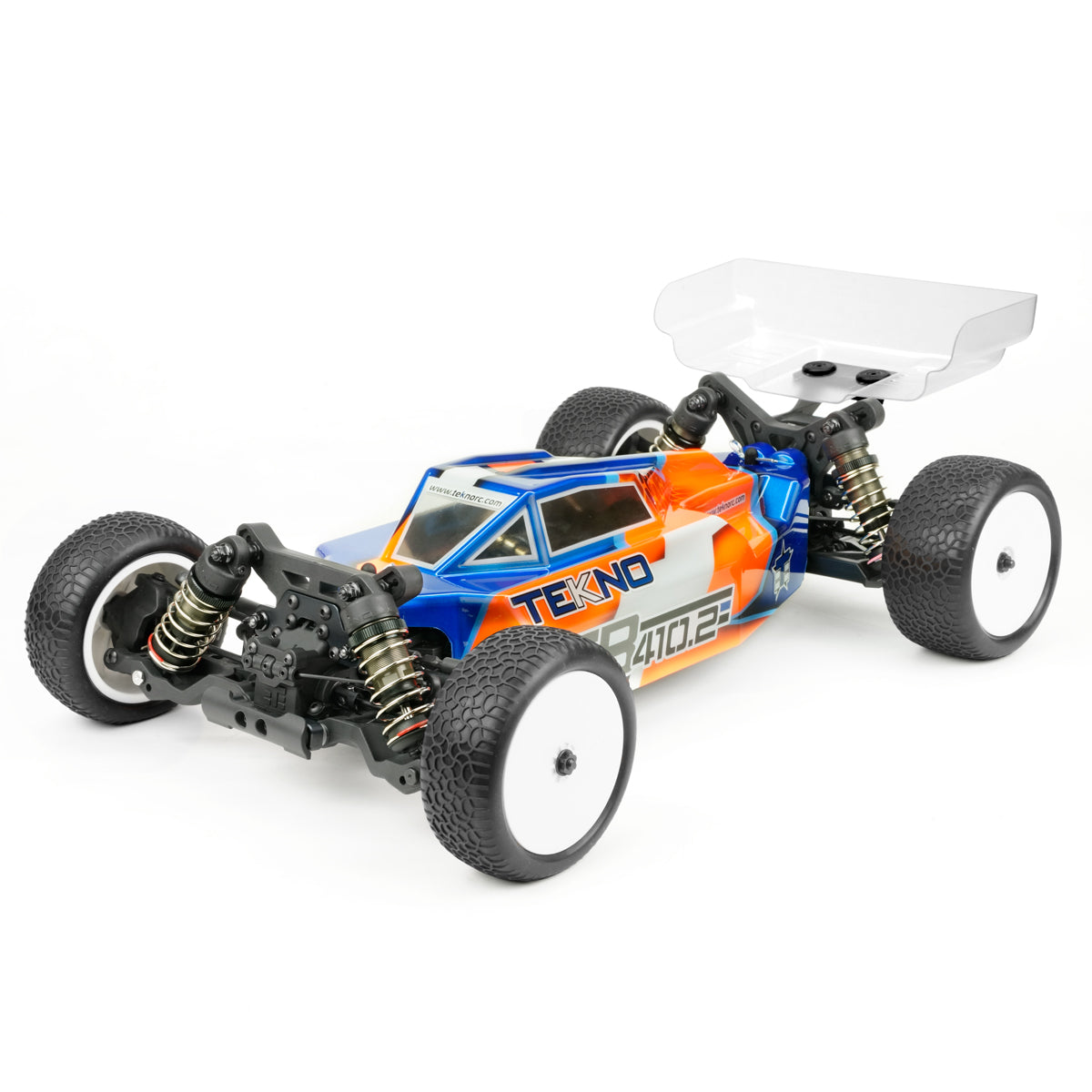

Tekno - TKR6502 - EB410.2 1/10th 4WD Competition Electric Buggy Kit
Regular price
$429.99
Sale price
$699.99
Shipping calculated at checkout.
EB410.2 Key Features:
- Revised CNC 7075 Long Wear Chassis
- New Larger 3.5mm HD Hinge Pins and Revised Hinge Pin Inserts
- New ABCD Hinge Pin Braces w/ Revised Suspension Geometry

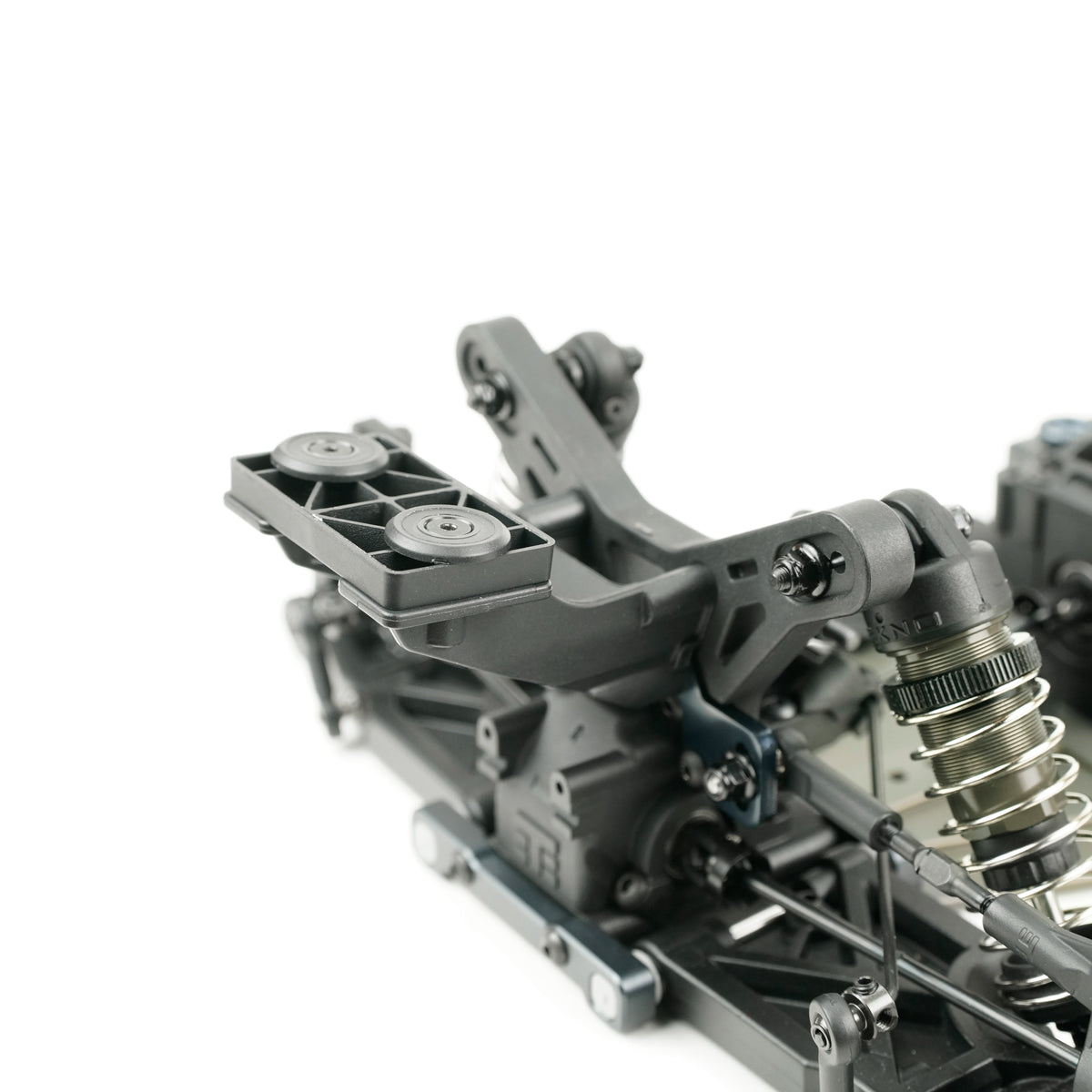

- New Taller, Stronger One Piece Wing Mount w/ Height Adjustments
- 13mm Big Bore Shocks w/ Revised Cartridge and Cap Bushing
- Ultra Secure Locking Spring Perch Design
- New Rear Arms w/ Front Mounted Shocks
- New Adjustable Roll Center Rear Hubs

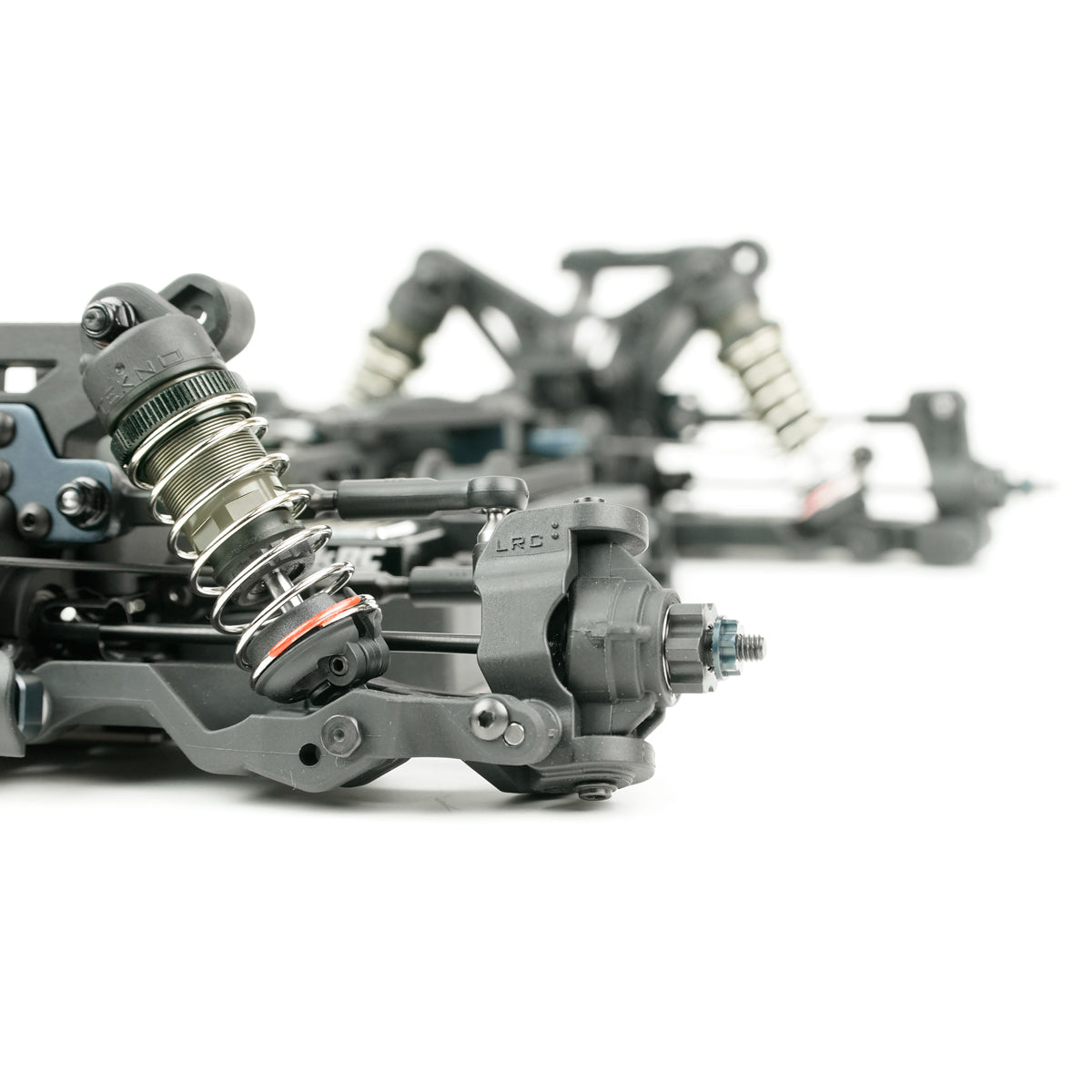

- New 15 Degree LRC Spindle Carriers
- New Aluminum Front Camber Plate w/ Bulkhead Brace
- Revised Material 81T Spur Gear
- Front and Rear Sway Bars Now Included
- Large Wheel Bearings and 6mm HD Stub Axles
- Newly Optimized Reverse Bellcrank Steering System
Wheel Compatibility
TLR 22x-4 wheels PN: 43021 (yellow) and 43022 (white) as well as Proline wheels PN: 2767-02 (white) and 2767-04 (yellow) are compatible. If you are using TKR6553X – Adjustable Ackermann Spindles, spindle arm TKR6669D is recommended.
Specifications
- Length: 393mm (without wing) up to 424mm (with wing)
- Wheelbase: 283-294mm
- Width: 246-250*mm (*optional hubs required)
- Weight: 1630 (or less) to 1780g depending upon equipment used
- Diff Ratio: F/R – 16/40t, Center – 81t
- Battery tray dimensions: 96x47x26mm
- Kit/RTR: Kit
Needed to Complete
- 2/3 channel radio/transmitter
- 1/10 scale ESC and motor system
- High torque steering servo (at least 200oz/in)
- 48 pitch 17 to 34 tooth pinion
- 2s shorty LiPo battery (at least 4000mAh)
- 1/10th scale 4wd buggy tires, wheels & CA glue
- Paint for body
Recommended Tools
- Nut drivers 5.5mm (TKR1108) and 7.0mm (TKR1109)
- Hex drivers 1.5mm, 2.0mm, and 2.5mm
- Hobby knife
- Needle-nose pliers
- Shock tool (TKR1115) OR adjustable (Crescent) wrench (for shock assembly)
- 4mm turnbuckle wrench (TKR1103) – 5.5/7.0 two-sided wrench (TKR1119)
Manual: https://www.teknorc.com/shop/tkr6502-eb410-2-1-10th-4wd-competition-electric-buggy-kit/
Setup Sheet: https://www.teknorc.com/wp-content/uploads/2019/10/EB410_2instructions_SetUpSheet_Blank_ReaderSaveable.pdf
